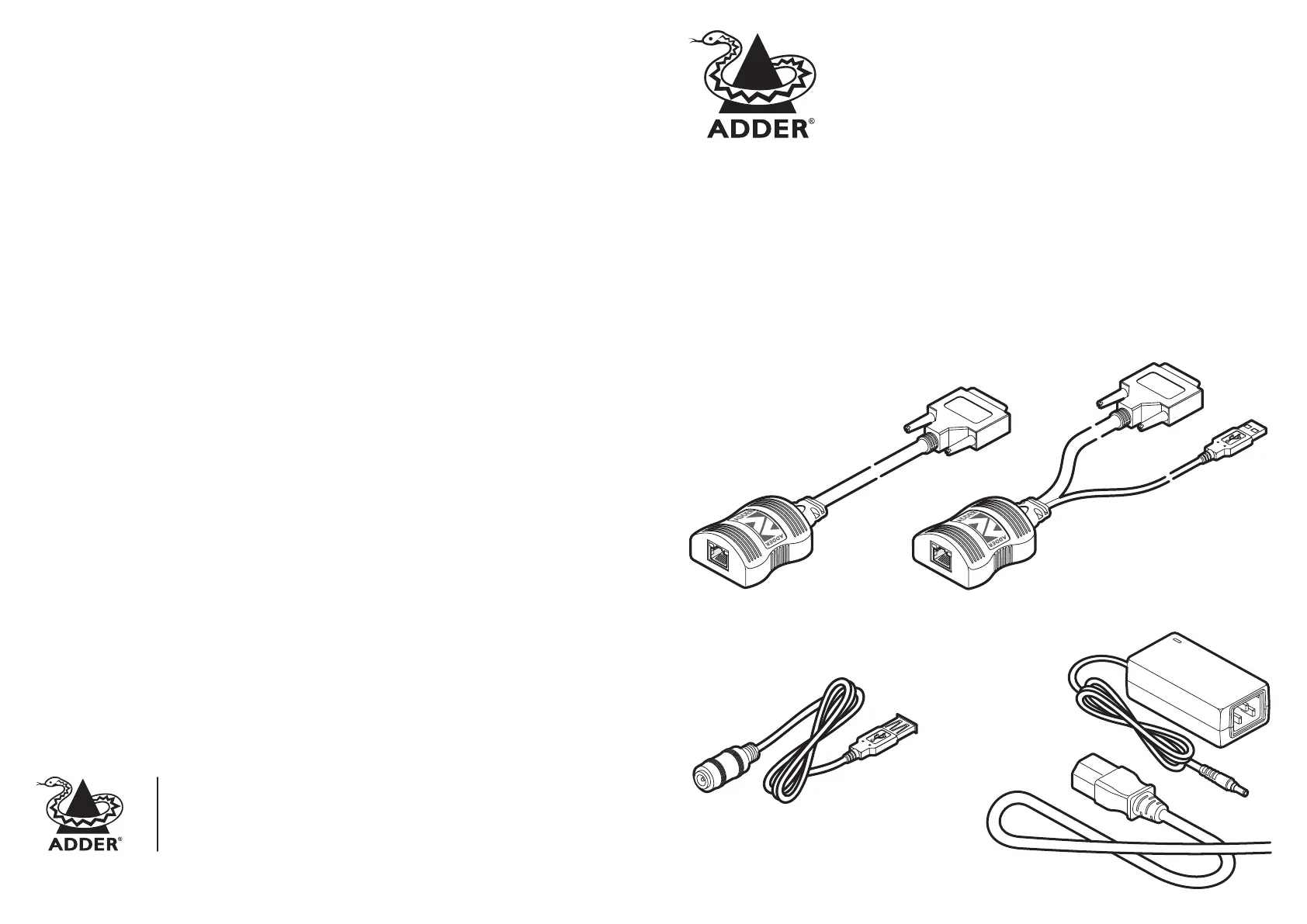

Your AdderLink DV120 package

The AdderLink DV120 allows you to extend DVI-D digital video over a maximum of 50 meters of

twisted pair cable with the minimum of infrastructure and fuss. It is simply powered via USB from

the local end, so that no additional power supply is required at the remote, simultaneously saving

time and space as well as making installation very straightforward.

In addition to this brief guide, your package should contain the following:

Supplied items

AdderLink DV120

User Guide

Warranty

Adder Technology Ltd warrants that this product shall be free from defects in workmanship and

materials for a period of two years from the date of original purchase. If the product should fail to

operate correctly in normal use during the warranty period, Adder will replace or repair it free of

charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s

control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indi-

rectly from the use of this product. Adder’s total liability under the terms of this warranty shall in

all circumstances be limited to the replacement value of this product.

Regulatory information

EMC directive 2004/108/IEC

This equipment has been tested and found to comply with the limits for a class A computing

device in accordance with the speciﬁcations in the European standard EN55022. These limits are

designed to provide reasonable protection against harmful interference. This equipment gener-

ates, uses and can radiate radio frequency energy and if not installed and used in accordance

with the instructions may cause harmful interference to radio or television reception. However,

there is no guarantee that harmful interference will not occur in a particular installation. If this

equipment does cause interference to radio or television reception, which can be determined by

turning the equipment on and off, the user is encouraged to correct the interference with one

or more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase

the separation between the equipment and the receiver. (c) Connect the equipment to an outlet

on a circuit different from that to which the receiver is connected. (d) Consult the supplier or an

experienced radio/TV technician for help.

FCC compliance statement (United States)

This equipment generates, uses and can radiate radio frequency energy and if not installed

and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause

interference to radio communications. It has been tested and found to comply with the limits for

a Class A computing device in accordance with the speciﬁcations in Subpart J of part 15 of FCC

rules, which are designed to provide reasonable protection against such interference when the

equipment is operated in a commercial environment. Operation of this equipment in a residential

area may cause interference, in which case the user at his own expense will be required to take

whatever measures may be necessary to correct the interference. Changes or modiﬁcations not

expressly approved by the manufacturer could void the user’s authority to operate the equipment.

What you may additionally need

PSU-LPV-KIT

External power

adapter and USB

adapter cable.

This power kit is only required if the host

computer or other device with a USB

port cannot provide sufﬁcient power.

Safety information

• Foruseindry,oilfreeindoorenvironments.

• Ensurethatthetwistedpairinterconnect

cable is installed in compliance with all ap-

plicable wiring regulations.

• Donotconnecttheinterconnectcableto

any other equipment, particularly network

or telecommunications equipment.

• Donotattempttoservicetheunitsyourself.

Local unit

Remote unit

ALDV120P package includes: 1 local unit and 1 remote unit

©2013AdderTechnologyLimited•Alltrademarksareacknowledged.

PartNo.MAN-QS-ALDV120-ADDER•Release1.0d

Web: www.adder.com

Contact: www.adder.com/contact-details

Support: forum.adder.com

Green LED: Flashes to show unit is operating.

Yellow LED: Flashes when the remote unit is

being checked. On when the remote unit has

been veriﬁed and power applied to it.

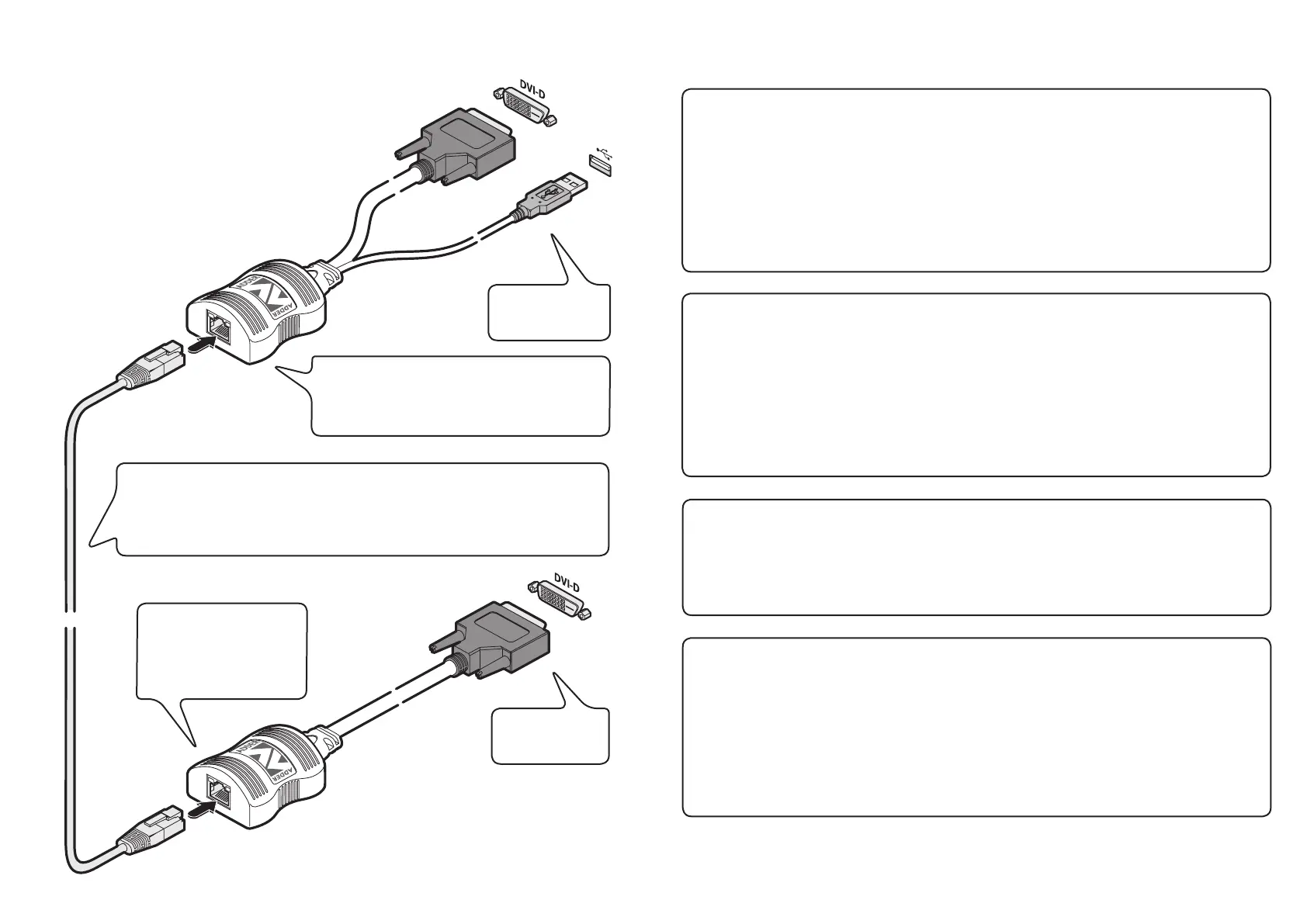

Connecting your AdderLink DV120

Local unit

1 Connect the plugs to the DVI-D video

output socket and a vacant USB port on

the computer. Note: The USB connection

provides only power for the units.

2 Attach one end of the link cable to the

socket at the end of the local unit.

Remote unit

1 Connect the video plug to the DVI-D

socket on the display screen.

2 Attach the other end of the link

cable to the socket at the end of the

remote unit.

IMPORTANT:

• Useonlyscreened(FTP)cable(CAT6orbetter)toconnectthetwounits.

• Donotconnectthelocalunit,viatheCATxcable,toanythingotherthanthe

remote unit.

Video and USB

connections to the

host computer.

Video connection

to the display

screen.

Power control

IMPORTANT: Do not connect the local unit, via the CATx cable, to anything other than the

remote unit.

Low voltage power for the remote unit is fed via the same link cable as is used for the video.

The local unit always performs a check before applying power along the link cable.

The local unit will disable the power if:

• Thecableisdisconnected,or

• Linepowerisoverloaded.

Green LED: Flashes to

show the unit is operating.

Yellow LED: Flashes if

HDCP encoded content is

present in the video feed.

Cable considerations

Toensurecorrectoperation,Category6(orbetter)shieldedtwistedpaircablemustbeusedto

connect the local and remote units. The use of shielded cables is important to maintain com-

pliance with radio frequency energy emission regulations and ensure a suitably high level of

immunity to electromagnetic disturbances.

For best results, Adder recommends S/FTP CAT7 cable such as Adder part number VSCAT7-50.

Patch panels or cable couplers should only be used close to the local unit, connected by CAT7

patch cables of no more than 2m in length. The overall cable run must be reduced by 5m if a

coupling is used.

DVI operation

TheAdderLinkDV120cansupportDVIvideouptoamaximum165MHzclockrate(1920x

1200or1600x1200at60Hz,24-bitcolor).

High-bandwidth Digital Content Protection (HDCP) is supported if HDMI or DisplayPort

converters are used with this product.

Video display (EDID) information

Extended Display Identiﬁcation Data (or EDID) is an industry standard scheme which allows

video displays to declare their capabilities to the computer’s video adapter circuitry, allowing

thelattertooptimizetheiroutputsaccordingly.Sincethewidespreadadoptionofthescheme,

video adapters have become increasingly dependent on receiving relevant EDID information

during start-up, before they will output anything more than a rudimentary video signal.

Each time that the AdderLink DV120 units are powered on, the remote unit attempts to read

the EDID information from the connected video display. The information is then transferred to

the local unit and made available to the computer’s video adapter when required.

Produkt Specifikationer

Mærke:	Adder
Kategori:	AV forlænger
Model:	ALDV120P
Type:	AV sender & modtager
Vægt:	250 g
Brugervejledning:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	1920 x 1200 pixel
Dimensioner (BxDxH):	63 x 21 x 30 mm
Certificering:	CE, FCC
Driftsspænding:	5 V
