CCS-XB

Quick Start

Self adhesive

rubber feet

CCS-XB controller

Four LED monitor indicators

Adder P/N: CCS-LED

(Also available separately when

more than four are required)

CATx link cable

Adder P/N: VSC46

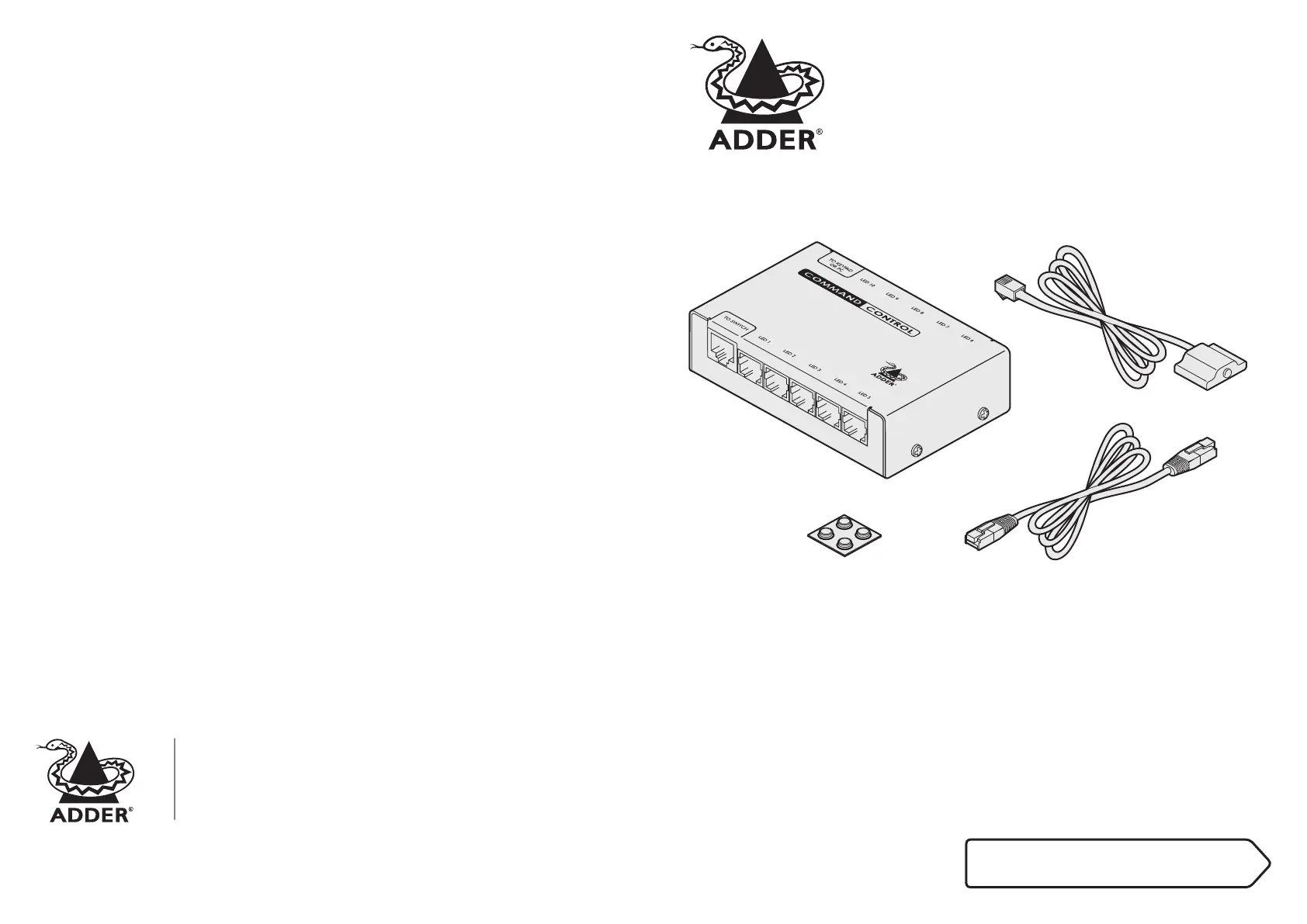

What’s in the box

Connection overview inside

Full user guide available at www.adder.com

Part No. MAN-CCS-XB-QS • Release 2.1

The CCS-XB module works together with either the Adder CCS4-USB or CCS-PRO4 switches to provide LED

indicators for each of your video display screens. As the switch activates a screen, the CCS-XB module activates

the corresponding indicator (which can be attached to the screen) to provide extra clarity for the operator.

Checking the ﬁrmware version (CCS4-USB switches only)

When using the CCS-XB module with a CCS4-USB switch, it is important that the switch has rmware version

2.0 (or greater) installed. If in doubt you can check the rmware version of your CCS4-USB switch as follows:

1 With your CCS4-USB switch powered on and with a USB keyboard attached, press and hold the

COMPUTER button for roughly six seconds until the display shows C.

2 On the connected keyboard, press F followed by 1 and then press Enter. The digits of the rmware

version will be shown in sequence with a short pause between each. For instance,1 > 0 > 2 means that

the rmware version is 1.02 and requires an upgrade.

3 Press E and then press Enter to return the CCS4-USB to normal operation.

If your CCS4-USB switch does require a rmware upgrade, please refer to the Performing upgrades

section of the CCS4-USB user guide.

Part numbers

CCS-XB Controller with CATx link cable and 4 LED monitor indicators

CCS-XB0 Controller with CATx link cable

CCS-XB8 Controller with CATx link cable and 8 LED monitor indicators

CCS-LED LED monitor indicator with 3m cable

CCS-LED-5M LED monitor indicator with 5m cable
