Your AdderLink DV100 package
The AdderLink DV100 allows you to extend HDMI digital video over a maximum of 50 meters of
twisted pair cable with the minimum of infrastructure and fuss. It is simply powered via USB from
the transmitter end, so that no additional power supply is required at the receiver, simultaneously
saving time and space as well as making installation very straightforward.
In addition to this brief guide, your package should contain the following:

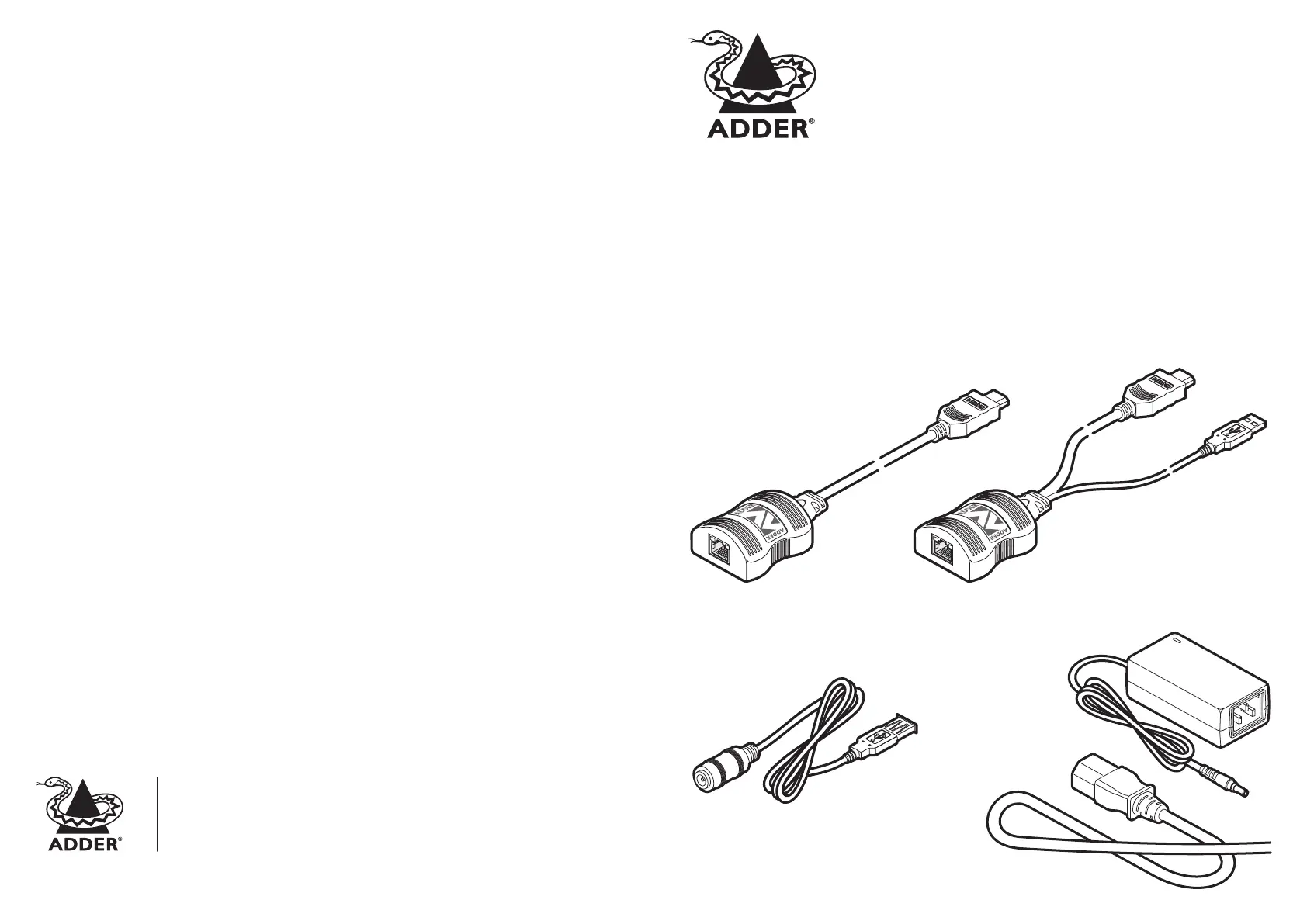

Supplied items
AdderLink DV100
User Guide
Warranty
Adder Technology Ltd warrants that this product shall be free from defects in workmanship and
materials for a period of two years from the date of original purchase. If the product should fail to
operate correctly in normal use during the warranty period, Adder will replace or repair it free of
charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s
control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indi-
rectly from the use of this product. Adder’s total liability under the terms of this warranty shall in
all circumstances be limited to the replacement value of this product.
Regulatory information
EMC directive 2004/108/IEC
This equipment has been tested and found to comply with the limits for a class A computing
device in accordance with the specifications in the European standard EN55022. These limits are
designed to provide reasonable protection against harmful interference. This equipment gener-
ates, uses and can radiate radio frequency energy and if not installed and used in accordance
with the instructions may cause harmful interference to radio or television reception. However,
there is no guarantee that harmful interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to correct the interference with one
or more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase
the separation between the equipment and the receiver. (c) Connect the equipment to an outlet
on a circuit different from that to which the receiver is connected. (d) Consult the supplier or an
experienced radio/TV technician for help.
FCC compliance statement (United States)
This equipment generates, uses and can radiate radio frequency energy and if not installed
and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause
interference to radio communications. It has been tested and found to comply with the limits for
a Class A computing device in accordance with the specifications in Subpart J of part 15 of FCC
rules, which are designed to provide reasonable protection against such interference when the
equipment is operated in a commercial environment. Operation of this equipment in a residential
area may cause interference, in which case the user at his own expense will be required to take
whatever measures may be necessary to correct the interference. Changes or modifications not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.
What you may additionally need
PSU-LPV-KIT
External power
adapter and USB
adapter cable.
This power kit is only required if the host
computer or other device with a USB
port cannot provide sufficient power.
Safety information
• Foruseindry,oilfreeindoorenvironments.
• Ensurethatthetwistedpairinterconnect
cable is installed in compliance with all ap-
plicable wiring regulations.
• Donotconnecttheinterconnectcableto
any other equipment, particularly network
or telecommunications equipment.
• Donotattempttoservicetheunitsyourself.
Transmitter unit
Receiver unit
ALDV100P package includes: 1 transmitter unit and 1 receiver unit
©2013AdderTechnologyLimited•Alltrademarksareacknowledged.
PartNo.MAN-QS-ALDV100-ADDER•Release1.0d
Web: www.adder.com
Contact: www.adder.com/contact-details
Support: forum.adder.com
Connecting your AdderLink DV100
Power control
IMPORTANT: Do not connect the transmitter unit, via the CATx cable, to anything other than
the receiver unit.
Low voltage power for the receiver unit is fed via the same link cable as is used for the video.
The transmitter unit always performs a check before applying power along the link cable.
The transmitter unit will disable the power if:
• Thecableisdisconnected,or
• Linepowerisoverloaded.
Transmitter unit
1 Connect the plugs to the HDMI video
output socket and a vacant USB port on
the computer. Note: The USB connection
provides only power for the units.
2 Attach one end of the link cable to the
socket at the end of the transmitter unit.
Receiver unit
1 Connect the video plug to the HDMI
socket on the display screen.
2 Attach the other end of the link
cable to the socket at the end of the
receiver unit.
IMPORTANT:
• Useonlyscreened(FTP)cable(CAT6orbetter)toconnectthetwounits.
• Donotconnectthetransmitterunit,viatheCATxcable,toanythingotherthan
the receiver unit.
Video and USB
connections to the
host computer.
Video connection
to the display
screen.
Green LED: Flashes to
show the unit is operating.
Yellow LED: Flashes if
HDCP encoded content is
present in the video feed.
Green LED: Flashes to show unit is operating.
Yellow LED: Flashes when the receiver unit is
being checked. On when the receiver unit has
been verified and power applied to it.
HDMI operation
The AdderLink DV100 can support HDMI video (including 480p, 720p and 1080p) and audio up
toamaximum165MHzclockrate.
High-bandwidth Digital Content Protection (HDCP) is supported, however, the Consumer
Electronics Control (CEC) scheme is not.
Video display (EDID) information
Extended Display Identification Data (or EDID) is an industry standard scheme which allows
video displays to declare their capabilities to the computer’s video adapter circuitry, allowing
thelattertooptimizetheiroutputsaccordingly.Sincethewidespreadadoptionofthescheme,
video adapters have become increasingly dependent on receiving relevant EDID information
during start-up, before they will output anything more than a rudimentary video signal.
Each time that the AdderLink DV100 units are powered on, the receiver unit attempts to read
the EDID information from the connected video display. The information is then transferred to
the transmitter unit and made available to the computer’s video adapter when required.
Cable considerations
Toensurecorrectoperation,Category6(orbetter)shieldedtwistedpaircable,nolongerthan
50 meters in length, must be used to connect the transmitter and receiver units. The use of
shielded cables is important to maintain compliance with radio frequency energy emission
regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
For best results, Adder recommends S/FTP CAT7 cable such as Adder part number VSCAT7-50.
Patch panels or cable couplers should only be used close to the transmitter unit, connected by
CAT7 patch cables of no more than 2m in length. The overall cable run must be reduced by 5m
if a coupling is used.
