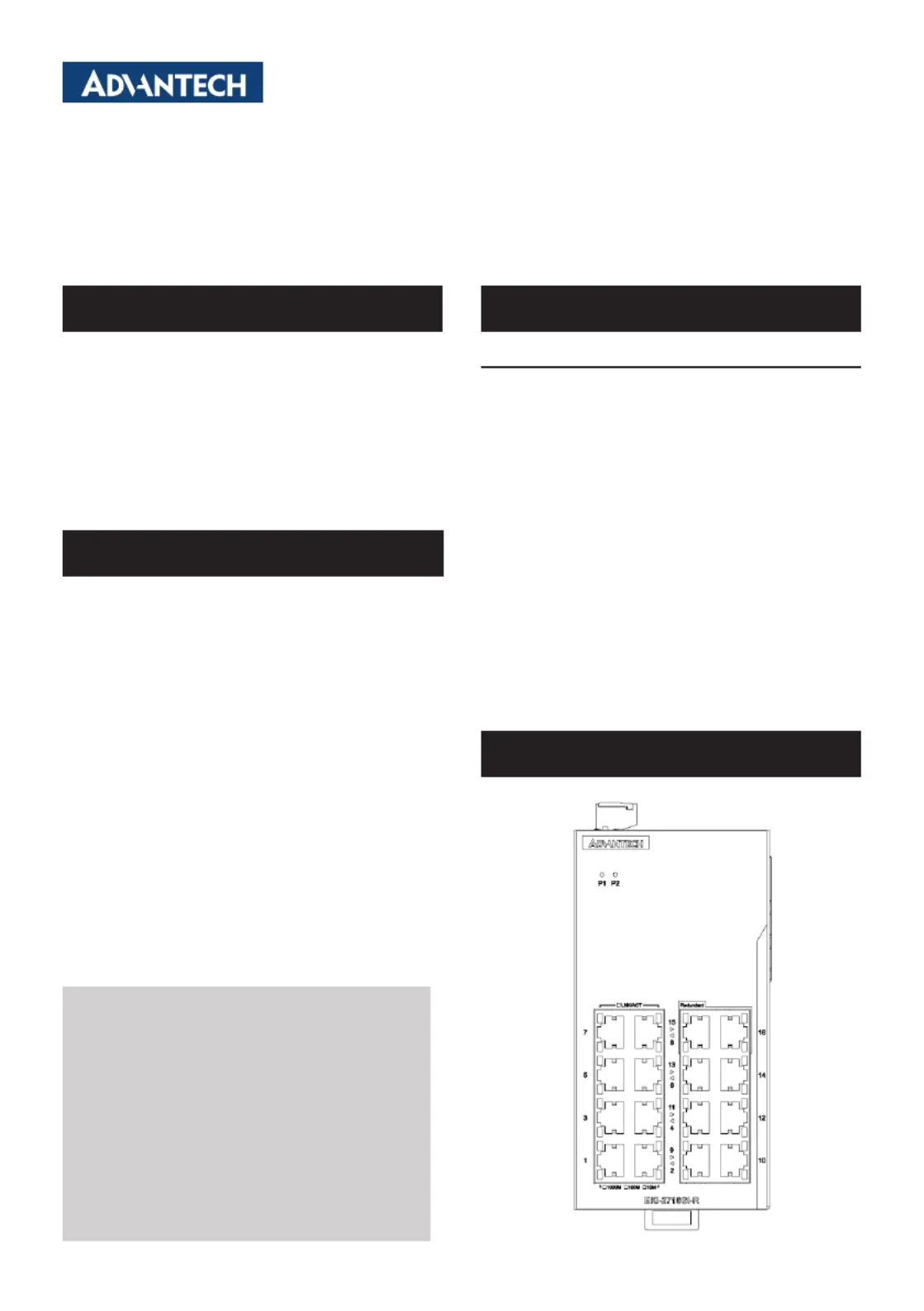

EKI-2716GI-R Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716GI-R Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716GI-R Startup Manual
If anything is missing or damaged, contact your distributor
The EKI-2716GI-R industrial Ethernet switch provides 16
x10/100/1000Mbpscopperports,o󰀨eringversatilecon-
nectivity for diverse applications. Users can conveniently
enable or disable Quality of Service (QoS) and Network
Redundancy (RSTP or X-Ring) settings using DIP switches.
With the help of the network redundancy function on two
designated ports, the EKI-2716GI-R ensures network
redundancy and rapid recovery, maintaining uninterrupted
communication even during link failures. Equipped with
12–48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
EKI-2716GI-R
16-port Gigabit Unmanaged Switch with Network
Redundancy
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u,
802.3ab,802.3x,802.1p,802.1w
• LAN:16 x 10/100/1000 BASE-T/TX RJ-45 ports
• TransmissionDistance:Up to 100 m
• Connectors:16 x RJ45
• SwitchArchitecture: Store and Forward
• PowerInput:12~48 V
DC
, redundant power
• PowerConsumption: 9.6W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity: 5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
Specications
Overview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716GI-R.
Part No. 2049271640 Edition 1
July 2025
PackingList
Overview

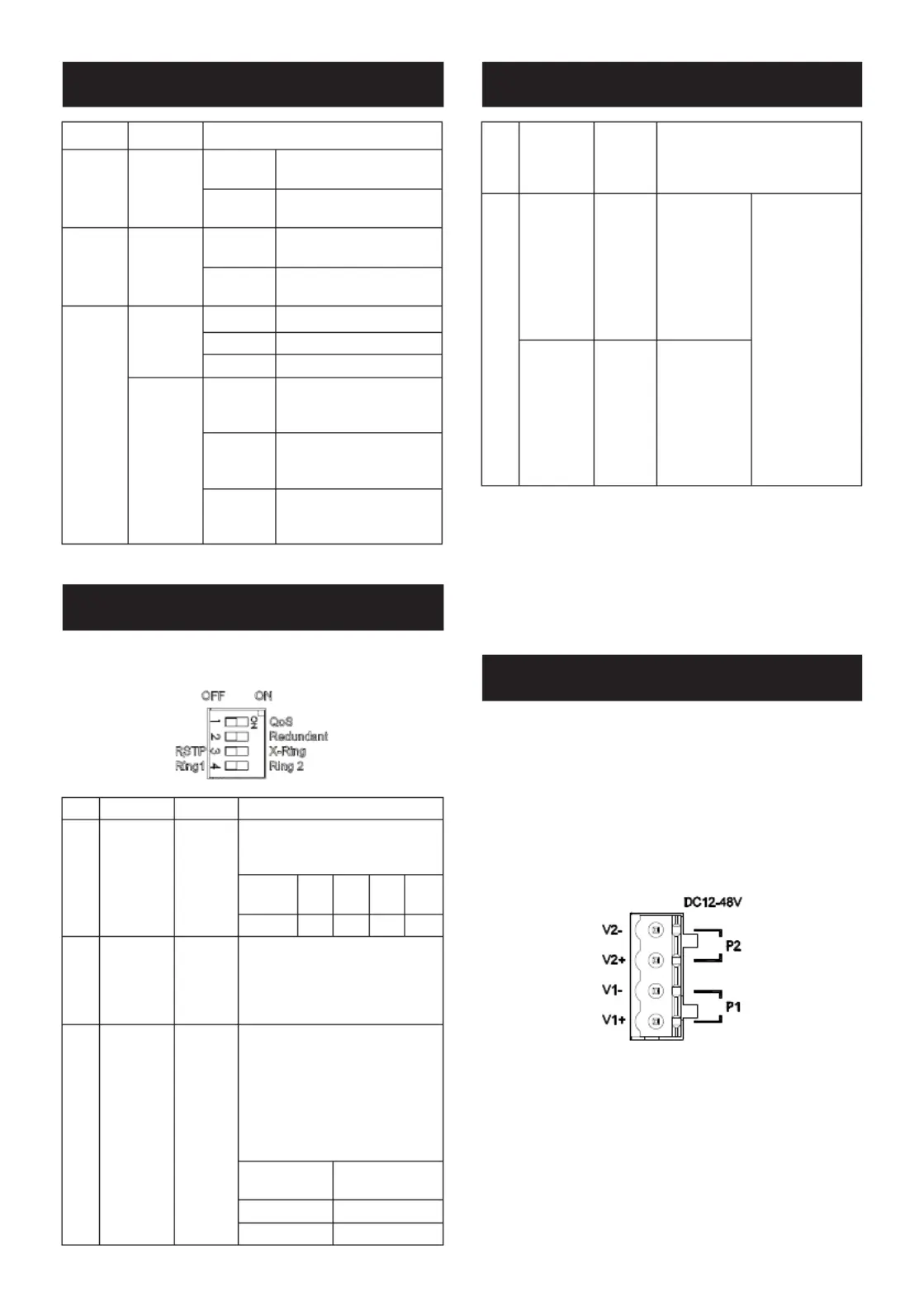

2 EKI-2716GI-R Startup Manual
3 X-Ring Right
Switch the DIP to the ‘right’
position to enable X-Ring. Use
the DIP switch below to select
the Ring ID.
4
Ring 1 Left
Switch the
DIP to the
‘left’ position
to activate
Ring 1 for X-
Ring. Ring 1
corresponds
to Ring ID
255.
*E󰀨ectiveonly
when X-Ring
redundancy is
enabled.
* X-Ring
supports only
a single-ring
topology
* The managed
switch within
the same ring
has the same
Ring ID as the
EKI-2716GI-R
* Recommend-
ed default: Ring
1 (ID: 255)
Ring 2 Right
Switch
the DIP to
the ‘right’
position to
activate Ring
2 for X-Ring.
Ring 2 cor-
responds to
Ring ID 254.
Note:
PortLED–StandbyMode
When X-Ring or (R)STP loop protection is active, one port
enters standby mode (blocked port in RSTP terms). The
portstaysconnectedbutdoesnotforwardtra󰀩c.Both
RJ45 LEDs blink green once per second. The port resumes
forwarding automatically if the topology changes.
The EKI-2716GI-R switch supports dual +12~48 V
DC
power
inputs. For operation, connecting either power V1 or V2
totheswitchissu󰀩cient.Ifbothsetsareconnected,it
enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and V-
contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certiedpowersupplyorDCsourcesuitablefor
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 1.2 A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord connect-
ed to a socket-outlet with earthing connection.
LED DescriptionColor
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied
to power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied
to power input.
Copper
Ports
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
Green/
Amber
(bottom)
Green
On
When the port’s data
is being transmitted at
1000M
Amber
On
When the port’s data
is being transmitted at
100M
O󰀨
When the port’s data
is being transmitted
at 10M
This series provide 4-pin DIP switches for function setting.
DIPswitchdenitionislistedasfollows:
Pin SettingFunction Description
1 QoS ON
Switch the DIP to “ON” to
activate Quality of Service for
managing packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2
Network
Redun-
dancy
ON
Switch the DIP to “ON” to
enable network redundancy for
either RSTP or X-Ring (single
ring) on both Port 15 and 16
using the DIP switch below.
3 RSTP Left
Switch the DIP to the ‘left’
position to enable RSTP. The
device supports both RSTP
and STP to ensure backward
compatibility with legacy
devices.
Note: Make sure to turn on PIN
2 for network redundancy.
Bridge
Priority
32768
Hello Time 2 sec
Max Age 20 sec

DIPSwitch

LEDDenition

DIPSwitch(Cont.)

PowerConnnection
