Side 1/6

MIC-75GF10 Startup Manual 1

Before you begin installing your i-Module, please make sure

that the following items have been shipped:

1. 1 x MIC-75GF10 i-Module

2. 1 x rubber clamp pad P/N: 1990024989T010

3. 10 x screws M3X4L P/N: 1930007979

4. 2 x screws M3x4.5 P/N: 1930005673-11

5. 4 x screws M4x4L P/N: 1930007259-01

6. 2 x mounting brackets P/N: 1960070545N006

7. 4 x screws for mounting brackets PN: 1930007259-01

8. MIC-75GF10 Start-up manual P/N: 204175GF00

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

le. Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75GF10

MXM GPU Expansion Module for New AI Applica-

tion with MIC-7 Series Embedded System

Startup Manual

PCIe Slots

• 1 x PCIe p1-x4

• 1 x MXM 3.1 connector with PCIe x16 signal

Environment

• Operating Temperature: T1000: -10 ~ 50 °C; RTX-3000/

A2000/A1000: -10 ~ 40 °C (35W CPU and industrial wide-

temp. RAM/SSD)

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• i-Module Dimensions: i-Module Dimension (W x H x D):

192 x 151.5 x 230 mm

• MIC-7 series: (W x H x D): 113 x 192 x 230 mm

Connectors

Item Function

MXM1 MXM 3.1 connector with PCIe x16 signal

PPCIE1 PCIe p1-x4 slot

SATAPWR1 4-pin SATA power connector (5V)

SATA1 SATA signal connector

SYSFAN1 4-pin fan connector

SYSFAN2 4-pin fan connector (reserved)

DC12VOUT1

4 pin DC 12V ATX power connector for

PICE x4

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

This manual is for the MIC-75GF10 Rev. A1.

Part No. 204175GF00

Printed in China

1st Edition

April 2023

I/O Connectors

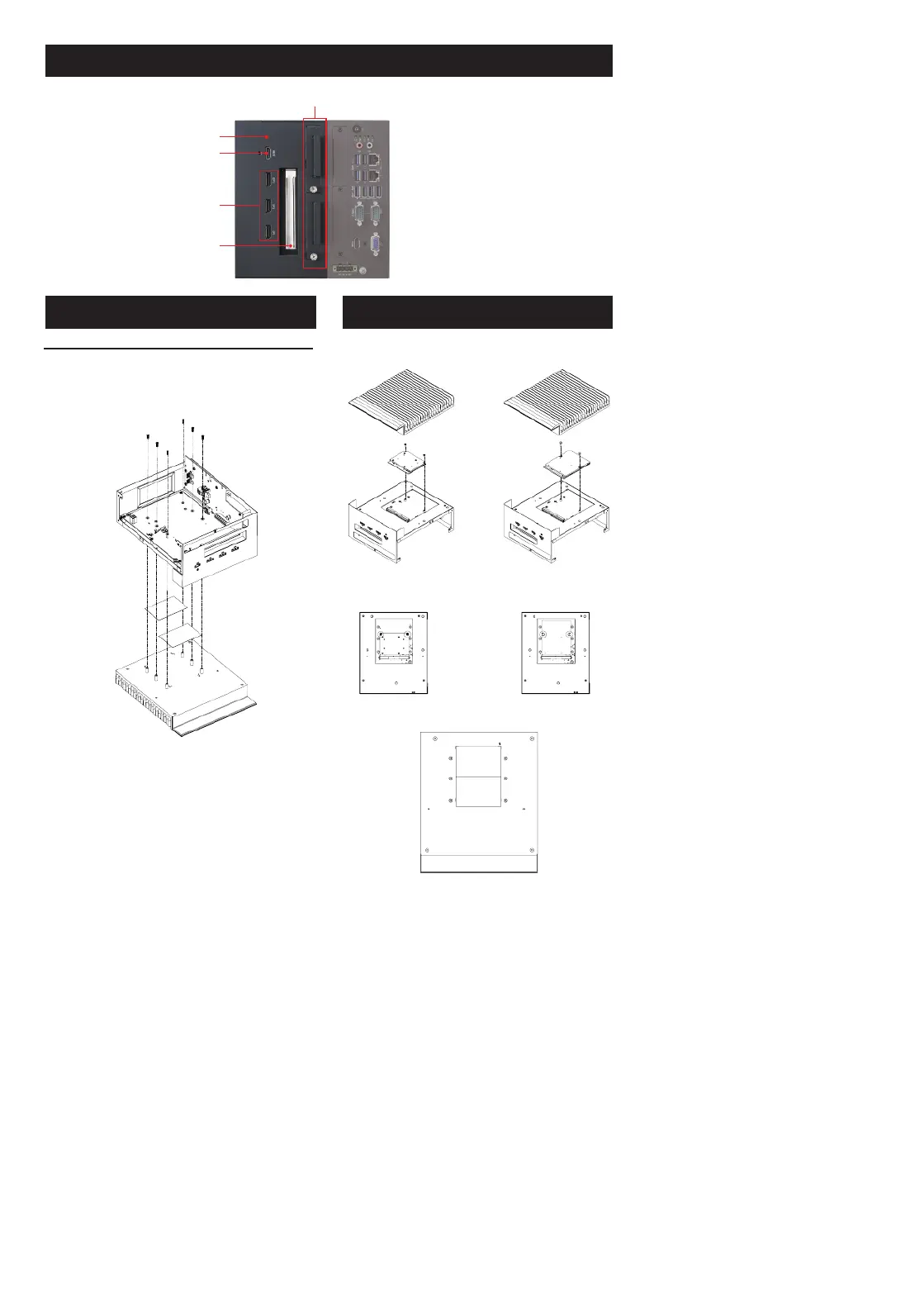

2 MIC-75GF10 Startup Manual

System Installation

MIC-75GF10 can be assembled with all MIC-7 series IPC

systems.

1. Undo 6 screws to release heatsink from MXM holder

bracket of MIC-75GF10.

2 x 2.5" swappable storage bay

(up to 15mm thickness)

MXM Conn.

PCIe x16

HDMI

PCIe p2-x4 for add-on card

DisplayPort

Simple Maintenace Process

Front View

2. Attach heat spreader and thermal pad to MXM module.

3. Place MXM module and secure it with 2 screws.

Note: Placement of thermal pad.

RTX-1000

RTX-3000

Simple Maintenace Process (Cont.)
