MIC-75S00 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. MIC-75S00 Module p1-x1

2. MIC-75S00 Startup Manual p1-x1 P/N: 204175S000

3. M3 x 4L Screws x 4 P/N: 1930007979

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

le. Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75S00

Dual Front Accessible 2.5” SATA Storage Bay for

MIC-7 Series Embedded System

Startup Manual

Storage

• Internal SATA connector: 2

Note 1: MIC-75S00 supports 2 x 2.5’ HDD space and

both SATA signals are from main system.

Note 2: MIC-75S00 supports thickness of 2.5” HDD/SSD

up to 15mm.

Environment

• Operating Temperature:

-20 ~ 60° C with 0.7 m/sec air ow: with 1 x Industrial SSD

0 ~ 45° C with 0.7 m/sec air ow: with 1 x 2.5” HDD

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• Dimensions (H x W x D): 192 x 31(min.)/69.15(max.) x

230

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-75S00 Series Rev. A1.

Part No. 204175S000

Printed in China

1st Edition

December 2022

2 MIC-75S00 Startup Manual

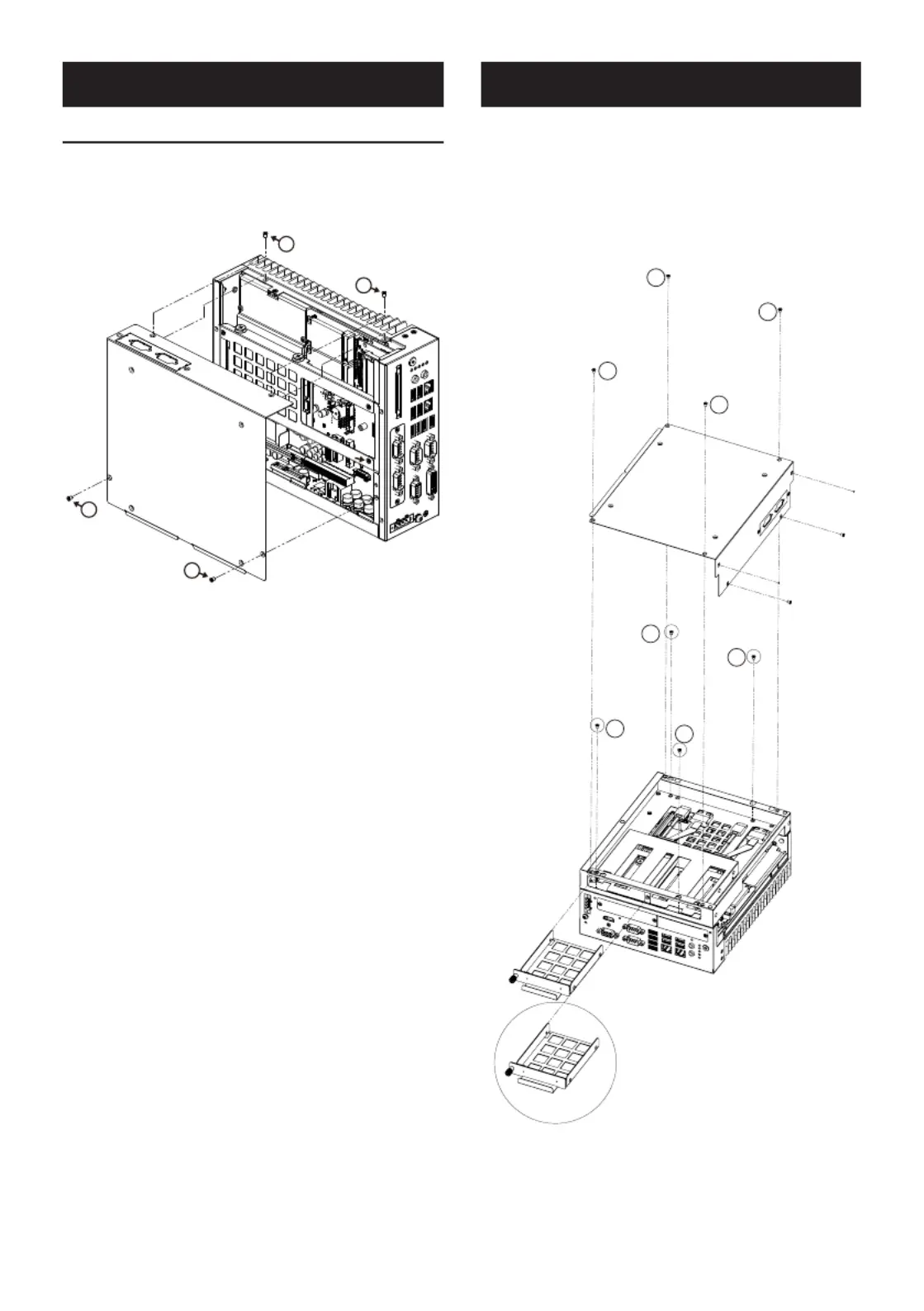

2. Attach MIC-75S00 to MIC-7 series device and secure

with 4 x screws.

Plug the SATA signal cable and power cable into the

main board of MIC-7 series. (Refer to the startup manu-

al of MIC-7 series for the location of SATA connector on

main board)

3. Place the rear cover onto MIC-75S00 assembled with

MIC-7 series and secure with 4 screws.

System Installation

MIC-7 series i-module can be assembled with all MIC-7

series IPC systems.

1. Undo MIC-7 series system screws and remove the

bottom cover.

Simple Maintenance Process

Simple Maintenance Process (Cont.)
