1 Startup Manual
STARTUP MANUAL
PCM-3724
PC/104 48-bit Digital I/O Module
Before installation, please make sure that you have:
If anything is missing or damaged, contact your
distributor or sales representative immediately.
For more detailed information on this product,
CD-ROM (PDF format).
Documents\Hardware Manuals\PCM\PCM-3724
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the
user is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental spec-
ifications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of
cable is available from Advantech. Please contact your local
supplier for ordering information.
The PCM-3724 is a PC/104-standard DI/O module which
attaches to the piggyback connector on your CPU card or
PC/104 CPU module. The PCM-3724's two Intel 8255 PPI
compatible chips provide 48 bits of parallel digital input/
output. Buffered inputs and outputs offer high driving
capacity.The module's 48 bits are divided into six 8-bit I/O
ports: A0, B0, C0, A1, B1 and C1. You can configure each
port as either an input or output in software.

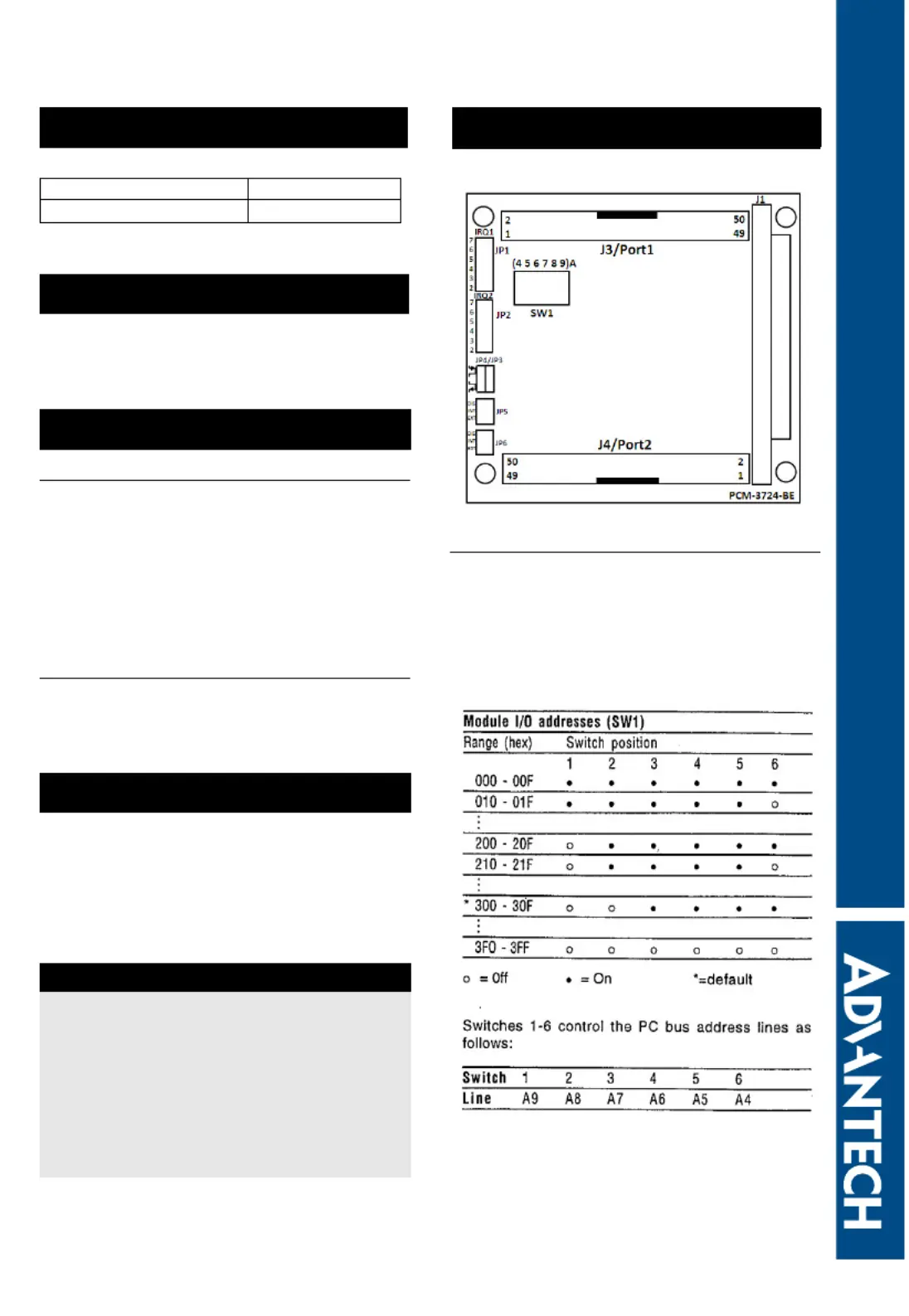

Base Address Selection (SW1)
Switch SW1 sets the module's base (beginning)
address. Valid base addresses range from Hex 000 to
Hex 3F0. We set the PCM-3724 for a base address
of Hex 300 at the factory. If you need to adjust it to
some other address range, set switch SW1 as shown
below:
Packing List Switch and Jumper Settings
• PCM-3724 Module • Driver CD
• Startup Manual
User Manual
Declaration of Conformity
Overview
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCM-3724.
Part No. 2003724111 2nd Edition
June 2011
2 Startup Manual
Interrupt Settings (JP1, JP2)
Jumpers JP1 and JP2 control the IRQ levels, as shown:
Note:
You must set each I/O line to a different interrupt level.
Interrupt Level (JP3, JP4)
Jumpers JP3 and JP4 select the trigger edge (rising or
falling) for I/O lines PC00 and PC10, respectively.
Jumper settings appear below:
Interrupt Mode (JP5, JP6)
Jumpers JP5 controls interrupt line PC00, and jumper
JP6 controls interrupt line PC10. The DIS setting for
each jumper disables the corresponding line's interrupt
capability. The INT setting enables the line's interrupt
capability. The EXT setting allows you to enable and
disable control by external interrupt.
Software Installation
Hardware Installation
After the device driver installation is completed, you
can now go on to install the PCM-3724 module on your
computer.
Please follow the steps below to install the module on
your system:
1. Touch the metal part on the surface of your
computer to neutralize the static electricity that
might be in your body.
2. Plug your card into a PC/104 slot. Use of excessive
force must be avoided; otherwise the card might get
damaged.
Installation
