PPC-306 EHL Series Startup Manual 1
Before installation, ensure that the following items are
included with the product:
• 1 x Panel PC
• 1 x PPC-306 EHL startup manual
• 1 x Phoenix connector
• 4 x Mount brackets
• 4 x Mount screws
your distributor or sales representative immediately.
Software Installation
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-306 EHL
6.5” Fanless Panel PC with Intel
®
Celeron
®
N6210
Processor
Startup Manual

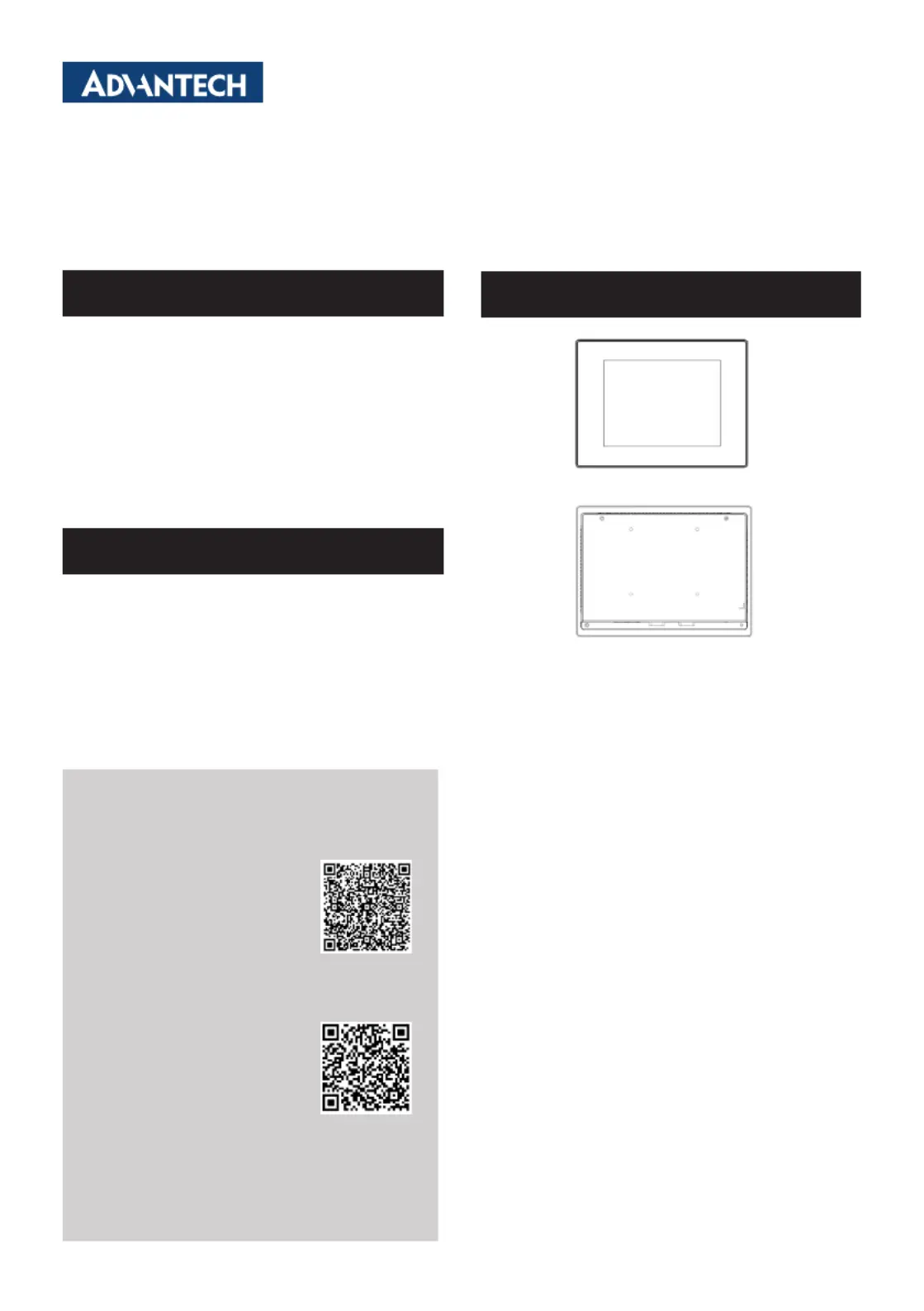

PPC-306 Front View
PPC-306 Rear View
Packing List
For more information about this product, visit the
Advantech website at
https://www.advantech.com/en/products/
general-purpose/sub_b4b1d255-3d7c-4edb-ae84-
5f9f2ab56107
For technical support and customer service, visit the
Advantech support website at
https://www.advantech.com/en/support/
This manual is for the PPC-306 EHL series, Rev. A0,
models.
Part No. 2044030600
Printed in China
Edition 1
August.2023
Appearance
2 PPC-306 EHL Series Startup Manual
Specications
LCD Panel 6.5”
Display Type TFT LCD (with LED backlight)
Max. Resolution 640 x 480
Brightness 800 cd/m
2
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Contrast 1000
Backlight Lifetime 70,000 hr (min.)
Touchscreen Type 5-wire resistive touch
LightTransmission 80±5% at 550 nm wavelength
Controller USB interface
Durability (Touches) Greater than 35 million touches in one location without failure
Enclosure Aluminum
Processor Intel
®
Celeron
®
N6210 dual core
Memory 1 x SO-DIMM DDR4 3200MHz (max. 32GB)
Storage 1 x M.2 slot: M key for storage (SATA only, 2242)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
I/O Ports
2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
1 x USB 2.0, 2 x USB 3.0
Expansion 1 x M.2 slot: E key for wireless module (Type: 2230)
Watchdog Timer 255 timer levels, set up by software
OS Support Microsoft
®
Win10 IoT LTSC, Win10, Win11, Linux (Ubuntu), Android 12
Power Supply 12-24Vdc
Power Consumption 30W (Burn-in test 8.1 in Windows 10, 64-bit)
OperatingTemperature -10 ~ 50 °C (14 ~ 122 °F)
Storage Temperature -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Tolerance Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Tolerance Operating Random Vibration Test; 2Grms @with M.2, follow IEC 60068-2-64
Safety and EMC CB, UL, CCC, UKCA , CE, FCC Class B, BSMI, UKCA, VCCI, EN60601-1-2
Dimensions 197.6 x 150.6 x 41 mm (7.8 x 5.9 x 1.6 in)
Weight 1.5 kg (3.30 lb)
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 16GB DDR4 3200
M.2: 64G
OS: Window 10 (64 bit)
Testing Software: Burn-In Test 8.1
