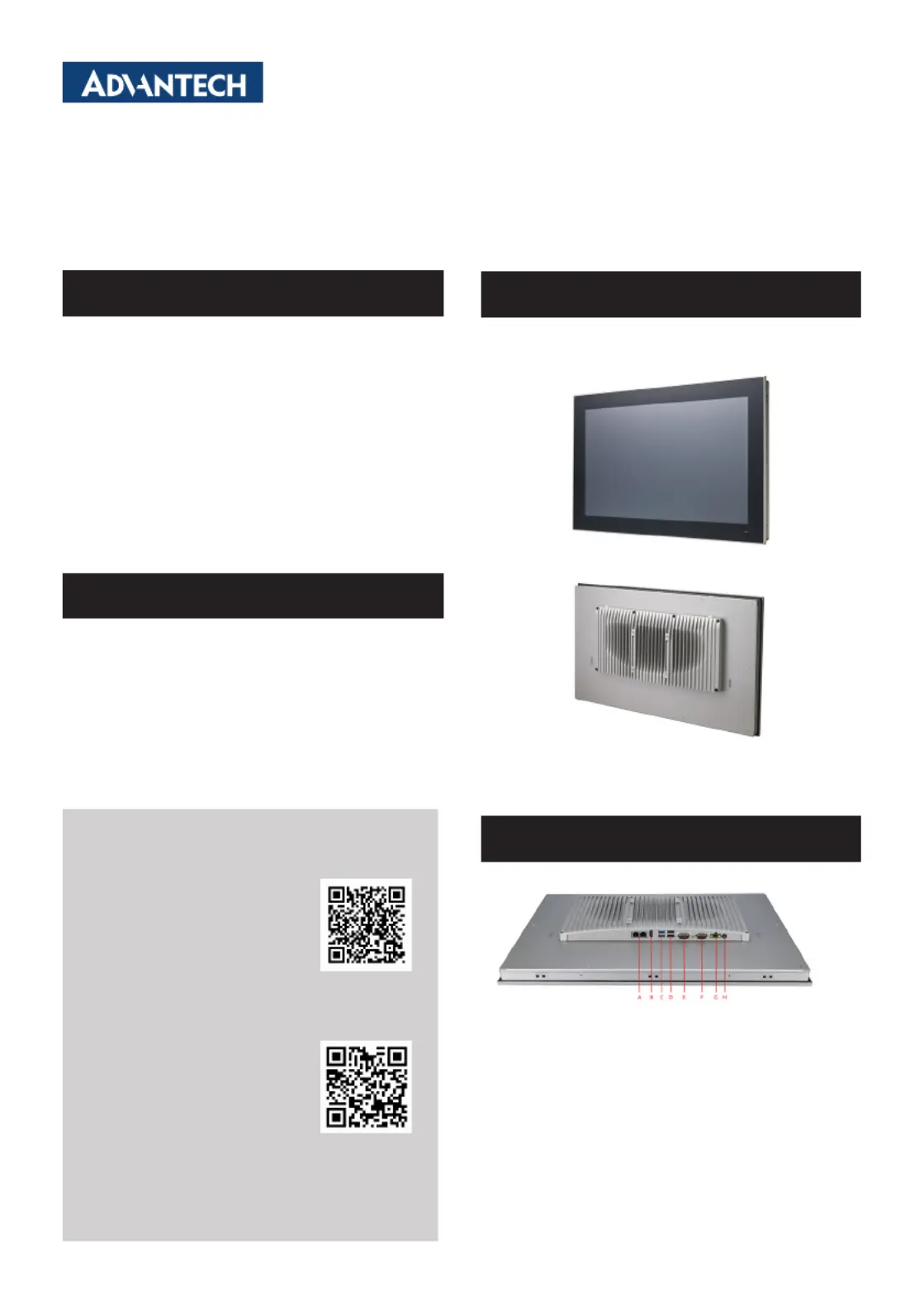

PPC-3211SW_3181SW_3151SW-P65A/324W-P7 Series Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-3211SW/3181SW/3151SW/324W-P7 startup
manual
3. 1 x Phoenix connector
4. 10/12/14 x Mount brackets (10 for PPC-3151SW; 12 for
5. 10/12/14 x Mount screws (10 for PPC-3151SW; 12 for
PPC-3211SW/3181SW; 14 for PPC-324W-P7)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Software Installation
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-3211SW/3181SW/3151SW/324W-P7
21.5”/18.5”/15.6”/23.8” Panel PC with TFT LCD
and 6th/7th Gen Intel
®
Core
TM
Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-3211SW model.
Front View
Rear View
A. 2 x LAN
B. 1 x HDMI
C. 2 x USB 3.0
D. 2 x USB 2.0
E. COM2: RS-232/422/485
F. COM1: RS-232
G. DC-In
H. Power button
VESA mount screws: 4 x M4 screws
Screw depth: 12 mm (max.)
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com/products/fanless-panel-
pcs/sub_1-2jkjm3
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the PPC-3211SW/3181SW/3151SW
/324W-P7 series, Rev. A0, models.
Part No. 2043315101
Printed in China
Edition 2
October 2020
Appearance
I/O Layout
2 PPC-3211SW_3181SW_3151SW-P65A/324W-P7Series Startup Manual
Specications
PPC-3211SW PPC-3181SW PPC-3151SW PPC-324W-P7
LCD Panel 21.5”18.5”15.6”23.8”
Display Type
TFT LCD (with LED
backlight)
TFT LCD (with LED
backlight)
TFT LCD (with LED
backlight)
TFT LCD (with LED
backlight)
Max. Resolution 1920 x 1080 1366 x 768 1920 x 1080 1920 x 1080
Brightness 300 cd/m
2
450 cd/m
2
450 cd/m
2
350 cd/m
2
Pixel Pitch 476.64 (H) x 268.11 (V) 300 (H) x 300 (V) 344.2 (H) x 193.5 (V) 274.5 (H) x 274.5 (V)
Viewing Angle
89 (left), 89 (right), 89 (up),
89 (down)
85 (left), 85 (right), 80
(up), 80 (down)
85 (left), 85 (right), 85 (up),
85 (down)
89 (left), 89 (right), 89 (up),
89 (down)
Contrast 5000 1000 800 1000
Backlight
Lifetime
50,000 hr (min.) 50,000 hr (min.) 50,000 hr (min.) 30,000 hr (min.)
Touchscreen
Type
Projected capacitive
Light
Transmission
90% ±3% 90% ±2% ≥85%
Controller USB interface
Durability
(Touches)
Greater than 35 million touches in one location without failure
Enclosure Aluminum
Processor 6th gen Intel® Core™ i processor
7th gen Intel® Core™ i
processor
Memory 1 x SODIMM DDR4 1866/2133, max. 16 GB (1.2V)
Storage 1 x 2.5” SATA bay; 1 x M.2 bay
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel® I211-AT; Intel® I219LM)
I/O Ports
1 x RS-232, 1 x RS-232/422/485 (adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0, HDMI x 1
Expansion 1 x Full-size mini PCIe slot
Watchdog Timer 255 timer levels, setup via software
Speaker 2 x 1W
OS Support Microsoft® Windows 7/8.1/10/WES 7/Linux
Microsoft® Windows 10
(64 bit), Windows 10 IoT
LTSC, Linux
Power Supply 12 ~ 24 V
DC
Power
Consumption
75W 65W 60W 80W
Operating
Temperature
0 ~ 50 °C/32 ~ 113 °F with SSD, 0 ~ 45 °C/32 ~ 104 °F with HDD (HDD test condition: HDD temperature more
than or equal to 65 °C/149 °F)
Storage
Temperature
-20 ~ 60 °C/-4 ~ 140 °F
Relative
Humidity
10 ~ 95% @ 40 °C/104 °F (non-condensing)
Shock Tolerance Operating 10G peak acceleration (11 ms duration), following IEC 60068-2-27
Vibration
Tolerance
Operating random vibration test, 5 ~ 500 Hz, 1 Grms with HDD, 2 Grms with SSD,
in accordance with IEC 60068-2-64
Safety and EMC
Safety: CB, UL, CCC, BSMI
EMC: CE, FCC Class B, BSMI
Dimensions
558.4 x 349.8 x 62.2 mm/
21.9 x 13.7 x 2.4 in
488 x 309 x 61.7 mm/
19.2 x 12.1 x 2.4 in
419.7 x 269 x 61.1 mm/
16.52 x 10.59 x 2.44 in
595.9 x 374.1 x 61.5 mm/
23.5 x 14.7 x 2.4 in
Weight 6.8 kg/14.9 lb 5.7 kg/12.56 lb 4.84 kg/10.67 lb 8.6 kg/18.95 lb
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 16 GB DDR4 2400
HDD: 64 GB SSD
OS: PPC-3211SW/3181SW/3151SW - Windows 7 (64 bit); PPC-324W-P7 - Windows 10 (64 bit)
Software: Burn-In Test 8.1
