SW505A

· 150 W. Multimedia Stereo Amplier

· Bluetooth Module and Control Panel

· Dynamic XLR Microphone

· 15 foot XLR mic cable

· 21"Electret condenser gooseneck

mic with Shock Mount Holder

· 16 CH UHF Wireless Microphone

and Receiver

· 2 - Built in Speakers

· 4 - Knurl Knobs/screws for Reading

Table 1" knob - 1" long

· 4 - Knurl Knobs for Base - 2" long

· Speaker Grille Cover

· 10 foot AC Power Cord

S505A

· 150 W. Multimedia Stereo Amplier

· Bluetooth Module and Control Panel

· Dynamic XLR Microphone

· 15 foot XLR mic cable

· 21" Electret condenser gooseneck

mic with Shock Mount Holder

· 2 - Built in Speakers

· 4 - Knurl Knobs/screws for Reading

Table 1" knob - 1" long

· 4 - Knurl Knobs for Base - 2" long

· Speaker Grille Cover

· 10 foot AC Power Cord

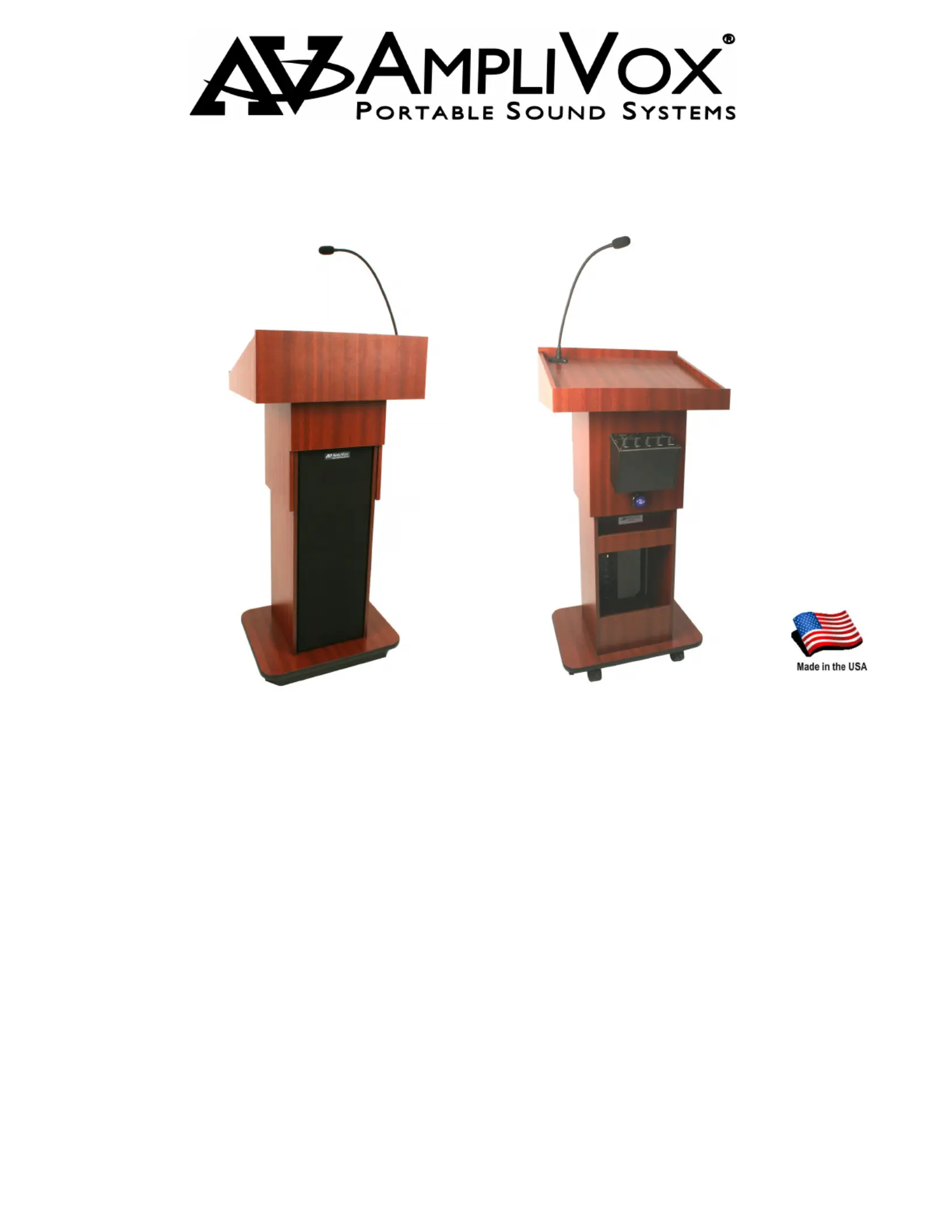

WHAT S IN’ THE BOX

Thank you for choosing the S505A and

SW505A Executive Adjustable Lectern

from AmpliVox Portable Sound Systems.

Our system combines flexibility with func-

tionality. Please refer to this user guide as

you enjoy the unique capabilities of an-

other quality product from AmpliVox Port-

able Sound Systems

We encourage you to visit our website

www.ampli.com to register your prod-

uct for its warranty coverage, sign up to

receive our newsletter, download our

catalog, and learn more about the com-

plete line of audio visual AmpliVox

products, including portable PA sys-

tems, and lecterns.

USER GUIDE

ASSEMBLY OF LECTERN .... 2 …………………………………… ……………

CONTROL PANEL . . 3 ……………………………………… ……………………

WIRELESS MIC SETUP . . 3 …………………………………… …………………

BLUETOOTH MODULE .. .4 ………………………………………… ……………

PROBLEM SOLVING . ................ 4 ………………………………………… ……

As always, you can reach us at 800-267-5486

or at 847-489-9000

Monday - Friday 8am - 6pm CST.

User Guide

EXECUTIVE ADJUSTABLE COLUMN SOUND LECTERN S505A / SW505A

NO TOOL ASSEMBLY OF LECTERN

OPERATION OF ADJUSTABLE LECTERN

This lectern adjusts from 38 inches to 44 inches measured from the

amplifier side. To adjust the lectern height:

1. With one hand at in the center of the table holding it down

loosen the adjustable height knob with the other hand.

2. You may extend the lectern up to its maximum height of 44 inches.

3. To lower the lectern, lightly press down on the reading table

until the desired height is reached and retighten the

height-locking knob.

TIP: The knob locks at any height by tightening it. The lectern

will adjust from 44 inches down to 38 inches when

measured from the amplifier side.

ADJUSTABLE HEIGHT DIAL

USE TO ADJUST LECTERN

HEIGHT FROM TO 38 44

INCHES.

CONTROL PANEL

BASE

MOUNTING FLANGE

READING

TABLE

FLEXIBLE GOOSENECK

MICROPHONE

CENTER

COLUMN

Please read all instructions first and then follow the steps below.

Your lectern may not contain some of these features.

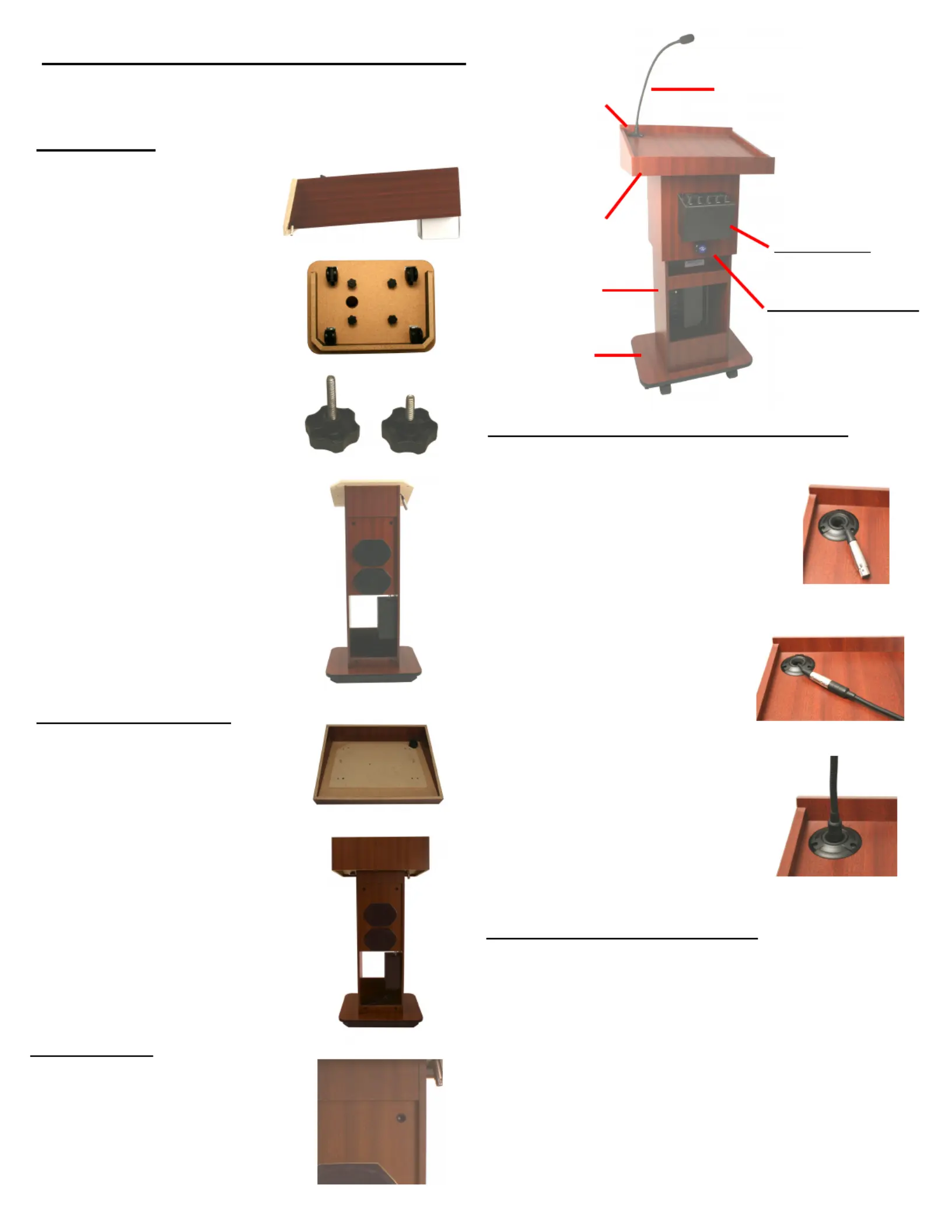

BASE ASSEMBLY

1. Remove center column from the

shipping carton and place as

shipped (speakers face down) on

the oor or on a suitable sturdy

table. If assembling on floor, raise

bottom end of lectern to make fasten-

ing base to lectern easier.

2. Remove and unpack the base from the

shipping carton.

3. Position base with the two locking

wheels facing the back of the lectern.

Assemble the base to the column by

using four of the 2 inch long knurl knob

screws supplied with the lectern.

TIP: Do not completely tighten each

screw as you place it through the base

and into the column. Wait until all four

screws have been put into the proper

position and then tighten them up.

4. Turn the base and column assembly

upright. If assembled on a table, place

the unit upright on the oor.

READING TABLE ASSEMBLY

1. Remove and unpack the lectern read-

ing table.

2. Attach the table to the top of the col-

umn. This is accomplished by placing

the table top on the column base and

lining up the corners.

TIP: the corners need to be lined up in

order to get the screws in the table top.

3. Fasten the reading table to the column

with the 4 - 1 inch long knurl knob

screws supplied. The knob screw goes

up into the reading table through the 4

holes in the column

SPEAKER GRILLE

1. Remove and unpack the speaker

grille..

2. Attach the speaker grille to the front of

the lectern by pushing the plastic posts

in each corner of the grille into the 4

cups.

ASSEMBLY OF FLEXIBLE GOOSENEC MICROPHONE :

The comes pre-wired to the ampli-MIC CORD

er but needs to be assembled into the

MOUNTING FLANGE located in the far left cor-

ner of the READING TABLE .

Take the plug end of the microphone cable and

insert into the rubber boot of the MOUNTING

FLANGE from underneath. Push plug end all

the way through the rubber boot.

Now take GOOSENECK MICROPHONE

and connect to the plug end of the ca-

ble. Notice that the microphone connec-

tor has three small (3) pins inside of the

connector. These pins can bend if you

are not careful. Align these pins with

the three (3) holes in the plug end of the

cable and push together until microphone

is completely seated onto the plug.

Now carefully take excess cable and

push back through rubber booth rst,

then insert the microphone only far

enough that it is able to stand upright

without falling over.
