Side 1/2

Quick Start Guide

Mounting Options for V Style Modules

Overview

This Quick Start Guide covers the four versatile mounting kit options that are available

for mounting AMX V Style Modules of various heights and widths, including various

Transmitters, Receivers, Converters, DADs (Distribution Amplifier Drivers), and

ICSLan Device Control Boxes.

• FG1010-720

AVB-VSTYLE-RMK-1U, V Style Module Rack Mounting Tray Kit

Rack mount various size modules side by side in a single rack unit.

•FG1010-721

AVB-VSTYLE-RMK-FILL-1U, V Style Module Tray with Fill Plates Kit

Rack mount with blank fill plates (1 each: 1/12, 1/6, 1/4, 1/3 rack width).

• FG1010-722

AVB-VSTYLE-SURFACE-MNT, V Style Single Module Surface Mount Kit

Mount a single module to the wall, under a desk, etc.

• FG1010-723

AVB-VSTYLE-POLE-MNT, V Style Single Module Pole Mounting Kit

Mount a single module to a projector pole or other 2 inch diameter pipes.

This Quick Start Guide contains complete information for installing these mounting

kits.

Note: Pictorial drawings with dimensions are available at www.amx.com.

Tray (FG1010-720) and Tray with Fill Plates (FG1010-721)

The Tray Kit can be ordered with or without fill plates. The Tray with Fill Plates Kit

contains a tray and plates in sizes that will fill out the tray for a professional looking

installation (fill plates come in 1/12, 1/6, 1/4, and 1/3 rack width sizes).

Modules can be mounted in a tray facing either direction as illustrated in FIG. 1.

Tip: If multiple fill plates are required, use a minimum of fill plates by selecting the

largest sizes that will fill the space first.

To mount modules in a tray:

1. Invert the module and the module rack mounting tray for ease of installation.

2. Attach the rack mounting tray to the bottom of the module using the #4-40

3/16 inch undercut flat head screws (provided). Note that only two screws are

required.

3. Install the tray in a standard EIA 19 in. (48.26 cm) rack and secure with rack-

mounting screws.

4. Optional – attach fill plates using the #4-40 3/16 inch undercut flat head screws

(provided). Be sure to use the screw holes closest to the front of the tray.

Surface Mount (FG1010-722)

Attaching brackets

The Surface Mount Kit is designed for mounting a single module (to the wall, on or

under a desk, etc.) The kit contains brackets and screws. The brackets may be

attached to mount the top or the bottom flush with the mounting surface.

Important: Be careful not to block vent holes on the module when mounting.

The following instructions can be used for attaching brackets when surface mounting

or for pole mounting.

Tip: Laying the module and brackets on a flat surface when you attach the brackets

helps align them.

To attach brackets to a module:

1. Insert the #4-40 3/16 inch pan head screws (provided) per FIG. 4 and tighten.

Brackets can either align flush with the top or with the bottom.

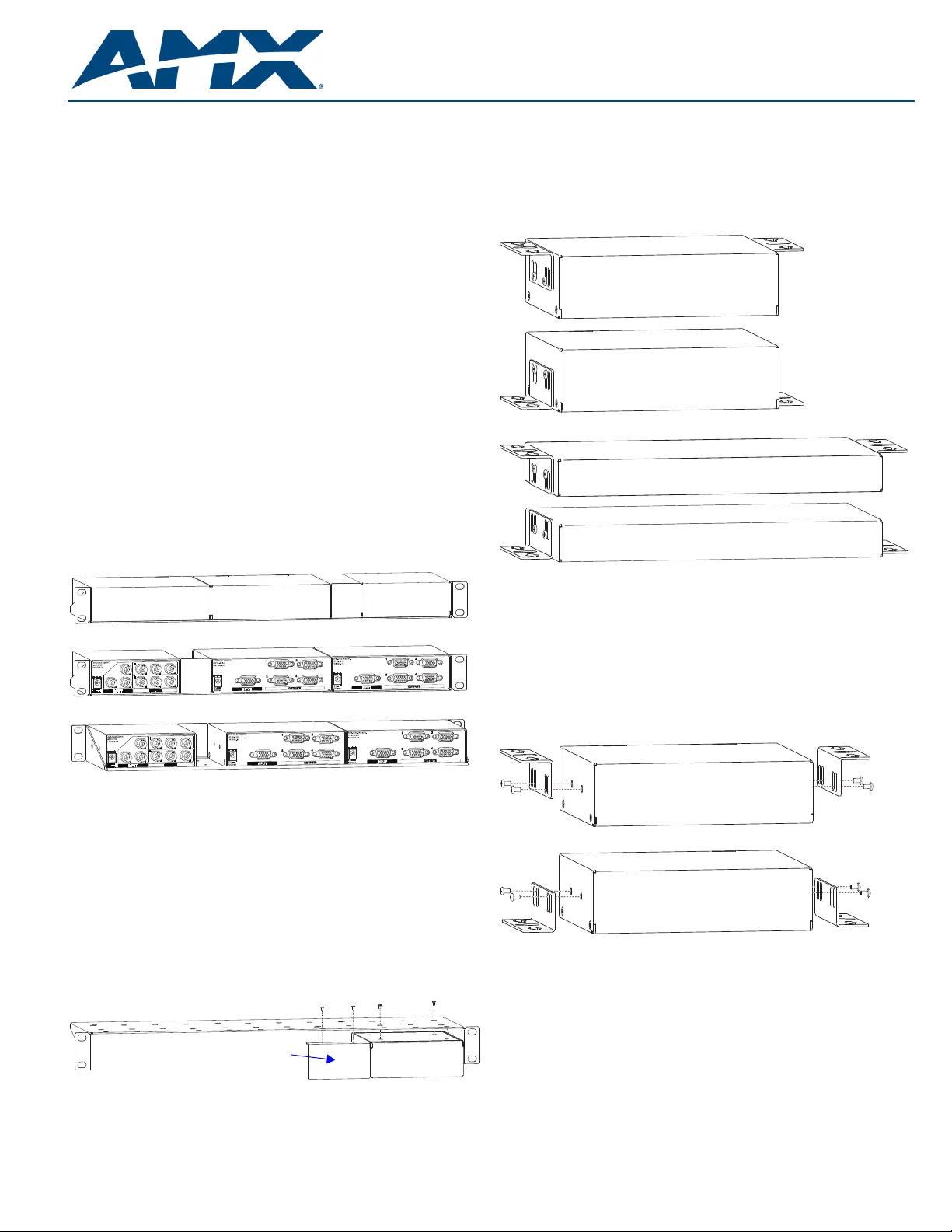

FIG. 1 Options for placing modules in the tray (shown with fill plates)

FIG. 2 Invert tray and module (and fill plates if applicable) for ease of installation

Front view with modules facing to front

Front view with modules facing to rear

Rear view with modules facing to front

Fill plate

FIG. 3 Attach brackets in either top or bottom position (various size modules shown)

FIG. 4 Insert screws and tighten

For full warranty information, refer to www.amx.com

10/11

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-1010-02 REV: B

Mounting on Surface

Note: The #8 x 1/2 inch tapping pan head screws provided for mounting to a flat

surface are designed for wood. If the module needs to be mounted on a different

type of surface, use the appropriate type of fastener, e.g., dry wall anchors (not

provided).

To mount a module with brackets to a flat surface:

1. Place the module in the desired final position on the mounting surface and

mark the screw position as indicated in FIG. 5.

Important: The mark for the screw’s position in each of the mounting holes needs to

be made in the end of the slots (all marks to either the top of the slots or all marks to

the bottom).

2. Set the module aside. If using the wood screws provided, drill pilot holes (drill

size 29; hole diameter 0.136 in.) for the screws 1/2 inch (1.27 cm) deep. Start

the screws in the holes. Do not tighten completely.

3. Align the module with the center of the double key-hole slots over the screws

and slide into place as indicated in FIG. 7.

4. Tighten the screws.

Pole Mount (FG1010-723)

The Pole Mount Kit is designed for mounting a single module to a projector pipe

(or other 2 inch diameter pipes). The kit contains all the mounting hardware for the

assembly in FIG. 9.

To mount a module using brackets and bolts:

1. Attach the mounting brackets to the module according to the instructions for

surface mounting (see FIG. 4).

2. Insert the first u-bolt around the pole/pipe and through the bracket and plate

according to FIG. 9.

3. Fasten securely with the hex nuts.

4. Repeat Steps 2 and 3 using the remaining u-bolt, bracket, plate, and hex nuts.

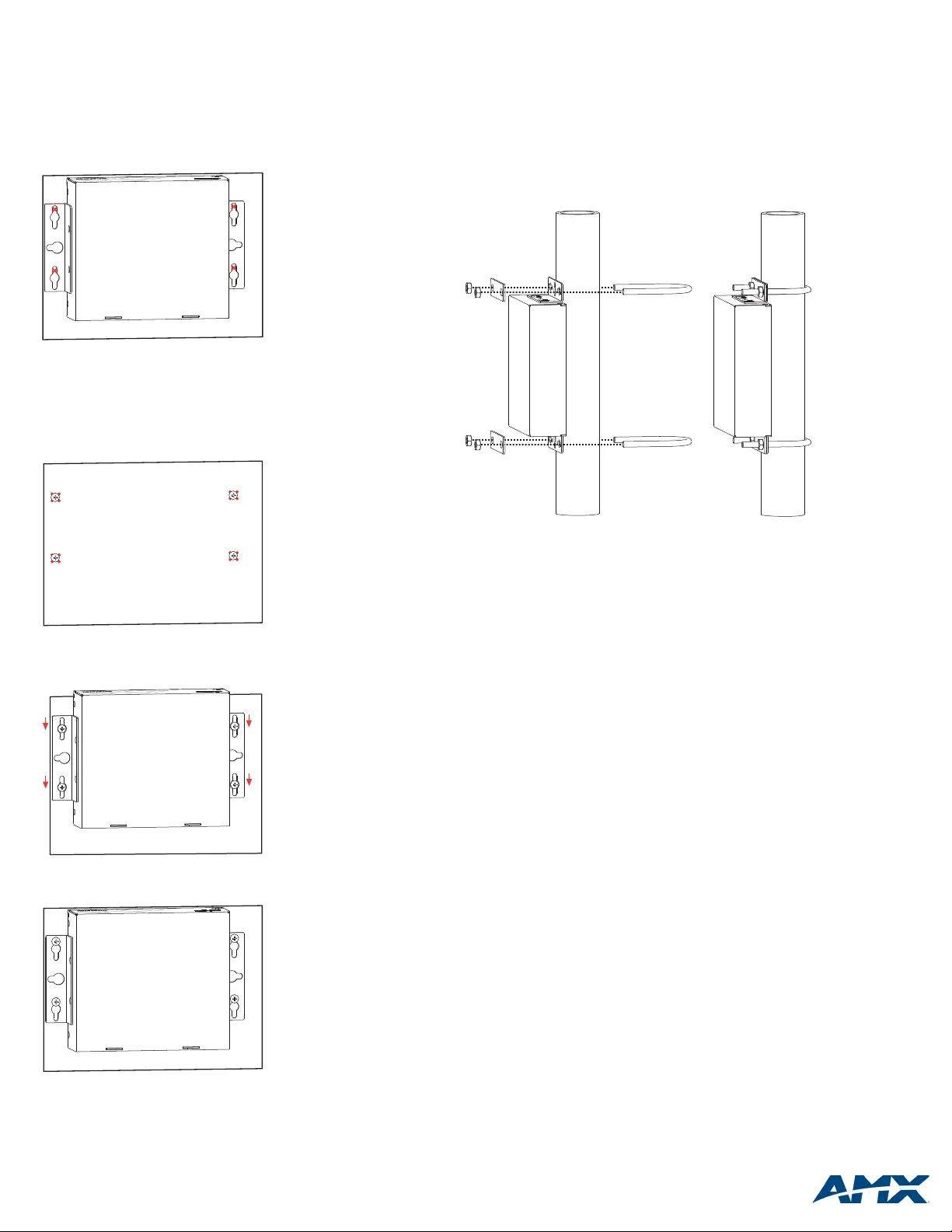

FIG. 5 Mark screw positions

FIG. 6 Drill pilot holes and start screws, but do not tighten

FIG. 7 Align module over screws and slide into place

FIG. 8 Tighten screws

FIG. 9 Mount to projector pipe with bolts through brackets
