QUICK START GUIDE
CB-MSA-43 Rough-In Box and Cover Plate for Modero S Series 4.3" Panel
Overview
The CB-MSA-43 Rough-In Box (FG2265-10) is an optional accessory for the Modero
S Series® 4.3” Wall Mount Touch Panel. It allows the panel to be mounted directly to
the studs/pre-wall.
The back of the Modero S Series 4.3” Wall Mount Touch Panel is contained within a
plastic outer housing or back box, and the back box attaches to the Rough-In Box.
The Rough-In Box kit includes a wall box and cover and mounting screws.
WARNING: In order to guarantee a stable installation of the touch panel, the
distance between the CB-MSA-43 and the outer wall surface must be a minimum
of .50 inches (1.27cm) and a maximum of .1.50 inches (3.81cm).
• Refer to the 95-2265-10 diagram for detailed installation dimensions.
Pre-Wall Installation of the CB-MSA-43 Rough-In Box
1. Remove the rough-in box cover (B in FIG. 1) before installation of the Rough-In
Box (A). Note: the cover MUST be removed before drywall installation. The cover
may be reinstalled after drywall installation using 4-40 screws (not included).
The mounting tabs on the front of the rough-in box (A) are intended to allow
additional anchoring of the rough-in box to its wall, but these can be removed if
necessary.
2. Fasten the CB-MSA-43 rough-in box to the stud through the holes on the Stud
Mounting tabs, using either nails or screws (not provided).
3. Remove the appropriate wiring knockouts from the rough-in box to
accommodate the cables being threaded through to the 7” Wall Mount Touch
Panel.
4. Thread the incoming Ethernet and USB wiring through the bottom knockout.
Leave enough slack in the wiring to accommodate installation of the touch
panel.
5. Install the drywall/sheetrock before inserting the back box for the CB-MSA-43.
6. Cut out the opening for the Wall Mount Touch Panel back box where the wall
has been placed over the Rough-In Box. Cutting out the surface slightly smaller
than what is outlined in the installation drawings, so that you can make any
necessary cutout adjustments, is very highly recommended.
NOTE: The front cover of the CB-MSA-43 (B in FIG. 1) should be installed after
the appropriate wiring is pulled to the Rough-In Box. The cover should then be
removed prior to the installation of the touch panel back box and discarded. Do
NOT discard the cover screws, as they are used to secure the Back Box.
7. Remove the matching knockouts on the touch panel’s Back Box. Install the
touch panel’s Back Box into the opening, allowing the stand-ups for the cover
screws to pass through the back of the Back Box. Secure the Back Box to the
Rough-In Box with the cover screws, pass the touch panel’s wiring through the
Back Box knockouts, and install the touch panel.

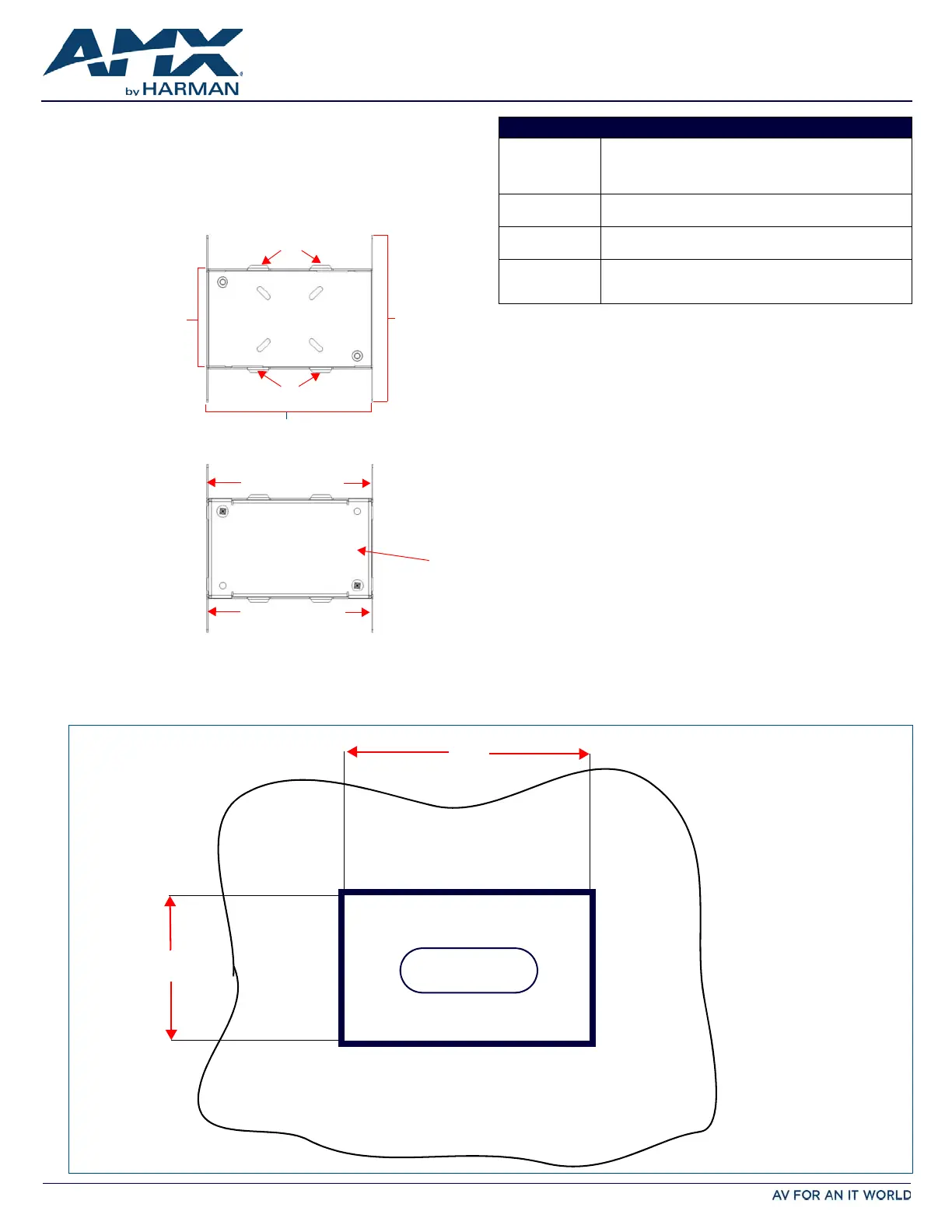

FIG. 1 CB-MSA-43 ROU GH-IN BOX - WITH FRONT COVER
4.64”
(11.78 cm)
A
4.61”
(11.70 cm)
2.79”
(7.08 cm)
B
Rough-In Box With Cover
Cover
Rough-In Box
Mounting Tabs
Mounting Tabs
Stud Mounting Tabs
Stud Mounting Tabs
CB-MSA-43 (FG2265-10) SPECIF ICATIONS
Dimensions (HWD) • Rough-In Box: 4.64" x 4.61" x 2.37"
(11.78 cm x 11.70 cm x 5.60 cm)
• Rough-In Box Cover Plate: 2.79” x 4.61” x 0.47”
(7.08 cm x 11.70 cm x 1.19 mm)
Weight • With cover: 0.60 lbs (0.27 kg)
• Without cover: 0.40 lbs (0.18 kg)
Certifications • cTUVus Listed
• UL Listed
Included
Accessories:
• Cover Plate for Rough-in Box (62-2265-22)
• Cover Plate to Rough-In Box Mounting Screws (2)
(80-2265-01)
Recommended
Wall Cutout
for the CB-MSA-43
2.65”
(6.73 cm)
4.50”
(11.43 cm)
© 2015 Harman. All rights reserved. Modero, Modero S Series, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their
respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-2265-10 REV: B
Last Revised: 11/05/2015
Cover
CB-MSA-43
Rough-In Box
Without Cover
CB-MSA-43
Rough-In Box
With Cover
(oblique angle)
Knock-out
Front
(oblique angle)
Cover screws
2.37”
(6.02 cm)
4.61”
(11.70 cm)
2.37”
(6.02 cm)
4.64”
(11.78 cm)
2.37”
(6.02 cm)
4.64”
(11.78 cm)
2.37”
(6.02 cm)
4.61”
(11.70 cm)
Front
Knock-out
Knock-out
Mounting Tabs
CB-MSA-43 Rough-In Box
Cover Installation
Screws

Produkt Specifikationer

Mærke: AMX
Kategori: Ikke kategoriseret
Model: CB-MSA-43
