QUICK START GUIDE
DXLink Twisted Pair 4K Transmitters and Receivers
Overview
The DXLink 4K HDMI Decor Style Wallplate Transmitter and DXLink 4K HDMI Receiver
Module transmit HDMI Video and Audio over twisted pair cable. DXLink Twisted Pair 4K
endpoints can be set up in one of three ways:
• Endpoint Mode (Switcher) – connect one or more to a switcher with an integrated
Master.
• Endpoint Mode (Standalone) – connect TX/RX pair directly to each other with RX
connected to a NetLinx Central Controller via LAN or directly to Controller.
• Extender Mode (Standalone) – connect TX/RX pair directly to each other.
NOTE: DXLink Twisted Pair 4K Receiver modules can also be setup for standalone
communication with Solecis 4K Digital Switchers.
DXLink 4K HDMI Receivers support InstaGate Pro® and SmartScale® Technology. The
Hardware Reference Manual – DXLink Twisted Pair 4K Transmitters and Receivers
contains complete documentation (including full specifications and supported input
and output resolutions); for details, see www.amx.com
.
System Setup
The TX and RX work with a switcher that supports DXLink Technology for transmission
of HDMI (or with a Central Controller) or as a standalone pair. The Transmitter receives
an HDMI signal and embedded audio from the source. Both the video and embedded
audio are transported over twisted pair cable to a DXLink Twisted Pair 4K Input Board
(or connector). The signal is routed via the DXLink Twisted Pair 4K Output Board (or
connector) to an RX. The RX also provides a stereo audio output.
Wallplate Transmitter Mounting
The 4K HDMI Wallplate TX mounts in a standard US single-gang back box. Standard
decor style cover plates are customer provided to allow matching the individual decor of
an environment or matching other standard decor covers in a room/area.

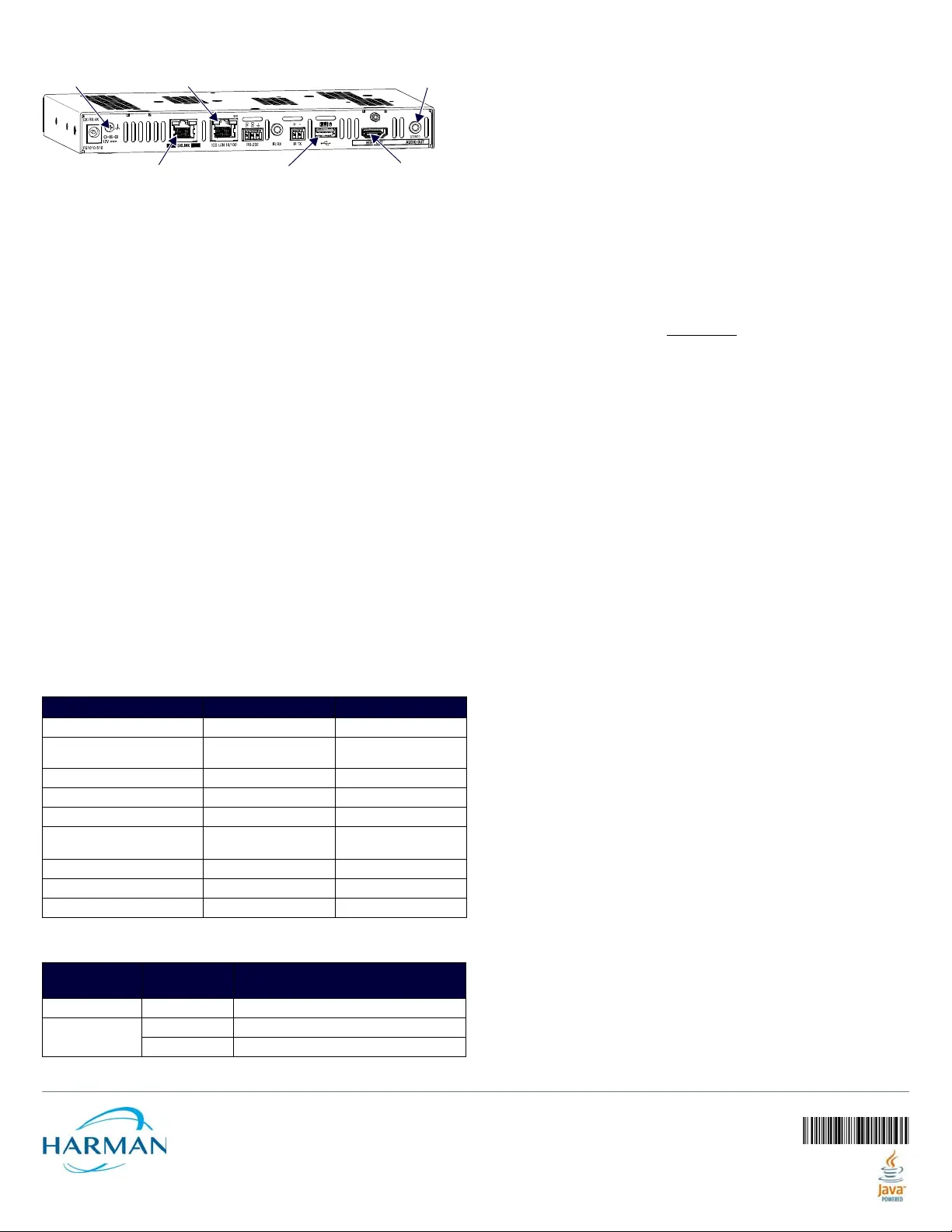

Receiver Mounting Options (Rack Trays and Mounting Brackets)
For details on the four versatile mounting kit options for V Style modules (rack tray, rack
tray with fill plates, surface mount, and pole mount), see www.amx.com
.
IMPORTANT: When mounting under a surface, the module should be mounted upright
and lowered in the mounting bracket slots to provide an airflow gap between the surface
and the vent holes. If not using V Style brackets, be sure to leave a gap between the top of
the unit and the surface for heat to escape.
Twisted Pair Cable Pinouts and RJ-45 LEDs
DXLink (for signal transport) and ICS LAN 10/100 (for Private network connection)
ports both use twisted pair cable. FIG. 3 shows two pinouts that can be used for either
port. FIG. 4 shows the LEDs for each port.
Attaching Signal, Transport, and Control Cables
Important Twisted Pair Cabling Requirements and Recommendations:
• DXLink twisted pair cable runs require shielded category cable (STP) of Cat6A or
Cat7.
• DXLink twisted pair cable runs for DXLink equipment shall only be run within a
common building.*
• DXLink (RJ-45) connectors must not
be used for connecting to a standard
Ethernet Network. The connector is used for signal transport.
•Do not
create a network (Ethernet) loop. A network loop is created when the
enclosure and one or more of its DXLink Modules are connected to a common
Public LAN.
• DXLink delivers 10.2 Gb/s throughput over shielded category cable. Based on this
bandwidth requirement, we recommend following industry standard practices
designed for 10 Gigabit Ethernet when designing and installing the cable
infrastructure.
• The cables should be no longer than necessary to reach the end-points. We
recommend terminating the cable to the actual distance required rather than
leaving any excess cable in a service loop.
• For complete cable specifications, see the Hardware Reference Manual – DXLink
Twisted Pair 4K Transmitters and Receivers.
* “Common building” is defined as: Where the walls of the structure(s) are physically
connected and the structure(s) share a single ground reference.
For more details and helpful cabling information, reference the white paper titled
“Cabling for Success with DXLink” available at www.amx.com
or contact your AMX
representative.
To attach signal and transport cables to the Transmitter:
1. DXLink connector – Attach a twisted pair cable to the DXLink output and to a
DXLink input connector on the RX (requires PoE injector) or on the switcher.
2. Set the Transmitter into single-gang back box.
Fasten to back box with screws.
3. Place decor style cover plate over Transmitter.
Fasten cover plate to Transmitters with screws.
4. HDMI In – Attach an HDMI cable from the source to the HDMI In connector.*
* DVI cable can be used via a cable adapter; however, advanced audio support from
HDMI will not be available.

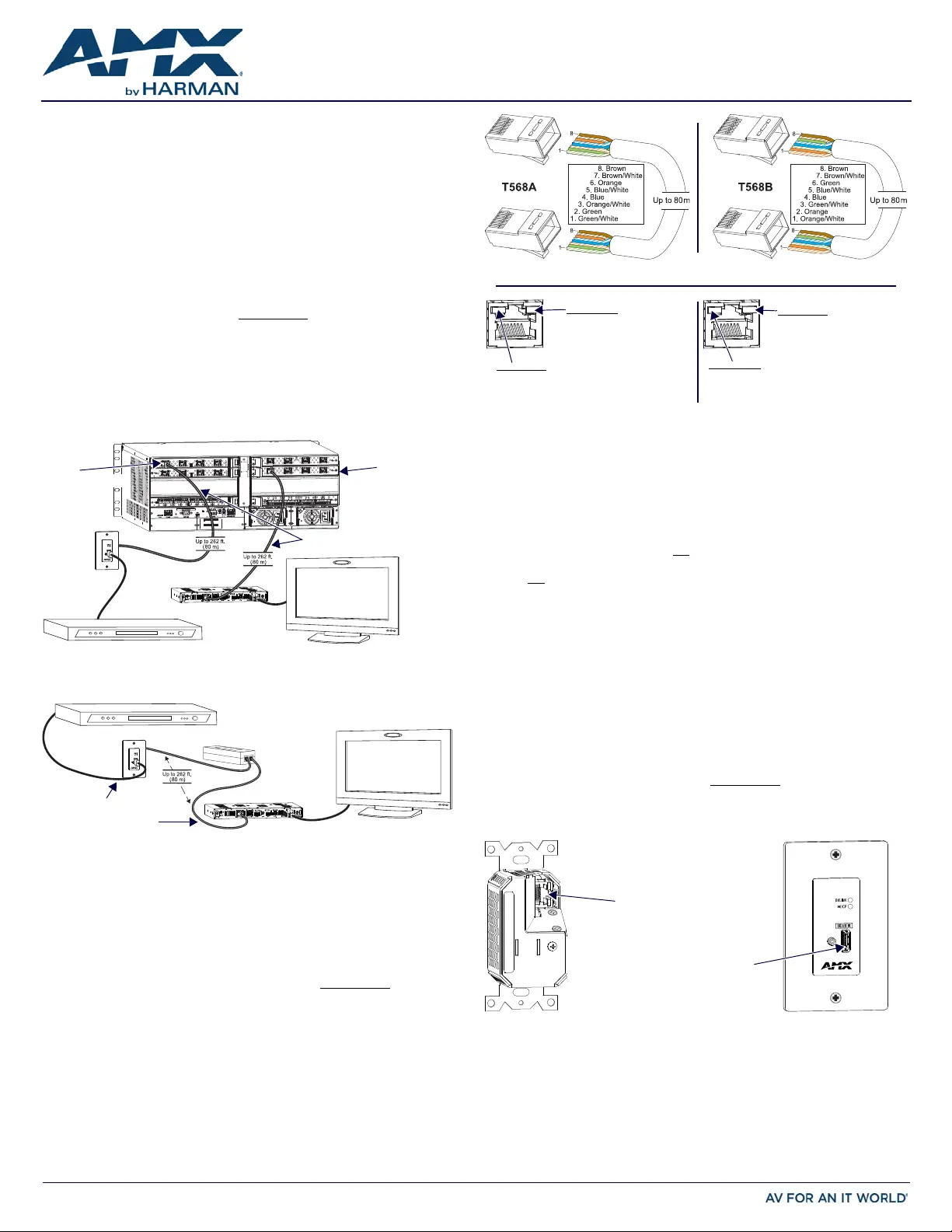

FIG. 1
DXLINK TWISTED PAIR 4K TX AND RX ENDPOINT SOLUTION (CONNECTED TO DGX800-ENC)
FIG. 2 DXLINK TWISTED PAIR 4K TX AND RX AS EXTENDER SOLUTION
AC
DC
FLT
AC
DC
FLT
DXLink
Twisted Pair 4K
Output Board
Twisted pair cable
Enova DGX 800
Destination device
Receiver
Source device
Wallplate
Transmitter
DXLink
Twisted Pair 4K
Input Board
Source device
Destination device
Twisted pair cable
Receiver
Wallplate Transmitter
NOTE: This configuration requires
PS-POE-AT-TC (FG423-84) or
PDXL-2 (FG1090-170) power injector.
PS-POE-AT-TC
HDMI cable
FIG. 3 RJ-45 PINOUTS
FIG. 4 RJ-45 PORTS
FIG. 5 ATTACH SIGNAL AND TRANSPORT CABLES ON DX-TX-DWP-4K
Yellow LED
Yellow LED
Green LED
Green LED
On - Link status is active
Off - Link status is not active
On - Speed status is 100 Mbps
Off - Speed status is 10 Mbps
ICS LAN 10/100 Port
(RX only)
DXLink Port
(TX and RX)
On - Connection established
On - Authenticated HDCP
Flashing - Video active; no HDCP
Off - No Video
DXLink output
HDMI In
