QUICK START GUIDE

DXLink™ Multi-Format Wallplate Transmitter and

DXLink™ Multi-Format Decor Style Wallplate Transmitter (US)

Overview

The DXLink Multi-Format Wallplate TX and DXLink Multi-Format Decor Style Wallplate TX

are used in conjunction with switchers that support DXLink Technology for transmission

of HDMI or analog video over twisted pair cable. Both TXs are compatible with the

DXLink HDMI RX and support InstaGate Pro® Technology. The Hardware Reference

Manual – DXLink Twisted Pair Transmitters /Receiver contains complete documentation

(including full specifications and supported input and output resolutions); for details,

see www.amx.com.

Installation

System Setup

These Transmitters receive an HDMI signal (or DVI via a cable adapter) or an analog

video signal plus an audio signal from the source device. The audio can be either digital

audio embedded with the HDMI signal or analog stereo audio. Both the video and audio

are transmitted over twisted pair cable to a DXLink Input Board in a switcher that

supports DXLink Technology (see the example in FIG. 2). From the Input Board, the

signal can be routed through an output board. If the output board is a DXLink Output

Board, a DXLink HDMI RX is required between the board and the destination.

DIP Switch #3 Toggle

Before mounting the Transmitter – If a network connection is required, DIP switch #3

Toggle be set to ON.must #3 Toggle is shipped in the OFF position. When flipped ON

(up), the Transmitter will attempt a DHCP connection. Flipping the #3 Toggle ON is the

only way to access the Wallplate TX and Decor TX in NetLinx Studio. For both types of

Transmitters, #1, #2, and #4 Toggles are non-functional (must remain OFF). For

Auto-setup with an Enova DGX 100 Series Switcher, set #3 Toggle to OFF and see the

switcher’s manual.

IP Addressing Modes

DHCP Mode (enabled when #3 Toggle is flipped ON)

In DHCP Mode, the Transmitter attempts to get a DHCP lease (consisting of an IP

address, gateway, and other network parameters). If the attempt fails, the Transmitter

configures itself for a link-local address, but periodically re-tries DHCP and re-assigns

the IP to a valid DHCP grant if successful. At any time, if the Transmitter determines

that its IP address has changed, it will disconnect and reconnect to the Master.

Static IP Mode (set with ID button or Telnet command)

With #3 Toggle set to ON, press ID for 10 seconds to assign an address of 192.168.1.2

or use a Telnet command to set unit to Static IP Mode (see the Hardware Reference

Manual).

Mounting the Wallplate TX and Decor Wallplate TX

Wallplate TX – The holes in the Wallplate TX mounting bracket are designed to

accommodate a variety of gang boxes using 2 or 4 screws (standard and metric are

provided). Be sure to orient mounting bracket as shown in FIG. 4.

Decor Wallplate TX – The Decor Wallplate TX mounts into a standard US double-gang

back box. Decor style front cover plate is customer provided.

Technical Ground

If the system is experiencing problems with delivery of DXLink signals to/from an Enova

DGX Digital Media Switcher or Enova DVX Solution, adding a ground wire from the TX/

RX to the switcher may improve performance (see FIG. 7 on the next page). Technically

this type of grounding is only required when a DXLink Transmitter or Receiver is

connected to an ungrounded device, but this added grounding measure can be used at

the discretion of the installer (for instructions, see the Hardware Reference Manual).

Twisted Pair Cable Pinouts and RJ-45 LEDs

The DXLink port (RJ-45 connector) on the rear of the Transmitters uses twisted pair

cable. FIG. 5 shows two pinouts that can be used. FIG. 6 shows LEDs for the port.

Before installing the Transmitter:

 Wallplate TX – remove mounting bracket.

 If a network connection is required, set #3 Toggle to ON.

 If gang box is not already installed, install it now.

To install the Wallplate Tx:

1. Attach the Wallplate TX mounting bracket to the gang box.

2. Attach a twisted pair cable from the DXLink Input Board on the switcher through

the mounting bracket to the DXLink connector on rear of Wallplate TX (FIG. 7).

3. Reattach the unit to the mounting bracket.

To install the Decor Wallplate TX:

1. Attach a twisted pair cable from the DXLink Input Board on the switcher to the

DXLink connector on the rear of the Decor Wallplate TX.

2. Attach unit to back box with four screws through the large screw holes.

3. Check LEDs for normal display (see table on the next page).

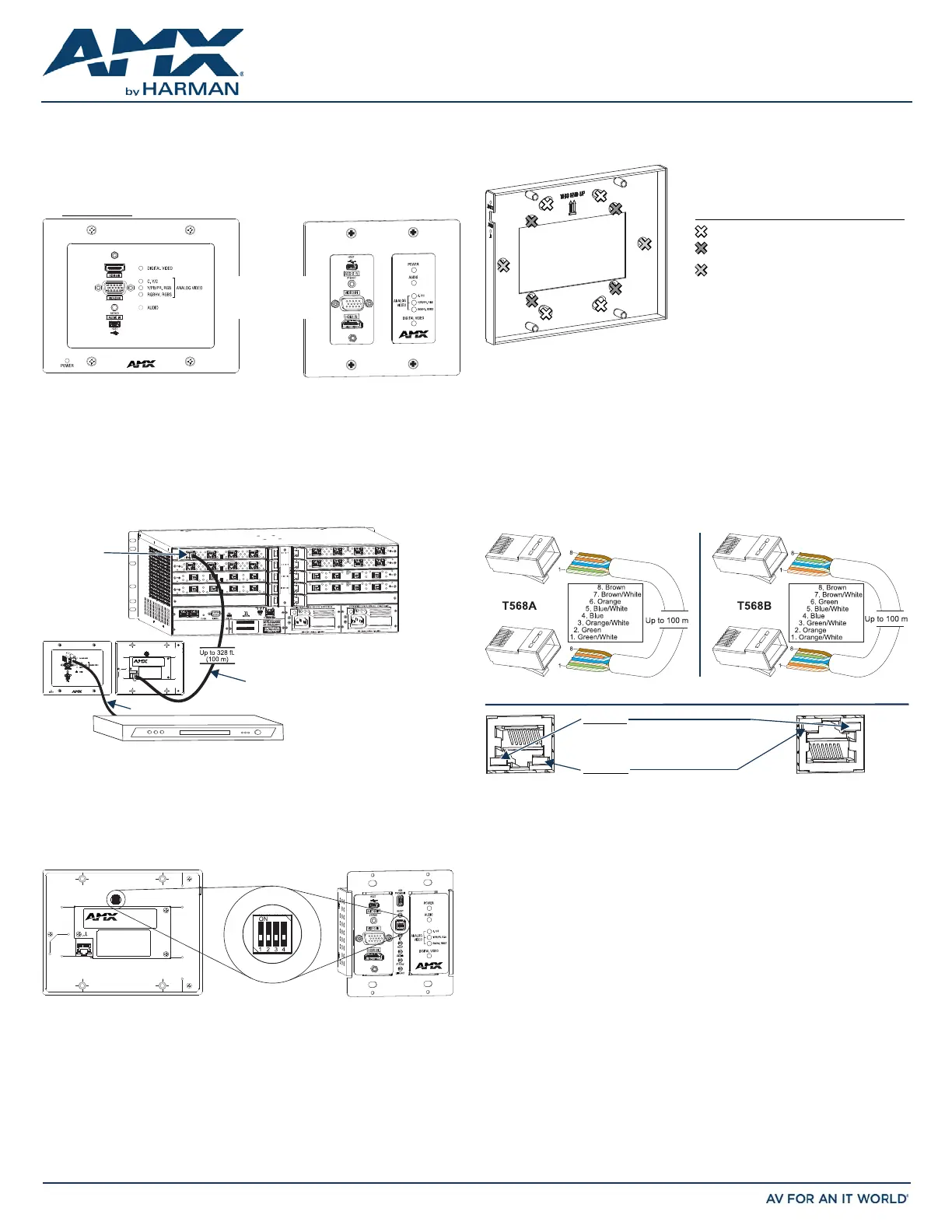

FIG. 1 WALLPLATE TX: FG1010-320-WH (LEFT) AND DECOR TX: FG1010-325-WH (RIGHT)

FIG. 2 WALLPLATE TX (FRONT & REAR) USED W/DXLINK INPUT BOARD IN ENOVA DGX 16

FIG. 3 DIP SWITCH ON REAR OF WALLPLATE TX (LEFT); ON FRONT OF DECOR TX (RIGHT)

Both available

in white (WH)

and black (BL)

Twisted pair cable

HDMI cable

Enova DGX 16

Source device

DXLink

Multi-Format

Wallplate TX

(Front) (Rear)

DXLink

Input Board

DIP switch

FIG. 4 WALLPLATE TX MOUNTING BRACKET

FIG. 5 RJ-45 CONNECTOR PINOUTS

FIG. 6 DXLINK PORT LEDS

Wallplate TX

mounting bracket

Use screw holes indicated with “X”s below:

US flush mount inside wall

EU flush mount inside wall

UK surface mount exterior wall or

UK flush mount inside wall

Green LED

On - Connection is active

Off - Connection is not active

Yellow LED

On - Authenticated HDCP

Blinking - Video active; no HDCP

Off - No Video

Wallplate TX Decor Wallplate TX

registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of

their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

3-1010-320 REV: K

Last Revised: 12/15/2015

4. Attach customer-provided decor style front cover plate to the unit.

IMPORTANT: Do not use the RJ-45 connector on rear of the Transmitter to connect to a

standard Ethernet Network. Use this connector for signal transport only.

Attaching Signal and Control Cables

IMPORTANT: Transmitters must be securely mounted and connected to the switcher

before attaching the remaining cables.

To attach cables to the Transmitter:

1. HDMI input – Attach an HDMI cable from source to HDMI In connector.

2. Analog video input – Attach HD-15 cable from source to analog video connector.

3. Stereo jack (optional) – Insert analog audio cable from source into Stereo jack.

4. USB Host (optional) – Attach USB cable from PC to USB (mini-B) port.

5. If necessary, set the video and audio formats using SEND_COMMANDs

(see the Hardware Reference Manual).

6. Check LEDs for normal display (see table in right-hand column).

NOTE: Use DVI cable via an adapter (advanced HDMI audio support is not available).

USB Host Port Provides HID Support

The USB Host (mini-B) port on the front enables USB keyboard and mouse signals from

a DXLink RX to be sent to a connected PC.

Additional Buttons and Port

Reset Button

The Reset button resets the Transmitter’s CPU (see the Hardware Reference Manual).

Program Port

For modules connected to an Enova DGX 8/16/32/64 Switcher, this USB mini-B port

supports DGX Configuration Software for programming a custom EDID. For modules

connected to an Enova DGX 100 Series Switcher, use the System Configuration

interface (see the switcher’s manual).

ID Button

The ID button can be used to toggle between static and DHCP IP addressing, assign a

device address, reset the factory defaults, and restore the factory default firmware

image (see the Hardware Reference Manual).

Powering the Wallplate TX and the Decor Wallplate TX

The switcher provides power for the TXs over twisted pair cable. Approved DXLink

power sourcing devices are:

• Enova DGX 8/16/32/64

• Enova DGX 800/1600/3200/6400

• Compatible Enova DVX (3155HD or 2155HD)

• PDXL-2 (FG1090-170)*

• PS-POE-AT-TC (FG423-84)*

* Use of PDXL-2 or PS-POE-AT-TC with wallplates requires firmware v1.2.40 or later.

IMPORTANT: AMX does not support the use of any other PoE injectors as these may

potentially damage the DXLink equipment.

This table shows LED states on initial power up. If not normal, check connections.

* The LEDs for Digital Video, Analog Video, and Audio each indicate the configured state

of the connectors, not necessarily the presence of signals through the Transmitter.

** When an analog video signal is being received from the source device, only one of the

three analog video LEDs will be green at any time.

TIP: If the Wallplate TX’s location makes the bottom edge difficult to see, slide a white

piece of paper or a small mirror under the edge to view LED status.

Signal Precedence

With cables attached to each input on the Transmitters (see FIG. 8), the default

precedence for signal transmission is for HDMI with embedded digital audio. To

transmit either analog video or analog audio without detaching the HDMI connector, the

Transmitter’s precedence settings must be changed using SEND_COMMANDs. For

information, see the Hardware Reference Manual.

Troubleshooting

Try the following and check the Hardware Reference Manual before calling technical

support.

 Check all power connections in the system.

 Check the RJ-45 (DXLink) cable connection between the Transmitter and the

switcher.

 Check the source and destination devices to ensure that they function correctly.

Additional Information Covered in Instruction Manual

For information on the following, see the Hardware Reference Manual – DXLink Twisted

Pair Transmitters/Receiver at www.amx.com:

• Pinouts for VGA, component, S-Video, and composite

• NetLinx control and programming commands, Telnet commands

• IR file transfers, upgrading firmware image, restoring factory default settings

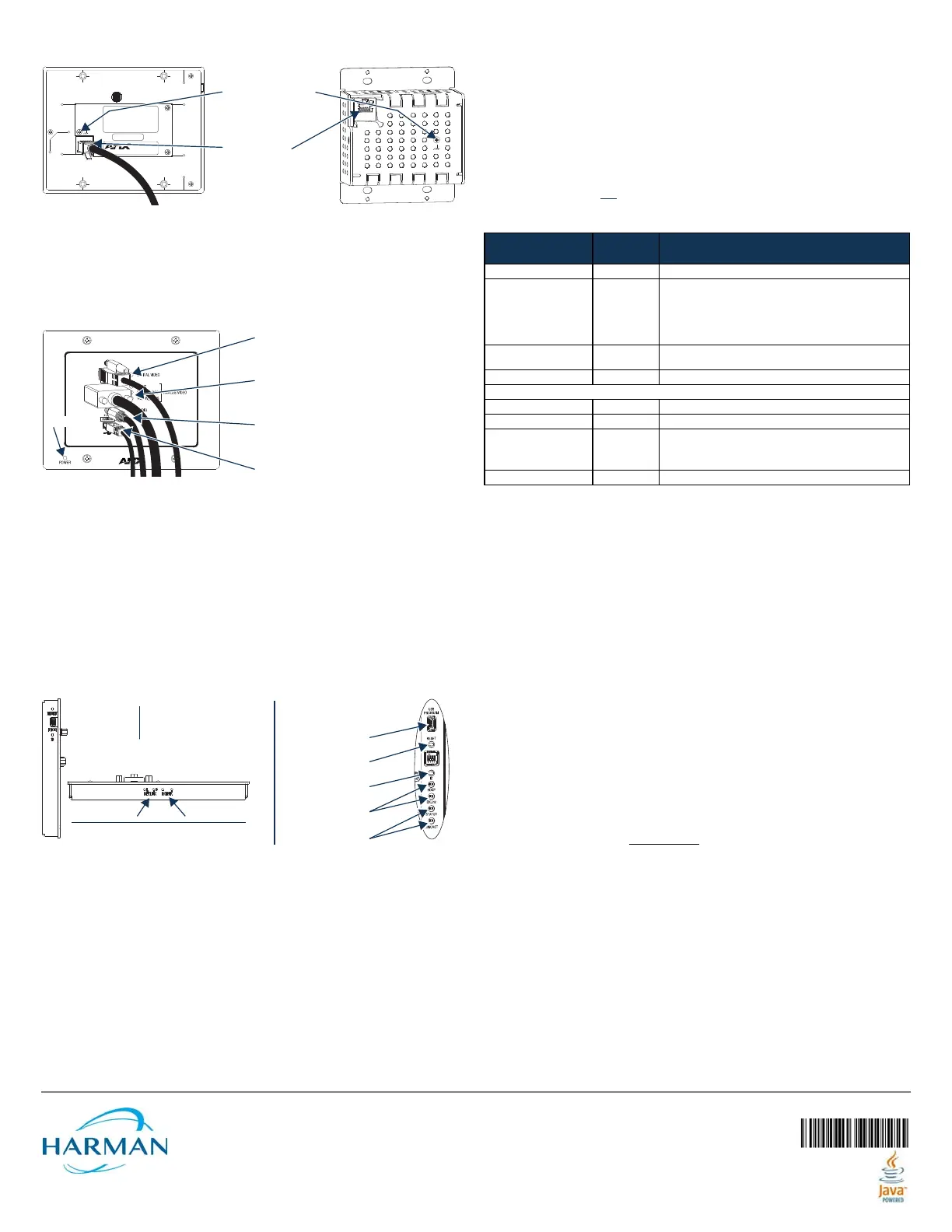

FIG. 7 CONNECT TWISTED PAIR CABLE TO DXLINK CONNECTOR ON TX (WALLPLATE TX SHOWN)

FIG. 8 ATTACH SIGNAL AND CONTROL CABLE (WALLPLATE TX SHOWN)

FIG. 9 WALLPLATE TX (LEFT) AND DECOR WALLPLATE TX (RIGHT)

Decor Wallplate TX

Wallplate TX

Ground screw (see

“Technical Ground”

on previous page)

DXLink output

connector

HDMI Input and

Digital Video LED

HD-15 Input and

Analog Video LEDs

Stereo Audio Input

and Audio LED

USB Host

Power LED

Note: Connector

arrangement

differs between

the Wallplate TX

and Decor TX.

Reset button

Program port

ID button Program port

Reset button

ID button

DXLink LEDs

NetLinx LEDs

Decor Wallplate TX - Front

Wallplate TX - Left edge

NetLinx LEDs DXLink LEDs

Wallplate TX - Bottom edge

INDICATOR LEDS NORMAL

POWER UP

INDICATES

Digital Video* Green Configured to pass HDMI with embedded audio

Analog Video* One of the

three LEDs

is Green**

Configured to pass analog video:

• C (composite) or Y/c (two component)

• Y/Pb/Pr or RGB (three component)

• RGBHV (five component)

or RGBS (four component)

Audio* Green Configured to pass analog audio

(coupled with digital or analog video path)

Power Green Power is applied

Wallplate TX LEDs (on bottom edge) and Decor Wallplate TX LEDs (front center)

NetLinx - L, Link/Act Green Unit status

NetLinx - S, Status Green Unit status

DXLink - Yellow, HDCP Yellow

Flashing

Off

• Authenticated HDCP

• Video is active; no HDCP

• No Video

DXLink - Green Green DXLink connection is established

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	DX-TX-WP

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX DX-TX-WP stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HydraPort HPX-U400 Manual

10 Juni 2025

AMX CBL-HDMI-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-U100 Manual

10 Juni 2025

AMX CBL-DP-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-CPTS100 Manual

10 Juni 2025

AMX HydraPort HPX-P250 Manual

10 Juni 2025

AMX CBL-RGB+A-FL2 Manual

7 Juni 2025

AMX CBL-USB-FL2 Manual

7 Juni 2025

AMX CBL-MDP-FL2 Manual

7 Juni 2025

AMX CBL-ETH-FL2 Manual

6 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Simrad Active Imaging HD (Thru-Hull) Manual

14 Juni 2025

Garritan Harps Manual

14 Juni 2025

Marshall CV-H20-HF Manual

14 Juni 2025

Aiphone IXW-MAA Manual

14 Juni 2025

Rival HM-743 Manual

14 Juni 2025

Lutec Avony Manual

14 Juni 2025

Giordani G-SAFE & PLAY Manual

14 Juni 2025

Gourmia GAF799 Manual

14 Juni 2025

Arendo 307503 Manual

14 Juni 2025

Hughes & Kettner Tube 100 Manual

14 Juni 2025
