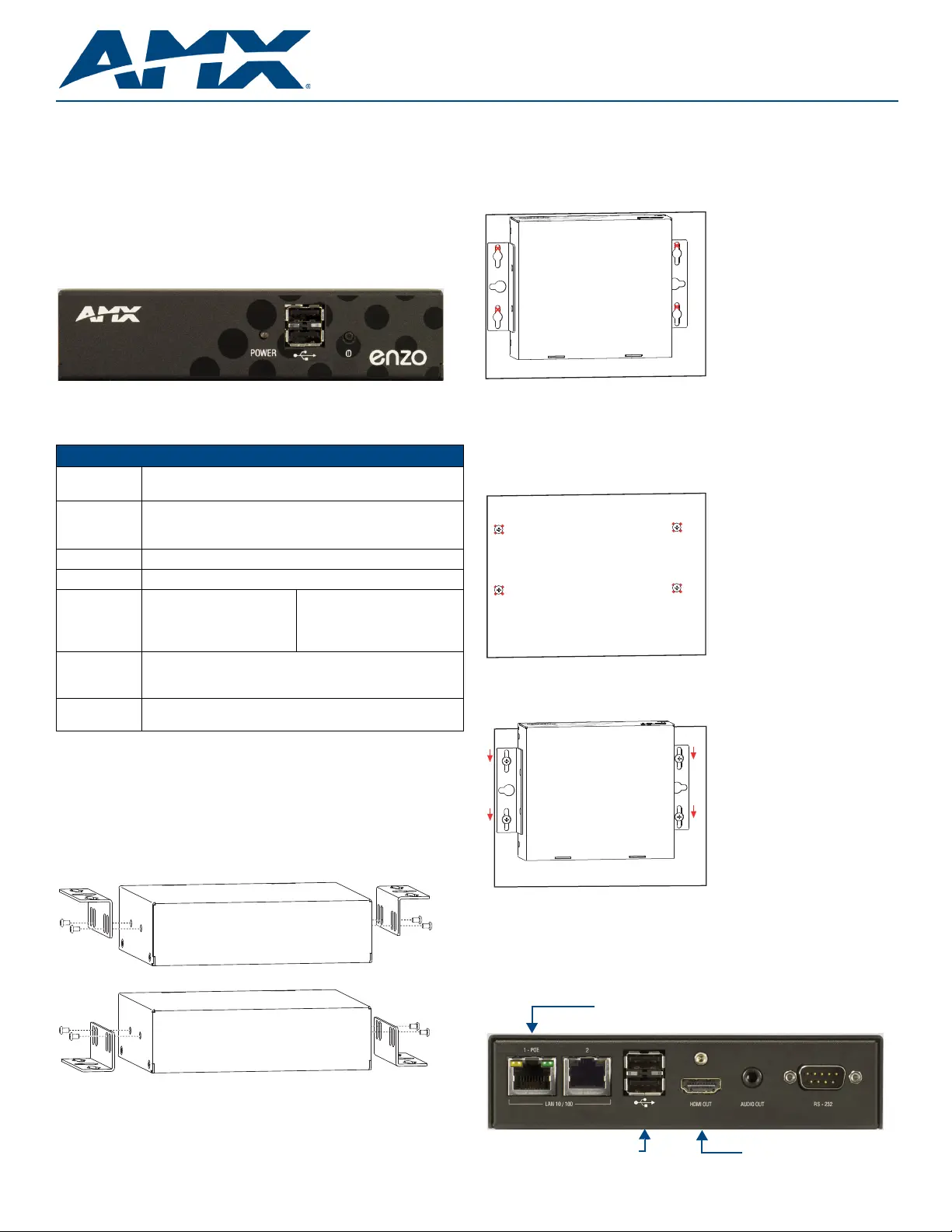

Quick Start Guide

NMX-MM-1000 Enzo™ Meeting Presentation System

Overview

The NMX-MM-1000 Enzo Meeting Presentation System (FG3211-01) allows you to

easily access content and documents stored on USB, on the web, or in the cloud. The

Enzo Media Presentation System is a power-efficient device with no moving parts that

is powered using Power over Ethernet (PoE).

To install the NMX-MM-1000, you will need the following items:

• 1 HDMI cable (Type A female)

• 1 PoE injector or PoE-capable Ethernet switch (802.3af compliant)

• 2 Cat5 cables

• 1 HDMI monitor

• USB keyboard and/or mouse

FIG. 1 NMX-MM-1000 (front panel)

Specifications

The following table lists the specifications for the NMX-MM-1000:

Mounting the NMX-MM-1000

The NMX-MM-1000 can be mounted using an AVB-VSTYLE-SURFACE-MNT V-Style

Single Module Surface Mount Kit (FG1010-722). The NMX-MM-1000 also has rubber

feet which you can apply to the bottom of the unit for table-top mounting.

Attaching Brackets

The Surface Mount Kit is designed for mounting a single module (to a wall, on or

under a desk, etc.) The kit contains brackets and screws. The brackets may be

attached to mount the top or the bottom flush with the mounting surface.

Insert the #4-40 3/16 inch pan head screws (provided) as shown in FIG. 2 and tighten.

Brackets can either align flush with the top or with the bottom.

FIG. 2 Insert screws and tighten

Mounting on a Surface

Note: The #8 x 1/2 inch tapping pan head screws provided for mounting to a flat

surface are designed for wood. If the module needs to be mounted on a different type

of surface, use the appropriate type of fastener, e.g., dry wall anchors (not provided).

1. Place the NMX-MM-1000 in the desired final position on the mounting surface

and mark the screw position as indicated in FIG. 3.

FIG. 3 Mark screw positions

Important: The mark for the screw’s position in each of the mounting holes needs to

be made in the end of the slots (all marks to either the top of the slots or all marks to

the bottom).

2. Set the device aside. If using the wood screws provided, drill pilot holes (drill

size 29; hole diameter 0.136 in.) for the screws 1/2 inch (1.27 cm) deep. Insert

the screws in the holes, but do not tighten them completely.

FIG. 4 Drill pilot holes and insert screws, but do not tighten

3. Align the module with the center of the double key-hole slots over the screws

and slide into place as indicated in FIG. 5.

FIG. 5 Align module over screws and slide into place

4. Tighten the screws.

Installation

Installing the NMX-MM-1000 is a quick and simple process. Before connecting the

NMX-MM-1000 to its peripheral devices and powering the device, be sure to mount

the device using the desired method.

FIG. 6 displays the connections for the NMX-MM-1000.

FIG. 6 NMX-MM-1000 (rear panel)

NMX-MM-1000 Specifications

Power: • Power over Ethernet (PoE), 802.3af

• Maximum Power Consumption: 13W

Environmental: • Operating Temperature: 32° to 104° F (0° to 40° C)

• Storage Temperature: –4º to 158ºF (–20º to 70ºC)

• Operating Humidity: 5% to 85%, non-condensing

Dimensions: 1 3/8” (3.48cm) x 5 3/16” (14.73cm) x 3 5/16” (8.34cm) HWD

Weight: 1.1 lbs. (0.49kg)

Certifications: • RoHS

• FCC

• IC

• CE

• IEC 60950-1

• cULus 60950-1

• VCCI

• C-Tick

Included

Accessories:

• AVB-VSTYLE-SURFACE-MNT V-Style Single Module Surface

Mount Kit (FG1010-722)

• Rubber feet

Optional

Accessories:

• PS-POE-AF-TC, PoE Injector, 802.3af Compliant (FG423-83)

HDMI out to monitor

Cat5 cable from PoE injector to provide power

Connect peripheral devices

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

1/14

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-3211-01 REV: B

Step 1: Connecting the NMX-MM-1000 to a Video Output

The NMX-MM-1000 uses standard HDMI cabling to connect to a video output. Use an

HDMI cable to connect the HDMI OUT port on the rear panel of the device to your

display device.

Step 2: Connecting a Keyboard and Mouse

The front and rear panels of the NMX-MM-1000 each feature two Type-A USB ports

for mouse and keyboard functionality.

Note: In addition to a directly connected USB keyboard and mouse, the

NMX-MM-1000 also supports using a 2.4 GHz RF wireless keyboard and mouse

using a wireless dongle. Bluetooth devices are NOT supported.

You can also use the ports for reading from a mass storage device, such as a USB

hard drive or flash drive. (USB external hard drives may require their own power

sources. The maximum current allowed across all USB ports is 4W.)

Note: The USB ports support USB mass storage devices using a FAT format. USB

mass storage devices using an NTFS format may not work on these ports.

Note: You can connect only one USB mass storage device at a time. Once you

connect a USB drive and Enzo mounts the drive, you can access the files on it. If you

do not receive a message stating the USB drive is mounted, Enzo did not recognize

the drive. A storage device’s contents are not accessible if the device is connected

while another storage device occupies a USB port. If a first USB drive is connected,

mounted, and unmounted, a second USB drive will still not be recognized unless the

first USB drive is removed from the Enzo device.

Step 3: Applying Power

Applying power to the NMX-MM-1000 requires Cat5 cable and a PoE injector, such as

the PS-POE-AF-TC available from AMX, or a PoE-capable Ethernet switch. You must

connect port 1 to your network through the PoE injector to receive power to your

NMX-MM-1000 device.

Note: ITE is to be connected only to PoE networks without routing to the outside plant.

1. Connect the PoE injector to an AC outlet (100-240VAC) using a standard power

cord.

2. Using Cat5 cable, connect your network switch to the Data In port on your PoE

injector.

3. Using a separate Cat5 cable, connect the Data & Power Out port on the PoE

injector to LAN Port 1 on the NMX-MM-1000.

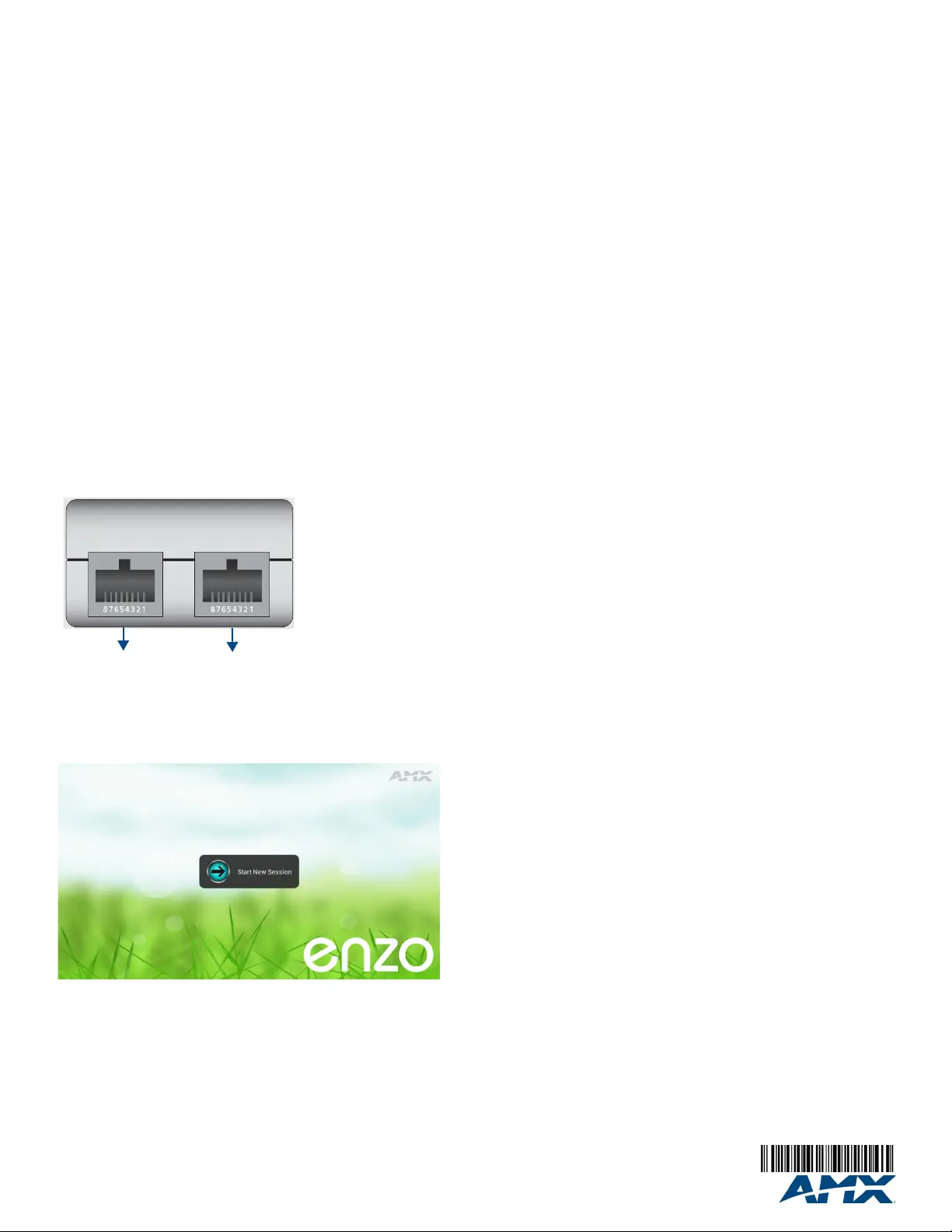

FIG. 7 illustrates how to connect the PoE injector to the NMX-MM-1000.

FIG. 7 PoE injector connection

When power is applied, the POWER LED on the front panel appears red then blinks

green while the device is booting. When the device is finished booting and the device

is ready for use, the LED remains solid green. The device usually takes 20-30

seconds to boot. When booting is complete, the NMX-MM-1000 opens to the Enzo

desktop (FIG. 8).

FIG. 8 Enzo desktop

Locating the IP Address of the NMX-MM-1000

On connection, you can access a diagnostics screen on which you can view the IP

address, Ethernet switch status, etc. on the connected video output.

1. When the NMX-MM-1000 completes the boot process and the Enzo desktop

appears, select Start New Session.

2. On the main screen, select Options.

3. From the Select Option menu, select Settings.

4. When the list of settings appears, select System Settings.

5. The Device Info option is selected by default. The IP address of your unit

appears in the Device area.

Setting the Display Resolution

The display resolution on the NMX-MM-1000 is set to Auto by default. You can set a

definite resolution of 1080p or 720p, if needed. Perform these steps to set the display

resolution:

1. On the main screen, select Options.

2. From the Select Option menu, select Settings.

3. When the list of options appears, select System Settings.

4. In the Info section, select Display.

5. Enter the security password in the text box that appears, and select OK. The

default password is 1988.

6. Select Resolution, and select the resolution you want from the list that appears.

When you make a selection, your choice immediately takes effect.

Setting the Date and Time

By default, the NMX-MM-1000 uses the network-provided date and time. You may

want to verify that the date and time are correct while setting up the device. Perform

these steps to set the date and time on the NMX-MM-1000:

1. On the main screen, select Options.

2. From the Select Option menu, select Settings.

3. When the list of options appears, select System Settings.

4. In the System section, select Date & Time.

5. Enter the security password in the text box that appears, and select OK. The

default password is 1988.

6. Check that the current date and time is correct on the device.

7. Select Select time zone and select your time zone from the provided list.

Additional Documentation

For more information about this device, consult the product page at www.amx.com for

data sheets and the NMX-MM-1000 Instruction Manual.

Cat5 cable from

Cat5 cable to Enzo

Data In

Data & Power

Out

your network
