Side 1/2

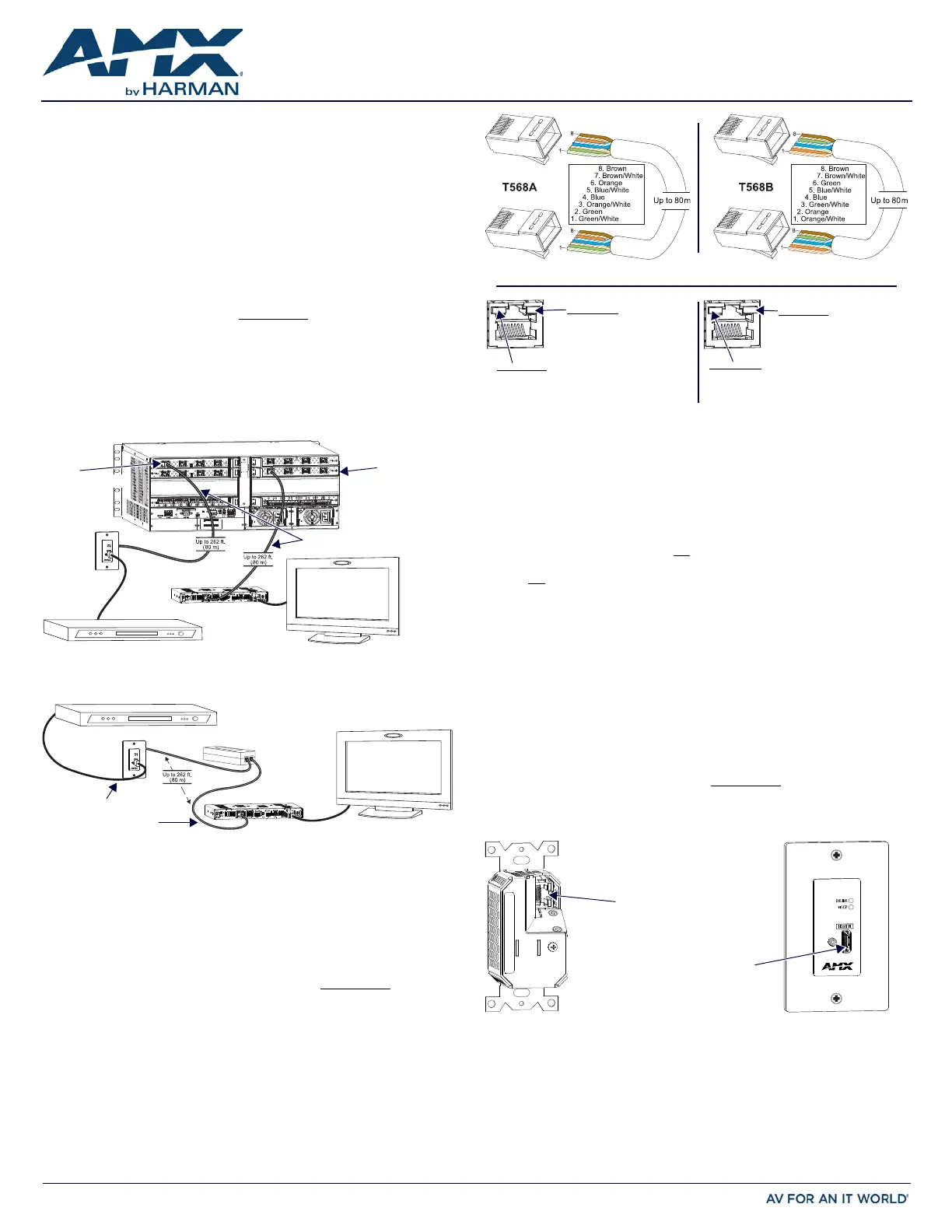

QUICK START GUIDE

DXLink Twisted Pair 4K Transmitters and Receivers

Overview

The DXLink 4K HDMI Decor Style Wallplate Transmitter and DXLink 4K HDMI Receiver

Module transmit HDMI Video and Audio over twisted pair cable. DXLink Twisted Pair 4K

endpoints can be set up in one of three ways:

• Endpoint Mode (Switcher) – connect one or more to a switcher with an integrated

Master.

• Endpoint Mode (Standalone) – connect TX/RX pair directly to each other with RX

connected to a NetLinx Central Controller via LAN or directly to Controller.

• Extender Mode (Standalone) – connect TX/RX pair directly to each other.

NOTE: DXLink Twisted Pair 4K Receiver modules can also be setup for standalone

communication with Solecis 4K Digital Switchers.

DXLink 4K HDMI Receivers support InstaGate Pro® and SmartScale® Technology. The

Hardware Reference Manual – DXLink Twisted Pair 4K Transmitters and Receivers

contains complete documentation (including full specifications and supported input

and output resolutions); for details, see www.amx.com

System Setup

The TX and RX work with a switcher that supports DXLink Technology for transmission

of HDMI (or with a Central Controller) or as a standalone pair. The Transmitter receives

an HDMI signal and embedded audio from the source. Both the video and embedded

audio are transported over twisted pair cable to a DXLink Twisted Pair 4K Input Board

(or connector). The signal is routed via the DXLink Twisted Pair 4K Output Board (or

connector) to an RX. The RX also provides a stereo audio output.

Wallplate Transmitter Mounting

The 4K HDMI Wallplate TX mounts in a standard US single-gang back box. Standard

decor style cover plates are customer provided to allow matching the individual decor of

an environment or matching other standard decor covers in a room/area.

Receiver Mounting Options (Rack Trays and Mounting Brackets)

For details on the four versatile mounting kit options for V Style modules (rack tray, rack

tray with fill plates, surface mount, and pole mount), see www.amx.com

IMPORTANT: When mounting under a surface, the module should be mounted upright

and lowered in the mounting bracket slots to provide an airflow gap between the surface

and the vent holes. If not using V Style brackets, be sure to leave a gap between the top of

the unit and the surface for heat to escape.

Twisted Pair Cable Pinouts and RJ-45 LEDs

DXLink (for signal transport) and ICS LAN 10/100 (for Private network connection)

ports both use twisted pair cable. FIG. 3 shows two pinouts that can be used for either

port. FIG. 4 shows the LEDs for each port.

Attaching Signal, Transport, and Control Cables

Important Twisted Pair Cabling Requirements and Recommendations:

• DXLink twisted pair cable runs require shielded category cable (STP) of Cat6A or

Cat7.

• DXLink twisted pair cable runs for DXLink equipment shall only be run within a

common building.*

• DXLink (RJ-45) connectors must not

be used for connecting to a standard

Ethernet Network. The connector is used for signal transport.

•Do not

create a network (Ethernet) loop. A network loop is created when the

enclosure and one or more of its DXLink Modules are connected to a common

Public LAN.

• DXLink delivers 10.2 Gb/s throughput over shielded category cable. Based on this

bandwidth requirement, we recommend following industry standard practices

designed for 10 Gigabit Ethernet when designing and installing the cable

infrastructure.

• The cables should be no longer than necessary to reach the end-points. We

recommend terminating the cable to the actual distance required rather than

leaving any excess cable in a service loop.

• For complete cable specifications, see the Hardware Reference Manual – DXLink

Twisted Pair 4K Transmitters and Receivers.

* “Common building” is defined as: Where the walls of the structure(s) are physically

connected and the structure(s) share a single ground reference.

For more details and helpful cabling information, reference the white paper titled

“Cabling for Success with DXLink” available at www.amx.com

or contact your AMX

representative.

To attach signal and transport cables to the Transmitter:

1. DXLink connector – Attach a twisted pair cable to the DXLink output and to a

DXLink input connector on the RX (requires PoE injector) or on the switcher.

2. Set the Transmitter into single-gang back box.

Fasten to back box with screws.

3. Place decor style cover plate over Transmitter.

Fasten cover plate to Transmitters with screws.

4. HDMI In – Attach an HDMI cable from the source to the HDMI In connector.*

* DVI cable can be used via a cable adapter; however, advanced audio support from

HDMI will not be available.

FIG. 1

DXLINK TWISTED PAIR 4K TX AND RX ENDPOINT SOLUTION (CONNECTED TO DGX800-ENC)

FIG. 2 DXLINK TWISTED PAIR 4K TX AND RX AS EXTENDER SOLUTION

FLT

DXLink

Twisted Pair 4K

Output Board

Twisted pair cable

Enova DGX 800

Destination device

Receiver

Source device

Wallplate

Transmitter

DXLink

Twisted Pair 4K

Input Board

Source device

Destination device

Twisted pair cable

Receiver

Wallplate Transmitter

NOTE: This configuration requires

PS-POE-AT-TC (FG423-84) or

PDXL-2 (FG1090-170) power injector.

PS-POE-AT-TC

HDMI cable

FIG. 3 RJ-45 PINOUTS

FIG. 4 RJ-45 PORTS

FIG. 5 ATTACH SIGNAL AND TRANSPORT CABLES ON DX-TX-DWP-4K

Yellow LED

Green LED

On - Link status is active

Off - Link status is not active

On - Speed status is 100 Mbps

Off - Speed status is 10 Mbps

ICS LAN 10/100 Port

(RX only)

DXLink Port

(TX and RX)

On - Connection established

On - Authenticated HDCP

Flashing - Video active; no HDCP

Off - No Video

DXLink output

HDMI In

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	FG1010-330-WH
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	32.3 mm
Dybde:	44.5 mm
Højde:	106.7 mm
Vægt:	200 g
Produktfarve:	Hvid
Pakkevægt:	470 g
Certificering:	UL 60950-1 2nd Ed. Am2\nCAN/CSA 22.2 No. 60950-1 2nd Ed. Am2\nIEC 60950-1 2nd Ed. Am2\nCE EN 60950-1 2nd Ed. Am2\nCE EN 55022:2010 Class A\nCE EN 55024:2010\nCC CFR Title 47 Part 15 Subpart B Class A\nICES-003 issue 6 Class A\nCISPR 22\nCISPR 24\nWEEE
Strømkilde type:	Vekselstrøm
Bæredygtighedscertifikater:	RoHS
Antal kanaler:	5.1 kanaler
