QUICK START GUIDE

UPX Universal Transmitter Wallplates

Overview

The UPX Universal Transmitter Wallplates convert one audio/video source over a single

Cat5 cable with power supplied from the receiver. There are three types of wallplates,

each supporting a different type of connection: Component (FG1402-52), Composite

(FG1402-50), and RGB (FG1402-51). Each type of wallplate is available in US, UK,

European, and Decora versions (see FIG. 1).

Note: AMX has evaluated several types of category cable for use with UPX wall plates. Of

the cable types tested, CAT-5e offers optimal performance for UPX analog signal routing

and AMX recommends Belden part number 1583a for best performance. CAT-6 category

cable however has demonstrated wide variance in performance across manufacturers

and cable part numbers, and therefore AMX recommends that customers needing to

install CAT-6 cable pre-test the desired cable model with UPX wall plates at the desired

lengths prior to installation.

AMX is currently evaluating additional Cat-6 and Cat-7 model numbers for compatibility,

and will publish recommended model numbers upon results of the evaluation.

The following table lists the specifications for the UPX Universal Transmitter Wallplates:

NOTE: Extended Display Identif ication Data (EDID) is not passed by the UPX Universal

Transmitter Wallplates.

Mounting Specifications

The dimensions for each wallplate version are identical, regardless of connection type.

Refer to the following images for dimensions of the wallplates:

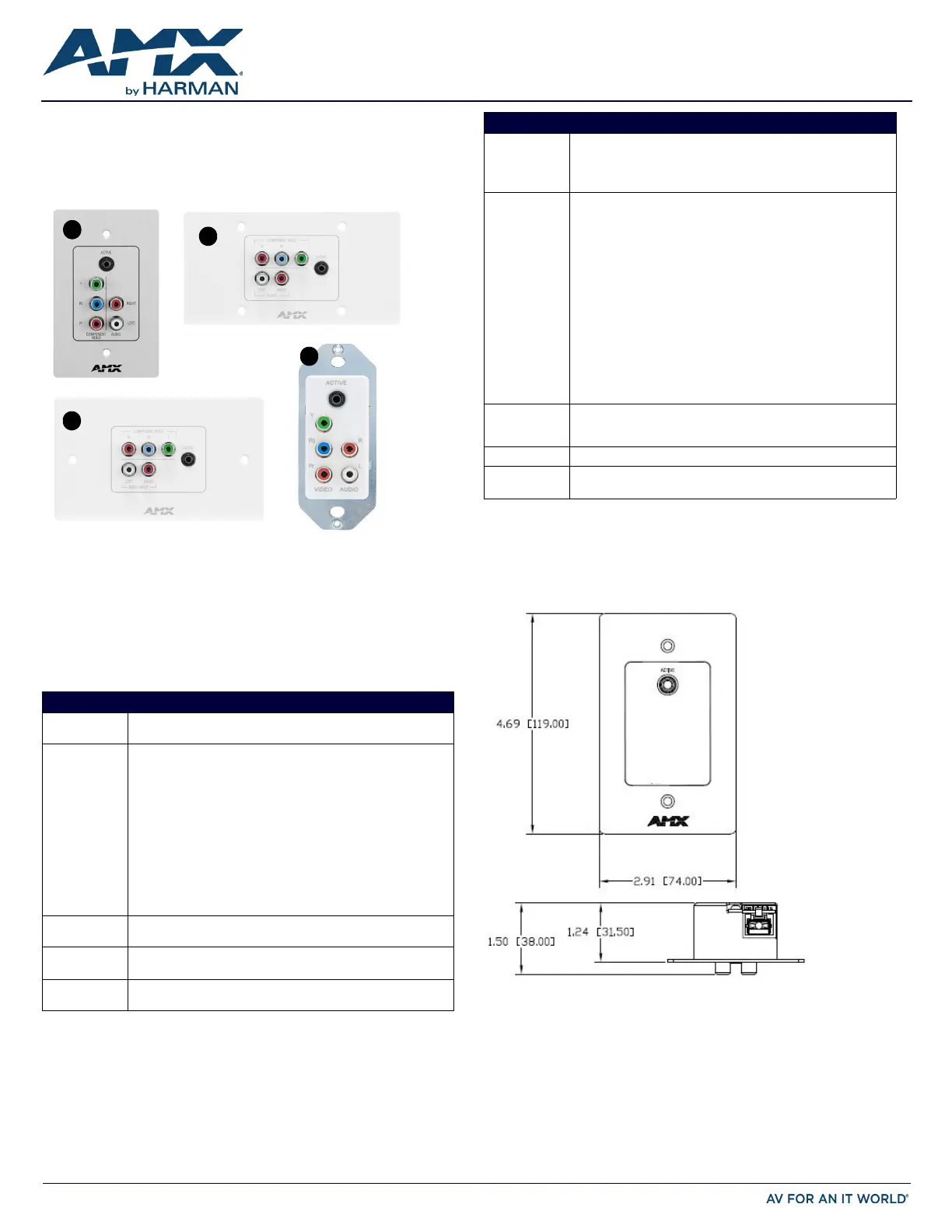

US Version

FIG. 1 COMPONENT WALLPLATE VERSIONS

UPX UNIVERSAL TRANSMITTER WALLPLATE SPECIF ICATIONS

Power: Power received over Cat5 connection from either the AVX-400 Cat5

Presentation Switcher or DVX-2100HD Total Environment Controller.

Front Panel

Components:

Component Wallplate (UPX-CN+A):

• 1 Active button

• 3 female RCA connectors for component video signals

• 2 female RCA connectors for audio signals

Composite Wallplate (UPX-CS+A):

• 1 Active button

• 1 RCA (Y) connector for connecting to a composite source

• 2 female RCA connectors for audio signals

RGB Wallplate (UPX-RGB+A):

• 1 Active button

• 1 HD-15 connector for connecting to the source

• 1 3.5mm/1/8" Stereo jack for source audio connection

Rear Panel

Components:

1 RJ-45 connector for receiving power from the receiver and

transmitting audio and video source signals

Operating

Environment:

Storage Temperature: -10º C to 70º C (14º F to 158º F)

Operating Temperature: 0º C to 40º C (32º F to 104º F)

Mounting: Mounts into US single gang and UK and European double gang back

boxes.

Continued 

1 - US

2 - EU

3 - UK

4 - DE

UPX UNIVERSAL TRANSMITTER WALLPLATE SPECIFICATIONS (CONT.)

Dimensions

(HWD):

US: 4 11/16" (11.9 cm) x 2 15/16" (7.4 cm) x 1 1/4" (3.15 cm) HWD

UK: 3 3/8” (8.6 cm) x 5 13/16” (14.7 cm) x 1 1/4" (3.15 cm) HWD

EU: 3 1/8” (8 cm) x 6” (152 cm) x 1 1/4" (3.15 cm) HWD

DE: 3 15/16” (10 cm) x 1 5/8” (4.2 cm) x 1 1/4” (3.13 cm) HWD

Weight: Component Wallplate (UPX-CN+A):

• US: 3.32 oz. (0.0942 kg)

• UK: 4.66 oz. (0.1322 kg)

• EU: 4.41 oz. (0.1252 kg)

• DE: 3.24 oz. (0.1918 kg)

Composite Wallplate (UPX-CS+A):

• US: 3.06 oz. (0.0868 kg)

• UK: 4.36 oz. (0.1238 kg)

• EU: 4.26 oz. (0.1208 kg)

• DE: 3.02 oz. (0.0855 kg)

RGB Wallplate (UPX-RGB+A):

• US: 3.31 oz. (0.0938 kg)

• UK: 4.73 oz. (0.1343 kg)

• EU: 4.52 oz. (0.1283 kg)

• DE: 3.23 oz. (0.0915 kg)

Color Schemes: The US, EU, and UK wallplates are available in three color schemes:

Black (B), White (W), and Brushed Aluminum (AL). Decora wallplates

are available in Black (B), and White (W).

Certifications: FCC Class B, CE, and IEC60950

Included

Accessories:

UPX Universal Transmitter Wallplates Installation Guide (93-1402-50)

Main to I/F Grounding Cable (64-2250-32)

FIG. 2 US DIMENSIONS

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-1402- G50 REV:

Last Revised: 7/28/2015

UK Version

European Version

Decora Wallplate Dimensions

Grounding RGB Wallplates

RGB wallplates may require earth grounding. Use the supplied grounding cable to

provide earth continuity to the wallplate.

Follow these steps to ground an RGB wallplate:

1. Use the supplied screw to connect the metal loop on one end of the grounding

cable to one of the holes in the metal back box on the wallplate (see FIG. 6).

2. Use the remaining screw to attach the metal loop on the other end of the

grounding cable to a grounded object.

Note: While the grounding cable is only necessary for RGB wallplates, AMX recommends

you use the grounding cable for all wallplate types.

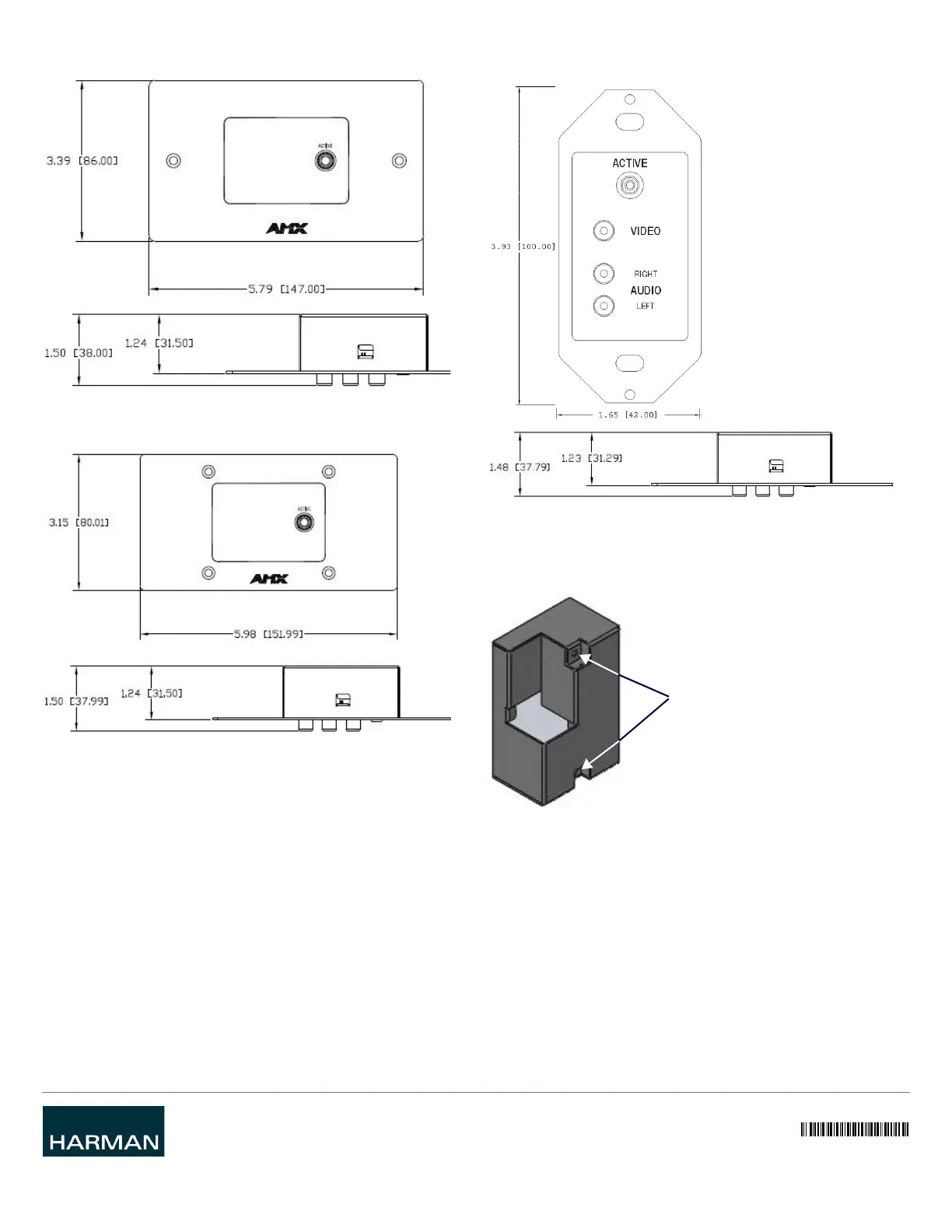

FIG. 3 UK DIMENSIONS

FIG. 4 EUROPEAN DIMENSIONS

FIG. 5 DECORA WALLPLATE DIMENSIONS

FIG. 6 RGB WALLPLATE (REAR-VIEW) WITH GROUNDING CABLE LOCATIONS

grounding holes
