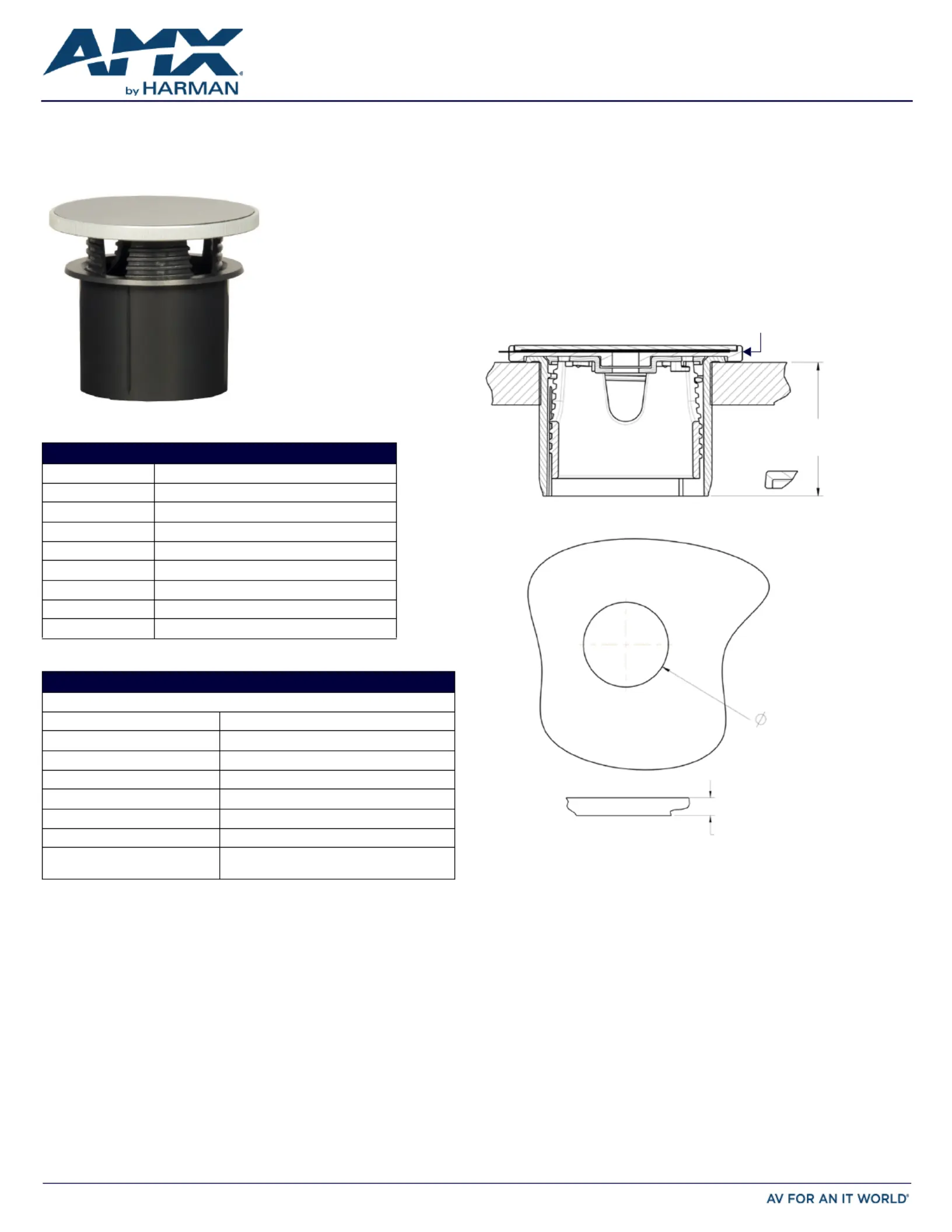

QUICK START GUIDE

HPG-20 HydraPort 2-inch Grommet

Overview

The HPG-20 family of 2-inch Grommets (FG570-02m-cc) are an elegant means to

control cables in conference rooms, meeting rooms and personal workspaces.

They are designed to be mounted into a horizontal surface such as a conference room

table, desk or lectern in order to manage Audio/video, power and or networking cables.

AMX offers nine versions of the HPG-20 2-inch Grommet.

Product Specif ications

Installation

Tools Required

• Drill

• 2" Hole Saw (recommended brands: LENOX®, DEWALT®,

Milwaukee®)

CAUTION: This installation requires specific woodworking skills. This installation should

be performed by an experienced person, comfortable with these types of woodworking

operations. Improper installation may result in damage to the mounting surface. AMX is

not responsible for damage caused by improper installation.

Read these instructions in their entirety before beginning the installation. The

installation requires specific steps to be performed in specif ic order.

1) Select a Suitable Location For the HPG-20

Note the space requirements for installing the system (FIG. 2):

Note that the HPG-20 requires 0.2" (5mm) above the mounting surface.

FIG. 1

HPG-20 2" GROMMET

HPG-20 2-INCH GROMMETS

FG570-02-SL Matte Silver Plastic Top

FG570-02S-MB Matte Black in Silver Metal Top

FG570-02B-MB Matte Black in Black Metal Top

FG570-02S-GS Gloss Silver in Silver Metal Top

FG570-02B-GS Gloss Silver in Black Metal Top

FG570-02S-GB Gloss Black in Silver Metal Top

FG570-02B-GB Gloss Black in Black Metal Top

FG570-02S-FG Frosted in Silver Metal Top

FG570-02B-FG Frosted in Black Metal Top

HPG-20 SPECIF ICATIONS

Dimensions (HWD)

• Max above mounting surface: 1” (25mm)

• Max below mounting surface: 1.1” (28mm)

• Mounting surface footprint: 2.76” (70mm) Diameter

• Min. mounting surface thickness: 1/2" (13 mm)

• Max mounting surface thickness: 2-inch (51mm)

• Table Cutout Dimensions: 2-inch (51mm) Round Hole

Weight 6oz (.2 Kg)

Enclosure Black plastic structure with a top cap made of

plastic or metal with an acrylic inlay.

FIG. 2 HPG-20 INSTALLATION SPECIFICATIONS

1.575

[40,00]

2.000

[50, 80]

HOLE

.500

[12,70]

0.2” (5mm) above the mounting surface

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-0570-01 REV: C

Last Revised: 8/11/2015

2) Drill The Hole In The Mounting Surface

Note: AMX recommends Lennox®, Dewalt® or Milwaukee® brand hole saws. Some lower

quality hole saws may make a hole larger than 2" (51mm) in diameter, which will cause

the HPG-20 to f it loosely in the hole. If in doubt, test the hole saw for proper f it before

drilling into the f inal mounting surface.

1. Carefully measure the tabletop or other mounting surface to locate the desired

position of the HPG-20.

Take care to ensure that the top surface of the mounting surface is not damaged

beyond the width of the trim bezel as the cutout is made.

2. Use an appropriate drill and 2" (51mm) hole saw to drill a 2" hole in the mounting

surface.

• Make sure cutting tool used is appropriate for the material to be cut and will not

tear or chip the top surface.

• Note that the process of making the cutout will create substantial dust and

prepare the environment appropriately.

3) Insert the Cables

For cables for which the far end of the cable is not accessible either because the cable

has been run under carpet, in a conduit or structure, or is otherwise fixed, the cable

must be placed through the cutout in the table prior to installation (FIG. 3).

1. Remove the top cap of the HPG-20 by gripping the threaded riser and rotating the

top cap counter clockwise.

2. Pass the cable through the mounting sleeve and the threaded riser.

3. Repeat as needed for additional cables.

4. Position the cables into one of the four open slots in the threaded riser.

5. Install the top cap by gripping the threaded riser and rotating the top cap

clockwise until the locking tabs are fully engaged.

6. Rotate the threaded riser in the mounting sleeve until the cables are properly

constrained between the top cap and the mounting sleeve.

4) Install the Grommet Into The Mounting Surface

Simply press the grommet with cables into the hole in the mounting surface.

• The fit of the grommet in the hole should be snug.

• Once in the mounting surface, the threads of the riser and mounting sleeve should

also be snug (FIG. 4).

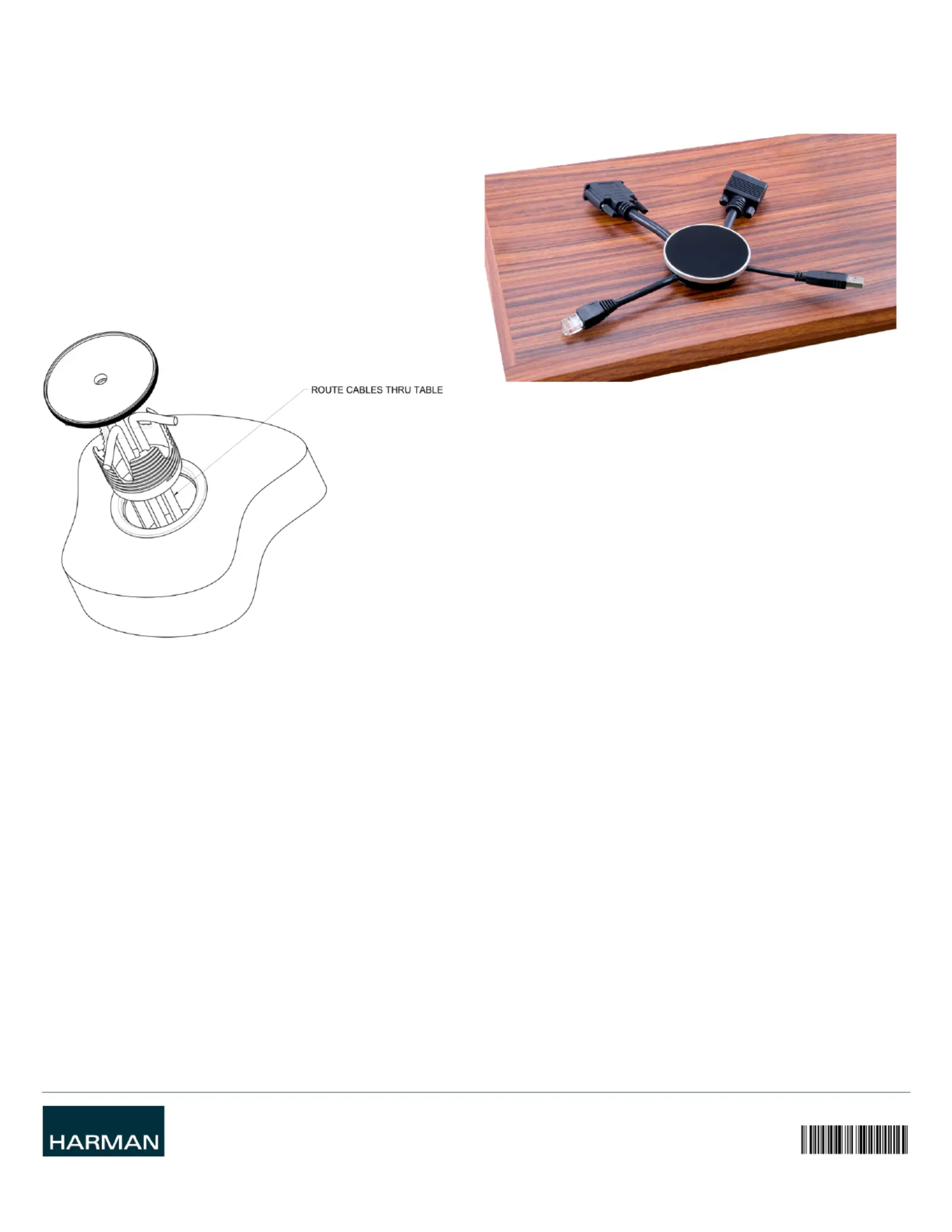

FIG. 3

CABLE INSTALLATION

FIG. 4 TOPSIDE OF INSTALLED UNIT
