QUICK START GUIDE

HPX- -600/900/1200 NA HydraPort 6, 9, 12 Module Connection Ports

Overview

The HPX- - - -600/900/1200 NA family of HydraPort Connection Ports (AMX FG560

xyz-NA) is built to accommodate the diverse connection needs of conference and

meeting room - - visitors. The HPX 600/900/1200 NA are designed to be mounted

into a horizontal surface such as a conference room table or lectern in order to

provid udio/e connectivity for power, anetworking, video and control.

Specific connectivity is accomplished by populating the HydraPort Base

Assembly with various modules. Each base includes a single US/NAM power

outlet module already installed.

FIG. 1 AMX HydraPort Base Assembly

AMX offers six (6) versions o f the Hydraport Base Assembly for North America:

H - -PX 600/900/1200 NA HYDRAPORT BASE ASSEMBLIES

HPX- - 600BL NA

AMX- -FG560 01B- NA

6M Capacity, Black

HPX- - 600SL NA

AMX- -FG560 01S- NA

6M Capacity, Silver

HPX- - 900BL NA

AMX- -FG560 02B- NA

9 M Capacity, Black

HPX- - 900SL NA

AMX- -FG560 02S- NA

9M Capacity, Silver

HPX- - 1200BL NA

AMX- -FG560 03B- NA

12M Capacity, Black

HPX- - 1200SL NA

AMX- -FG560 03S- NA

12M Capacity, Silver

ATTENTION with : Each base assembly comes one (1) US/NAM (Type A/B)

power outlet, -pre installed. nly one (1) power outlet may be In North America, o

installed in any Hydraport Base Assembly.

ATTENTION: Only a professional, AMX-qualified installer should perform this

installation. Installation must conform to all local codes. This product may not

be installed by the end- user.

Accessories

Hydraport Base assemblies come with the following accessories:

• Two (2) Table adhesiveS ”- / pacers (for use in tables 0.5 0.75" thick) w

• Eight (8) Cable Routing Clips

Compatible HydraPort Modules

Please refer to the Architectural Connectivity s product page at AMX.com for a

complete listing of compatible HydraPort Connection Modules

Installation of the HydraPort Base Assembly

The following sections describe the preparation, installation and setup of the

HydraPort Base Assembly. A typical installation will include several various

HydraPort modules.

Each HydraPort module has specific instructions for terminating their

connections. Refer to each m iodule’s nstallation guide during the installation of

the HydraPort system.

Note: Read these instructions in their entirety before beginning the installation. The

installation requires specific steps to be performed in specific order.

CAUTION: This installation requires specific woodworking skills. This installation

should be performed by an experienced person, comfortable with these types of

woodworking operations. Improper installation may result in damage to the

mounting surface. AMX is not responsible for damage caused by improper

installation.

1) Select a Suitable Location for the HydraPort Base Assembly

The following table indicates the space requirements for installing the unit:

M ODEL

H EIGHT

WIDTH

LENGTH

HPX- - 600BL NA

Base Height:

4.37” (111 mm)

th RCMs:

11.3” (287 mm)

5.43”

(138 mm)

8.19” (208 mm)

HPX- - 600SL NA

HPX- - 900BL NA

11.14” (283 mm)

HPX- - 900SL NA

HPX- - 1200BL NA

14.09” (358 mm)

HPX- - 1200SL NA

The HydraPort system requires a mounting surface from 0.5” (13mm) to 2”

(51mm) thick. T . hin surfaces may require use of included spacers

Note: Care should also be taken to ensure that the HydraPort system does not interfere with

the normal use of the work space. For example, on a table or work surface, ensure that the

system does not interfere with the user's legs when they are seated at the table.

2) iCut the Hole n the Mounting Surface

The Hydraport Base Assembly a paper template includes to locate the ideal

installation spot, and to mark the perimeter for cutting the surface. The following

table provides the hole cutout dimensions for the HydraPort Base Assembly:

M ODEL

WIDTH

LENGTH

HPX- - 600BL NA

4.84”

(123 mm)

7.64” (194 mm)

HPX- - 600SL NA

HPX- - 900BL NA

10.59” (269 mm)

HPX- - 900SL NA

HPX- - 1200BL NA

13.54” (344 mm)

HPX- - 1200SL NA

1. Use the template or measure the tabletop or other mounting surface to

locate the desired position of the HydraPort Base Assembly.

2. Use the cutout template to mark the edges of the cutout.

Note: Very little clearance exists between the HydraPort Base Assembly and the

hole cutout in the mounting surface.

Tips & Considerations:

• Align the cutout carefully with the edges or other features of the mounting surface.

If the cutout is misaligned, the installed unit will be misaligned.

• Take care to ensure that the top of the mounting surface is not damaged beyond the

width of the trim bezel as the cutout is made.

• Use an appropriate drill & bit to make a starting hole within the boundary of the

cutout. Use an appropriate saw, such as a jigsaw to finish the cutout.

• Make sure cutting tool used is appropriate for the material to be cut and will not tear

or chip the top surface.

• Note that the process of making the cutout will create substantial dust and prepare

the environment appropriately.

3) Prepare the Terminations

Some HydraPort modules require some type of backside termination.

Note: Refer to the installation guide for each module to determine the required backside

termination.

FIG. 2 Inserting the Modules to HydraPort Base Assembly

trademarks

of HARMAN. Oracle, Java and any other company name may or brand referenced be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves alter the right to specifications without prior notice at any time. The

AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com .

3000 RESEARCH DRIVE, RICHARDSON, | | TX 75082 AMX.com 800.222.0193 469.624.8000 +1.469.624.7400 | | fax 469.624.7153

1000375659 REV:C

Last Revised 2023-05-31

•& The backside termination for each module can should be completed

before the module is installed into HydraPort Base Assembly.

• For terminations for which the far end of the cable is not accessible

(either because the cable has been run under carpet, in a conduit or

structure, or is otherwise fixed), the cable must be placed through the

cutout in the table prior to installation, as indicated in FIG. 2.

4) Insert the HydraPort Modules

Note: The socket-outlet (Connection to Mains Power branch circuit) shall be installed near

the equipment and shall be easily accessible.

Note the orientation of each HydraPort Module a small tab exists on one side of the -

faceplate of each module that fits tongue groove into the next module. Ensure all tabs - -in

are facing the same direction (see FIG. 2).

1. Remove one end cap of the HydraPort Base Assembly by removing the six

sheet metal screws and one pivot screw and pivot pawl assembly.

2. Slide the pre-terminated , modules one at a time, into the HydraPort Base

Assembly, and route the cables from each module out the bottom.

3. Use cable ties and one or more of the sliding clips to secure the cables as

needed to the HydraPort Base Assembly.

4. Reinstall the end cap of the HydraPort Base Assembly by installing the six

sheet metal screws and one pivot screw and pivot pawl assembly.

Note: Do not over-tighten the pivot pawl screw (i.e., do not use a high-powered drill to

tighten this screw).

5) Install Completed System Into the Mounting Surface

1. Install the unit into the cutout in the mounting surface.

• Make sure that all cables from the backside terminations pass

through the cutout.

• For terminations for which the far end of the cable is not accessible

(either because the cable has been run under carpet, in a conduit or

structure, or is otherwise fixed), the cable must be placed through the

cutout in the table prior to installation, as indicated in FIG. 5

2. Open the door and rotate the four mounting screws located inside and at

each end of the HydraPort base assembly in order to rotate the retaining

tabs out under the mounting surface.

Note: Make sure that the retaining tabs are down and folded out of the way prior to installing

the unit in the mounting surface.

3. Carefully tighten the mounting screws until the mounting tabs contact the

backside of the mounting surface and torque to 8 in-lbs (FIG. 3). It will be

necessary to flip the cover to the opposite side to access the other two screws.

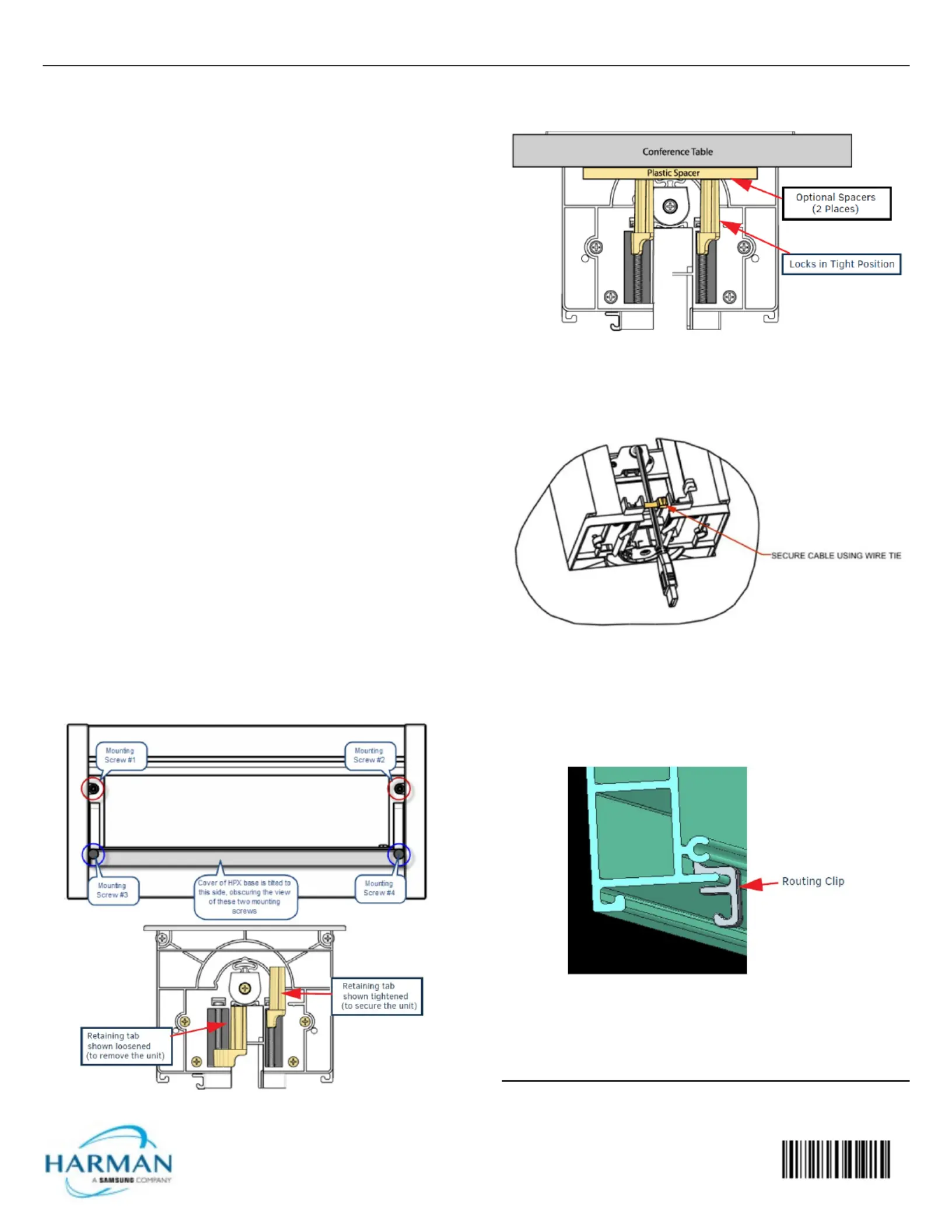

FIG. 3 HPX Base Assembly (shown mounted) – Mounting Screw Locations

Note: Do not over torque screws. To avoid damaging the mounting tabs, use a hand

Note: For surfaces less than ¾" (19mm) thick, use the supplied plastic spacers by fixing them

to each end of the cutout using the supplied double sided tape (FIG. 4).

FIG. 4 Optional Spacer and Mounting Tabs Deployed

6) Install the System nto the Mounting Surfacei

1. T erminate the underside connections as required for each cable exiting the

HydraPort system.

2. Secure these cables and the power cable to either of the end caps using the supplied

wire ties (FIG. 5).

FIG. 5 Optional Spacer and Mounting Tabs Deployed

3. Secure the cables in at least one additional location after they have been secured to

the system to prevent undue snagged or stress if the cables are inadvertently kicked,

pulled. Routing clips are provided that slide into the bottom channel of the base

assembly and leave a gap to hold the cable (FIG. 6). These clips come in two

different sizes, the larger gap is for the thicker RGB+A RCM cable.

U ksing the top tab & slot, insert the panel to the mounting brac et. Make sure

the tabs are fully engaged.

FIG. 6 Bottom View with Cable Routing Clip Installed

Additional Documentaiton

For more detailed installation instructions with additional drawings, please

refer to the -HPX 600/900/1200 Installation Guide, available to view or

download from AMX.com.
