QUICK START GUIDE

HPX-AV100-RGB+A Hydraport RGB AV Module

Overview

The HPX-AV100-RGB+A Hydraport Composite AV Module (FG552-11) is designed to be

used in conjunction with the HPX-1600 Hydraport Base Assembly. See specifications

for module requirements. For more information on the HPX-1600, refer to

www.amx.com.

The HPX-AV100-RGB+A provides user-accessible RGB (VGA HD-15) Video and Stereo

connections on the face of the Hydraport system. The HPX-AV100-RGB+A provides

connection from the user's source equipment to a remote client such as projector,

monitor, display or stereo sound system.

Product Specifications

Installation

Important! Only a professional, AMX-qualif ied installer should perform this installation.

Installation must conform to all local codes. This product may not be installed by the

end-user.

Tools Req ui red

• Wire cutting pliers

• Wire strippers

• Small flat blade screw driver

• Phillips Screw Driver (to access Hydraport Base Assembly)

CAUTION! Ensure that the AC Power cord is disconnected from IEC C-14 power inlet

connector on the Hydraport Base Assembly prior to disassembly of the Hydraport Base

assembly or installation of the HPX-AV100-RGB+A Module (see FIG. 2).

Step 1 - Backside Termination

Before installing the module into the Hydraport Base Assembly, the backside

terminations of the module must be completed. This backside termination requires

connecting three coaxial cables (or equivalent) to the 6 position phoenix terminal block

located on the back of the module.

Note that for terminations for which the far end of the cable is not accessible either

because the cable has been run under carpet, in a conduit or structure, or is otherwise

fixed, the cable must be placed through the retaining ring (note the orientation of the

retaining ring) then through the mounting surface from bottom to top, then to the

module - before the module is placed into the base assembly (FIG. 3).

Step 2 - Provide a Service Loop

Ensure there is sufficient cable length to provide a service loop for the cable after the

module is installed into the Hydraport Base Assembly (FIG. 4).

Note that the Hydraport Base Assembly travels up and down approximately 228.6 mm

(9”) during operation.

The service loop must accommodate this motion and provide for securing the cable to

the Hydraport Base Assembly for strain relief.

For more detailed information, please refer to the HPX-1600-XX Hydraport Base

Assembly Instruction Manual.

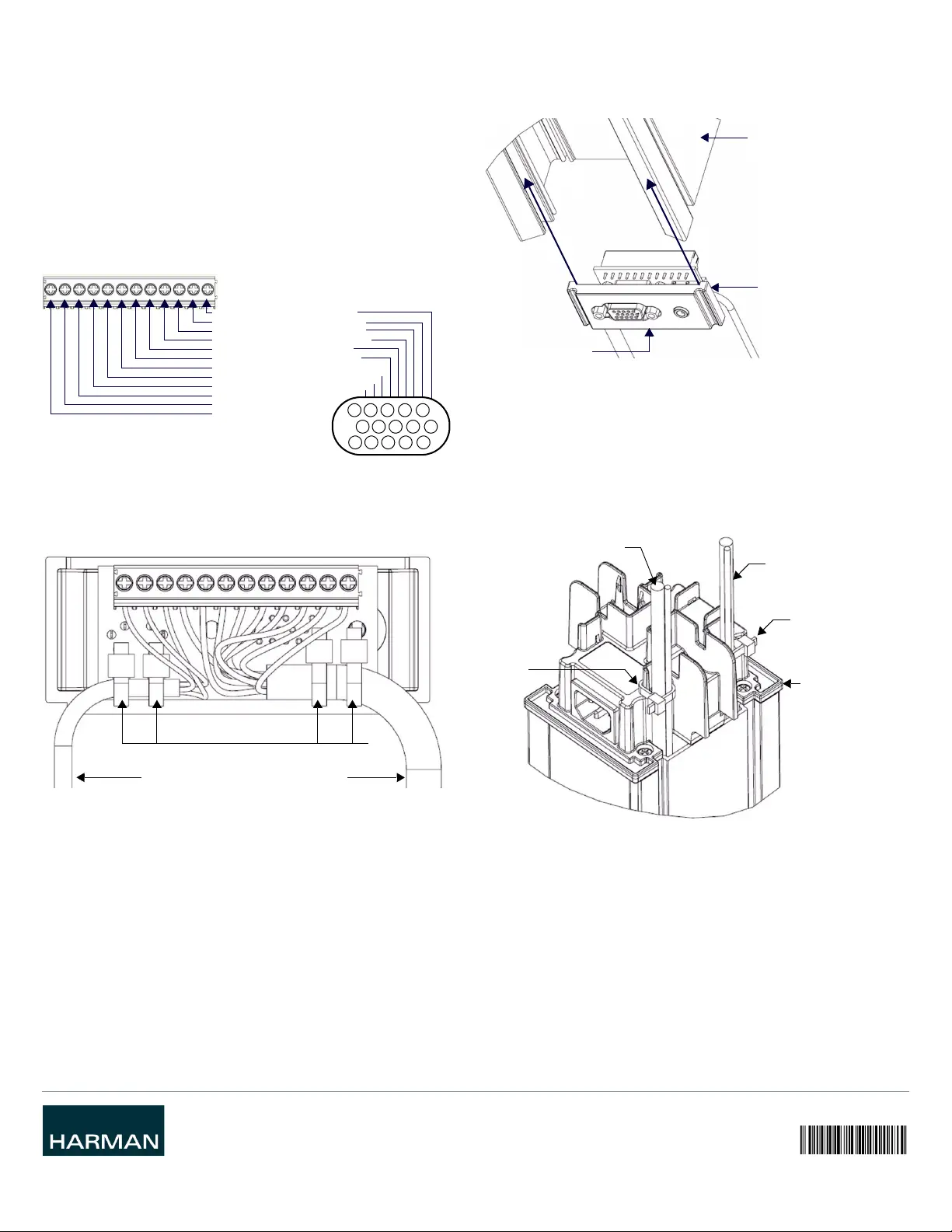

FIG. 1

HPX-AV100-RGB+A COMPOSITE AV MODULE

HPX-AV100-RGB+A SPECIF ICATIONS

Dimensions (HWD) 25mm x 52mm x 25mm (0.98” x 2.05” x 0.98”)

Weight: 31 g (1.09 oz.)

Enclosure: Matt black finished face plate (Polycarbonate plastic).

Front Connections: HD-15 RGB (VGA) style connections for:

• RGB Video (VGA)

•Left Audio

• Right Audio

Rear Connections: 12 Position Phoenix terminal block with connections for:

• Left Audio Signal +

• Right Audio Signal +

•Audio Ground -

• Horizontal Sync +

•Vertical Sync +

•Sync Ground -

• Red Video Signal +

• Red Video Ground -

• Green Video Signal +

• Green Video Ground -

• Blue Video Signal +

• Blue Video Ground -

Compatibility: • HPX-1600 Hydraport Base Assembly

• D-Sub HD-15 RGBHV (VGA) Video Source

• 3.5mm Jack style Stereo Audio Source

Included Accessories: Installation Guide

FIG. 2 HPX-1600 - POWER INLET CORD REMOVED

AC Power Cord

Power Inlet Connector

on HPX-1600

FIG. 3 FIXED CABLE PASSING THROUGH RING, TABLE AND INTO THE HPX-1600 CHASSIS

FIG. 4 SECURED SERVICE LOOP

Module

Fixed cables pass-through

Retaining Ring, Surface

to Module

Fixed cables pass-through

Retaining Ring, Surface

to Module

Retaining Ring

Mounting Surface

HPX-1600 Chassis
