QUICK START GUIDE

MET-13E Metreau

13-Button Ethernet Keypad

Overview

This guide pertains to the MET-13E Metreau 13-Button Ethernet Keypad (FG5793-02).

The purpose of this document is to illustrate how the device is to be installed and set up

in its simplest configuration by a trained technician.

Environmental Requirements

The environmental requirements for the MET-13E are as follows:

•Operating Temperature: 32° F (0° C) to 104° F (40° C)

•Storage Temperature: 4° F (-15° C) to 140° F (60° C)

•Operating Humidity: 5% to 85% RH

NOTE: Intended for indoor use only.

Dimensions

HWD: 4 11/16" x 6" x 1" (119mm x 152.5mm x 26mm)

Weight

Approximately 0.35 lbs. (0.16 kg)

Power

You can apply power to the MET-13E via any Power-over-Ethernet (PoE) injector or

switch which conforms to the 802.3af standard. Before installing and mounting the

Keypad, test to see that it can receive power.

Applying Power

Applying power to the MET-13E requires category cable and a PoE injector, such as the

PS-POE-AF-TC (FG423-83) available from AMX. The network must be connected

through the PoE injector to send power to the Keypad. The category cable should only

run through a common building. (A common building is defined as: Where the walls of

the structure(s) are physically connected and the structure(s) share a single ground

reference.)

1. Connect the PoE injector to an AC outlet (~100-240V) using a standard power

cord.

2. Connect the switch category cable to the Data In port on the PoE injector.

3. Using a separate category cable, connect the Data & Power Out port on the PoE

injector to LAN Port on the Keypad.

Changing Buttons

The easiest way to remove and replace buttons on the keypad is to place the keypad

assembly face-down on a flat level surface, so that the buttons stay in position until you

are ready to remove them.

NOTE: Disconnect the power supply and all wiring connections before removing/

replacing buttons on the keypad.

NOTE: Before touching the device, discharge the static electricity from your body by

touching a grounded metal object.

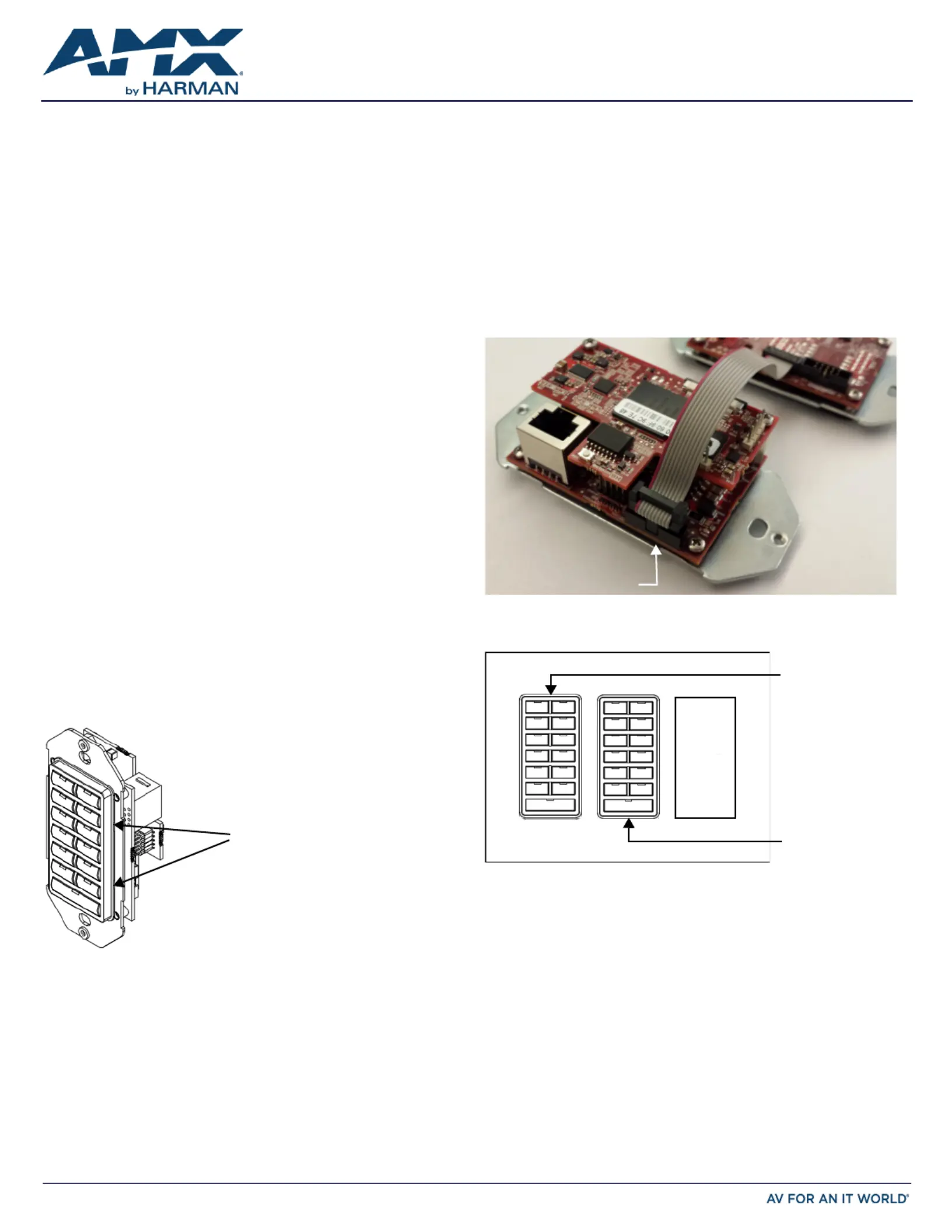

4. The faceplate is attached to the mounting plate via four plastic tabs (two on each

side of the faceplate). To remove the faceplate, gently pry it from either side.

FIG. 1

LOCATION OF THE PLASTIC TABS ON THE MET-13E

5. Gently lift each button off of their mounting posts on the circuit board.

6. Select the location of the custom buttons and gently snap them into place on the

circuit board. Be sure to note the orientation of the LED window on each button,

to avoid accidentally mounting them upside down.

7. Reattach the plastic faceplate.

Mounting Options

Mounts onto standard single gang US or EU back boxes.

• Each type of back box must adhere to its own specific safety approvals.

• Minimum internal clearance of (HWD) 2 5/8" x 1 3/4" x 1 5/8" (66.68mm x

44.45mm x 41.28mm)

NOTE: Before touching the device, discharge the static electricity from your body by

touching a grounded metal object.

Wallbox Mounting

1. Use the cutout dimension for the wallbox to cutout the install surface.

2. Connect category cable to the LAN port on the rear of the keypad.

3. Place the Mounting Plate on the wallbox; align the screw holes with the mounting

holes and fasten the Mounting Plate to the wallbox using the supplied screws.

NOTE: Do not overtighten the screws when mounting the Mounting Plate. The device

should be flush with mounting surface.

Daisy-Chaining Keypads

You can use the MET-13E as an individual keypad or in conjunction with the MET-7X or

MET-13X Metreau Ethernet Expansion Keypads. The Expansion Keypads connect to the

MET-13E via the 16-conductor ribbon cable included with the expansion keypad.

Metreau keypads support daisy-chaining up to 3 keypads together. Daisy-chained

keypads receive power from a single Ethernet connection and appear as a single

NetLinx device.

Use the 16-conductor ribbon included with the expansion keypad to connect to the

MET-13E (see FIG. 2).

FIG. 2

DAISY-CHAIN CONNECTION BETWEEN THE MET-13E AND AN ETHERNET EXPANSION KEYPAD

NOTE: If you are installing a single expansion keypad into a 3-gang back box, install the

expansion keypad in the space immediately adjacent to the primary Ethernet keypad (see

FIG. 3). Daisy-chaining is supported across a distance of 4” (101.6 mm).

FIG. 3

INSTALL THE KEYPADS IMMEDIATELY ADJACENT TO EACH OTHER IN A 3-GANG BACK BOX

NOTE: When the ribbon cable is connected, touching or moving the ribbon cable can

cause a temporary disruption in communication causing the keypads to temporarily go

offline and return to service within 25-45 seconds of the initial break. Once the keypads

are mounted and the ribbon cable is stable, no disruptions should occur.

Conf iguration

The following sections provide instructions on accessing and configuring the keypad.

Locating the IP Address of the Keypad

The MET-13E is configured for DHCP addressing by default. The keypad uses link local

addressing as a backup in case the DHCP server is inaccessible. See the Toggling

Between IP Address Modes: DHCP and Static IP section for information on setting a

static IP address. Verify there is an active LAN connection on the controller’s LAN port

before beginning this procedure.

1. Using category cable, connect the LAN port on the keypad to your external

network.

2. In NetLinx Studio, select the OnLine Tree tab. You should see the MET-13E listed

among the Unbound Devices.

3. Right-click the MET-13E and select Network Bind/Unbind Device from the menu

that appears. The Bind/Unbind Device dialog opens.

4. By default, the selected keypad appears in the Device to Bind/Unbind menu at the

top of the dialog. If there is more than one Unbound device in the system, click

the down arrow to select which device you want to bind.

Plastic tabs

Connect ribbon cable here

Primary keypad

Expansion keypad

trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their

respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-5793-02 REV: C

Last Revised: 7/31/2015

5. Select the check box next to the Master to which you want to bind the keypad. If

there is more than one Master in the system, check the specific Master to which

you want to bind the keypad.

6. Click OK to save changes and close this dialog.

7. Select Refresh System (in the Online Tree context menu). The device should now

appear in the Bound Devices folder.

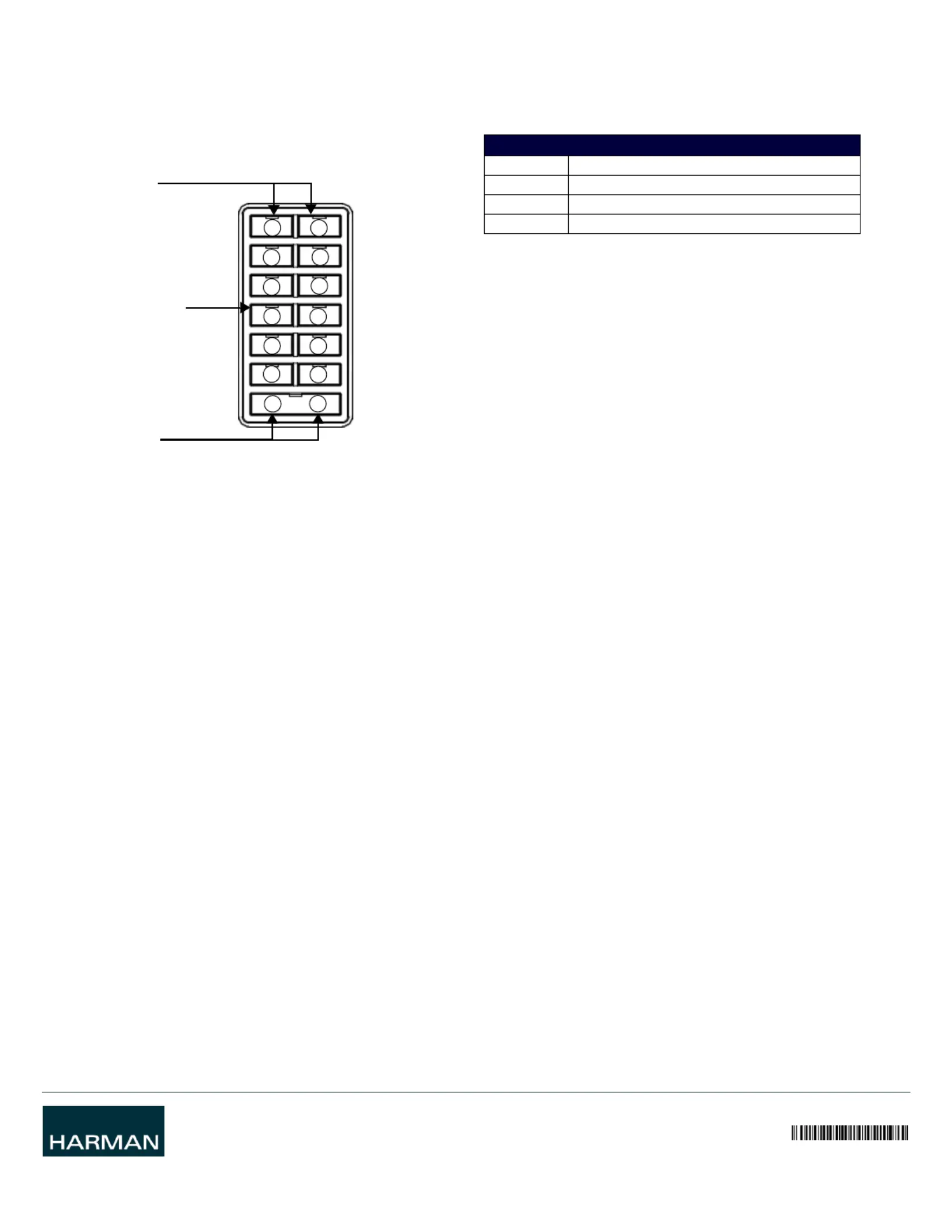

Keypad Layout

FIG. 4 displays the layout of the MET-13E.

FIG. 4

MET-13E 13-BUTTON KEYPAD

Simulating the ID Pushbutton

You can press buttons 1 and 2 simultaneously on the keypad to simulate the functions

of a NetLinx device’s ID pushbutton (see FIG. 4).

Toggling Between IP Addressing Modes: DHCP and Static IP

The MET-13E supports both DHCP and static IP addresses. You can use a static IP

address which you can set via a Telnet command (SET IP), or you can use the factory

default static IP address (192.168.1.2).

With the keypad powered and booted up (or in ID Mode), you can toggle between the

DHCP and Static IP modes by pressing and holding buttons 1 and 2. The LEDs on

buttons 1 and 2 blink while you keep them pressed. Hold them until the LEDs begin

blinking at double the rate (approximately10 seconds), then release the buttons.

When you release the buttons, the keypad toggles either from static to dynamic (DHCP)

IP addressing or vice versa and remains in that mode until you use the buttons to

toggle the IP mode again or you perform a factory reset. The keypad automatically

reboots to complete the process.

NOTE: You must wait until the keypad is finished booting before toggling the IP address.

Pressing the buttons while booting will cause the keypad to restore its factory default

settings.

Resetting the Keypad

To perform a factory reset of the Keypad, press and hold buttons 1 and 2 for

approximately 10 seconds during the boot process. The LEDs on buttons 1 and 2 blink

while you keep them pressed. Hold them until the LEDs begin blinking at double the rate

(approximately10 seconds.) Release the buttons and the keypad will reset. During

factory reset, the backlight turns off for all buttons, but all buttons should be back

online after 1-2 minutes. If you do not hold in the reset button until the LEDs begin

blinking faster, the reset does not occur. (There is no soft reboot with the Reset button,

but you can perform a soft reboot from the web pages.)

NOTE: When you reset a keypad, the keypad is restored to the factory default, so you will

lose all configuration data as the defaults are restored.

Resetting the Factory Image on the Keypad

To restore the factory image on the keypad, press and hold buttons 1 and 2 for

approximately 20 seconds during the boot process. The LEDs on buttons 1 and 2 blink

while you keep them pressed. Hold them until the LEDs begin blinking at double the rate

(approximately 20 seconds.) While pressing the buttons, disconnect and reconnect the

cable from the LAN port on the rear panel of the keypad to restore the factory image

firmware.

Channels

Channels on Metreau keypads correspond to the button numbers on each keypad as

indicated in FIG. 4.

Port Numbers

The MET-13E supports the following port numbers:

Additional Documentation

Additional documentation for this device is available at www.amx.com. Refer to the

Metreau Keypads Instruction Manual for additional details on installing, connecting, and

configuring the MET-13E.

13-pre printed pushbuttons

(with blue LED indicators)

2-position button

Press to simulate ID

pushbutton functions

PORT NUMBERS

Port Number Description

1 MET-13E

2 First daisy-chained keypad (optional)

3 Second daisy-chained keypad (optional)
