QUICK START GUIDE

MSA-STMK-43 Secure Table Mount Kit

MSA-STMK-43

The MSA-STMK-43 Secure Table Mount Kit (FG2265-18) is a beautifully styled plate

that, when attached to the Modero S MST-431 4.3” Tabletop Touch Panel (FG2265-06)

and secured with the under-table tamper-resistant bolts, will make it virtually theft-

proof (FIG. 1). If drilling into the table is not feasible, the secure mounting plate can be

attached to the touch panel (but not the table) and then secured with a Kensington ®

Lock. Both methods may be used simultaneously for extra security

Installation

The MSA-STMK-43 may be mounted in one of two ways: it can be affixed to a table or

other surface using the included hex head bolts and tamper-proof nuts, or it can be

allowed to move freely but constrained by a Kensington Lock cable. For additional

security, both options may be used at the same time.

NOTE: For the table mount installation, the tools necessary include a drill with a 1/4” bit,

a Phillips head screwdriver, and an adjustable-head box wrench. The Kensington Lock

installation requires use of a Phillips head screwdriver.

Table Mount Installation

To install the MSA-STMK-43 to a table or other surface:

1. Place the security mount base in the location where it is to be installed, taking

care not to put the mount base past the edge of the table.

2. Mark the location of the hex head bolt holes going through the security mount

base, such as by drilling through the holes into the table (FIG. 2). When drilling

through the holes, use a 1/4” drill bit to allow the bolts to pass through. Clean out

the drilling debris from the holes and from the surface of the table.

3. On the touch panel, turn the touch panel upside down and remove the 2 Phillips

head screws from the bottom of the device.

4. Install the hex head bolts through the security mount base (FIG. 2). Do NOT

secure the bolts in the table at this time.

5. Using the two Phillips flat head screws included in the kit, secure the security

mount base to the bottom of the touch panel from the underside of the base.

6. Pass the Hex Head Bolts through the table.

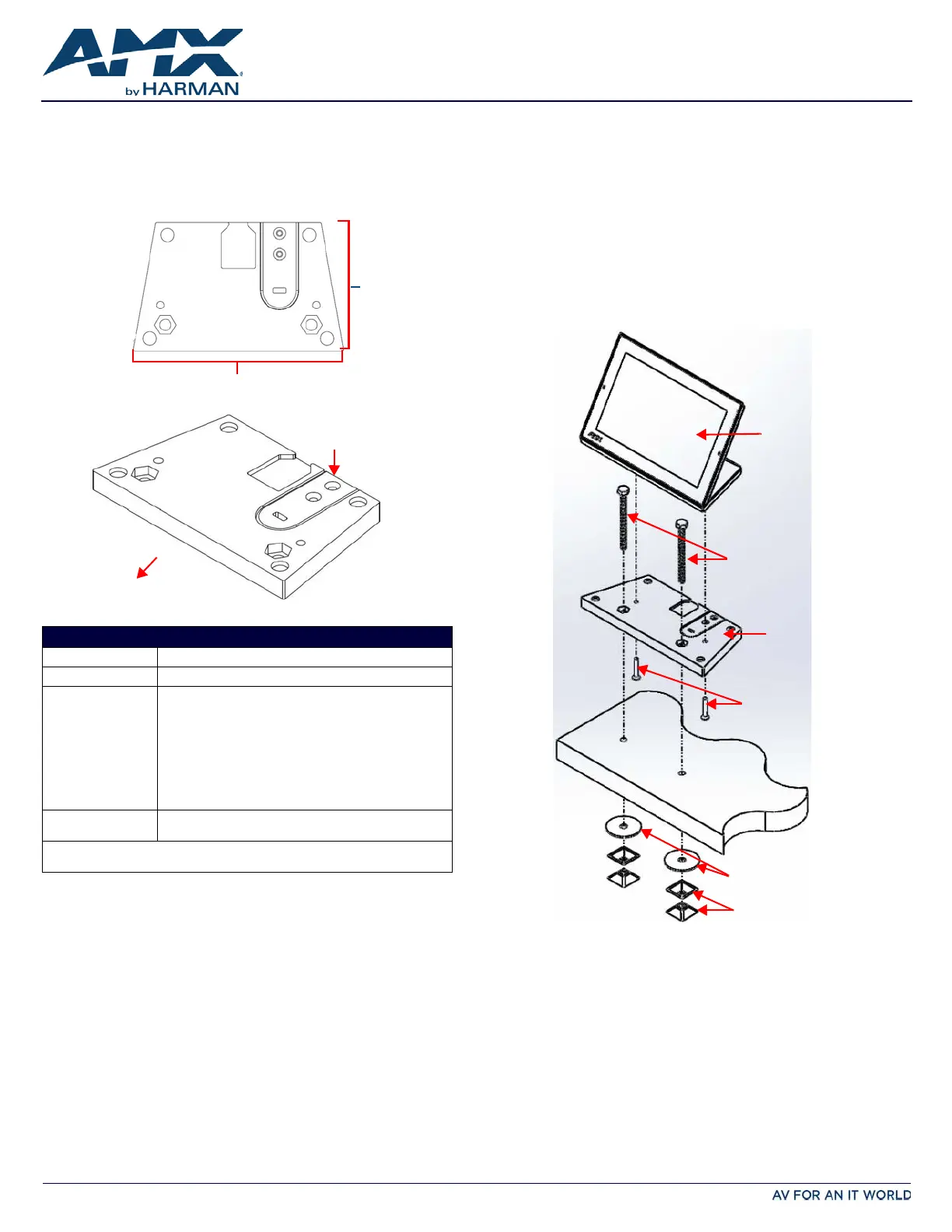

FIG. 1 MSA-STMK-43 SECURE TABLE MOUNT KIT

PRODUCT SPECIF ICATIONS

Dimensions (HWD): 0.43” x 5.03” x 3.06” (1.08 cm x 12.76 cm x 8.13 cm)

Weight: 0.60 lbs (0.27 kg)

Included Accessories: • Security Mount Base (62-2265-16)

• Kensington Lock Bracket (60-5968-50)

• Screw, 8-32 X .1.00, Torx Flat Head, Black (2) (80-5004)

• Screw, 6-32 X .375, Phillips Flat Head, Black (2)

( )80-5006

• Nut, 1/4-20, Tamper Proof (3) (80-5007)

• Washer, 1.5 Dia X .312 Thick , Nylon (2) (80-5008)

• Bolt, 1/4-20 X 3.00 Hex Head, Black (2) (80-5009)

• MSA-STMK-43 Quick Start Guide (93-2265-18)

Other AMX Equipment: • MST-431 4.3" Modero S Series Tabletop Touch Panel

(FG2265-06)

For more information on the MST-431 4.3" Modero S Series Tabletop Touch Panel, refer to

the MSD/T-431 Operation Reference Guide (available to view/download at www.amx.com).

Kensington

Lock Bracket

Front

3.06”

(8.13 cm)

5.03”

(12.76 cm)

Top

Oblique

FIG. 2 INSTALLATION PROCEDURE, EXPLODED DIAGRAM

Washers

Tamper-Proof Nuts

Table surface

MST-431

Security Mount Base

Hex Head Bolts

Phillips Flat Head Screws

Table-side nut

Outside nut

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-2265-18 REV: C

Last Revised: 11/04/2015

7. On the underside of the table, put a washer and then one of the tamper-proof

nuts on the end of each Hex Head Bolt (FIG. 3). Make sure that the wide side of

the tamper-proof nut is facing the underside of the table. Finger-tighten the

tamper-proof nut.

8. With the wide side facing away from the table surface, put the spare tamper-proof

nut on the end of one of the two bolts and finger-tighten the nut (FIG. 4). With

the two nuts touching, use an adjustable-head box wrench to further tighten the

table-side nut (FIG. 5). DO NOT OVERTIGHTEN.

9. When sufficiently tightened, remove the outside nut. Repeat step 8 with the other

hex head bolt.

10. Save the remaining outside nut in a secure place.

NOTE: When the table-side nut is sufficiently tightened and the touch panel is secure, the

remaining Hex Head Bolt may be trimmed back to prevent damage or injury from the

excess length. In order to uninstall the touch panel and security mount base in the future,

do NOT trim the bolt flush with the narrow side of the table-side nut. Always leave at least

1/4” (0.64 cm) of the bolt below the table-side nut to allow uninstallation of the panel.

Table Mount Removal

To remove the touch panel and security mount base:

1. Attach the spare outside nut to the end of the Hex Head Bolt, wide side away from

the table, and finger-tighten to the table-side nut (FIG. 3).

2. With the two nuts touching, use a wrench to loosen the table-side nut. Remove

the table-side nut and the washer from the Hex Head Bolt.

3. Repeat step 2 with the other Hex Head Bolt.

4. Lift the touch panel and the security mount base from the table surface.

5. On the bottom of the security mount base, remove the two Phillips head screws.

Remove the security mount base.

Kensington Lock Installation

In installations that require the ability to move the touch panel around a table surface,

but where the touch panel needs to remain secure, a Kensington Lock and cable, or

similar cable locking system, may be used. To use the MSA-STMK-43’s Kensington Lock

bracket:

1. On the security mount base (FIG. 1), loosen the two screws holding the

Kensington Lock bracket to the base (FIG. 6) and remove the bracket.

2. Reverse the bracket in its slot so the rounded end faces outward (FIG. 6), and

resecure it to the security mount base with the two bracket screws.

3. On the touch panel, turn the touch panel upside down and remove the 2 Phillips

head screws from the bottom of the device.

4. Using the two Phillips flat head screws included in the kit, secure the security

mount base to the bottom of the touch panel from the underside of the base.

5. Following the manufacturer’s instructions, pass the Kensington Lock cable

through the slot in the bracket and secure the end to the desired lock, post, or

other secure location.

6. To remove the Kensington Lock and hide the bracket, reverse the order of steps 1

through 5.

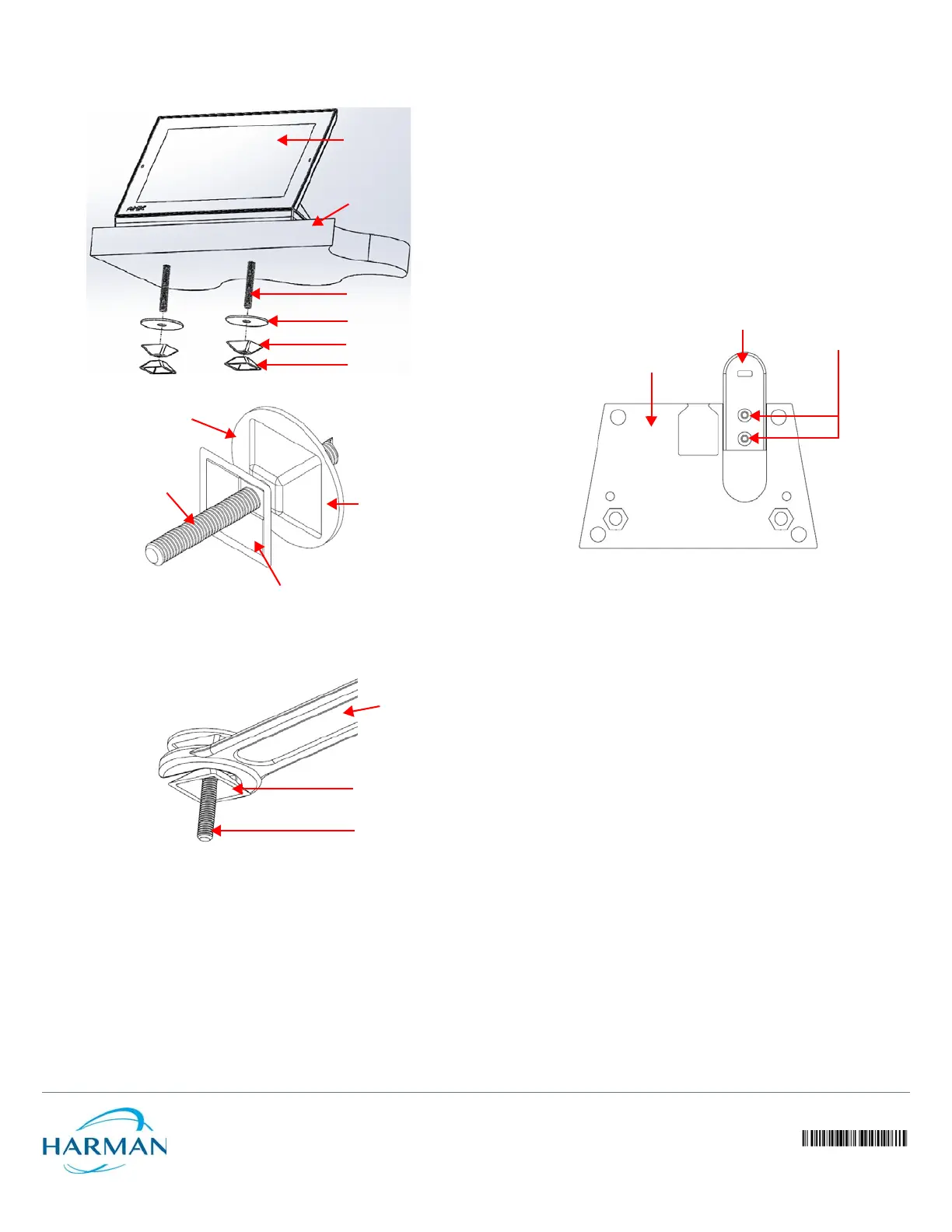

FIG. 3 INSTALLATION, UNDERSIDE OF THE TABLE SURFACE

FIG. 4 TAMPER-RESISTANT NUT INSTALLATION, DETAIL

FIG. 5 TIGHTENING OF TAMPER-RESISTANT NUTS, DETAIL

Touch panel

Table surface

Hex Head Bolt

Washer

Table-side nut

Outside nut

Table-side nut

Washer

Hex Head Bolt

Outside nut

Wrench

Outside nut

Hex Head Bolt

FIG. 6 KENSINGTON LOCK BRACKET INSTALLATION

Kensington Lock Bracket

Security Mount Base

Bracket screws
