MT-2002 20.3” Modero G5 Panoramic Tabletop Touch Panel

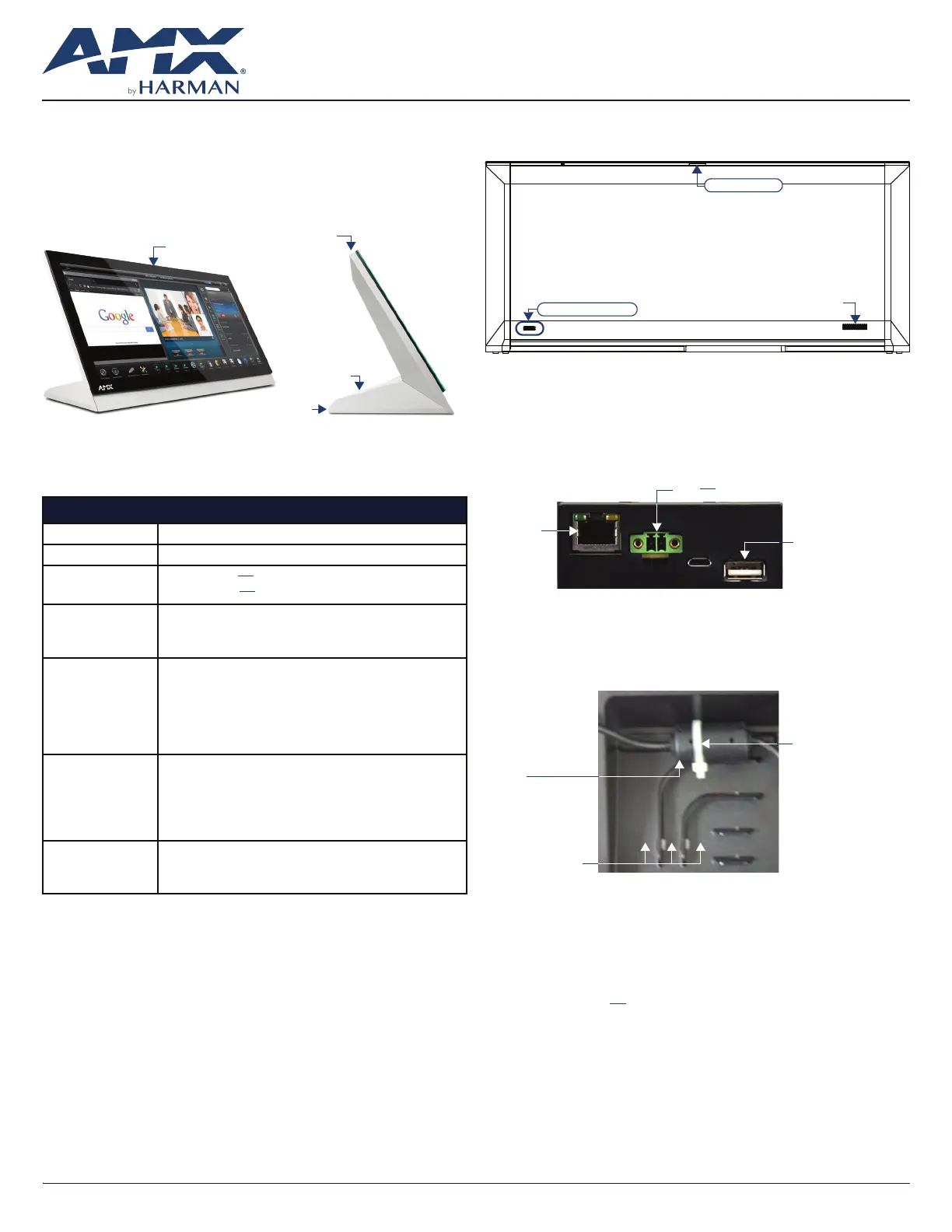

Overview

The MT-2002 20.3” Modero G5 Panoramic Tabletop Touch Panel

(FG5969-35) features the G5 Graphics Engine to provide fast and smooth

animations and transitions, as well as a Quad Core Processor.

The MT-2002 features a panoramic capacitive multi-touch screen that

provides users access to multiple applications with minimal navigation. The

distinctive, low-prole design is engineered to sit perfectly on a table without

obstructing views.

Sleep button

USB Ports (2)

Cable slot

FIG. 1 MT-2002

Product Specifications

MT-2002 SPECIFICATIONS

Dimensions (HWD) 9 3/16” x 20 3/8” x 5 7/8” (235 mm x 519 mm x 150 mm)

Weight 12.3 lbs (5.58 Kg)

Power

Consumption

Full-On: 35 W (12V

..., 2.9A)

Standby: 7 W (12V

..., 0.58A)

External Power

Supply Required

Requires one of these AMX power sources (not included):

• PSR5.4 Power Supply, 12 VDC, 5.4A, 3.5mm Phoenix Connector with

Retention Screws (FG423-48)

• MXA-MPL Modero X/S Series Multi Preview Live (FG5968-10)

Certications • FCC Part 15 Class B

• AS/NZS CISPR 32 Class B

• CE EN 55032, 55035, 60950-1

• CB Scheme IEC 60950-1

• IC

• IEC/EN-60950

• UL 60950-1

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power (“Heat”) Dissipation:

On: 119.4 BTU/hr

Standby: 23.9 BTU/hr

Included

Accessories

• Locking 2-pin Phoenix connector (41-0002-SA)

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• HPG-10-10K, 3/4” Mini-Grommet (FG570-01)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

Connector Locations

Two Type A USB ports are located on the rear right corner of the device (FIG. 2).

Type A USB Ports

Speaker

Sleep button

FIG. 2 MT-2002-REAR VIEW

USB peripherals (mouse, keyboard, etc.) may be connected to either of the two

USB ports on the rear of the device.

The power and Ethernet connectors, as well as an additional USB port are

located on the bottom of the device (FIG. 3).

The underside USB port, as well as the two rear USB ports, may be used with a

ash drive for page transfers or rmware upgrades.

Ethernet

10/100 Port

Type A USB Port

12V

... Power Port

FIG. 3 MT-2002 UNDERSIDE CONNECTORS

The MT-2002 does not have individual channels on the base of the device

to allow passage of cables from underneath the base. Instead, it has one slot at

the base to allow options on cable conguration, with channels for securing

power and Ethernet cables (FIG. 4).

Ferrite

Tie-wrap channels

Tie-wrap

FIG. 4 TIE-WRAP FOR POWER CONNECTOR FERRITE

Each channel side has slots for attaching tie-wraps to secure each cable. The

ferrite on the power cable must be secured with the included tie-wrap during

installation to prevent the possibility of the panel not sitting ush on the table.

Other cables may be secured with tie-wraps if desired, but this is not necessary.

Wiring Guidelines

The MT-2002 uses a 12V ... -compliant power supply to provide power to

the panel via the 2-pin 3.5 mm captive wire PWR connector.

The incoming PWR and GND wires from the power supply must be connected to

the corresponding locations within the PWR connector.

Note: Apply power to the panel only after installation is complete.

Note: Connecting power to the MT-2002 should be done using the included

2-pin 3.5mm captive wire connector included with the device. This connector

is retained within its port with locking screws instead of the pins on each side of

standard captive wire connectors, and using force to insert a standard captive

wire connector may damage the device.

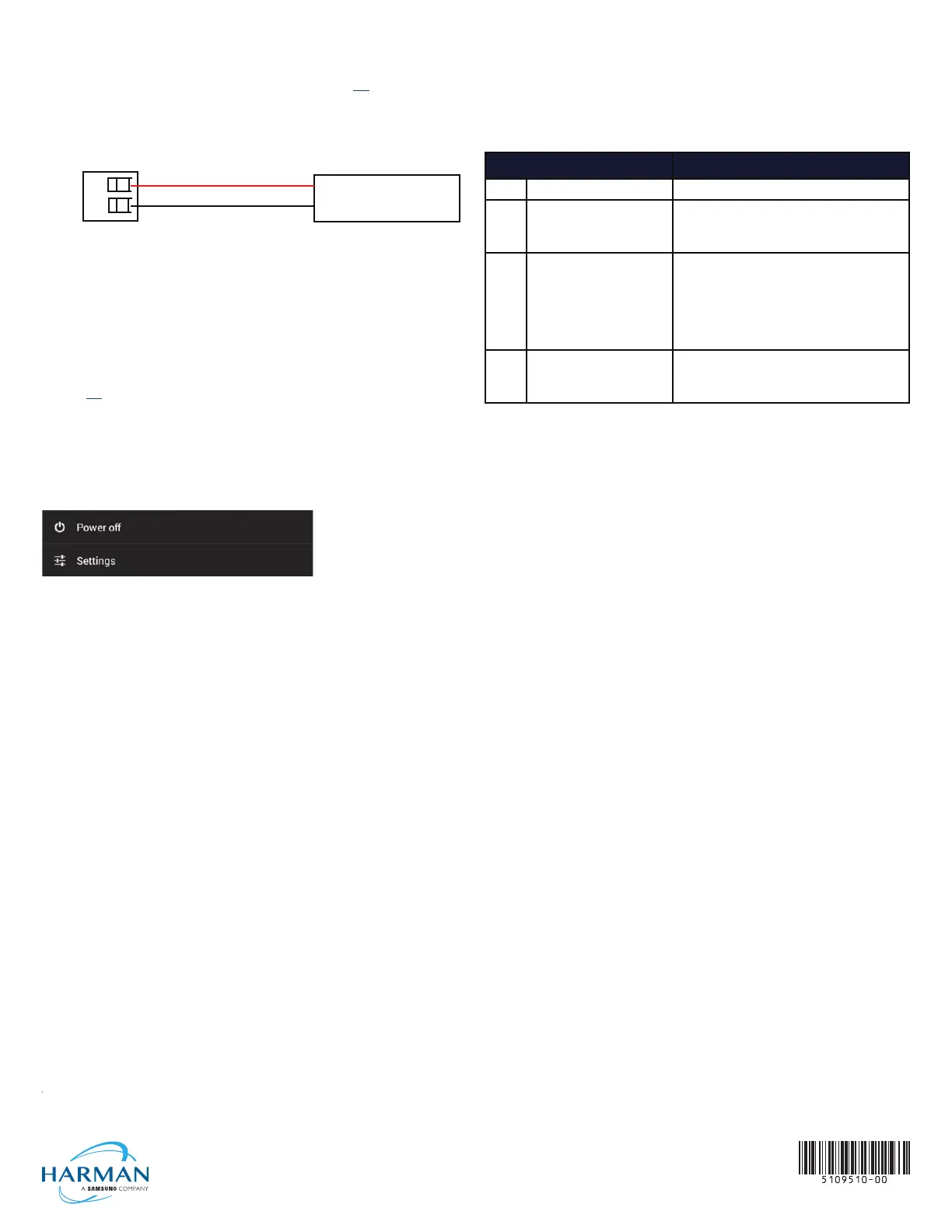

Wiring a Power Connection

To use the 2-pin 3.5 mm captive wire connector with a 12V ... -compliant power

supply, the incoming PWR and GND wires from the external source must be

connected to their corresponding locations on the connector (FIG. 5).

The connector uses locking screws to insure a connection to the device, so

make sure to insert and tighten the screws before applying power.

PWR +

Power Supply

To the Touch Panel

GND -

FIG. 5 NETLINX POWER CONNECTOR WIRING DIAGRAM

1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm

captive wire cable.

Match the wiring locations of the +/- on both the power supply and the

terminal connector.

2. Tighten the clamp to secure the two wires. Do not tighten the screws

excessively; doing so may strip the threads and damage the connector.

3. Verify the connection of the 2-pin 3.5 mm captive wire to the external

12V

... -compliant power supply and apply power.

Powering On/Off Modero G5 Panels

Modero G5 touch panels may be powered on by touching and holding the

Sleep button. To power off the panel, press and hold the Sleep button, and

select Power Off on the on-screen menu (FIG. 6):

FIG. 6 SLEEP BUTTON - PRESS AND HOLD TO ACCESS POWER OFF/SETTINGS OPTIONS

Configuration and Programming

Modero G5 touch panels are equipped with a Settings menu that provides the

ability to congure various features on the panels. To access the Settings menu,

press and hold the Sleep button, and select Settings.

Note: Information on the Settings menu, panel conguration, and programming

is provided in the Modero G5 Programming Guide, available at www.amx.com.

Setting the Panel’s Device Number and Device Name

1. In the Settings menu, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select

OK to access the NetLinx page.

3. Press Device Number to open the NetLinx editing window.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Enter a unique Device Name assignment for the panel and press OK.

Configuring the Panel’s IP Address

The rst step is to congure the panel’s IP address. Note that this only congures

the panel to communicate with a network; it is still necessary to connect to the

NetLinx Master (see Connecting to a NetLinx Master below).

Network Communication via DHCP

1. In the Ethernet page, press DHCP/Static eld to open the DHCP/Static

window. Note that DHCP is the default setting.

2. Select Host Name, enter the new host name

3. Press OK to save changes.

Network Communication via Static Address

1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.

2. Select Static to open the Static IP window.

3. Press any eld to open a keypad or keyboard (depending on the eld), and

enter the appropriate network address information.

4. Press OK to save your changes and return to the Ethernet page.

Connecting to a NetLinx Master

To establish the type of connection to make between the panel and the

NetLinx Master:

1. In the NetLinx page, press Mode to choose the connection mode (URL,

Listen or Auto):

CONNECTION MODES

Mode Description Procedures

URL The device connects to the target

Master’s IP address via a TCP

connection.

1. Select URL in the Mode menu.

2. Enter the Master IP/URL, Master Port Number, and

Username/Password (if required by the Master).

3. Press OK to save changes.

Listen This mode allows the panel

to“listen” for the Master’s

communication signals.

Note that in this mode, the System

Number and Master IP/URL elds

are read-only.

1. Select Listen in the Mode menu.

2. Conrm the panel’s IP address is on the Master’s

URL list (via NetLinx Studio).

3. Press OK to save changes.

Note: The Host Name (set on the Ethernet page), can

be used to locate the panel on the Master (particularly

useful for DHCP connections where the IP address

can change).

Auto Use this mode when both the

panel and the NetLinx Master are

on the same Subnet.

1. Select Auto in the Mode menu.

2. Enter the System Number and Username and

Password (if applicable).

3. Press OK to save changes.

2. If password security is enabled on the target Master, enter the Username

and Password:

a. Select Username to open the NetLinx window.

b. Enter the Username and Password required by the Master.

c. Press OK to save changes and return to the NetLinx page.

Related Software and Additional Documentation

(at www.amx.com)

• Programming the Modero G5 touch panel requires the use of either Rapid

Project Maker (RPM) or the latest version of Netlinx Studio and TPDesign5,

both available to download at www.amx.com. Refer to the NetLinx Studio

and TPDesign5 online help for information.

• For information on designing touch panel pages intended to optimize the

Modero G5 experience, refer to the G5 Considerations Guide.

• For additional information on the MT-2002 panel, refer to the Modero G5

Touch Panel Instruction Manual.

• For detailed information on the Settings menu as well programming

information and instructions on upgrading rmware, refer to the Modero G5

Programming Guide.

• Detailed specications drawings for the MT-2002 are available to download

from www.amx.com.
