QUICK START GUIDE
MSA-RMK-10 10.1” Modero S Series® Rack Mount Kit
Overview
The MSA-RMK-10 Modero S Series ® Rack Mount Kit (FG2265-14) is an optional
accessory for the MSD-1001 10.1” Modero S Series Wall Mount Touch Panel (FIG. 1).
The kit allows the touch panel to be mounted directly on an equipment rack, and
includes a rack mount frame, screws and washers.
Product Specif ications
Installation of the MSA-RMK-10
The MSA-RMK-10 offers a stable installation mount for the MSD-1001 through the
panel’s Back Box.
NOTE: All doors, covers, and other obstacles preventing installation of the Rack Mount Kit
should be removed before installation is attempted. Due to the size of the Modero S Series
panel, it may not be possible to close racks that contain a rack door, once installation is
complete.
To install the MSA-RMK-10:
1. Secure the Rack Mount Panel to the rack with #10-32 screws. Make sure that the
installation flanges face away from the front of the rack (FIG. 2).
2. Insert the Back Box into the Rack Mount Panel, making sure that the Back Box is
in the correct orientation. The stand-offs on the installation flanges will pass
through the Back Box and help anchor it in place.
3. Use the #8-32 screws to attach the Back Box to the stand-offs. Note that the
Rack Mount Panel has four stand-offs.
WARNING: The maximum recommended torque to be used on the Back Box
installation screws is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening
the screws, such as with powered screwdrivers, can strip out the screw holes or
damage the plastic back box..
4. With the Back Box anchored in the Rack Mount Panel (FIG. 3), you may now install
the MSD-1001 into the Back Box.
NOTE: For more information on installing the MSD-1001 into its back box, please refer to
the MSD/T-1001 Operation Reference Guide, available from www.amx.com.

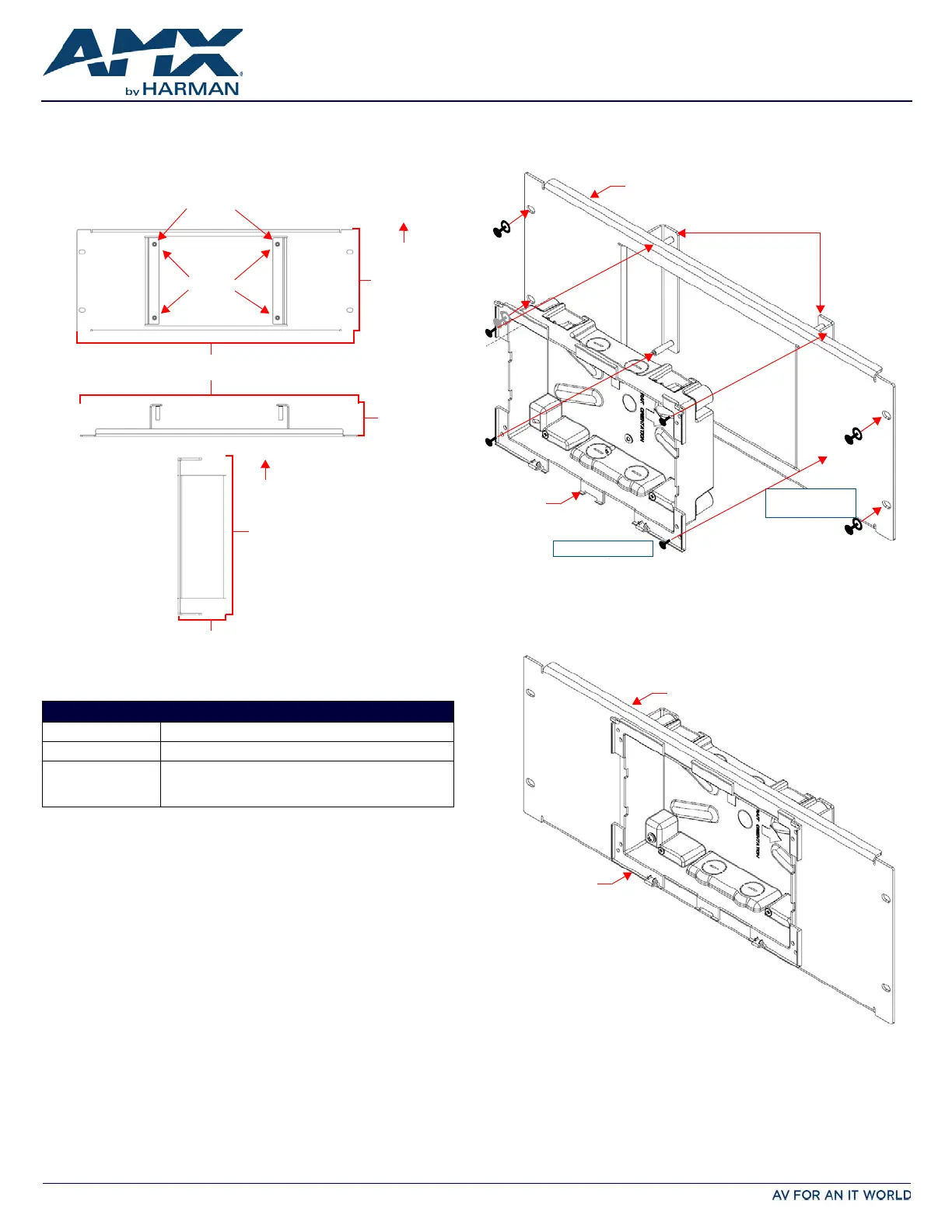

FIG. 1 MSA-RMK-10
MSA-RMK-10 (FG2265-14) SPECIF ICATIONS
Dimensions (HWD): 6.97” x 19.00” x 2.15” (17.70 cm x 48.26 cm x 5.45 cm)
Weight: 2.60 lbs (1.47 kg)
Included Accessories: • Screws (4), #8-32 X 1.00, PPH (80-0140)
• Screws (4), #10-32 X .625, PH.TRUSS, BLK (80-0186)
• Washers (4), #10, BLACK NYLON (80-0342)
19.00” (48.26 cm)
6.97”
(17.70 cm)
2.15”
(5.45 cm)
Front View
Top View
Side View
6.97”
(17.70 cm)
2.15” (5.45 cm)
Up
Installation
Flanges
Stand-offs
Up
FIG. 2 INSTALLATION OF THE BACK BOX INTO THE MSA-RMK-10, FRONT VIEW
FIG. 3 FINAL ASSEMBLY OF THE MSA-RMK-10 WITH BACK BOX
#10-32 Screws
#10-32 Washers
Attach the Rack-Mount
Kit to the equipment rack
Back Box
Rack Mount Panel
Installation Flanges
# 8-32 Screws (x4)
Attach the Back Box
to the Rack-Mount Kit
(with 4 Stand-offs)
Back Box
Rack Mount Kit
© 2015 Harman. All rights reserved. Modero, Modero S Series, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their
respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-2265-14 REV: C
Last Revised: 11/05/2015
A Note About Wall and Rack Installation
Some products are installed in areas of differing temperature and cooling
methodologies. These include products installed in walls, racks, cabinets, etc. Those
areas may have different temperatures and/or cooling approaches that must be
taken into consideration to maintain the product within the specified operating
temperature.
FIG. 4 shows an AMX device installed in a wall with a filled volume (such as with
insulation or concrete), as well as with a closed volume (such as between studs in an
otherwise finished wall). The diagram shows how heat generated by the device or
other devices may have no way to escape, and may build up to levels that may affect
device operation.
In FIG. 5, the diagram displays an AMX device in a typical rack mounting, with full air
circulation around the front and back of the device. In this case, the main concern is
with heat building up between components, possibly to levels that may affect device
operation.
Installation Recommendations
During any installation, a lack of ventilation may produce conditions that may
adversely affect the device’s operation. In these circumstances, special care must be
made to make sure that temperatures within enclosed areas do no t exceed the
device’s maximum rated temperature.
Additional Documentation
For additional mounting options, accessories, or touch panel information, refer to
the documentation available at www.amx.com.
FIG. 4 HEAT CONVECTION IN FILLED OR CLOSED VOLUME, LIMITED OR NO CONVECTION
FIG. 5 HEAT CONVECTION IN RACK-MOUNTED DEVICES
