QUICK START GUIDE

MXD-1000 10.1" Modero X® Series Wall Mount Touch Panel

Overview

The MXD-1000 10.1" Modero X Series ® Wall Mount Touch Panel features edge-to-edge

capacitive touch glass with multi-touch capabilities as well as advanced technology

empowering users to operate AV equipment seamlessly, while providing the ultimate in audio

and video quality. The MXD-1000 is available in Portrait and Landscape layouts:

Product Specif ications

Note: The MXD-1000-P-NC (FG5968-25) and MXD-1000-L-NC (FG5968-26) No Comm touch

panels do not have camera, microphone, or NFC capability. These otherwise have all of the

functionality of the MXD-1000 panels.

MXD-1000 Installation

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series Touch Panels MXD/T-

1000, MXD/T-700 & MXD-430 Instruction Manual (available to view/download from

www.amx.com).

• Detailed specifications drawings for the MXD-1000 are available to download from

www.amx.com.

The MXD-1000 may be installed directly into a solid surface environment, using either solid

surface screws or the included locking tabs for different mounting options.

Once installed, the MXD-1000 is contained within a clear outer housing known as the Backbox

(FIG. 2). The Backbox is removed to install it into a wall, or when using the optional Rough-In

Box accessory (FG039-17).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting

screws (not included).

Installing the MXD-1000 Into a Wall

The MXD-1000 comes with a clear plastic Backbox (designed to attach the panel to most

standard wall materials. This Backbox has four locking tabs (two on top and two on bottom) to

help lock the Backbox to the wall.

These locking tabs are only extended AFTER the Backbox is inserted into the wall (FIG. 3).

• When installing the Backbox, make sure that the assembly is in the correct position and

in the correct place. Once the locking tabs are extended and locked into place, removing

the Backbox may be difficult without having access to the back of the wall or causing

damage to the wall.

• In order to ensure a stable installation of the MXD-1000, the thickness of the wall

material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The mounting surface should also be smooth and flat.

Installing the Backbox

For best results, use the included Installation Template (68-5968-03) to ensure proper

placement. The template is marked on one side with directions for both landscape and portrait

installations to ensure that the touch panel and Backbox are properly aligned.

WARNING: Using the Installation Template to select the f inal placement of the Backbox is highly

recommended. The outside edges of the template are the same dimensions as the touch panel,

which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential

obstacles.

1. Prepare the area by removing any screws or nails from the drywall before beginning the

cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox, using

the (included) Installation Template as a guide.

CAUTION: Making sure the actual cutout opening is slightly smaller than the provided

dimensions is highly recommended. This provides a margin of error if the opening needs to

be expanded. Too little wall material removed is always better than too much.

3. Thread the incoming cables through the surface opening (FIG. 4).

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

4. Remove the Backbox knockouts and thread the incoming wiring through the knockout

holes.

5. Thread the incoming cables from the mounting surface opening and through the

knockouts.

6. Push the Backbox into the mounting surface. Insure that the locking tabs lie flush

against the Backbox and that the Backbox goes freely into the opening.

7. Extend the locking tabs on the sides of the Backbox by tightening the screws inside the

box until snug.

Apply enough pressure to the screw head to keep the box flush with the wall: this

ensures that the locking tabs will tighten up against the inside of the wall.

Note: The maximum recommended torque to screw in the locking tabs on the Backbox is 5

IN-LB [56 N-CM]. Applying excessive torque while tightening the tab screws, such as with

powered screwdrivers, can strip out the locking tabs or damage the Backbox.

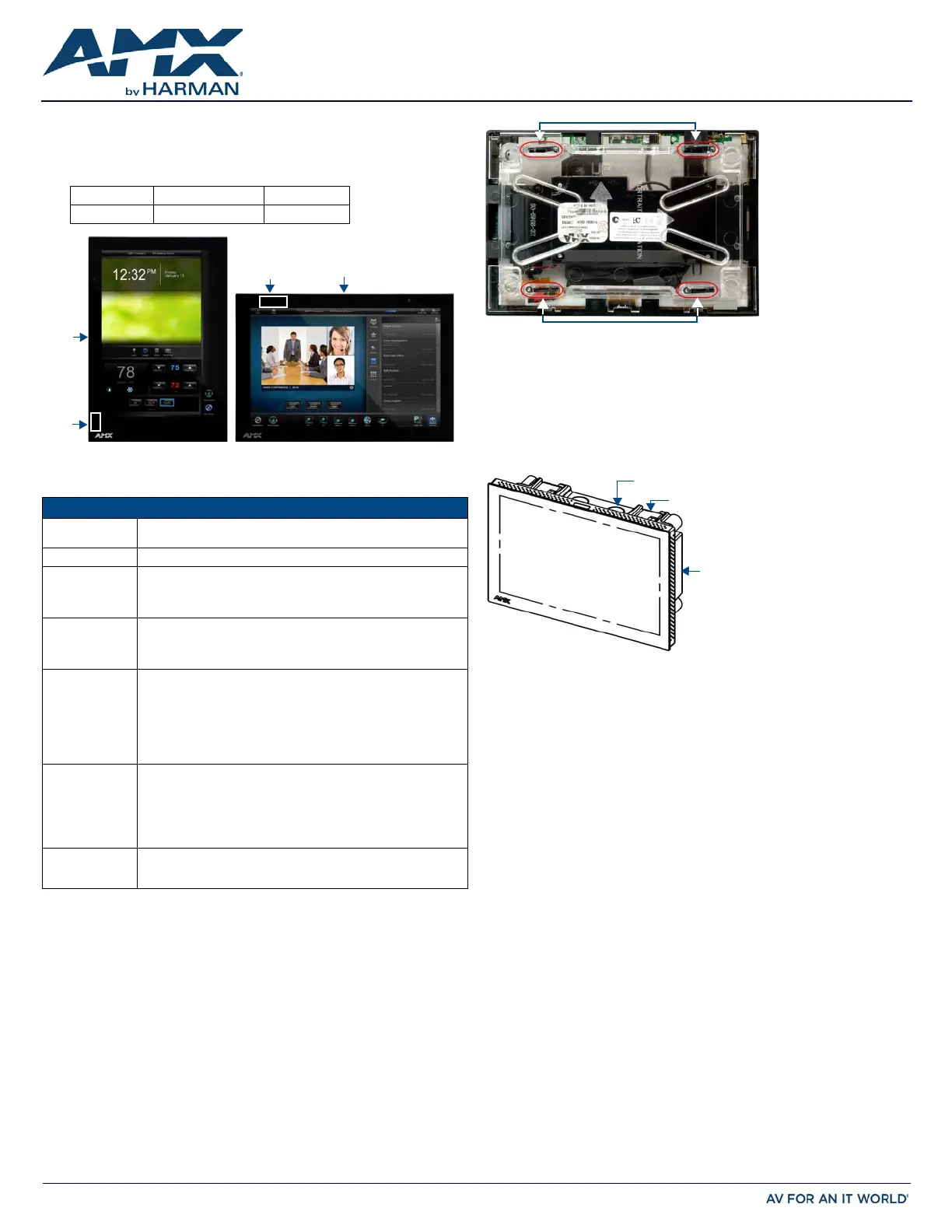

Portrait MXD-1000-P FG5968-07

Landscape MXD-1000-L FG5968-13

FIG. 1 MXD-1000-P/L (PORTRAIT AND LANDSCAPE)

MXD-1000 SPECIF ICATIONS

Dimensions (HWD) • Landscape: 6 11/16" x 9 7/8" x 2 5/8" (171mm x 252mm x 67mm)

• Portrait: 9 7/8" x 6 11/16" x 2 5/8" (252mm x 171mm x 67mm)

Weight 2.0 lbs (0.91 Kg)

Power Consumption • Full-On: 12.95W maximum

• Standby: 5.8W

• Shutdown: 1W

• Start-Up Inrush Current: Not applicable due to PoE standard

External Power

Supply Required

Optimal performance requires use of one of the following AMX PoE power

supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Certifications • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CB Scheme IEC 60950-1

• IC

• IEC/EN-60950

• UL 60950-1

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 44.2 BTU/hr

Standby: 19.8 BTU/hr

Included

Accessories

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

• Installation Template 10”

Sleep ButtonNFC Sensor

Sleep

NFC

Button

ensor

MXD-1000-P MXD-1000-L

FIG. 2 MXD-1000 BACKBOX (REAR VIEW)

FIG. 3 MXD-1000 (LANDSCAPE)

Locking tabs

Backbox

Backbox knockouts (X4)

Locking tabs (X4)

registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks

of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-5968-07 REV: N

Last Revised: 6/22/2015

8. For additional strength, #4 mounting screws (not included) may be secured via

mounting circular holes located at the left and right sides of the MXD-1000 (FIG. 4).

In order to prevent damage to the touch panel, make sure that these are flush with the

Backbox.

9. Insert each connector into its corresponding location along the back of the device. To

reach the RJ45 connector, gently pull it from beneath the electronics cover. Attach the

Ethernet cable and gently push the connection back under the cover.

Note: To facilitate connection of the RJ45 connector to the Ethernet cable, press the

RJ45’s cable into the RJ45 cable clip to hold it in a stable position. Make sure to remove

the cable from the cable clip before continuing the rest of the installation.

10. Test the incoming wiring by attaching the panel connections to their terminal locations

and applying power. Verify that the panel is receiving power and functioning properly to

prevent repetition of the installation.

Note: Do not disconnect the connectors from the touch panel. The unit must be installed

with the attached connectors before being inserted into the mounting surface.

Remove power before continuing with the installation.

11. Latch the panel onto the top hooks on the Backbox and push it down (Landscape) onto

the bottom snaps or on the left side and push it to the right (Portrait) (FIG. 5).

Press gently but firmly on the ends until the snaps “click” to lock it down.

WARNING: If you see a gap between the panel and the Backbox, or feel any binding while locking

down the panel, stop immediately and verify that no cables or other items are in the way. Do not

force the panel into position, as this can cause damage to the touch screen or the panel

electronics.

12. Reconnect the terminal Ethernet and USB to their respective locations on the Ethernet

port.

Powering On/Off X Series Panels

Modero X Series touch panels may be powered on by touching and holding the Sleep button.

To power off the panel, press and hold the Sleep button, and select Power Off on the

on-screen menu (FIG. 6):

Conf iguration and Programming

X Series touch panels are equipped with a Settings menu that provides the ability to configure

various features on the panels. To access the Settings menu, press and hold the Sleep button,

and select Settings.

Note: Information on the Settings menu, panel configuration, and programming is provided in

the Modero X Series Programming Guide, available at www.amx.com.

Setting the Panel’s Device Number and Device Name

1. In the Settings menu, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is ) and select 1988 OK to access

the NetLinx page.

3. Press Device Number to open the NetLinx editing window.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Enter a unique Device Name assignment for the panel and press OK.

Conf iguring the Panel’s IP Address

These steps configure the panel to communicate with a network; it is still necessary to

connect to the NetLinx Master (see Connecting to a NetLinx Master below).

Network Communication via DHCP

1. In the Ethernet page, press DHCP/Static field to open the DHCP/Static window. Note

that DHCP is the default setting.

2. Select Host Name, enter the new host name

3. Press OK to save changes.

Network Communication via Static Address

1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.

2. Select Static to open the Static IP window.

3. Press any field to open a keypad or keyboard (depending on the field), and enter the

appropriate network address information.

4. Press OK to save your changes and return to the Ethernet page.

Connecting to a NetLinx Master

To establish the type of connection to make between the panel and the NetLinx Master:

1. In the NetLinx page, press Mode to choose the connection mode (URL, Listen or Auto):

2. If password security is enabled on the target Master, enter the Username and

Password:

a. Select Username to open the NetLinx window.

b. Enter the Username and Password required by the Master.

c. Press OK to save changes and return to the NetLinx page.

Related Software and Additional Documentation (at www.amx.com)

• Programming the Modero X Series touch panels requires the use of the latest versions of

NetLinx Studio and TPDesign4, both available to download at www.amx.com. Refer to the

NetLinx Studio and TPDesign4 online help for information.

• For additional information on the MXD-1000 panel, refer to the X-Series Touch Panels

MXD/T-1000, MXD/T-700 & MXD-430 Instruction Manual

• For detailed information on the Settings menu as well programming information and

instructions on upgrading firmware, refer to the Modero X Series Programming Guide.

FIG. 4 MXD-1000 BACKBOX INSTALLATION (LANDSCAPE)

FIG. 5 INSTALLING THE MXD-1000

#4 Screws

4X Knock-Outs

Remove for Cable

Routing as Needed

4X Installation Clamp

for Wall Thickness

.31 [12.0] to .98 [.25.0]

Latch Hook

MXD-1000

(Landscape)

Backbox

Mounting Surface

Snaps

Latch Hook

FIG. 6 SLEEP BUTTON - PRESS AND HOLD TO ACCESS POWER OFF/SETTINGS OPTIONS

CONNECTION MODES

Mode Description Procedures

URL The device connects to the

target Master’s IP address

via a TCP connection.

1) Select URL in the Mode menu.

2) Enter the Master IP/URL, Master Port

Number, and Username/Password (if

required by the Master).

3) Press OK to save changes.

Listen This mode allows the panel

to “listen” for the Master’s

communication signals.

Note that in this mode, the

System Number and Master

IP/URL fields are read-only.

1) Select Listen in the Mode menu.

2) Confirm the panel’s IP address is on the

Master’s URL list (via NetLinx Studio).

3) Press OK to save changes.

Note: The Host Name (set on the Ethernet

page), can be used to locate the panel on the

Master (particularly useful for DHCP

connections where the IP address can change).

Auto Use this mode when both

the panel and the NetLinx

Master are on the same

Subnet.

1) Select Auto in the Mode menu.

2) Enter the System Number and Username

and Password (if applicable).

3) Press OK to save changes.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	MXD-1000

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXD-1000 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HPA-MYT-RX Manual

5 August 2025

AMX NMX-WP-N2510 Manual

30 Juli 2025

AMX NMX-ACC-N9101 Manual

30 Juli 2025

AMX NMX-ACC-N9206 Manual

30 Juli 2025

AMX NMX-ENC-N2312 Manual

30 Juli 2025

AMX NMX-ATC-N4321 Manual

30 Juli 2025

AMX RMS-ENT Manual

30 Juli 2025

AMX RMS-ENT-SMA Manual

30 Juli 2025

AMX NMX-VRK Manual

30 Juli 2025

AMX HPA-MYT-TX Manual

16 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

B-Tech BT8390-SA Manual

18 August 2025

Festo ZSB-1/8-B Manual

18 August 2025

D-Link DI-701 Manual

18 August 2025

Festo SIEF-M30B-NS-S-L Manual

18 August 2025

Festo P.BE-CMMP-SC-SW-DE Manual

18 August 2025

Festo VACC-S18-120-K4-1U-KS4ME Manual

18 August 2025

Festo SIED-M18NB-ZO-S-L Manual

18 August 2025

Festo P.BE-CP-FB11-E-IT Manual

18 August 2025

Martin Exterior Dot-4 Pro Manual

18 August 2025

Festo SOE4-FO-L-HF2-1P-M8 Manual

18 August 2025
