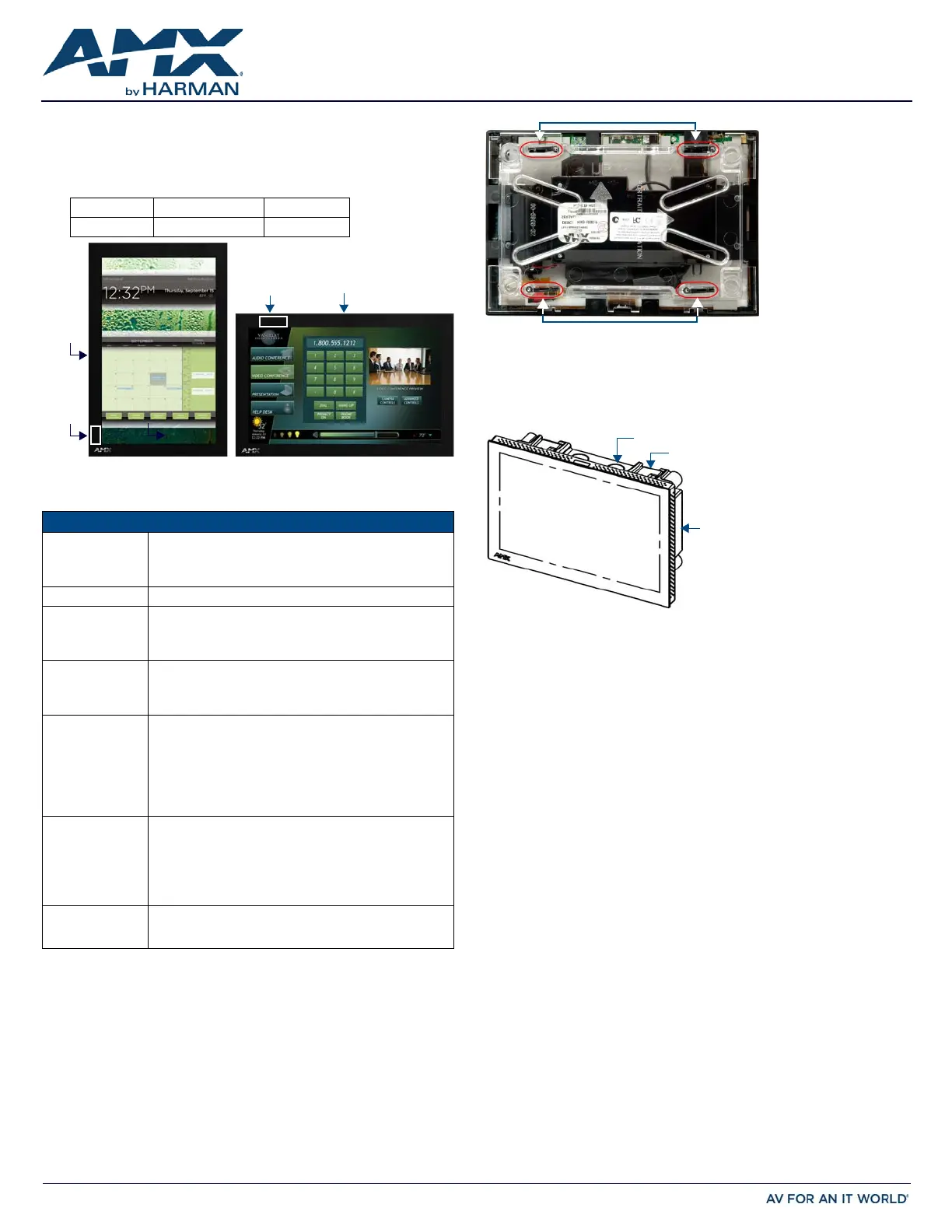

QUICK START GUIDE

MXD-1001 10.1" Modero X Series® G5 Wall Mount Touch Panel

Overview

MXD-1001 10.1" Modero X Series

G5 Wall Mount Touch Panels feature the G5 Graphic

Engine as well as a Quad Core Processor. These panels feature edge-to-edge capacitive touch

glass with multi-touch capabilities. They feature advanced technology empowering users to

operate AV equipment seamlessly, while providing the ultimate in audio and video quality. The

MXD-1001 is available in Portrait and Landscape layouts:

Product Specifications

MXD-1001 Installation

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels

MXD/T-1001 & MXD/T-701 Instruction Manual (available to view/download from

www.amx.com).

• Detailed specifications drawings for the MXD-1001 are available to download from

www.amx.com.

The MXD-1001 may be installed directly into a solid surface environment, using either solid

surface screws or the included locking tabs for different mounting options.

Once installed, the MXD-1001 is contained within a clear outer housing known as the Backbox

(FIG. 2). The Backbox is removed to install it into a wall, or when using the optional Rough-In

Box accessory (FG039-17).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting

screws (not included).

Installing the MXD-1001 Into a Wall

The MXD-1001 comes with a clear plastic Backbox (designed to attach the panel to most

standard wall materials. This Backbox has four locking tabs (two on top and two on bottom) to

help lock the Backbox to the wall. These locking tabs are only extended AFTER the Backbox is

inserted into the wall (FIG. 3).

• When installing the Backbox, make sure that the assembly is in the correct position and

in the correct place. Once the locking tabs are extended and locked into place, removing

the Backbox may be difficult without having access to the back of the wall or causing

damage to the wall.

• In order to ensure a stable installation of the MXD-1001, the thickness of the wall

material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The mounting surface should also be smooth and flat.

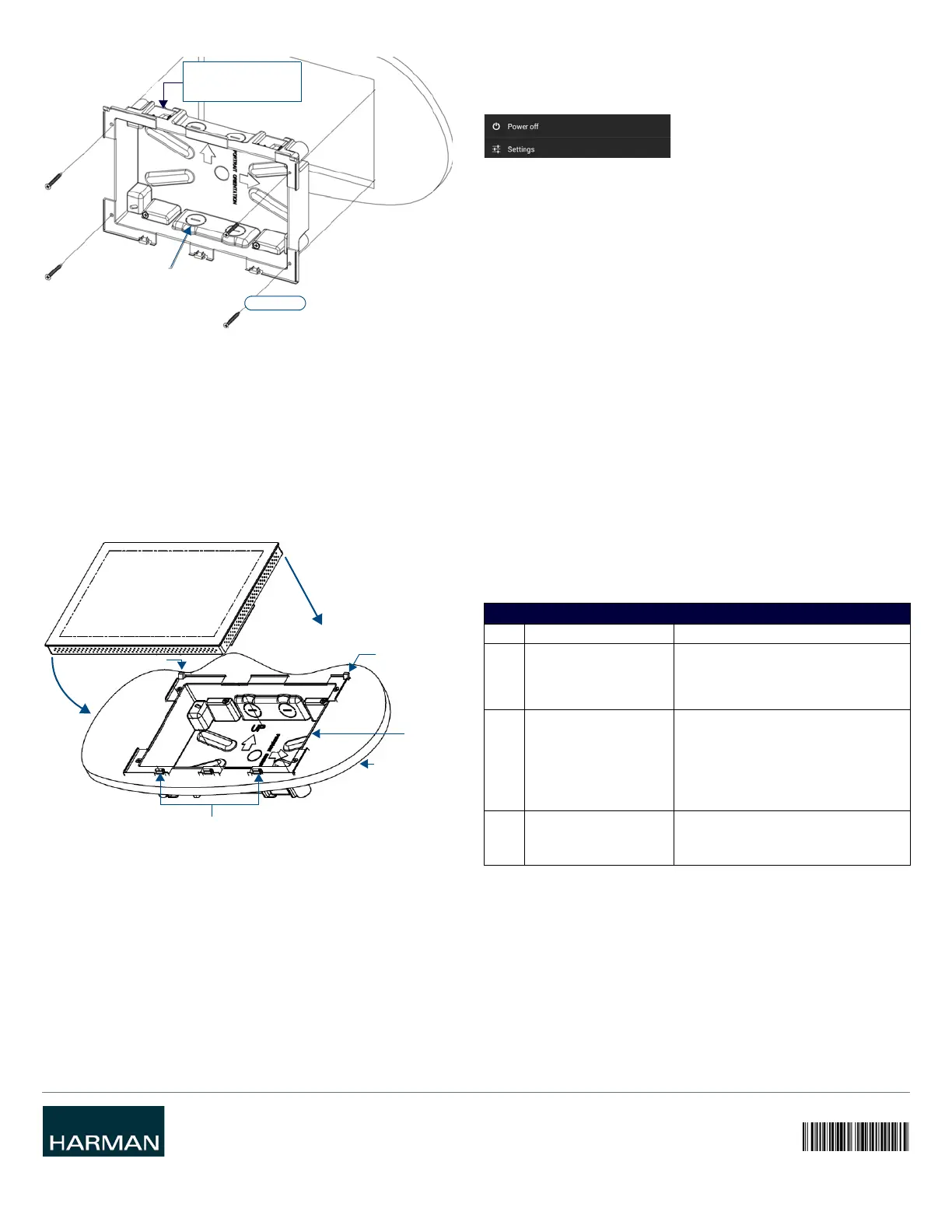

Installing the Backbox

For best results, use the included Installation Template (68-5968-03) to ensure proper

placement. The template is marked on one side with directions for both landscape and portrait

installations to ensure that the touch panel and Backbox are properly aligned.

WARNING: Using the Installation Template to select the f inal placement of the Backbox is highly

recommended. The outside edges of the template are the same dimensions as the touch panel,

which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential

obstacles.

1. Prepare the area by removing any screws or nails from the drywall before beginning the

cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox, using

the (included) Installation Template as a guide.

CAUTION: Making sure the actual cutout opening is slightly smaller than the provided

dimensions is highly recommended. This provides a margin of error if the opening needs to

be expanded. Too little wall material removed is always better than too much.

3. Thread the incoming cables through the surface opening (FIG. 4).

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

4. Remove the Backbox knockouts and thread the incoming wiring through the knockout

holes.

5. Thread the incoming cables from the mounting surface opening and through the

knockouts.

6. Push the Backbox into the mounting surface. Insure that the locking tabs lie flush

against the Backbox and that the Backbox goes freely into the opening.

7. Extend the locking tabs on the sides of the Backbox by tightening the screws inside the

box until snug.

Apply enough pressure to the screw head to keep the box flush with the wall: this

ensures that the locking tabs will tighten up against the inside of the wall.

Note: The maximum recommended torque to screw in the locking tabs on the Backbox is 5

IN-LB [56 N-CM]. Applying excessive torque while tightening the tab screws, such as with

powered screwdrivers, can strip out the locking tabs or damage the Backbox.

8. For additional strength, #4 mounting screws (not included) may be secured via

mounting circular holes located at the left and right sides of the MXD-1001 (FIG. 4).

In order to prevent damage to the touch panel, make sure that these are flush with the

Backbox.

Portrait MXD-1001-P FG5968-48

Landscape MXD-1001-L FG5968-49

FIG. 1 MXD-1001-P/L (PORTRAIT AND LANDSCAPE)

MXD-1001 SPECIF ICATIONS

Dimensions (HWD) • Landscape: 6 11/16" x 9 7/8" x 2 5/8" (171mm x 252mm x

67mm)

• Portrait: 9 7/8" x 6 11/16" x 2 5/8" (252mm x 171mm x

67mm)

Weight 2.0 lbs (0.91 Kg)

Power Consumption • Full-On: 12.95 W maximum

• Standby: 5.8 W

•Shutdown: 1 W

• Start-Up Inrush Current: Not applicable due to PoE standard

External Power

Supply Required

Optimal performance requires use of one of the following AMX

PoE power supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Certifications • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CB Scheme IEC 60950-1

•IC

•IEC/EN-60950

•UL 60950-1

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32° F to 104° F (0° C to 40° C)

• Temperature (Storage): 4° F to 140° F (-20° C to 60° C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 44.2 BTU/hr

Standby: 19.8 BTU/hr

Included Accessories • MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

• Installation Template 10”

Sleep ButtonNFC Sensor

Sleep

NFC

Button

Sensor

MXD-1001-P MXD-1001-L

FIG. 2 MXD-1001 BACKBOX (REAR VIEW)

FIG. 3 MXD-1001 (LANDSCAPE)

Locking tabs

Backbox

Backbox knockouts (X4)

Locking tabs (X4)
