QUICK START GUIDE

MXD-1901-PAN 19.4" Modero X® Series G5 Panoramic Wall/Flush Mount Touch Panel

Overview

MXD-1901-PAN 19.4" Modero X Series® G5 Panoramic Wall Mount Touch Panels feature the

G5 Graphic Engine to provide fast and smooth animations and transitions, as well as the Quad

Core Processor. These panels feature a panoramic capacitive multi-touch screen, and are

hardware-ready for support of Near Field Communication™ (NFC) Technology.

The MXD-1901-PAN is available in Portrait and Landscape layouts:

Product Specif ications

MXD-1901-PAN Installation

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels

MXD/T-1901-PAN & MXD/T-2001-PAN Instruction Manual (available to view/download

from www.amx.com).

• Detailed specifications drawings for the MXD-1901-PAN are available to download from

www.amx.com.

The MXD-1901-PAN may be installed directly into a solid surface environment, using either

solid surface screws or the included locking tabs for different mounting options. Once

installed, the MXD-1901-PAN is contained within a clear outer housing known as the Backbox.

The Backbox is removed to install it into a wall, or when using the optional Rough-In Box

accessory(FG039-15).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting

screws (not included).

Installing the MXD-1901-PAN Into a Wall

The MXD-1901-PAN comes with a clear plastic Backbox (FIG. 2) designed to attach the panel

to most standard wall materials. This Backbox has four locking tabs (2 on top, 2 on bottom) to

help lock the Backbox to the wall. These locking tabs are only extended AFTER the Backbox is

inserted into the wall.

• When installing the Backbox, make sure that the assembly is in the correct position and

in the correct place. Once the locking tabs are extended and locked into place, removing

the Backbox may be difficult without having access to the back of the wall or causing

damage to the wall.

• In order to ensure a stable installation of the MXD-1901-PAN, the thickness of the wall

material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The mounting surface should also be smooth and flat. The Backbox also has

four slots for accepting the temporary mounting posts mounted on the back of the

device.

Installing the Backbox

Since the cutout for the Backbox is off-center from the edges of the touch panel, use the

included Installation Template (68-5968-02) to ensure proper placement. The template is

marked on one side with directions for both landscape and portrait installations to ensure that

the touch panel and Backbox are properly aligned.

WARNING: Using the Installation template to select the final placement of the Backbox is highly

recommended. The outside edges of the template are the same dimensions as the touch panel,

which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential

obstacles.

1. Prepare the area by removing any screws or nails from the drywall before beginning the

cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox, using

the (included) Installation Template as a guide.

CAUTION: Making sure that the actual cutout opening is slightly smaller than the provided

dimensions is highly recommended. This provides a margin of error if the opening needs to

be expanded. Too little wall material removed is always better than too much.

3. Thread the incoming cables from their terminal locations through the surface opening

(see FIG. 4 on reverse).

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

Portrait MXD-1901-PAN-P FG5968-42

Landscape MXD-1901-PAN-L FG5968-43

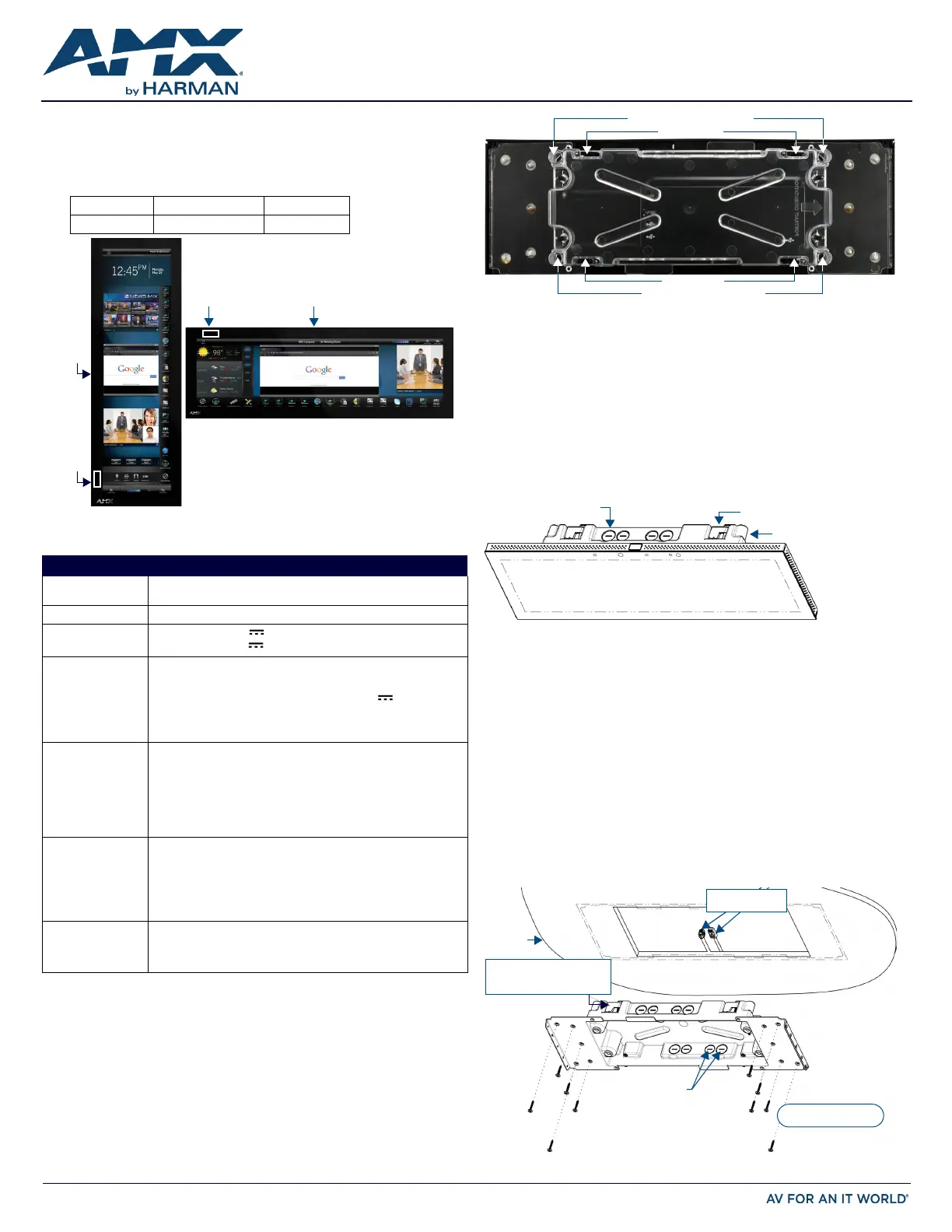

FIG. 1 MXD-1901-PAN-P/L (PORTRAIT AND LANDSCAPE)

MXD-1901-PAN SPECIF ICATIONS

Dimensions (HWD) • Landscape: 6 7/8" x 20 3/8" x 11/16" (175mm x 519mm x 19mm)

• Portrait: 20 3/8" x 6 7/8" x 11/16" (519mm x 175mm x 19mm)

Weight 6.9 lbs (3.13 Kg)

Power Consumption • Full-On: 35 W (13.5V , 2.6A)

• Standby: 7 W (13.5V , 0.52A)

External Power

Supply Required

Requires one of these AMX power sources (not included):

• PSR4.4 Power Supply, 4.5A, 3.5mm Phoenix with Retention Screws

(FG423-46)

• PSN4.4 Power Supply, 4.5A, 3.5mm Phoenix, 13.5V (discontinued)

(FG423-45)

• MXA-MPL Modero X Series Multi Preview Live (FG5968-10)

• MXA-MP Modero X Series Multi Preview (FG5968-20)

Certifications • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CB Scheme IEC 60950-1

• IC

• IEC/EN-60950

• UL 60950-1

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32° F to 104° F (0°C to 40°C)

• Temperature (Storage): 4° F to 140° F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 119.4 BTU/hr

Standby: 23.9 BTU/hr

Included Accessories • Locking 2-pin Phoenix mate (41-0002-SA)

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)

• Installation Template 19.4” (68-5968-02)

Sleep ButtonNFC Sensor

Sleep

NFC

Button

Sensor

MXD-1901-PAN-P

MXD-1901-PAN-L

FIG. 2 MXD-1901-PAN BACKBOX

FIG. 3 MXD-1901-PAN (LANDSCAPE)

FIG. 4 MXD-1901-PAN BACKBOX INSTALLATION (LANDSCAPE)

Locking Tabs

Temporary Mounting Posts

Backbox

Backbox knockouts (X8) Locking tabs (X4)

Mounting screws

placement (optional)

Wall

8X Knock Outs

Remove For Cable

Routing As Needed

4X Installation Clamp

For Wall Thickness

.37 [12.01] to .98 [25.01]

Cables routed to

wall opening

registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of

their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-5968-42 REV: F

Last Revised: 2/10/2016

4. Remove any knockouts as needed on either long dimension of the Backbox to facilitate

incoming wiring and pull the wiring through the resultant holes.

5. Push the Backbox into the wall opening. Insure that the locking tabs lie flush against the

Backbox.

6. Extend the locking tabs on the sides of the Backbox by tightening the screws inside the

box until snug. Apply enough pressure to the screw head to keep the box flush with the

wall: this ensures that the locking tabs will tighten up against the inside of the wall.

7. For additional strength, #4 mounting screws (not included) may be secured through the

mounting holes located at the left and right sides of the panel (FIG. 4).

In order to prevent damage to the touch panel, make sure that these are flush with the

Backbox.

8. Insert each connector into its corresponding location along the back of the device.

9. Test the incoming wiring by attaching the panel connections to their terminal locations

and applying power. Verify that the panel is receiving power and functioning properly to

prevent repetition of the installation.

Remove power before continuing with the installation.

Note: Do not disconnect the cables from the touch panel. The panel must be installed with

the cables attached before being inserted into the drywall.

Note: Configurations that use the limited access USB port on the side of the connector

box may require a right angle mating connector (not included).

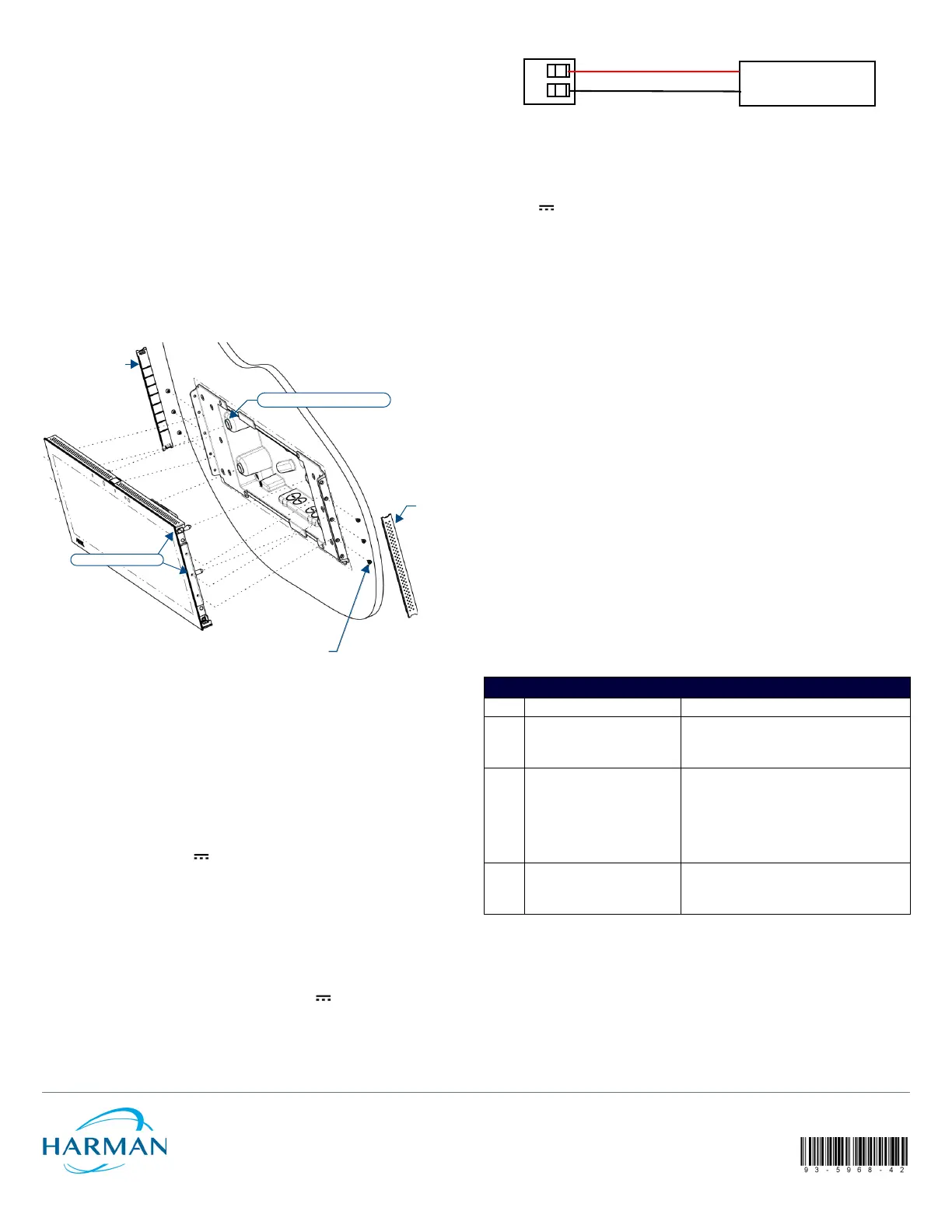

10. Insert the four temporary mounting posts of the panel into the openings on the Backbox

and slide the panel onto the Backbox. This will temporarily hold the panel during the rest

of the installation (FIG. 5).

WARNING: When installing the panel, do NOT press on or near the center of the panel. Too

much stress at the center may damage the touch screen surface. When installing the

panel, pressure should be applied toward the ends of the panel ONLY.

11. Use the six provided screws, three at each end, to secure the touch panel to the Backbox

(FIG. 5). Use only the provided screws, as other screws may damage the touch panel.

12. Snap the side covers onto each end of the touch panel.

13. Reconnect the terminal Ethernet and USB to their respective locations on either the

Ethernet port or NetLinx Master.

Panel Connectors and Wiring

Connectors are located on the underside of the MXD-1901-PAN. The Micro-USB port is used

for camera video output. A second, limited access USB port is accessible on the back side of

this cover.

Wiring Guidelines

The MXD-1901-PAN uses a 13.5V -compliant power supply to provide power to the panel

via the 2-pin 3.5 mm captive wire PWR connector. Use the previously provided power

requirement information to determine the power draw. The incoming PWR and GND wires from

the power supply must be connected to the corresponding locations within the PWR

connector.

Note: Apply power to the panel only after installation is complete.

Note: Connecting power to the MXD-1901-PAN should be done using the included 2-pin 3.5mm

captive wire connector included with the device. This connector uses retaining screws (instead

of the pins on each side of standard captive wire connectors); using excessive force to insert a

standard captive wire connector may damage the device.

Wiring a Power Connection

To use the 2-pin 3.5 mm captive wire connector with a 13.5V -compliant power supply, the

incoming PWR and GND wires from the external source must be connected to their

corresponding locations on the connector (FIG. 6). The connector uses locking screws to

insure a connection to the device, so make sure to insert and tighten the screws before

applying power.

1. Insert the PWR and GND wires into the terminal end of the 2-pin 3.5 mm captive wire

connector cable. Match the wiring locations of the +/- on both the power supply and the

terminal connector.

2. Tighten the clamp to secure the two wires. Do not tighten the screws excessively; doing

so may strip the threads and damage the connector.

3. Verify the connection of the 2-pin 3.5 mm captive wire connector to the external

13.5V -compliant power supply and apply power.

Powering On/Off X Series G5 Panels

G5 touch panels may be powered on by touching and holding the Sleep button. To power off

the panel, press and hold the Sleep button, and select Power Off on the on-screen menu.

Conf iguration and Programming

G5 touch panels are equipped with a Settings menu that provides the ability to configure

various features on the panels. To access the Settings menu, press and hold the Sleep button,

and select Settings.

Note: Information on the Settings menu, panel configuration, and programming is provided in

the Modero X Series G5 Programming Guide, available at www.amx.com.

Setting the Panel’s Device Number and Device Name

1. In the Settings menu, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is ) and select 1988 OK to access

the NetLinx page.

3. Press Device Number to open the NetLinx editing window.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Enter a unique Device Name assignment for the panel and press OK.

Conf iguring the Panel’s IP Address

These steps configure the panel to communicate with a network; it is still necessary to

connect to the NetLinx Master (see Connecting to a NetLinx Master below).

Network Communication via DHCP

1. In the Ethernet page, press DHCP/Static field to open the DHCP/Static window. Note

that DHCP is the default setting.

2. Select Host Name, enter the new host name

3. Press OK to save changes.

Network Communication via Static Address

1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.

2. Select Static to open the Static IP window.

3. Press any field to open a keypad or keyboard (depending on the f ield), and enter the

appropriate network address information.

4. Press OK to save your changes and return to the Ethernet page.

Connecting to a NetLinx Master

To establish the type of connection to make between the panel and the NetLinx Master:

1. In the NetLinx page, press Mode to choose the connection mode (URL, Listen or Auto):

2. If password security is enabled on the target Master, enter the Username and Password:

a. Select Username to open the NetLinx window.

b. Enter the Username and Password required by the Master.

c. Press OK to save changes and return to the NetLinx page.

Related Software and Additional Documentation (at www.amx.com

• Programming the Modero X Series G5 touch panels requires the use of the latest

versions of NetLinx Studio and TPDesign5, both available to download at www.amx.com.

Refer to the NetLinx Studio and TPDesign5 online help for information.

• For additional information on the MXD-1901-PAN, refer to the X-Series-G5 Touch

Panels MXD/T-1901-PAN & MXD/T-2001-PAN Instruction Manual.

• For detailed information on the Settings menu as well programming information and

instructions on upgrading firmware, refer to the Modero X Series G5 Programming Guide.

FIG. 5 MXD-1901-PAN INSTALLATION (LANDSCAPE)

Side cover

4X Mounting post openings

4X Mounting posts

6X 4-40 X 1/4" LONG FLAT HEAD

TORQUE TO 5±.2 IN LBS

Side

cover

FIG. 6 NETLINX POWER CONNECTOR WIRING DIAGRAM

CONNECTION MODES

Mode Description Procedures

URL The device connects to the target

Master’s IP address via a TCP

connection.

1) Select URL in the Mode menu.

2) Enter the Master IP/URL, Master Port Number, and

Username/Password (if required by the Master).

3) Press OK to save changes.

Listen This mode allows the panel to

“listen” for the Master’s

communication signals.

Note that in this mode, the System

Number and Master IP/URL fields

are read-only.

1) Select Listen in the Mode menu.

2) Confirm the panel’s IP address is on the Master’s

URL list (via NetLinx Studio).

3) Press OK to save changes.

Note: The Host Name (set on the Ethernet page), can

be used to locate the panel on the Master

(particularly useful for DHCP connections where the

IP address can change).

Auto Use this mode when both the panel

and the NetLinx Master are on the

same Subnet.

1) Select Auto in the Mode menu.

2) Enter the System Number and Username and

Password (if applicable).

3) Press OK to save changes.

PWR +

GND -

To the Touch Panel Power Supply

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	MXD-1901-PAN

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXD-1901-PAN stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HydraPort HPX-U400 Manual

10 Juni 2025

AMX CBL-HDMI-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-U100 Manual

10 Juni 2025

AMX CBL-DP-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-CPTS100 Manual

10 Juni 2025

AMX HydraPort HPX-P250 Manual

10 Juni 2025

AMX CBL-RGB+A-FL2 Manual

7 Juni 2025

AMX CBL-USB-FL2 Manual

7 Juni 2025

AMX CBL-MDP-FL2 Manual

7 Juni 2025

AMX CBL-ETH-FL2 Manual

6 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

AmpliVox Airvox SW695 Manual

15 Juni 2025

Stiga SBC 635 KD Manual

15 Juni 2025

Cleveland 36CGM300 Manual

15 Juni 2025

Gourmia GTF7970 Manual

15 Juni 2025

Planet Audio P9630B Manual

15 Juni 2025

ORNO OR-DOM-YR-934UD Manual

15 Juni 2025

Lavex 842CD12VST12 Manual

15 Juni 2025

Marshall RCP-PLUS Manual

15 Juni 2025

Hughes & Kettner BassForce XL Manual

15 Juni 2025

Hughes & Kettner Red Box Mk III Manual

15 Juni 2025
