QUICK START GUIDE

MXD-430 4.3" Modero X® Series Wall/Flush Mount Touch Panel

Overview

The MXD-430 4.3” Modero X Series Wall/Flush Mount Touch Panel (FG5968-15)

features edge-to-edge capacitive touch glass with multi-touch capabilities as well

as advanced technology empowering users to operate AV equipment seamlessly,

while providing the ultimate in audio and video quality. The distinctive appearance

will complement even the most sophisticated meeting facilities and homes.

Product Specifications

Connector Locations

USB peripherals (mouse, keyboard, etc.) may be connected to either of the two

USB ports on the rear of the device (see FIG. 1). The connectors are accessible

via the Access Slot shown in FIG. 2. and FIG. 3.

Updates to the device’s firmware can also made via the USB ports.

Power via PoE

Power for the MXD-430 is supplied via Power Over Ethernet (PoE), utilizing an

AMX-certified, capacitive touch-compliant PoE injector such as the PS-POE-AF-

TC High Power PoE Injector (FG423-83) or other approved AMX PoE power

source.

The incoming Ethernet cable should be connected to the RJ45 port on the MXD-

430 (FIG. 2).

Installing the MXD-430 Into a Wall

The MXD-430 comes with a clear plastic Backbox (designed to attach the panel to

most standard wall materials. This Backbox has two locking tabs (one on each

side) to help lock the Backbox to the wall.

These locking tabs are only extended AFTER the Backbox is inserted into the wall

(FIG. 3)..

• When installing the Backbox, make sure that the assembly is in the correct

position and in the correct place. Once the locking tabs are extended and

locked into place, removing the Backbox may be difficult without having

access to the back of the wall or causing damage to the wall.

• In order to ensure a stable installation of the MXD-430, the thickness of the

wall material must be a minimum of .50 inches (1.27cm) and a maximum of

.875 inches (2.22cm). The mounting surface should also be smooth and flat.

Installing the Backbox

For best results, use the included Installation Template (68-5968-05) to ensure

proper placement.

WARNING: Using the Installation Template to select the final placement of the

Backbox is highly recommended. The outside edges of the template are the same

dimensions as the touch panel, which allows you to troubleshoot possible conflicts

with wall edges, doors, and other potential obstacles.

1. Prepare the area by removing any screws or nails from the drywall before

beginning the cutout process.

2. After ensuring proper placement, cut out the mounting surface, using the

(included) Installation Template as a guide.

CAUTION: Making sure the actual cutout opening is slightly smaller than the

provided dimensions is highly recommended. This action provides a margin

for error if the opening needs to be expanded. Too little wall material removed

is always better than too much.

3. Thread the incoming Ethernet cable through the surface opening.

Leave enough slack in the wiring to accommodate any re-positioning of the

panel.

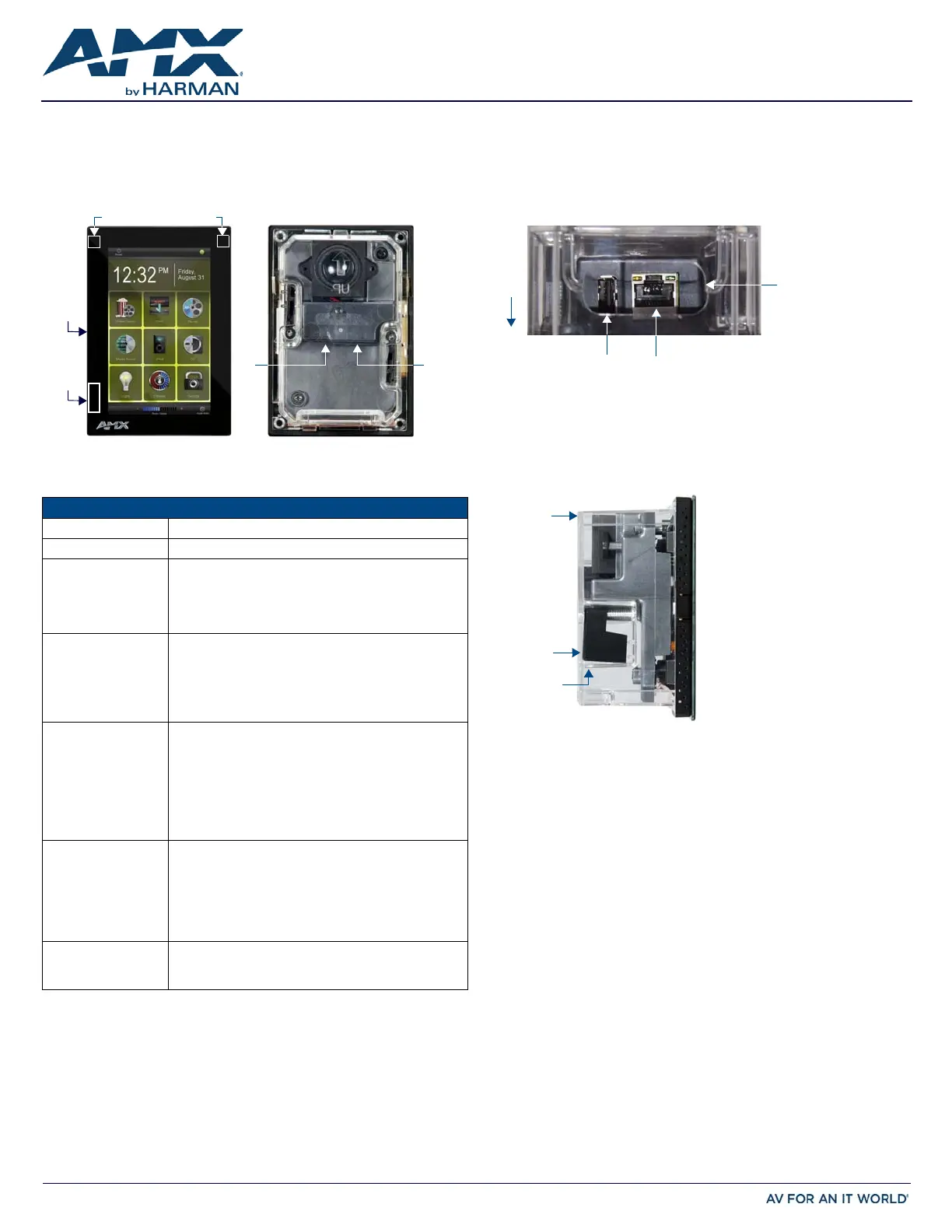

FIG. 1 MXD-430

MXD-430 SPECIF ICATIONS

Dimensions (HWD) 4 7/8" x 3 1/4" x 2 3/8" (120 mm x 82 mm x 61 mm)

Weight 0.75 lbs (.34 Kg)

Power Consumption • Full-On: 6.5W

• Standby: 4.2W

• Shutdown: 1.9W

• Start-Up Inrush Current: Not applicable due to PoE

standard

External Power

Supply Required

Optimal performance requires use of one of the following

AMX PoE power supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant

(FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch

(FG2178-63)

Certifications • UL 60950-1

• FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022, EN 55024 and EN 60950-1

• IEC 60950-1

• IC

• IEC/EN-60950

• RoHS / WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 22.2 BTU/hr

Standby: 14.3 BTU/hr

Included

Accessories

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

• MXD-430 Installation Template

Sleep

NFC

Left LED Right LED

USB RJ45

Button

Sensor

PortPort

front rear

FIG. 2 BOTTOM VIEW - SHOWING RJ45 AND USB PORTS

FIG. 3 MXD-430 BACK BOX (SIDE VIEW)

RJ45 Port

USB Port

Front Access

Slot

Access Slot

Backbox

Locking Tab

registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks

of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-5968-15 REV: H

Last Revised: 6/22/2015

4. Remove the knockout from the backbox to open the access slot (FIG. 3), and

thread the incoming wiring through the hole

5. Push the backbox flat into the mounting surface and secure with either the

locking tabs or #4 mounting screws (not included).

6. Extend the locking tabs on the sides of the Backbox by tightening the screws

inside the box until snug.

Apply enough pressure to the screw head to keep the box flush with the wall:

this ensures that the locking tabs will tighten up against the inside of the

wall.

The Backbox is clear to allow visual confirmation that the tabs have been

extended and are gripping the wall, as well as in assisting with removal if

necessary.

Note: The maximum recommended torque to screw in the locking tabs on the

Backbox is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the

tab screws, such as with powered screwdrivers, can strip out the locking tabs

or damage the Backbox.

7. For additional strength, #4 mounting screws (not included) may be secured

via mounting holes located at the corners of the MXD-430 (see FIG. 1).

In order to prevent damage to the touch panel, make sure that any screws

used are flush with the back box, and the back box goes freely into the

opening.

8. Insert each connector into its corresponding location along the back of the

MXD-430.

9. Test the incoming wiring by attaching the panel connections to their

terminal locations and applying power. Verify that the panel is receiving

power and functioning properly to prevent repetition of the installation.

Note: Do not disconnect the connectors from the touch panel. The unit must

be installed with the attached connectors before being inserted into the

drywall.

Remove power before continuing with the installation.

10. Latch the panel onto the bottom hooks on the back box and rotate it up.

Press gently but firmly and evenly on the surface of the glass until the top

panel snap “clicks” to lock it down.

WARNING: if you see a gap between the panel and the back box, or feel any

binding while locking down the panel, stop immediately and verify that no

cables or other items are in the way. Do not force the panel into position, as

this can cause damage to the touch screen or the panel electronics.

11. Reconnect the terminal Ethernet and USB to their respective locations on

either the Ethernet port or NetLinx Master.

Powering On/Off X Series Panels

Modero X Series touch panels may be powered on by touching and holding the

Sleep button. To power off the panel, press and hold the Sleep button, and select

Power Off on the on-screen menu (FIG. 4):

Conf iguration and Programming

X Series touch panels are equipped with a Settings menu that provides the ability

to configure various features on the panels. To access the Settings menu, press

and hold the Sleep button, and select Settings.

Note: Information on the Settings menu, panel configuration, and programming is

provided in the Modero X Series Programming Guide, available at www.amx.com.

Setting the Panel’s Device Number and Device Name

1. In the Settings menu, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select

OK to access the NetLinx page.

3. Press Device Number to open the NetLinx editing window.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Enter a unique Device Name assignment for the panel and press OK.

Conf iguring the Panel’s IP Address

These steps configure the panel to communicate with a network; it is still

necessary to connect to the NetLinx Master (see Connecting to a NetLinx Master

below).

Network Communication via DHCP

1. In the Ethernet page, press DHCP/Static field to open the DHCP/Static

window. Note that DHCP is the default setting.

2. Select Host Name, enter the new host name

3. Press OK to save changes.

Network Communication via Static Address

1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.

2. Select Static to open the Static IP window.

3. Press any field to open a keypad or keyboard (depending on the field), and

enter the appropriate network address information.

4. Press OK to save your changes and return to the Ethernet page.

Connecting to a NetLinx Master

To establish the type of connection to make between the panel and the NetLinx

Master:

1. In the NetLinx page, press Mode to choose the connection mode (URL,

Listen or Auto):

2. If password security is enabled on the target Master, enter the Username

and Password:

a. Select Username to open the NetLinx window.

b. Enter the Username and Password required by the Master.

c. Press OK to save changes and return to the NetLinx page.

Related Software and Additional Documentation (at www.amx.com)

• Programming the Modero X Series touch panels requires the use of the

latest versions of NetLinx Studio and TPDesign4, both available to download

at www.amx.com. Refer to the NetLinx Studio and TPDesign4 online help for

information.

• For additional information on the MXD-430 panel, refer to the X-Series

Touch Panels MXD/T-1000, MXD/T-700 and MXD-430 Instruction Manual.

• For detailed information on the Settings menu as well programming

information and instructions on upgrading firmware, refer to the Modero X

Series Programming Guide.

FIG. 4 SLEEP BUTTON - PRESS AND HOLD TO ACCESS POWER OFF/SETTINGS OPTIONS

CONNECTION MODES

Mode Description Procedures

URL The device connects to the

target Master’s IP address

via a TCP connection.

1) Select URL in the Mode menu.

2) Enter the Master IP/URL, Master Port

Number, and Username/Password (if

required by the Master).

Press OK to save changes.

Listen This mode allows the panel

to “listen” for the Master’s

communication signals.

Note that in this mode, the

System Number and Master

IP/URL fields are read-only.

1) Select Listen in the Mode menu.

2) Confirm the panel’s IP address is on the

Master’s URL list (via NetLinx Studio).

3) Press OK to save changes.

Note: The Host Name (set on the Ethernet

page), can be used to locate the panel on the

Master (particularly useful for DHCP

connections where the IP address can change).

Auto Use this mode when both

the panel and the NetLinx

Master are on the same

Subnet.

1) Select Auto in the Mode menu.

2) Enter the System Number and Username

and Password (if applicable).

3) Press OK to save changes.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	MXD-430

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXD-430 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HPA-MYT-RX Manual

5 August 2025

AMX NMX-WP-N2510 Manual

30 Juli 2025

AMX NMX-ACC-N9101 Manual

30 Juli 2025

AMX NMX-ACC-N9206 Manual

30 Juli 2025

AMX NMX-ENC-N2312 Manual

30 Juli 2025

AMX NMX-ATC-N4321 Manual

30 Juli 2025

AMX RMS-ENT Manual

30 Juli 2025

AMX RMS-ENT-SMA Manual

30 Juli 2025

AMX NMX-VRK Manual

30 Juli 2025

AMX HPA-MYT-TX Manual

16 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

B-Tech BT8390-SA Manual

18 August 2025

Festo ZSB-1/8-B Manual

18 August 2025

D-Link DI-701 Manual

18 August 2025

Festo SIEF-M30B-NS-S-L Manual

18 August 2025

Festo P.BE-CMMP-SC-SW-DE Manual

18 August 2025

Festo VACC-S18-120-K4-1U-KS4ME Manual

18 August 2025

Festo SIED-M18NB-ZO-S-L Manual

18 August 2025

Festo P.BE-CP-FB11-E-IT Manual

18 August 2025

Martin Exterior Dot-4 Pro Manual

18 August 2025

Festo SOE4-FO-L-HF2-1P-M8 Manual

18 August 2025
