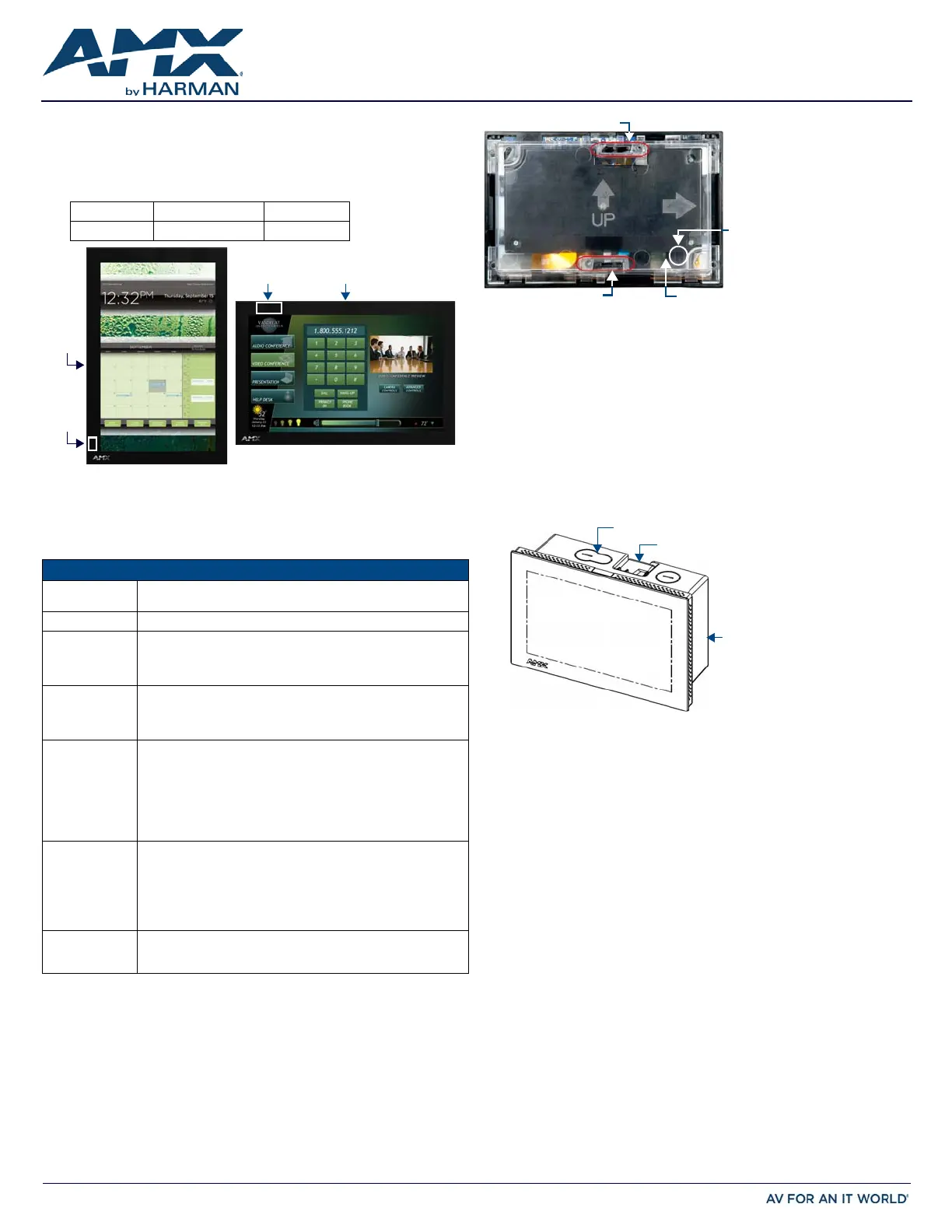

QUICK START GUIDE

MXD-701 7" Modero X Series

G5 Wall/Flush Mount Touch Panel

Overview

MXD-701 7" Modero X Series

G5 Wall Mount Touch Panels feature the G5 Graphic

Engine as well as a Quad Core Processor. These panels feature edge-to-edge capacitive

touch glass with multi-touch capabilities. They feature advanced technology

empowering users to operate AV equipment seamlessly, while providing the ultimate in

audio and video quality. The MXD-701 is available in Portrait and Landscape layouts:

Product Specif ications

For a full listing of product specifications, refer to the X-Series-G5 Touch Panels MXD/T-

1001 & MXD/T-701 Instruction Manual (available to view/download from

www.amx.com).

MXD-701 Installation

The MXD-701 may be installed directly into a solid surface environment, using either

solid surface screws or the included locking tabs for different mounting options.

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels

MXD/T-1001 & MXD/T-701 Instruction Manual (available to view/download from

www.amx.com).

• Detailed specifications drawings for the MXD-701 are available to download from

www.amx.com.

Once installed, the MXD-701 is contained within a clear outer housing known as the

Backbox (FIG. 2). The Backbox is removed to install it into a wall, or when using the

optional Rough-In Box accessory (FG039-18).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use

mounting screws (not included).

Power Via PoE

Power for the MXD-701 is supplied via PoE (Power Over Ethernet), utilizing an AMX-

certified, capacitive touch-compliant PoE injector or other approved AMX PoE power

source. The incoming Ethernet cable should be connected to the RJ45 port on the

MXD-701.

Installing the MXD-701 Into a Wall

The MXD-701 comes with a clear plastic Backbox (designed to attach the panel to most

standard wall materials. This Backbox has two locking tabs (one on top and one on

bottom) to help lock the Backbox to the wall.

These locking tabs are only extended AFTER the Backbox is inserted into the wall

(FIG. 3).

• When installing the Backbox, make sure that the assembly is in the correct

position and in the correct place. Once the locking tabs are extended and locked

into place, removing the Backbox may be difficult without having access to the

back of the wall or causing damage to the wall.

• In order to ensure a stable installation of the MXD-701, the thickness of the wall

material must be a minimum of .50 inches (1.27cm) and a maximum of .875

inches (2.22cm). The mounting surface should also be smooth and flat.

Installing the Backbox

For best results, use the included Installation Template (68-5968-04) to ensure proper

placement. The template is marked on one side with directions for both landscape and

portrait installations to ensure that the touch panel and Backbox are properly aligned.

WARNING: Using the Installation Template to select the f inal placement of the Backbox is

highly recommended. The outside edges of the template are the same dimensions as the

touch panel, which allows you to troubleshoot possible conflicts with wall edges, doors,

and other potential obstacles.

1. Prepare the area by removing any screws or nails from the drywall before

beginning the cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox,

using the (included) Installation Template as a guide.

CAUTION: Making sure the actual cutout opening is slightly smaller than the

provided dimensions is highly recommended. This provides a margin of error if the

opening needs to be expanded. Too little wall material removed is always better

than too much.

3. Thread the incoming Ethernet cable through the surface opening (FIG. 4).

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

4. Remove the Backbox knockouts and thread the incoming wiring through the

knockout holes.

5. Thread the incoming cables from the mounting surface opening and through the

knockouts.

6. Push the Backbox into the mounting surface. Insure that the locking tabs lie flush

against the Backbox and that the Backbox goes freely into the opening.

7. Extend the locking tabs on the sides of the Backbox by tightening the screws

inside the box until snug.

Portrait MXD-701-P FG5968-54

Landscape MXD-701-L FG5968-55

FIG. 1 MXD-701-P/L WALL MOUNT (PORTRAIT AND LANDSCAPE)

MXD-701 SPECIFICATIONS

Dimensions (HWD) • Landscape: 4 13/16" x 7 5/16" x 2 1/2" (122mm x 186mm x 63mm)

• Portrait: 7 5/16" x 4 13/16" x 2 1/2" (186mm x 122mm x 63mm)

Weight 1.4 lbs (0.64 Kg)

Power

Consumption

• Full-On: 11.5W maximum

• Standby: 5.8W

•Shutdown: 1W

• Start-Up Inrush Current: Not applicable due to PoE standard

External Power

Supply Required

Optimal performance requires use of one of the following AMX PoE

power supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Certifications • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

•CB Scheme IEC 60950-1

•IC

• IEC/EN-60950

• UL 60950-1

•RoHS/WEEE compliant

Environmental • Temperature (Operating): 32° F to 104° F (0°C to 40°C)

• Temperature (Storage): 4° F to 140° F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 39.2 BTU/hr

Standby: 19.8 BTU/hr

Included

Accessories

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

• Installation Template 7”

Sleep ButtonNFC Sensor

Sleep

NFC

Button

MXD-701-L

MXD-701-P

Sensor

FIG. 2 MXD-701 BACKBOX (REAR VIEW)

FIG. 3 MXD-701 (LANDSCAPE)

Locking tab

RJ45 cable clip

RJ45 Cable/Port

Backbox

Backbox knockouts (X4)

Locking tabs (X2)
