QUICK START GUIDE

MXR-1001 10.1" Modero X® Series G5 Retractable Touch Panel

Overview

The MXR-1001 / 10.1" Modero X ® Series G5 Retractable Touch Panel mounts beneath the

table so it hides away when not in use.

Installing the MXR-1001

Read these instructions in their entirety before beginning the installation.

This installation requires specific woodworking skills. Only a professional, AMX-qualif ied

installer should perform this installation. Installation must conform to all local codes. This

product may not be installed by the end-user.

NOTE: Due to the weight of the MXR-1001, this installation requires TWO INSTALLERS.

Required Accessories (Not Included)

• Straight-Cut Router bit: Freud 12-128 or Whiteside 1072 (0.5” or 12mm / 12.7mm OD)

• Guide Bushing: Woodcraft 144693 (.75” or 19 mm OD)

• Bushing Lock Nut: Woodcraft 144696

1) Unbox the MXR-1001 and Remove Packing Materials

1. Carefully remove the MXR-1001 from the shipping box and remove all packing

materials.

2. Be sure to remove the protective foam padding from both the front and the back of the

touch panel.

2) Select a Suitable Location

Ensure that the MXR-1001 will not interfere with the normal use of the work space when

installed, both above and below the mounting surface. For example, ensure that the Motor

chassis does not interfere with the user's legs when seated at the table.

Also, ensure that other devices installed in proximity to the MXR-1001 will not interfere with

the installation and use of the MXR-1001.

Mounting Surface Requirements

Note: Use the included surface extender for surfaces thicker than 2” (50mm). Refer to the

MXR-1001 Hardware Installation Guide for details.

Above-Surface Dimensions

FIG. 1 indicates the above-surface dimensions of the MXR-1001, including the Bezel:

Below-Surface Dimensions

FIG. 2 provides a top view of an installed MXR-1001, to indicate the area required below the

mounting surface for the chassis and Mounting Clamps:

FIG. 3 indicates the below-surface depth requirements for the MXR-1001 (side view):

Hole Cutout Dimensions for the Mounting Surface

Refer to the following table for the dimensions of the actual hole cut out in the mounting

surface, resulting from using the Router Guide and required accessories:

3) Cut the Hole In the Mounting Surface

CAUTION: Always wear safety glasses when operating the router. Failure to comply may result in

eye injury.

Using the specified guide bushing and router bit (not included, see Required Accessories):

1. Use the appropriate Installation Router Guide to mark the edges of the cutout.

2. Carefully cut the opening in the table surface with the router.

• Little clearance exists between the MXR-1001 and the hole cutout in the mounting surface.

Once the MXR-1001 assembly has been installed, the Bezel will cover the cutout hole.

• Carefully align the cutout with the edges or other appropriate features in the table or

mounting surface. If the cutout is misaligned, the installed unit will be misaligned.

• Use a drill and drill bit to make a starting hole within the boundary of the cutout. Use an

appropriate cutting tool to finish the cutout.

MXR-1001 SPECIFICATIONS

DIMENSIONS (HWD) 15.325” x 11.010” x 6.753” (389.25mm x 279.65mm x 171.53mm)

CUTOUT DIMENSIONS 10.701” x 1.984” (271.81mm x 50.39 mm)

WEIGHT 18.85 lbs (8.55 Kg)

POWER CONSUMPTION Full-On: 15.6W (in motion) / Full-On (no motion): 7.2W

Sleep: 4.6W, Shut Down 0.12W, Start-Up Inrush Current: 7.1 amps

POWER SUPPLY PSR2.5 24V external power supply (included), uses 3-pin captive wire

connector to connect to the MXR-1001.

CERTIFICATIONS • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B, EN 55024,

and EN 55032

• IC/CSA

• IEC/EN-60950

• UL 60950-1

• RoHS/WEEE/ErP compliant

INCLUDED

ACCESSORIES

• PSR2.5 24V external power supply (FG423-47)

• Cardstock Installation Cutout Template

• 7 Mounting Screws

• 4 Mounting Clamps

• 1 snap-on cable Ferrite

• 1 Mounting Spacer / 4 screws (60-5968-115)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

OPTIONAL

ACCESSORIES

• MX-AC-TMPLT-MXR10, Aluminum Installation Router Guide (FG559-96)

Above Mounting Surface (HWD): 9.57" x 10.55" x 4.53" (243mm x 268mm x 115mm)

Below Mounting Surface (HWD): 15.37" x 12.04" x 6.78" (391mm x 306mm x 173mm)

Mounting Surface Thickness: Min: 0.5” (12.7mm) / Max: 2.0” (50mm)

FIG. 1 ABOVE-SURFACE DIMENSIONS OF MXR-1001

Bezel

mounting surface

Height above table = 0.079” (2 mm)

2.405” (61.09 mm)

11.142” (283 mm)

FIG. 2 MXR-1001: TOP VIEW, INDICATING AREA REQUIRED BELOW THE MOUNTING SURFACE

FIG. 3 DIMENSIONS OF THE MXR-1001 (SIDE VIEW, BELOW THE MOUNTING SURFACE)

FIG. 4 ABOVE-SURFACE DIMENSIONS OF MXR-1001

Mounting

Clamps (x4)

Motor chassis

Bezel

(above surface)

11.010”

(279.65mm)

6.753”

(171.53mm)

1.209” (30.71mm)

3.147” (79.93mm)

front

(below surface)

mounting surface

15.246”

(387.25mm)

13.315”

(338.20mm)

front

15.325”

(389.25mm)

Motor chassis

4.196”

(106.58mm)

Mounting

Clamps

(x4)

0.079” (2mm) Bezel (above surface)

mounting surface

10.701” (271.81 mm)

1.984” (50.39 mm)

trademarks. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

REV CLast Revised:

10/02/2017

• Verify that the cutting tool will not tear or chip the top surface. Ensure that the top surface

of the mounting surface is not damaged beyond the width of the trim bezel as the cutout is

made.

Note: The process of making the cutout will create substantial dust - prepare the

environment appropriately.

3. File the four corners of the routing area square after routing.

4) Install the MXR-1001 Into the Mounting Surface

1. Before the MXR-1001 can be installed, the Bezel must be separated from the Motor

chassis: Remove the 11 screws (3 on the front, 4 on the back, and 2 on each side),

unplug the MXR cable, and lift the Bezel off of the Motor chassis (FIG. 7):

2. Position the Motor chassis directly beneath the cutout hole. Verify that it is oriented

correctly: the plug for the MXR cable is located on the front of the chassis (USB,

Ethernet and Power connectors are on the rear).

Note: The Motor chassis weights approximately 18lbs (8.16Kg) - it will require a second

pair of hands to keep it positioned precisely beneath the cutout hole. Additionally,

consider using the packaging material from the MXR-1001 shipping box as a support to

keep it in place during installation.

3. Carefully lift the Motor chassis up so that the top of the chassis fits into the cutout and

is flush with the top of the mounting surface.

4. Position the Bezel directly above the cutout hole. Verify that the Bezel is oriented

correctly relative to the Motor chassis - the pushbutton is located on the front of the

Bezel.

5. Route the MXR cable from the Bezel through the slot on the front center of the Bezel,

and run it through the cutout hole.

6. Lower the Bezel through the cutout hole and slide it onto the top of the Motor chassis.

7. Secure the Bezel to the Motor chassis using all 11 supplied mounting screws - there are

3 mounting holes on the front, 4 on the back, and 2 on each side (FIG. 7):

Note: In some cases, one or more of the mounting holes on the Bezel/Motor chassis

assembly may be obstructed and impossible to access for installing Mounting Screws. The

MXR-1001 can be installed securely without using all 11 mounting screws. Always use as

many of the Mounting Screws as possible and verify that the Bezel is secured to the Motor

chassis.

8. Plug the MXR Cable from the Bezel into the connector on the front panel of the Motor

chassis (beneath the mounting surface - see FIG. 5).

9. With the Motor & Bezel assembly positioned in the mounting surface, use the 2 included

Mounting Clamps to secure the assembled unit to the mounting surface. The Mounting

Clamps slide into the two matching (ratcheted) Clamp Slots on each side of the Motor

chassis. To install the Mounting Clamps on the sides of the Motor chassis:

a. Insert each Mounting Clamp into a ratcheted Clamp Slot from the bottom, and slide

each clamp up as far as possible, until the rubber foot on each Clamp contacts the

underside of the mounting surface (see FIG. 8).

b. Tighten the thumb screws on all Mounting Clamps to secure the MXR-1001 to the

surface (FIG. 9):

5) Connect Ethernet, USB and Power Cables

Once the MXR-1001 is installed, plug in the Power, Ethernet and (optionally) USB cable(s).

These connectors are all located on the rear panel of the Motor chassis.

•

Power (3-Pin Captive Wire):

Connect to the included PSR2.5 24 external power supply.

For pinout information on this connector, refer to the

MXR-1001 Hardware Installation

Guide.

•

Ethernet (RJ45)

: Use a CAT5 Ethernet cable to connect the MXR-1001 to a Gigabit

Ethernet Switch. For information on pinouts, signals, and LED blink patterns for this

connector, refer to the

MXR-1001 Hardware Installation Guide.

Note: Clip the included snap-on cable Ferrite onto the Ethernet cable as close as possible

to the Ethernet (RJ45) connector on the rear panel.

•

USB (Type A, x2)

: For firmware upgrades, touch panel file transfers, JPEG image viewer,

and HID Peripherals.

Note: If the MXR-1001 is not connected to a Master, the physical pushbutton can still be

used to raise/lower the panel.

Additional Information

• For more detailed product specifications as well as instructions on removing the

Retractable Touch Panel Unit

from the Motor chassis (for factory repair), refer to the

MXR-1001 Hardware Installation Guide

• For information on configuring the MXR-1001, refer to the

Modero G4 Touch Panels

Configuration and Programming Guide

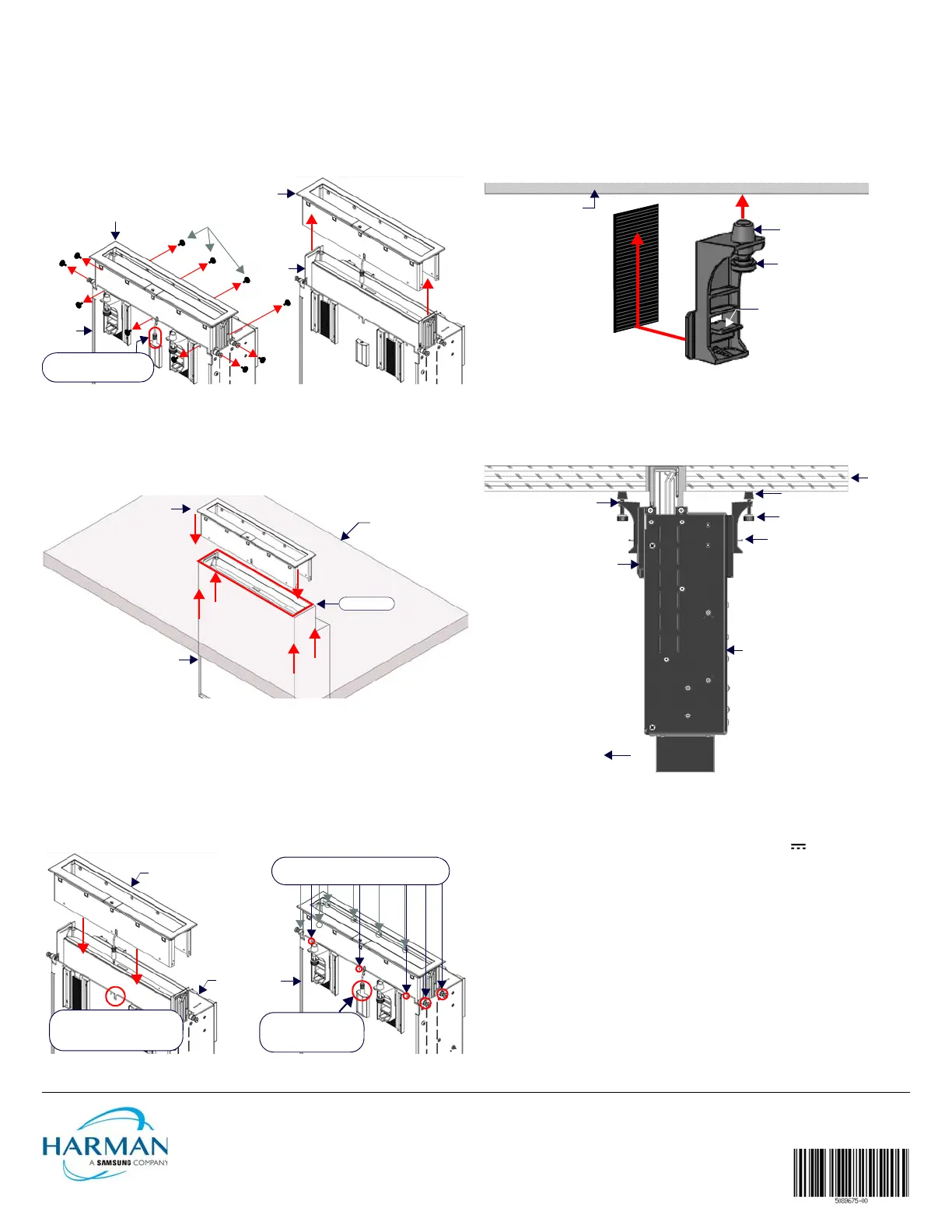

FIG. 5 ATTACHING THE BEZEL TO THE MOTOR CHASSIS

FIG. 6 POSITIONING THE MOTOR BENEATH THE CUTOUT

FIG. 7 ATTACHING THE BEZEL TO THE MOTOR CHASSIS

Unplug the MXR cable

from the Motor chassis

Bezel

Motor

Bezel

chassis

Motor

chassis

Mounting screws (x11)

mounting surface

Motor chassis

(beneath the

Cutout hole

Bezel

(above mounting surface)

mounting surface)

Run the MXR cable through

the notch on the front of the

Motor chassis

Bezel

Plug the MXR cable

into the connector on

the Motor chassis

Motor chassis

Use Mounting Screws to secure all four

sides of the Bezel to the Motor chassis

FIG. 8 CLAMP SLOTS AND SIDE CLAMP (X4)

FIG. 9 MXR-1001 - INSTALLED (SIDE VIEW)

Release Tab

Thumb Screw

Rubber Foot

mounting surface

Mounting Clamp (x4)

Clamp Slot (x4)

(2 on front/rear panels

of the Motor chassis)

(bottom side)

mounting

Mounting Clamp (x4)

(2 on each side)

front

surface

Rubber Foot

Thumb Screw

Release Tab

Clamp Slot (x4)

(2 on front/rear panels

of the Motor chassis)

Motor

chassis

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	MXR-1001

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXR-1001 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HydraPort HPX-U400 Manual

10 Juni 2025

AMX CBL-HDMI-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-U100 Manual

10 Juni 2025

AMX CBL-DP-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-CPTS100 Manual

10 Juni 2025

AMX HydraPort HPX-P250 Manual

10 Juni 2025

AMX CBL-RGB+A-FL2 Manual

7 Juni 2025

AMX CBL-USB-FL2 Manual

7 Juni 2025

AMX CBL-MDP-FL2 Manual

7 Juni 2025

AMX CBL-ETH-FL2 Manual

6 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Simrad Active Imaging HD (Thru-Hull) Manual

14 Juni 2025

Garritan Harps Manual

14 Juni 2025

Marshall CV-H20-HF Manual

14 Juni 2025

Aiphone IXW-MAA Manual

14 Juni 2025

Rival HM-743 Manual

14 Juni 2025

Lutec Avony Manual

14 Juni 2025

Giordani G-SAFE & PLAY Manual

14 Juni 2025

Gourmia GAF799 Manual

14 Juni 2025

Arendo 307503 Manual

14 Juni 2025

Hughes & Kettner Tube 100 Manual

14 Juni 2025
