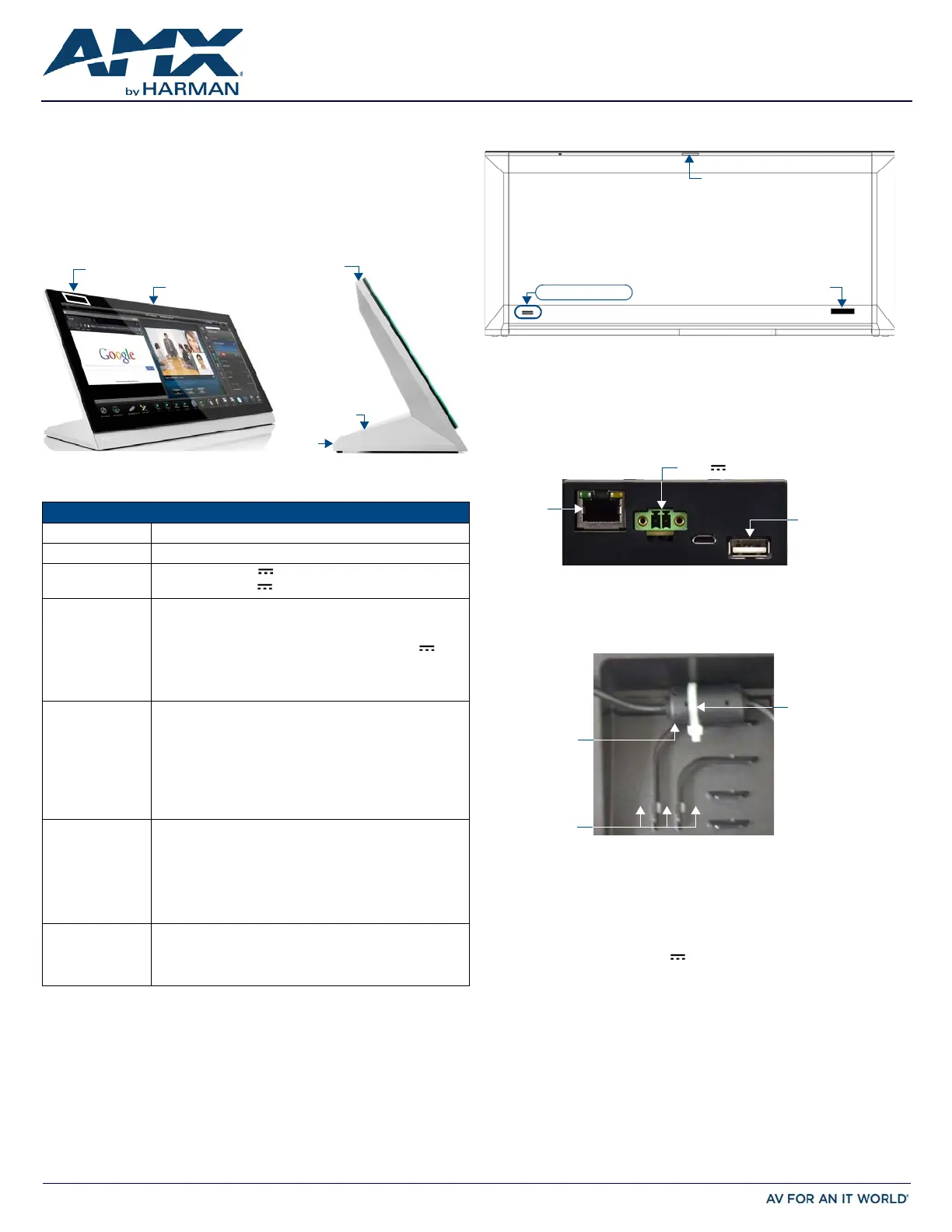

QUICK START GUIDE
MXT-2000XL-PAN 20.3" Modero X® Series Panoramic Tabletop Touch Panel
Overview
The MXT-2000XL-PAN 20.3" Modero X Series ® Panoramic Tabletop Touch Panel
(FG5968-01) features a beautiful, panoramic capacitive multi-touch screen that
provides users access to multiple applications with minimal navigation. It is
hardware-ready for support of Near Field Communication™ (NFC) Technology to
allow personalization of the user experience and productivity enhancing
capabilities through integration with NFC capable personal devices.
The distinctive, low-profile design is engineered to sit perfectly on a table without
obstructing views.
Product Specif ications
Connector Locations
Two Type A USB ports are located on the rear right corner of the device (FIG. 2).
USB peripherals (mouse, keyboard, etc.) may be connected to either of the two
USB ports on the rear of the device.
The power and Ethernet connectors, as well as an additional USB port are located
on the bottom of the device ( FIG. 3).
The underside USB port, as well as the two rear USB ports, may be used with a
flash drive for page transfers or firmware upgrades.
The MXT-2000XL-PAN does not have individual channels on the base of the
device to allow passage of cables from underneath the base. Instead, it has one
slot at the base to allow options on cable configuration, with channels for
securing power and Ethernet cables (FIG. 4).
Each channel side has slots for attaching tie-wraps to secure each cable. The
ferrite on the power cable must be secured with the included tie-wrap during
installation to prevent the possibility of the panel not sitting flush on the table.
Other cables may be secured with tie-wraps if desired, but this is not necessary.
Wiring Guidelines
The MXT-2000XL-PAN uses a 13.5V -compliant power supply to provide power
to the panel via the 2-pin 3.5 mm captive wire PWR connector.
The incoming PWR and GND wires from the power supply must be connected to
the corresponding locations within the PWR connector.
Note: Apply power to the panel only after installation is complete.
Note: Connecting power to the MXT-2000XL-PAN should be done using the
included 2-pin 3.5mm captive wire connector included with the device. This
connector is retained within its port with locking screws instead of the pins on each
side of standard captive wire connectors, and using force to insert a standard
captive wire connector may damage the device.
FIG. 1 MXT-2000XL-PAN
MXT-2000XL-PAN SPECIF ICATIONS
Dimensions (HWD) 9 3/16" x 20 3/8" x 5 7/8" (235mm x 519mm x 150mm)
Weight 12.3 lbs (5.58 Kg)
Power Consumption Full-On: 35 W (13.5V , 2.6A)
Standby: 7 W (13.5V , 0.52A)
External Power
Supply Required
Requires one of these AMX power sources (not included):
• PSR4.4 Power Supply, 4.5A, 3.5 mm Phoenix with Retention
Screws (FG423-46)
• PSN4.4 Power Supply, 4.5A, 3.5 mm Phoenix, 13.5V
(discontinued) (FG423-45)
• MXA-MPL Modero X/S Series Multi Preview Live (FG5968-10)
• MXA-MP Modero X/S Series Multi Preview (FG5968-20)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 119.4 BTU/hr
Standby: 23.9 BTU/hr
Included
Accessories
• Locking 2-pin Phoenix mate (41-0002-SA)
• MXA-USB-C, USB Port Cover Kit (FG5968-18)
• HPG-10-10K, 3/4" Mini-Grommet (FG570-01)
• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
Sleep Button
USB Ports (2)
Sleep Button
Cable Slot
NFC Sensor
FIG. 2 MXT-2000XL-REAR VIEW
FIG. 3 MXT-2000XL-PAN UNDERSIDE CONNECTORS
FIG. 4 TIE-WRAP FOR POWER CONNECTOR FERRITE
Type A USB Ports
Sleep button
Speaker
Ethernet
Type A USB Port
10/100 Port
13.5V Power Port
Tie-wrap channels
Tie-wrap
Ferrite
© 2015 Harman. All rights reserved. Modero X and Modero X Series, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are
registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks
of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-5968-01 REV: J
Last Revised: 6/22/2015

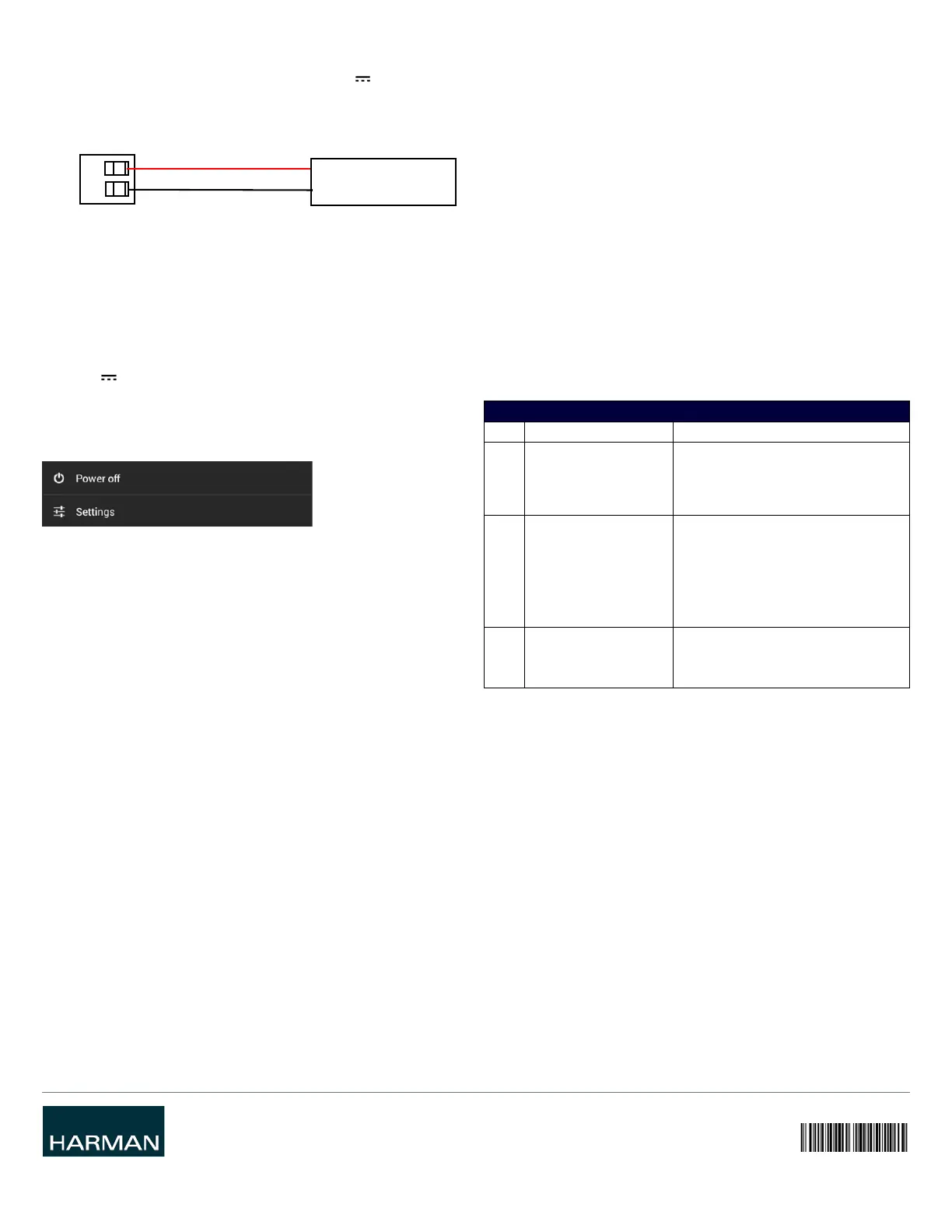

Wiring a Power Connection
To use the 2-pin 3.5 mm captive wire connector with a 13.5V -compliant power
supply, the incoming PWR and GND wires from the external source must be
connected to their corresponding locations on the connector (FIG. 5).
The connector uses locking screws to insure a connection to the device, so make
sure to insert and tighten the screws before applying power.
1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm
captive wire cable.
Match the wiring locations of the +/- on both the power supply and the
terminal connector.
2. Tighten the clamp to secure the two wires.
Do not tighten the screws excessively; doing so may strip the threads and
damage the connector.
3. Verify the connection of the 2-pin 3.5 mm captive wire to the external
13.5V -compliant power supply and apply power.
Powering On/Off X Series Panels
Modero X Series touch panels may be powered on by touching and holding the
Sleep button. To power off the panel, press and hold the Sleep button, and select
Power Off on the on-screen menu (FIG. 6):
Conf iguration and Programming
X Series touch panels are equipped with a Settings menu that provides the ability
to configure various features on the panels. To access the Settings menu, press
and hold the Sleep button, and select Settings.
Note: Information on the Settings menu, panel configuration, and programming is
provided in the Modero X Series Programming Guide, available at www.amx.com.
Setting the Panel’s Device Number and Device Name
1. In the Settings menu, select NetLinx. This opens a password keypad.
2. Enter the panel password into the keypad (the default is 1988) and select
OK to access the NetLinx page.
3. Press Device Number to open the NetLinx editing window.
4. Enter a unique Device Number assignment for the panel and press OK.
5. Enter a unique Device Name assignment for the panel and press OK.
Conf iguring the Panel’s IP Address
The first step is to configure the panel’s IP address. Note that this only configures
the panel to communicate with a network; it is still necessary to connect to the
NetLinx Master (see Connecting to a NetLinx Master below).
Network Communication via DHCP
1. In the Ethernet page, press DHCP/Static field to open the DHCP/Static
window. Note that DHCP is the default setting.
2. Select Host Name, enter the new host name
3. Press OK to save changes.
Network Communication via Static Address
1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.
2. Select Static to open the Static IP window.
3. Press any field to open a keypad or keyboard (depending on the field), and
enter the appropriate network address information.
4. Press OK to save your changes and return to the Ethernet page.
Connecting to a NetLinx Master
To establish the type of connection to make between the panel and the NetLinx
Master:
1. In the NetLinx page, press Mode to choose the connection mode (URL,
Listen or Auto):
2. If password security is enabled on the target Master, enter the Username
and Password:
a. Select Username to open the NetLinx window.
b. Enter the Username and Password required by the Master.
c. Press OK to save changes and return to the NetLinx page.
Related Software and Additional Documentation (at www.amx.com)
• Programming the Modero X Series touch panels requires the use of the
latest versions of NetLinx Studio and TPDesign4, both available to download
at www.amx.com. Refer to the NetLinx Studio and TPDesign4 online help for
information.
• For additional information on the MXT-2000XL-PAN panel, refer to the
X-Series Touch Panels MXD/T-2000XL-PAN & MXD/T-1900L-PAN Instruction
Manual.
• For detailed information on the Settings menu as well programming
information and instructions on upgrading firmware, refer to the Modero X
Series Programming Guide.
• Detailed specifications drawings for the MXD/T-2000XL-PAN are available to
download from www.amx.com.
FIG. 5 NETLINX POWER CONNECTOR WIRING DIAGRAM
FIG. 6 SLEEP BUTTON - PRESS AND HOLD TO ACCESS POWER OFF/SETTINGS OPTIONS
PWR +
GND -
To the Touch Panel
Power Supply
CONNECTION MODES
Mode Description Procedures
URL The device connects to the
target Master’s IP address
via a TCP connection.
1) Select URL in the Mode menu.
2) Enter the Master IP/URL, Master Port
Number, and Username/Password (if
required by the Master).
3) Press OK to save changes.
Listen This mode allows the panel
to “listen” for the Master’s
communication signals.
Note that in this mode, the
System Number and Master
IP/URL fields are read-only.
1) Select Listen in the Mode menu.
2) Confirm the panel’s IP address is on the
Master’s URL list (via NetLinx Studio).
3) Press OK to save changes.
Note: The Host Name (set on the Ethernet
page), can be used to locate the panel on the
Master (particularly useful for DHCP
connections where the IP address can change).
Auto Use this mode when both
the panel and the NetLinx
Master are on the same
Subnet.
1) Select Auto in the Mode menu.
2) Enter the System Number and Username
and Password (if applicable).
3) Press OK to save changes.
