QUICK START GUIDE

MXT-700 7" Modero X® Series Tabletop Touch Panel

Overview

The MXT-700 7" Modero X Series ® Tabletop Touch Panel (FG5968-04) features

edge-to-edge capacitive touch glass with multi-touch capabilities, as well as

advanced technology empowering users to operate AV equipment seamlessly,

while providing the ultimate in audio and video quality. The distinctive appearance

will complement even the most sophisticated meeting facilities and homes.

Product Specif ications

Note: The MXT-700-NC (FG5968-27) No Comm touch panel does not have

microphone capability. It otherwise has all of the functionality of the MXT-700

panel.

Connector Locations

USB peripherals (mouse, keyboard, etc.) may be connected to either of the two

USB ports on the rear of the device. Updates to the device’s firmware can also

made via the USB ports (FIG. 2).

Power via PoE

Power for the MXT-700 is supplied via PoE (Power Over Ethernet ), utilizing an

AMX-certified, capacitive touch-compliant PoE injector such as the PS-POE-AT

High Power PoE Injector (FG423-81) or other approved AMX PoE power source

Connect the incoming Ethernet cable to the RJ45 port on the cable attached to

the device.

Ethernet Cable Installation and Modification

In installations where you wish to conceal the Ethernet cable, a hole at least 1.00”

(2.54 cm) in diameter is required in the surface to allow passage of the female

RJ45 connector (FIG. 3).

If using a smaller hole is unavoidable, you will need to disconnect the Ethernet

cable (ECA5968-05) from the device, to feed the male end of the cable through.

Note: The minimum diameter hole through which the Ethernet cable may pass is

0.50" (1.27 cm).

To disconnect and reconnect the MXT-700’s Ethernet cable:

1. On a soft surface, turn the MXT-700 face-down to access the bottom of the

device.

2. Remove the clamp holding the Ethernet cable (FIG. 3).

3. Remove the Ethernet cable connector and pull the cable out of the clamp.

4. Pass the Ethernet cable (ECA5968-05) through the hole, with the RJ45

connector on the other side of the installation surface from the device.

5. Press the Ethernet cable back into the clamp.

Do NOT tighten the clamp at this time.

6. Using a non-conductive item such as a wooden stick, reinsert the Ethernet

cable connector into the device. Ensure that the connector is properly

seated.

7. Tighten the clamp to secure the Ethernet cable.

Make sure the clamp is around the bundled black cable, not the individual

wires.

8. Connect the RJ45 connector to its incoming Ethernet cable and apply power.

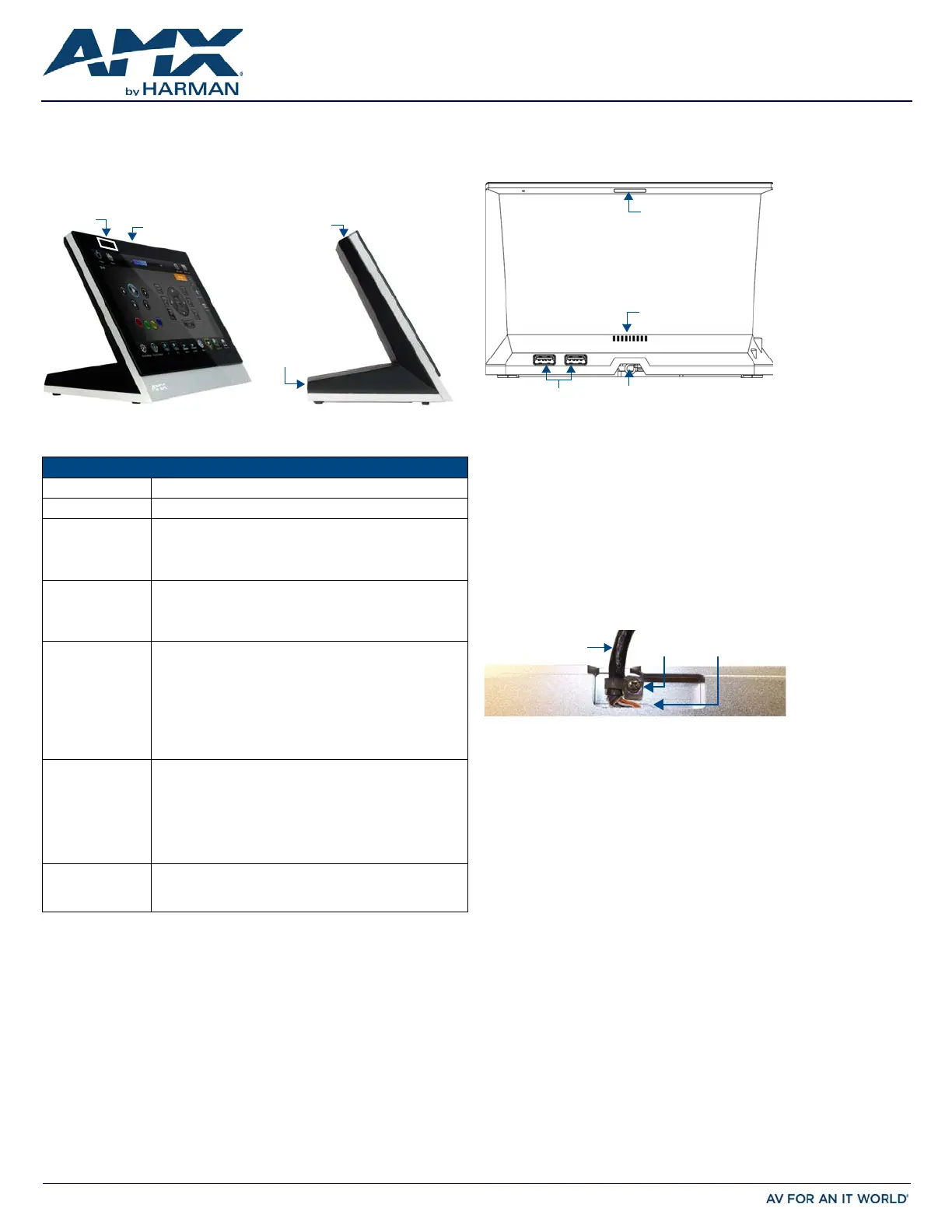

FIG. 1 MXT-700

MXT-700 SPECIFICATIONS

Dimensions (HWD) 5" x 7 5/16" x 4 1/8" (126 mm x 187 mm x 105 mm)

Weight 1.8 lbs (0.82 Kg)

Power Consumption • Full-On: 8W

• Standby: 3.2W

• Shutdown: 1W

• Start-Up Inrush Current: Not applicable due to PoE standard

External Power

Supply Required

Optimal performance requires use of one of the following AMX

PoE power supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Certifications • UL 60950-1

• FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022, EN 55024 and EN 60950-1

• IEC 60950-1

• IC

• IEC/EN-60950

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 18.5 BTU/hr

Standby: 10.6 BTU/hr

Included

Accessories

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• 3/4" Mini-Grommet (FG570-01)

• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

Sleep Button

NFC Sensor Sleep Button

USB Ports (2)

FIG. 2 MXT-700 - REAR VIEW

FIG. 3 BOTTOM OF THE MXT-700

USB Ports Entry for RJ45/PoE Cable

Speaker

Sleep button

Ethernet Cable ConnectorClamp

registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks

of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-5968-04 REV: L

Last Revised: 6/22/2015

Powering On/Off X Series Panels

Modero X Series touch panels may be powered on by touching and holding the

Sleep button. To power off the panel, press and hold the Sleep button, and select

Power Off on the on-screen menu (FIG. 4):

Conf iguration and Programming

X Series touch panels are equipped with a Settings menu that provides the ability

to configure various features on the panels.

To access the Settings menu, press and hold the Sleep button, and select

Settings.

Note: Information on the Settings menu, panel configuration, and programming is

provided in the Modero X Series Programming Guide, available at www.amx.com.

Setting the Panel’s Device Number and Device Name

1. In the Settings menu, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select

OK to access the NetLinx page.

3. Press Device Number to open the NetLinx editing window.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Enter a unique Device Name assignment for the panel and press OK.

Conf iguring the Panel’s IP Address

The first step is to configure the panel’s IP address. Note that this only configures

the panel to communicate with a network; it is still necessary to connect to the

NetLinx Master (see Connecting to a NetLinx Master below).

Network Communication via DHCP

1. In the Ethernet page, press DHCP/Static field to open the DHCP/Static

window. Note that DHCP is the default setting.

2. Select Host Name, enter the new host name

3. Press OK to save changes.

Network Communication via Static Address

1. In the Ethernet page, press DHCP/Static to open the DHCP/Static window.

2. Select Static to open the Static IP window.

3. Press any field to open a keypad or keyboard (depending on the field), and

enter the appropriate network address information.

4. Press OK to save your changes and return to the Ethernet page.

Connecting to a NetLinx Master

To establish the type of connection to make between the panel and the NetLinx

Master:

1. In the NetLinx page, press Mode to choose the connection mode (URL, Listen or

Auto):

2. If password security is enabled on the target Master, enter the Username

and Password:

a. Select Username to open the NetLinx window.

b. Enter the Username and Password required by the Master.

c. Press OK to save changes and return to the NetLinx page.

Related Software and Additional Documentation (at www.amx.com)

• Programming the Modero X Series touch panels requires the use of the

latest versions of NetLinx Studio and TPDesign4, both available to download

at www.amx.com. Refer to the NetLinx Studio and TPDesign4 online help for

information.

• For additional information on the MXT-700 panel, refer to the X-Series Touch

Panels MXD/T-1000, MXD/T-700 & MXD-430 Instruction Manual.

• For detailed information on the Settings menu as well programming

information and instructions on upgrading firmware, refer to the Modero X

Series Programming Guide.

• Detailed specifications drawings for the MXT-700 are available to download

from www.amx.com.

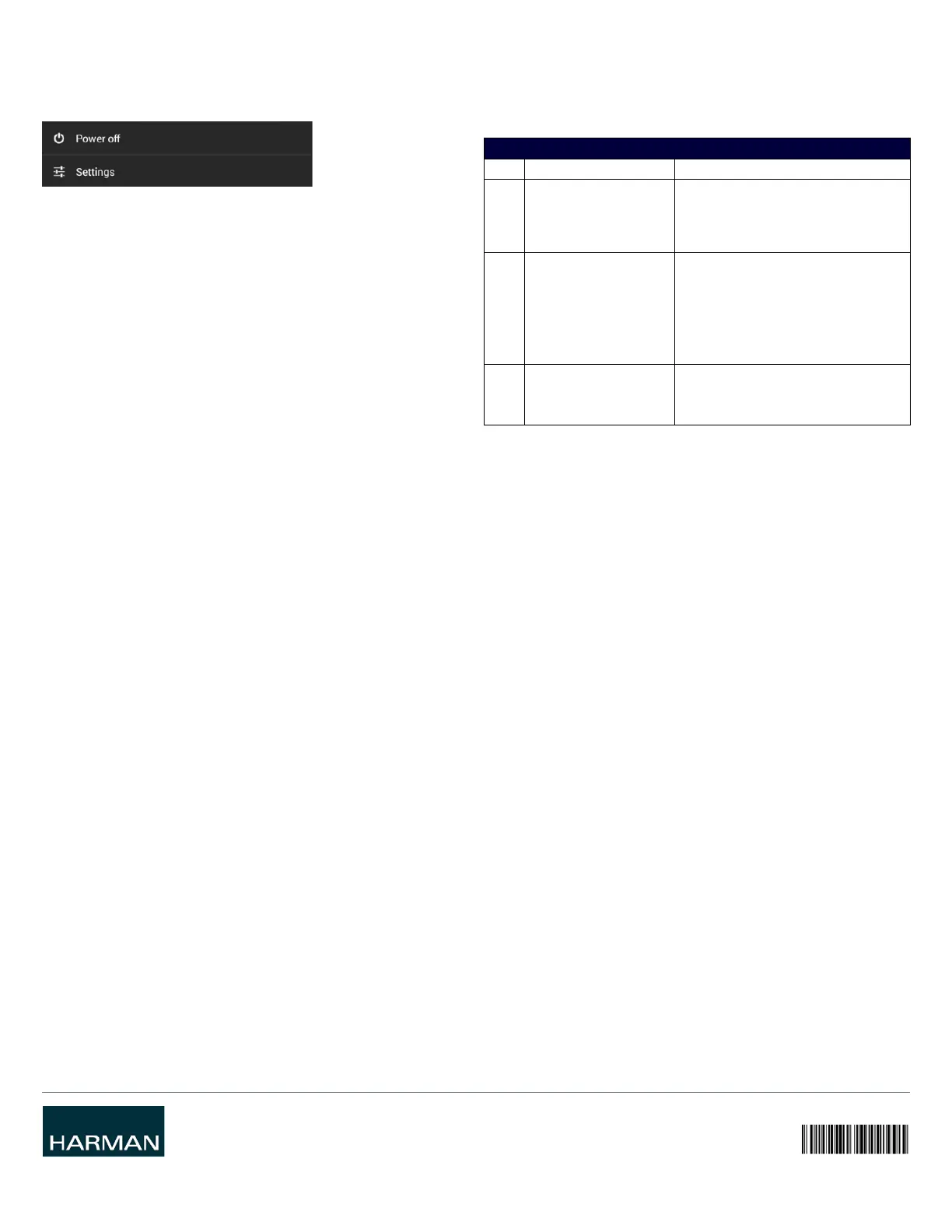

FIG. 4 SLEEP BUTTON - PRESS AND HOLD TO ACCESS POWER OFF/SETTINGS OPTIONS

CONNECTION MODES

Mode Description Procedures

URL The device connects to the

target Master’s IP address

via a TCP connection.

1) Select URL in the Mode menu.

2) Enter the Master IP/URL, Master Port

Number, and Username/Password (if

required by the Master).

3) Press OK to save changes.

Listen This mode allows the panel

to “listen” for the Master’s

communication signals.

Note that in this mode, the

System Number and Master

IP/URL fields are read-only.

1) Select Listen in the Mode menu.

2) Confirm the panel’s IP address is on the

Master’s URL list (via NetLinx Studio).

3) Press OK to save changes.

Note: The Host Name (set on the Ethernet

page), can be used to locate the panel on the

Master (particularly useful for DHCP

connections where the IP address can change).

Auto Use this mode when both

the panel and the NetLinx

Master are on the same

Subnet.

1) Select Auto in the Mode menu.

2) Enter the System Number and Username

and Password (if applicable).

3) Press OK to save changes.
