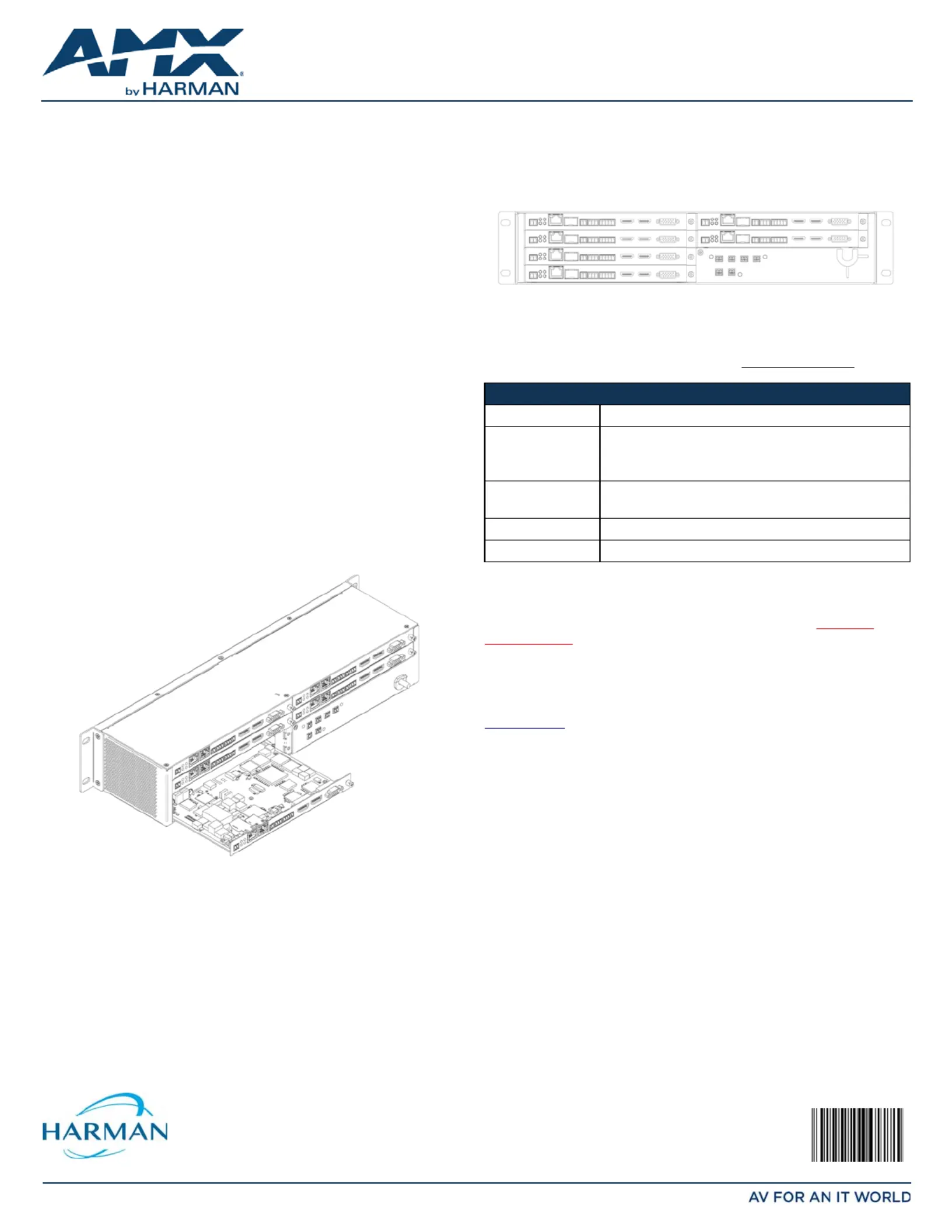

QUICK START GUIDE
NMX-ACC-N9206 2RU Rackmount Cage with Power
© 2016 Harman. All rights reserved. AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are registered trademarks of HARMAN.
Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
Last Revised: 12/2016
Overview
The NMX-ACC-N9206 is a 2RU rack mount cage for rack mounting up to six
N-Series Encoder, Decoder, and Audio Transceiver Cards. Cards are powered
by PoE (Power-over-Ethernet) and/or by connecting the card’s 12VDC Input
to the Card Cage’s 12VDC Output using the supplied Phoenix connector
cable.
Calculating Power Requirements
Use either of the following formulas to calculate how much power is required
for the N9206.
Formulas are based on the power requirements of each installed card (e.g.,
Power_Slot1 = the power requirements for whatever card is installed in the
first slot). These formulas add a 20% margin to the power requirements of
the cards to allow for the chassis cooling fan power consumption as well as
any inherent power supply losses.
Total Power = (Power_Slot1 + Power_Slot2 + Power_Slot3 + Power_Slot4 +
Power_Slot5 + Power_Slot6) * 1.2
or
Total BTU/hr = (BTU/hr_Slot1 + BTU/hr_Slot2 + BTU/hr_Slot3 + BTU/hr_Slot4 +
BTU/hr_Slot5 + BTU/hr_Slot6) * 1.2
Installation Guidelines
To install N-Series cards into the N9206 Card Cage, follow these steps:
1. Gently slide the card into the cage slot. Make sure the card is properly
aligned with the guides. The card’s front LED indicators should align
with the holes in the cage’s faceplate. See FIG. 1.
CAUTION: Cards are static sensitive. Follow all standard ESD precautions
when handling cards. Handle cards by the faceplate and carrier edges only.
Avoiding touching the card components.
2. Align the thumb screw on the back plate before seating the card into
the cage.
3. Firmly seat the card and tighten the thumb screw by hand to secure
card placement.
4. Use one of the six Phoenix connector cables (included in shipment with
the Card Cage) to connect the card’s 12VDC input Phoenix connector
to one of the cage’s six 12VDC outputs.
5. Repeat these steps until all cards are properly installed. See FIG. 2.
FIG. 2 FULLY POPULATED CARD CAGE
6. For proper airflow, cover any unused card slots with faceplate blanks.
Blanks are sold separately (part number NMX-ACC-N9210).
7. Make sure the Card Cage’s power cord is plugged in for proper cooling.
The LED on the front of the cage should always be on.POWER
CAUTION: Keep the Card Cage’s power cord plugged in at all times so that the
internal fans are always running. Failure to do so could void the warranty of
the cage and all installed cards. The card cage cooling fans cannot be
powered by PoE in the event of a loss of main power to the card cage. Please
remedy power losses immediately to avoid potential overheating hazards.
NOTE: Mounting accessories are sold separately and are compatible with
most N-Series devices. Contact a sales representative or visit our website at
www.amx.com for details.
Please contact technical support at svsisupport@harman.com or
256.461.7143 (x9900) for assistance with any installation issues.
FIG. 1 INSTALLING CARDS
Product Specifications
Model Available: NMX-ACC-N9206
Power
Requirements:
Input: 100-240 Volts @ 1 Amp AC power supply
Output: 12VDC @ up to 15A (total over all six Phoenix
connectors)
Dimensions
(HWD):
3.4” x 17.22” x 5.04” (8.63cm x 43.73cm x 12.8cm)
Weight: 7.61 lbs (3.45 kg)
Certifications: Regulatory compliance: FCC, CE, and NRTL
