QUICK START GUIDE

SVSI N2122A/N2222A/N2212A JPEG 2000 Video Over IP Series

Overview

The N2122A/N2222A/N2212A JPEG 2000 Video over IP series provides a flexible,

feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution

satisfying the most demanding applications. N2122A Encoders are used to encode and

distribute sources of almost any format onto an existing IP network making that stream

available to any endpoint in the facility. N2222A/N2212A Decoders are used to decode

the Networked AV streams back to HDMI format for display on any monitor. With the

ability to direct any source stream to any display, large, low-cost switching and

distribution systems are simple to deploy without proprietary cabling or dedicated

switching hardware. These devices are AES67 compatible, which enables high-

performance audio-over-IP streaming interoperability.This quick start guide will

familiarize you with your new device and step you through initial setup.

Establishing Connection

N2000 devices are shipped with as their default IP mode. The IP address is DHCP

assigned automatically based on the network DHCP server. If no DHCP server is found,

the unit will use mode instead (with a default IP address of 169.254.xxx.xxx).Auto IP

Before using your N2000 unit, it must be configured using the free N-Able device

management software. However, you will not be able to configure units until they are in

the same subnet as the host computer. The sample steps below show how the required

changes (to the host computer’s IP settings) are made in a Windows environment.

Steps for IP address configuration (for Windows 8):

1. From the dialog box, select Control Panel > Network and Internet Network and

Sharing Center.

2. Select .Change adapter settings

3. Select the wired interface connected to your AV network.

4. Click the button.Properties

5. Scroll down in the list to the Internet Protocol Version 4 (TCP/IPv4) option.

Highlight it and click the button.Properties

6. Enable the option, and enter the static IP addressUse the following IP address

provided to you by your network administrator.

NOTE: If the computer does not need Internet access, you can simply enter a unique

169.254.xxx.xxx IP address with a 255.255.0.0 Subnet mask. Please contact your

network administrator if you are unsure of how to configure the existing interface. If the

computer has a statically-assigned IP address, click on the Advanced button. Then click

Add to enter a unique 169.254.xxx.xxx address with a subnet of 255.255.0.0.

Steps for auto discovering devices on the network:

1. Use the host computer to download and install the latest version of N-Able:

PC version - http://www.amx.com/products/N-ABLE-PC.asp

Mac version - http://www.amx.com/products/N-ABLE-MAC.asp

2. Attach your N2000 unit(s) to the layer-3 network switch.

3. Disable the wireless adapter on your computer (it must be hard-wired to the

switch).

4. Connect the host computer to the layer-3 network switch.

5. Open the N-Able application.

If all devices do not appear automatically, click the button on the Auto Discover

Unit Management tab. This issues a broadcast command that will discover all units

even if they are not in the same IP subnet.

FIG. 1 ENCODER AND DECODER REAR PANEL PORTS

Basic Installation Guidelines

Connections Options

Power: Connect the unit’s port to an active, PoE-enabled network PoE*: P0

switch.

External power supply: If not using PoE for power, connect a 12V

regulated power supply (part number N9312) to the unit’s two-pin

terminal block plug connector labeled .+12V 2A

Network: If using PoE to power the unit, you should already have a PoE units:

network connection.

Externally powered units: If not using PoE, connect the port to the P0

network using an Ethernet cable, or connect the port to the network P1

with the appropriate cable (fiber transceiver or direct-attach cable is

required).

Daisy-chain configuration: Once network connection is established to

one unit, you can daisy chain additional units by connecting Ethernet

cables between devices using their P0 and/or P1 ports. Keep in mind that

the number of units supported in this configuration is limited by

bandwidth (total aggregate streams must be less than 1 Gb/s).

NOTE: PoE power is only supplied to the unit connected directly to the

network. All other units in daisy-chain must have external power supply.

Video: N2122A Encoders

• For video encoding of a source, connect the source to the digital

Encoder’s port using a video cable with an HDMI connector HDMI IN

(or adapter).

• For video encoding of an source, connect the source to the analog

Encoder’s port using a video cable with a VGA connector (or VGA IN

component adapter).

N2222A Decoders

• For video decoding, connect a digital display to the Decoder’s HDMI

OUT port using a video cable with an HDMI connector (or adapter).

Audio: N2122A Encoders

• For audio encoding, connect a line level analog audio source to the

Audio* input terminal block plug connector, or

• Use the embedded audio from the video source, or

• Enable to transmit an AES67 audio stream.AES67 Audio

N2222A Decoders

• For analog audio decoding, connect a line level analog audio device to

the output terminal block plug connector, orAudio

• Send embedded digital audio (embedded in the HDMI connection) to a

monitor’s speakers, or

• Enable to receive an AES67 audio stream.AES67 Audio

To PoE-Enabled Switch

N2122A Encoder Rear Panel

To Display

To PoE-Enabled Switch To Source

N2222A Decoder * Rear Panel

*The N2222A Decoder is pictured above. N2212A Decoders do not have P0, IR, or AUDIO ports.

*The PoE port (P0) and the IR and Audio terminal blocks are not provided on the N2212

Decoder.

Product Specifications

Models Available: NMX-ENC-N2122A Encoders

NMX-DEC-N2222A Decoders

NMX-DEC-N2212A Decoders

Power Requirements: Can be powered via a PoE switch or other equipment with a PoE:

PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).

Does not apply to the N2212A.

External power supply: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC

power supply; Part number N9312 (included with the N2212A, but

sold separately for the N2122A/N2222A).

Dimensions (HWD): 1.05” x 7.888” x 5.5” (2.67cm x 20.04cm x 14cm)

Weight: 1.55 lbs (0.7kg)

Certifications: FCC, CE, and NRTL

Environmental: Temperature: 32° to 104°F (0° to 40°C)

Humidity: 10% to 90% RH (non-condensing)

Mounting Options: Stand alone, surface mount, wall mount, or rack mount.*

NOTE: *Mounting wings (part number N9101) required for surface and wall mounting.

Rack shelf (part number N9102) or card cage (part number N9206) required for rack

mounting. Shelf accommodates two side-by-side N-Series Encoders and Decoders.

Card cage accommodates up to six N-Series Encoder and Decoder cards (mix and

match any series). Mounting accessories sold separately and are compatible with most

N-Series devices.

Basic Installation Guidelines (Continued)

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

5095703-00 REV: A

Last Revised: 11/2017

Logging in Using N-Able Software

Once the host IP address is configured properly, you can view all discovered units using

the N-Able software. Access the N2000 units from the following tabs:

• tab - Unit Management N2000 Encoder/Decoder

is listed in the Type field.

• tab - N2000 units are found on the sub-tab of this screen.Video Matrix N2000

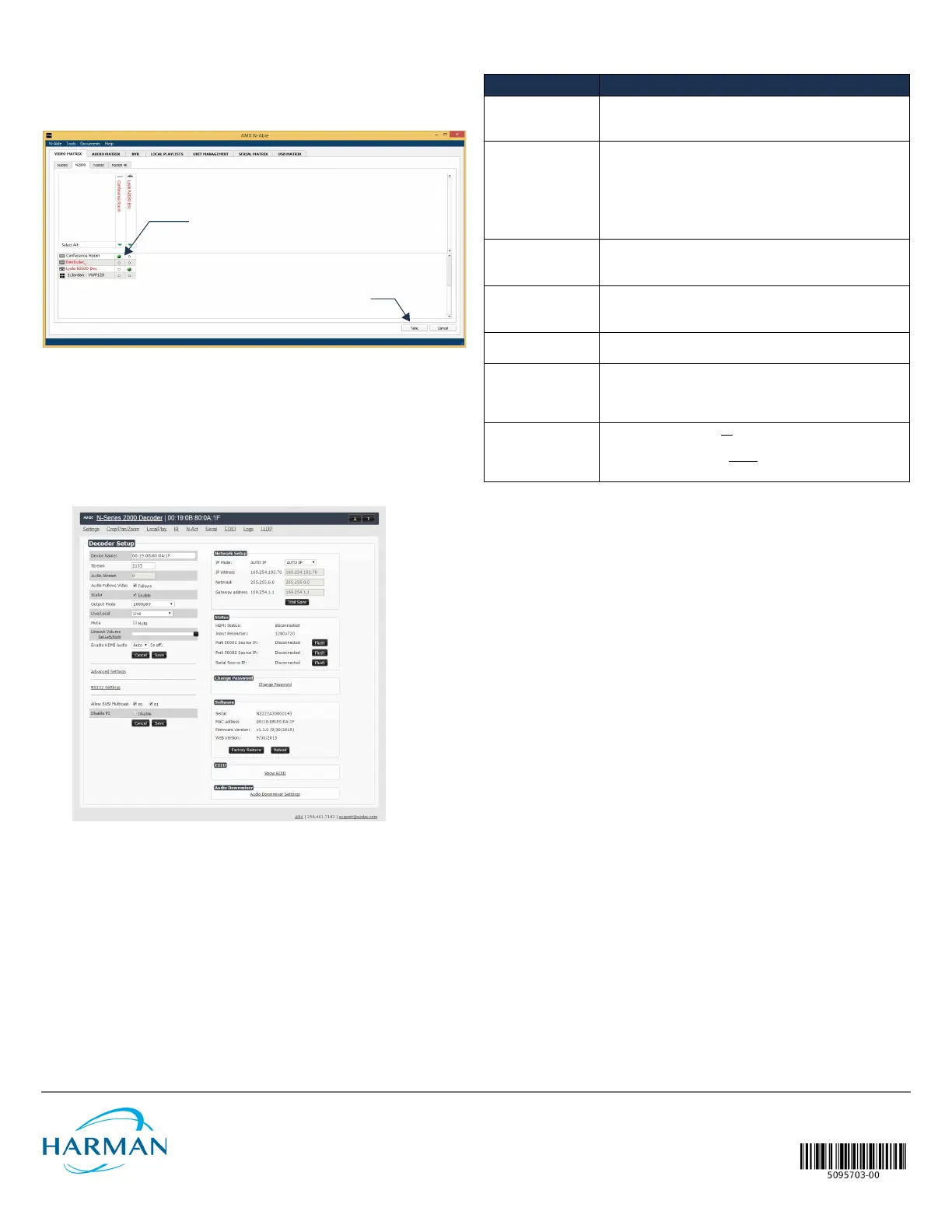

FIG. 2 VIDEO MATRIX

Double-click the unit’s name (in one of the lists mentioned above) to view its control

pages. If prompted, enter admin and password for the default username and password.

Once logged in, you can change the username and password (using the options on the

unit’s page, shown below). Settings

NOTE: If you would like for N-Able to support auto-login to your units, make sure N-Able’s

Device Auto-login settings match the unit’s username and password (by selecting N-Able

> Settings from the N-Able tool bar).

FIG. 3 N2000 SETTINGS PAGE

Troubleshooting Guidelines

Contact SVSI technical support at svsisupport@harman.com or 256.461.7143

x9900 for any installation issues.

Enabling this cell causes

Conference Room Decoder to listen

to . Conference Room Encoder

Click to apply changes. Take

Problem Possible Solution

Video is not

transmitting.

• Verify that the Encoder setting is turned on. TX Enable

(Encoders ship from the factory with their video output

turned off by default.)

Local Play graphic is

displayed.

• Verify Decoder is assigned to view a valid stream in the

N-Able matrix.

• Verify Decoder is currently in live play mode (black text on

matrix view).

• Verify network is properly configured and set up. If needed,

connect Encoder directly to Decoder to verify network

issues.

Host Play graphic is

displayed.

• Verify Encoder is in live play mode (black text in matrix).

• Verify source is attached and is outputting a valid signal

( LED on Encoder is on).HDMI

Unsupported

Resolution graphic is

displayed.

• Change source resolution to a valid resolution (try

720p60).

• Verify cabling is correct.

Copy Protected Content

screen is displayed.

• Contact technical support.

Black screen/no

graphic is displayed.

• Set Decoder to local play. If the local play graphic does not

appear, check the display input settings and cabling.

• If local play appears, set Decoder to live play and verify

network is configured properly.

No audio is detected. • If there is no audio on all Decoders, verify audio settings are

correct on Encoder.

• If there is no audio on a single Decoder, verify audio settings

are correct on Decoder.
