QUICK START GUIDE

SVSI N1122A/N1222A/N1133A/N1233A MPC Series

Overview

All Encoders and Decoders of the SVSI N1122A/N1222A/N1133A/N1233A MPC

(Minimum Proprietary Compression) products feature input and output scaling, serial,

balanced audio, HDMI video connection, and Power-over-Ethernet (PoE). Some models

also offer 1G SFP support for uncompressed networked AV video and USB control

inputs for KVM keyboard and mouse over IP.

Depending on the model, the port on the rear of the unit is either an SFP (N1133A/P1

N1233A) or an RJ45 (N1122A/N1222A) network connection. FIG. 1 shows the fully-

equipped model, complete with SFP and USB support. These devices are all AES67

compatible, which enables high-performance audio-over-IP streaming interoperability.

Basic Installation Guidelines

Establishing Connection

N1000 MPC devices are shipped with DHCP as their default IP mode. The IP address is

assigned automatically based on the network DHCP server. If no DHCP server is found,

the unit will use mode instead (with a default IP address of 169.254.xxx.xxx).Auto IP

Before using your N1000 MPC unit, it must be configured using the free N-Able device

management software. However, you will not be able to configure units until they are in

the same subnet as the host computer.

The sample steps below show how the required changes (to the host computer’s IP

settings) are made in a Windows environment.

Steps for IP address configuration:

1. From the dialog box, select Control Panel > Network and Internet Network and

Sharing Center.

2. Select .Change adapter settings

3. Select the wired interface connected to your AV network.

4. Click the button.Properties

5. Scroll down in the list to the Internet Protocol Version 4 (TCP/IPv4) option.

Highlight it and click the button.Properties

6. Enable the option, and enter the static IP address Use the following IP address

provided to you by your network administrator.

NOTE: If the computer does not need Internet access, you can simply enter a unique

169.254.xxx.xxx IP address with a 255.255.0.0 Subnet mask. Please contact your

network administrator if you are unsure of how to configure the existing interface. If the

computer has a statically-assigned IP address, click on the Advanced button. Then click

Add to enter a unique 169.254.xxx.xxx address with a subnet of 255.255.0.0.

Steps for auto discovering devices on the network:

1. Use the host computer to download and install the latest version of N-Able:

PC version - http://www.amx.com/products/N-ABLE-PC.asp

Mac version - http://www.amx.com/products/N-ABLE-MAC.asp

2. Attach your N1000 MPC unit(s) to the layer-3 network switch.

3. Disable the wireless adapter on your computer (it must be hard-wired to the

switch).

4. Connect the host computer to the layer-3 network switch.

5. Open the N-Able application.

If all devices do not appear automatically, click the button on the Auto Discover

Unit Management tab. This issues a broadcast command that will discover all units

even if they are not in the same IP subnet.

Logging in Using N-Able Software

Once the host IP address is configured properly, you can view all discovered units using

the N-Able software. Access the N1000 MPC units from the following tabs:

• tab - is listed in the Unit Management N1000 Encoder/Decoder Type field.

• tab - N1000 MPC units are found on the sub-tab of this Video Matrix N1000

screen.

Double-click the unit’s name (in one of the lists mentioned above) to view its Settings

page. If prompted, enter admin and password for the default username and password.

Once logged in, you can change the username and password (using the options on the

unit’s page). From this page, you can access any of the main pages of the Settings

unit’s GUI.

NOTE: If you would like for N-Able to support auto-login to your units, make sure N-Able’s

Device Auto-login settings match the unit’s username and password (by selecting N-Able

> Settings from the N-Able tool bar).

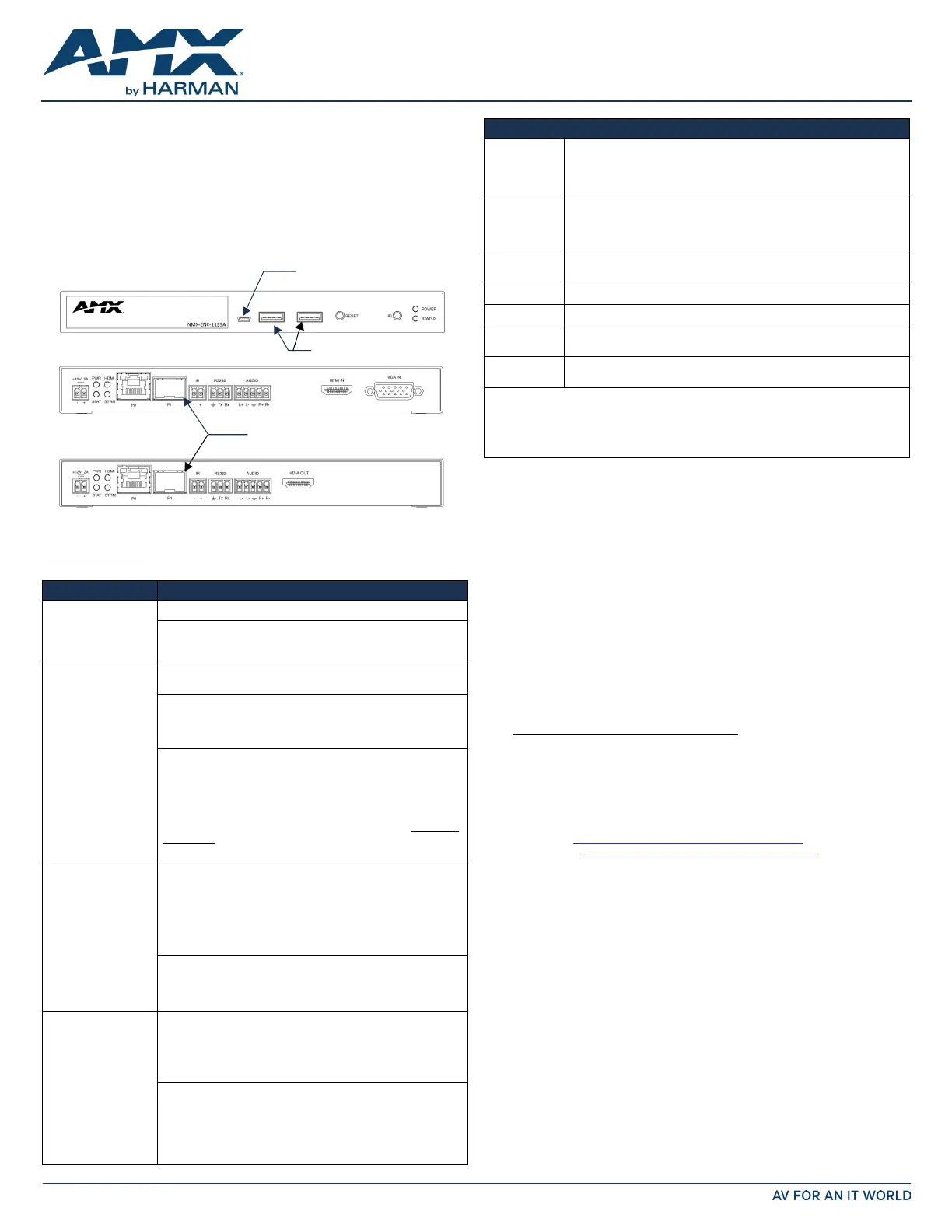

FIG. 1 N1133A/N1233A USB AND SFP PORTS

NOTE: The SFP port supports 1000BASE-X or 1000BASE-T connections only.

Connections Options

Power:

PoE: P0 Connect the unit’s port to an active, PoE-enabled network switch

External power supply: If not using PoE for power, connect a 12V

regulated power supply (part number N9312) to the unit’s two-pin

terminal block plug connector labeled .+12V 2A

Network: If using PoE to power the unit, you should already have a PoE:

network connection.

External power: P0 If not using PoE, connect the port to the

network using an Ethernet cable, or connect the port to the P1

network with the appropriate cable (fiber transceiver or direct-

attach cable is required for SFP connections).

Daisy-chain configuration: Once network connection is

established to one unit, you can daisy-chain additional units by

connecting Ethernet cables between devices using their P0 and/or

P1 ports. Keep in mind that the number of units supported in this

configuration is limited by bandwidth (total aggregate streams

must be less than 1 Gb/s).

NOTE: PoE power is only supplied to the unit connected directly to

the network. All other units in the daisy-chain must have an

external power supply.

Video: N1122A/N1133A MPC Encoders

• For video encoding of a digital source, connect the source to the

Encoder’s port using a video cable with an HDMI HDMI IN

connector (or adapter).

• For video encoding of an source, connect the source to analog

the Encoder’s port using a video cable with a VGA VGA IN

connector (or component adapter).

N1222A/N1233A MPC Decoders

• For video decoding, connect a digital display to the Decoder’s

HDMI OUT port using a video cable with an HDMI connector (or

adapter).

Audio: N1122A/N1133A MPC Encoders

• For audio encoding, connect a line level analog audio source to

the input terminal block plug connector, or Audio

• Use the embedded audio from the video source, or

• Enable to transmit an AES67 audio stream.AES67 Audio

N1222A/N1233A MPC Decoders

• For analog audio decoding, connect a line level analog audio

device to the output terminal block plug connector, orAudio

• Send embedded digital audio (embedded in the HDMI

connection) to a monitor’s speakers, or

• Enable to receive an AES67 audio stream.AES67 Audio

One USB Mini-B Port

Two USB Standard-A Ports

1G SFP ports accepts compatible

(supported by N1133A Encoders)

fiber transceivers or direct attach

cables (fiber or copper cabling)

(supported by N1233A Decoders)

N1133A/N1233A Front View

N1133A Encoder Rear View

N1233A Decoder Rear View

Product Specifications

Models

Available:

NMX-ENC-N1122A Encoders - two RJ45 network ports

NMX-ENC-N1133A Encoders - 1G SFP port, RJ45 port; three USB ports

NMX-DEC-N1222A Decoders - two RJ45 network ports

NMX-DEC-N1233A Decoders - 1G SFP port and RJ45 port; three USB ports

Power

Requirements:

PoE: Can be powered via a PoE switch or other equipment with a PoE

source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).

External power supply: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC power

supply; Part number N9312 (sold separately).

Dimensions

(HWD):

1.05” x 7.888” x 5.5” (2.67cm x 20.04cm x 14cm)

Weight: 1.55 lbs (0.7kg)

Certifications: FCC, CE, and NRTL

Environmental: Temperature: 32° to 104°F (0° to 40°C)

Humidity: 10% to 90% RH (non-condensing)

Mounting

Options:

Stand alone, surface mount, wall mount, or rack mount.*

NOTE: *Mounting wings (part number N9101) required for surface and wall mounting.

Rack shelf (part number N9102) or card cage (part number N9206) required for rack

mounting. Shelf accommodates two side-by-side N-Series Encoders and Decoders.

Card cage accommodates up to six N-Series Encoder and Decoder cards (mix and

match any series).

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

5095702-00 REV: A

Last Revised: 11/2017

NOTE: N1000 MPC units force HTTPS connections, so your web browser may give you a

security warning. N-Able on Windows will ask you to download OpenSSL for Windows to

connect HTTPS.

Basic KVM Setup (N1133A/N1233A models only)

The N1133A Encoders and N1233A Decoders are KVM-capable. By default, USB

connections are enabled and configured to follow video switching. Follow these steps

for basic KVM setup. To learn about some of the more advanced KVM capabilities, see

the section Advanced KVM Setup (with added security features).

1. On the N1133A Encoder, connect the USB Mini-B port (designated by a laptop

icon) to the computer to be controlled.

2. Connect the computer’s video output to the Encoder’s port. HDMI IN

3. On the N1233A Decoder, connect the to the display. HDMI OUT

4. Connect a USB keyboard and mouse to the Decoder’s USB Standard-A ports (they

can be plugged into either port).

NOTE: For wireless devices, simply plug the wireless signal receivers into these

ports. For keyboard and mouse combos (with a single connection) use the

keyboard port.

5. Using N-Able, click the Unit Management tab.

6. Click the button to discover your new devices (if you have not Auto Discover

already done so).

7. Once discovery is complete (and you see the new units listed in N-Able), click the

Video Matrix tab.

8. On the matrix, click the common cell for the desired Encoder/Decoder streaming

combination. See the screen shot below for an example.

9. Click the button to make the change to your matrix. The radio button turns Take

green to indicate the connection was successful.

Video/USB Switching Options

USB Follows Video: By default, units can be switched using N-Able without modifying

the configuration. When you switch video streams (using the matrix as shown above)

the USB functionality will follow the video.

Independent USB Switching: USB Matrix Use N-Able’s tab to switch USB control

(without affecting video).

Independent Video Switching: To switch video streams affecting USB control, without

first select from N-Able’s main menu. When the N-Able > Settings N-Able Settings

dialog box is displayed, disable the USB follows Video switching for KVM units. Now you

can use the to switch video streams only.Video Matrix

Advanced KVM Functionality: To have the ability to use KVM hotkeys for switching, KVM

Advanced Settings must be enabled on the individual unit (select KVM from the top of

the unit’s web interface). The next section discusses these settings in more detail.

Advanced KVM Setup (with added security features)

You can configure devices for more advanced KVM operation on the Encoder and

Decoder pages. To access these pages, double-click the unit’s name in the matrix KVM

and click at the top of the page (see below).KVM Settings

FIG. 3 SELECTING THE KVM PAGE

NOTE: Many of these options are easier to manage in N-Able’s KVM Wizard (especially in

large configurations). Select Tools > KVM Wizard from the N-Able main menu to access

the wizard.

The following table describes some of the more advanced functionality. It is important

to note that many of these options only appear on the page when is enabled KVM USB

as well as .KVM Advanced Settings

Warning! You must assign KVM passwords to your Encoders and Decoders (as well as

change the default login password from admin/password) in order for your system to

be secure.

Troubleshooting Guidelines

Please contact SVSI technical support at svsisupport@harman.com or 256.461.7143

(x9900) for assistance with any installation issues.

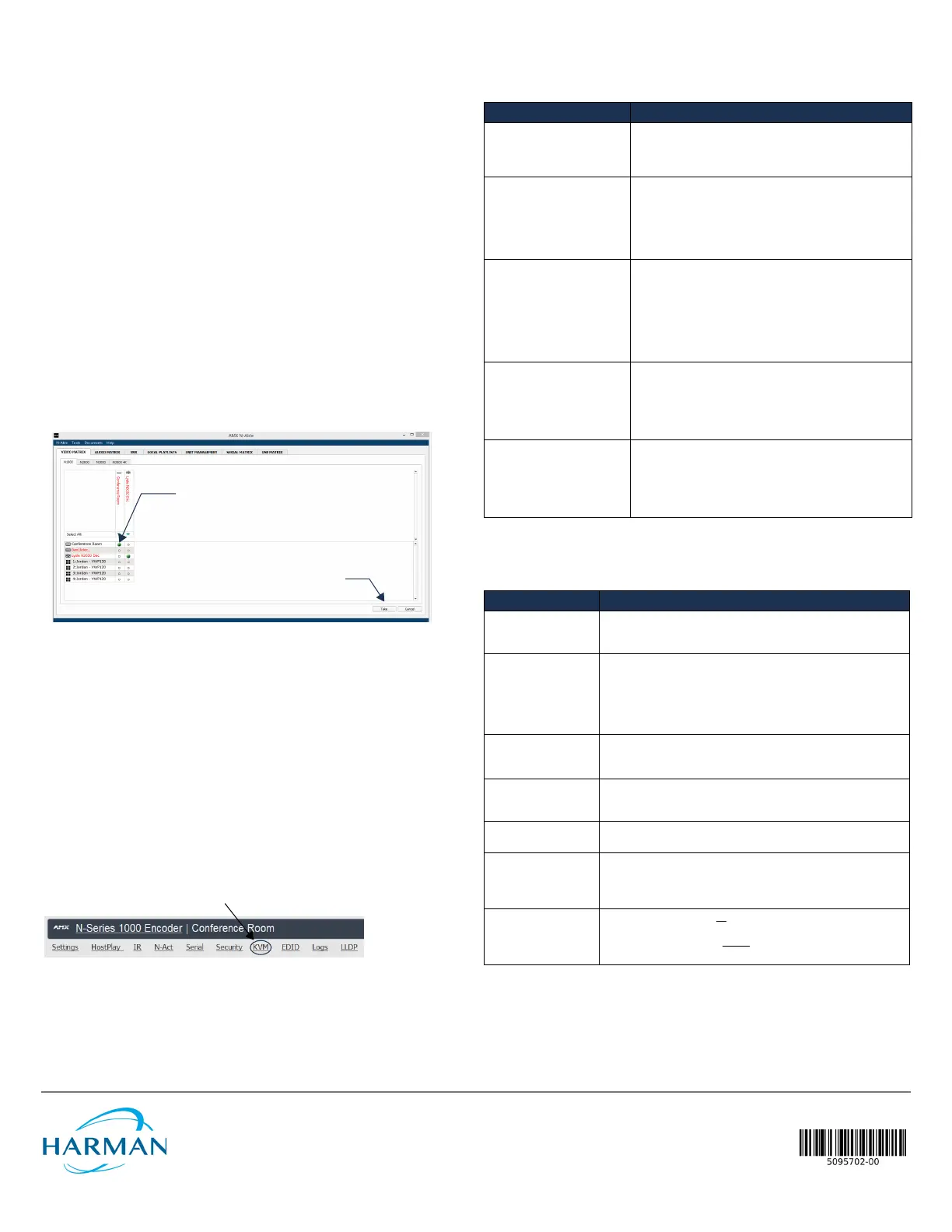

FIG. 2 CREATING STREAMING COMBINATIONS

Enabling this cell causes

Conference Room Decoder to listen

to . Conference Room Encoder

Click to apply changes. Take

Options Descriptions

Permission Levels This feature determines which Decoders can communicate

with which Encoders. A Decoder must have a permission

level that is equal to or greater than the Encoder in order for

communication to be successful.

KVM Encoders table Use the table (on the Decoder’s page) KVM Encoders KVM

to:

• Let the Decoder know the Encoder passwords it needs to

establish communication.

• Assign Encoder hotkeys.

• Add/remove Encoders from the Decoder’s list.

Passwords By default, KVM streams are encrypted with a common

password. You can change the password on the Settings

page of the Encoder. If you change Encoder passwords, you

will need to supply the new information to the Decoders to

allow communication to continue.

A Decoder only receives password information for the

Encoders on the network that have been associated with

that Decoder as mentioned previously.

Hotkeys To use hotkeys for easy switching, enable KVM Directory

Screen Enable on the Decoder’s KVM page. You can now

access the KVM Directory Screen at any time by pressing the

<Scr Lk> button twice on the keyboard connected to the

Decoder. This screen displays all Encoders associated with

that Decoder (and their corresponding hotkey).

Import and export KVM CSV

files.

Multiple Encoders and Decoders can be configured from a

single CSV file (which is generated using the KVM Wizard in

N-Able). Once all changes are made, upload the file to each

unit using its page.Click the button, KVM Choose File

browse to the CSV file you exported from the wizard, and

click the button. Upload

Problem Possible Solution

Video is not

transmitting.

• Verify that the Encoder setting is turned on. TX Enable

(Encoders ship from the factory with their video output turned

off by default.)

Local Play graphic is

displayed.

• Verify Decoder is assigned to view a valid stream in the N-Able

matrix.

• Verify Decoder is currently in live play mode (black text on matrix

view).

• Verify network is properly configured and set up. If needed,

connect Encoder directly to Decoder to verify network issues.

Host Play graphic is

displayed.

• Verify Encoder is in live play mode (black text in matrix).

• Verify source is attached and is outputting a valid signal ( HDMI

LED on Encoder is on).

Unsupported

Resolution graphic is

displayed.

• Change source resolution to a valid resolution (try 720p60).

• Verify cabling is correct.

Copy Protected Content

screen is displayed.

• Contact technical support.

Black screen/no

graphic is displayed.

• Set Decoder to local play. If the local play graphic does not

appear, check the display input settings and cabling.

• If local play appears, set Decoder to live play and verify network

is configured properly.

No audio is detected. • If there is no audio on all Decoders, verify audio settings are

correct on Encoder.

• If there is no audio on a single Decoder, verify audio settings are

correct on Decoder.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	NMX-ENC-N1122A

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX NMX-ENC-N1122A stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX HydraPort HPX-U400 Manual

10 Juni 2025

AMX CBL-HDMI-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-U100 Manual

10 Juni 2025

AMX CBL-DP-FL2 Manual

10 Juni 2025

AMX HydraPort HPX-CPTS100 Manual

10 Juni 2025

AMX HydraPort HPX-P250 Manual

10 Juni 2025

AMX CBL-RGB+A-FL2 Manual

7 Juni 2025

AMX CBL-USB-FL2 Manual

7 Juni 2025

AMX CBL-MDP-FL2 Manual

7 Juni 2025

AMX CBL-ETH-FL2 Manual

6 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

AmpliVox Airvox SW695 Manual

15 Juni 2025

Stiga SBC 635 KD Manual

15 Juni 2025

Cleveland 36CGM300 Manual

15 Juni 2025

Gourmia GTF7970 Manual

15 Juni 2025

Planet Audio P9630B Manual

15 Juni 2025

ORNO OR-DOM-YR-934UD Manual

15 Juni 2025

Lavex 842CD12VST12 Manual

15 Juni 2025

Marshall RCP-PLUS Manual

15 Juni 2025

Hughes & Kettner BassForce XL Manual

15 Juni 2025

Hughes & Kettner Red Box Mk III Manual

15 Juni 2025
