QUICK START GUIDE

NMX-VRK V-Style Rack Shelf

Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

Last Revised: 11/04/2015

93-3201-60 REV: B

Overview

This Quick Start Guide covers the NMX-VRK V-Style Rack Shelf (FG3201-60) and

includes instructions on using it to mount various sized devices side-by-side in a single

rack unit. The rack shelf can be used with or without fill plates, which f ill the rack shelf

with a more professional-looking installation. Fill plates are available in 1/12, 1/6, 1/3,

1/4, and 1/2 rack width sizes. One 1/2 rack width fill plate is included with the rack

shelf. FIG. 1 displays the NMX-VRK Rack Shelf.

You can mount devices in rack shelf facing in either direction as illustrated in FIG. 2.

Tip: If multiple fill plates are required, use a minimum of fill plates by selecting the

largest sizes that will fill the space first.

Mounting Devices in Rack Shelf

1. Invert the device and the rack shelf for ease of installation.

2. Attach the rack shelf to the bottom of the encoder using the #4-40

3/16-inch undercut flat head screws (provided). Insert the screws through the

underside of the rack shelf and into the holes on the bottom of the encoder. Note

that only two screws are required (see FIG. 3).

3. Install the rack shelf in a standard EIA 19 in. (48.26 cm) rack and secure it with

rack-mounting screws.

4. Optional: Attach fill plates using the #4-40 3/16-inch undercut flat head screws

(provided). Be sure to use the screw holes closest to the front of the tray.

Mounting a Power Supply (Optional)

Located at the rear of the rack shelf are several perforated holes for mounting a power

supply for each mounted device (see FIG. 1). Using wire or cable ties (not provided),

you can secure a power supply to the rear of the rack shelf.

1. Place the power supply on the rear of the rack shelf in a position in which it can

easily reach the power input on its associated device.

2. Thread a wire tie through the holes on the rack shelf and around the power

supply, creating a loop around the power supply. With the loop completed, twist

or lock the tie to secure the power supply in its place. You can use multiple ties to

sufficiently secure the power supply.

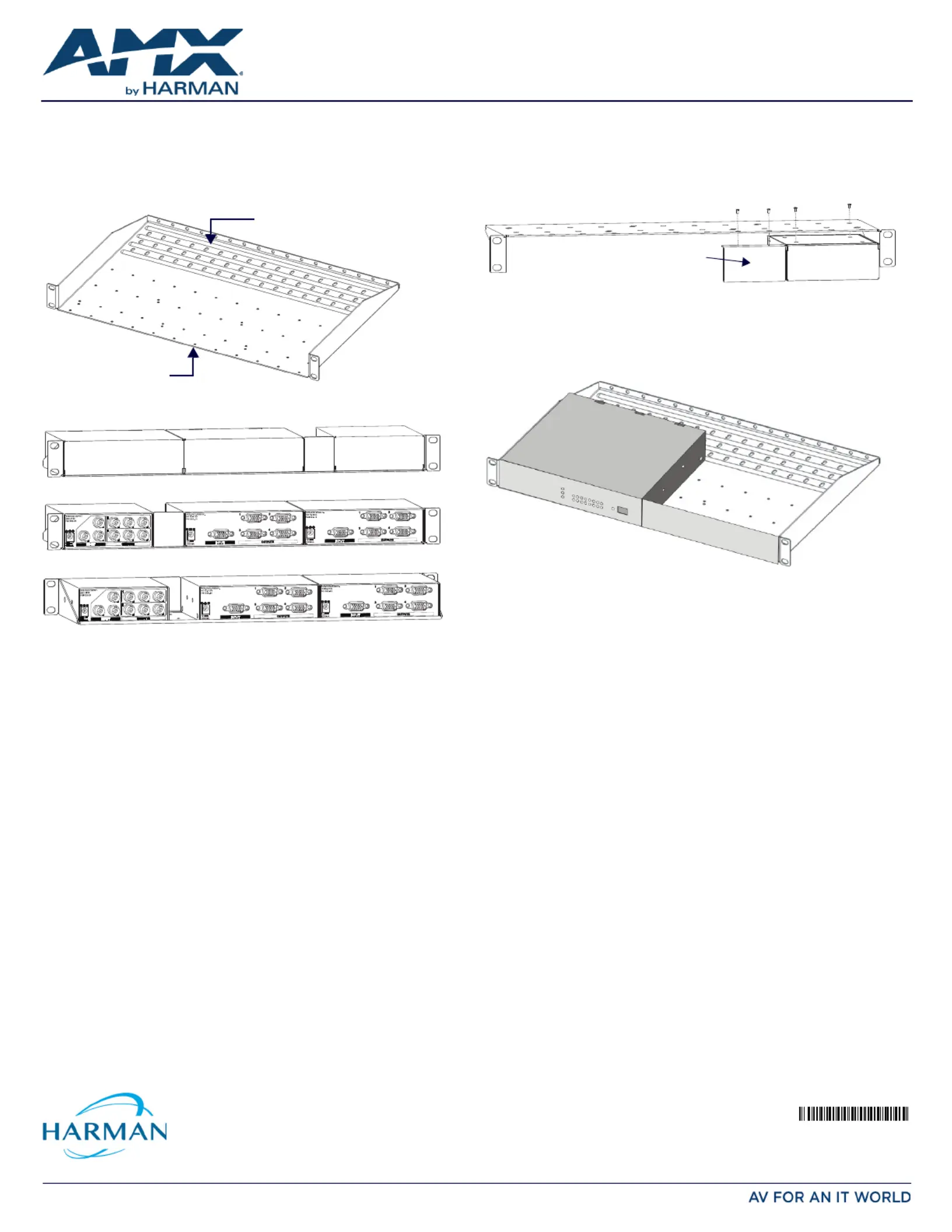

FIG. 1

NMX-VRK V-STYLE RACK SHELF

FIG. 2 OPTIONS FOR PLACING DEVICES IN THE TRAY (SHOWN WITH FILL PLATES)

For mounting power supply

Mount devices in front

Front view with devices facing to front

Front view with devices facing to rear

Rear view with devices facing to front

FIG. 3 INVERT TRAY AND MODULE (AND FILL PLATES IF APPLICABLE) FOR EASE OF INSTALLATION

FIG. 4 RACK SHELF WITH MOUNTED DEVICE AND FILL PLATE

Fill plate
