N-Touch Panel Builder Tutorial 1

SVSI N-Touch Panel Builder

Tu torial

The goal of this tutorial is to introduce the JavaScript interface of the N-Touch controller. Throughout the

tutorial, programming terminology is used, but little to no knowledge of JavaScript is assumed. Instead,

you are encouraged to copy/paste the examples and modify them to suit your needs.

NOTE: For links to more detailed information outside the scope of this tutorial, see the section Additional

Resources on page 7.

For this tutorial, we are going to build a control panel which allows the following control at the touch of a

button:

Switching multiple sources (a Media Player and a Laptop) to multiple displays (two TVs).

Turning a TV on and off using serial commands to enable and disable the video port.

Toggle a display’s source back and forth based on feedback.

NOTE: The system example used for this document is shown in FIG. 1 and is built using N2000 Encoders

and Decoders. However, the procedure given would be applicable whether the device is controlling an

N1000, N2000, or N3000 based system. When using N-Command, ports 80 and 3001 cannot be blocked

for the N-Command device’s IP addresses (in order for Panel Builder to work correctly).

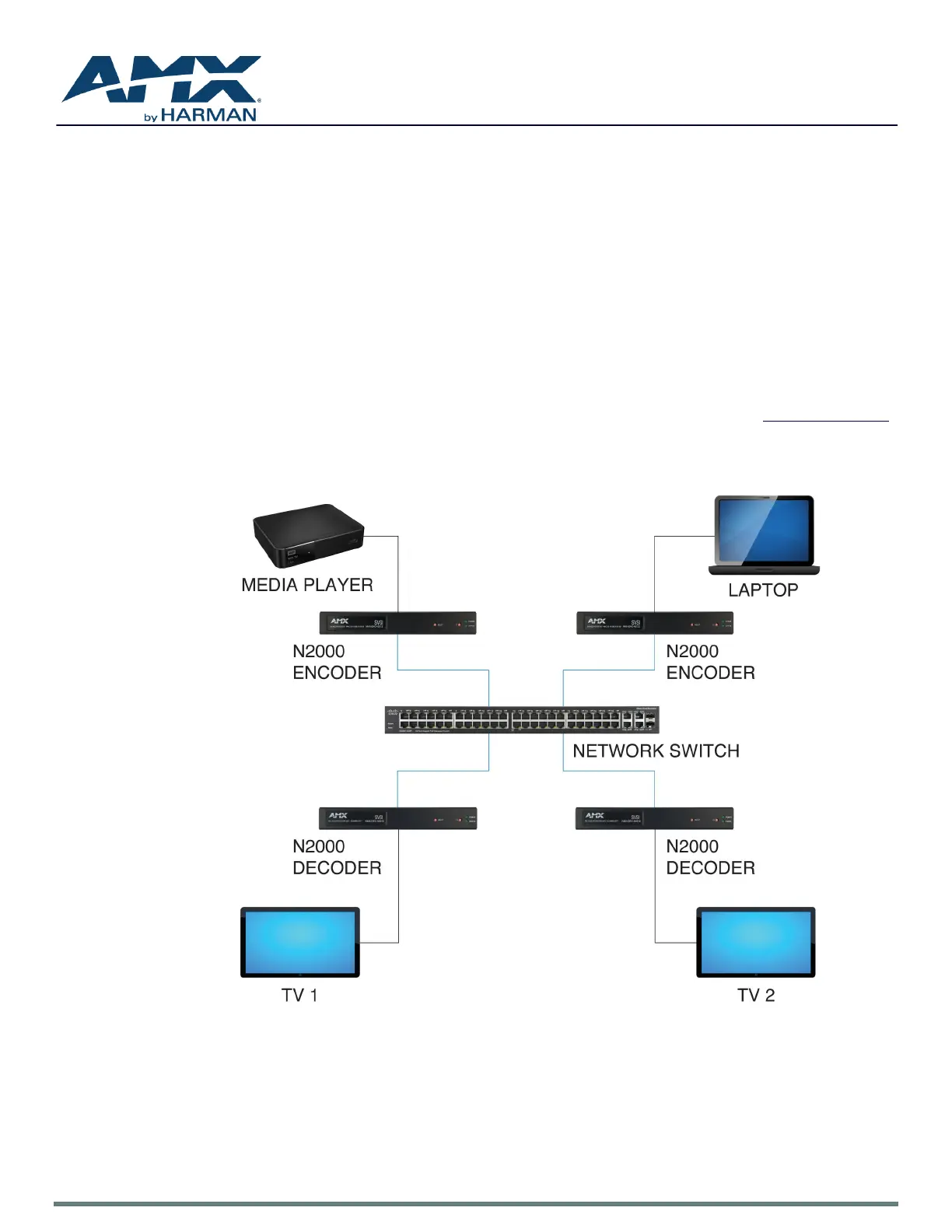

FIG. 1 Example Setup

N-Touch Panel Builder Tutorial 2

Step 1: Create a New Project

1. Launch Panel Builder. The Welcome screen appears.

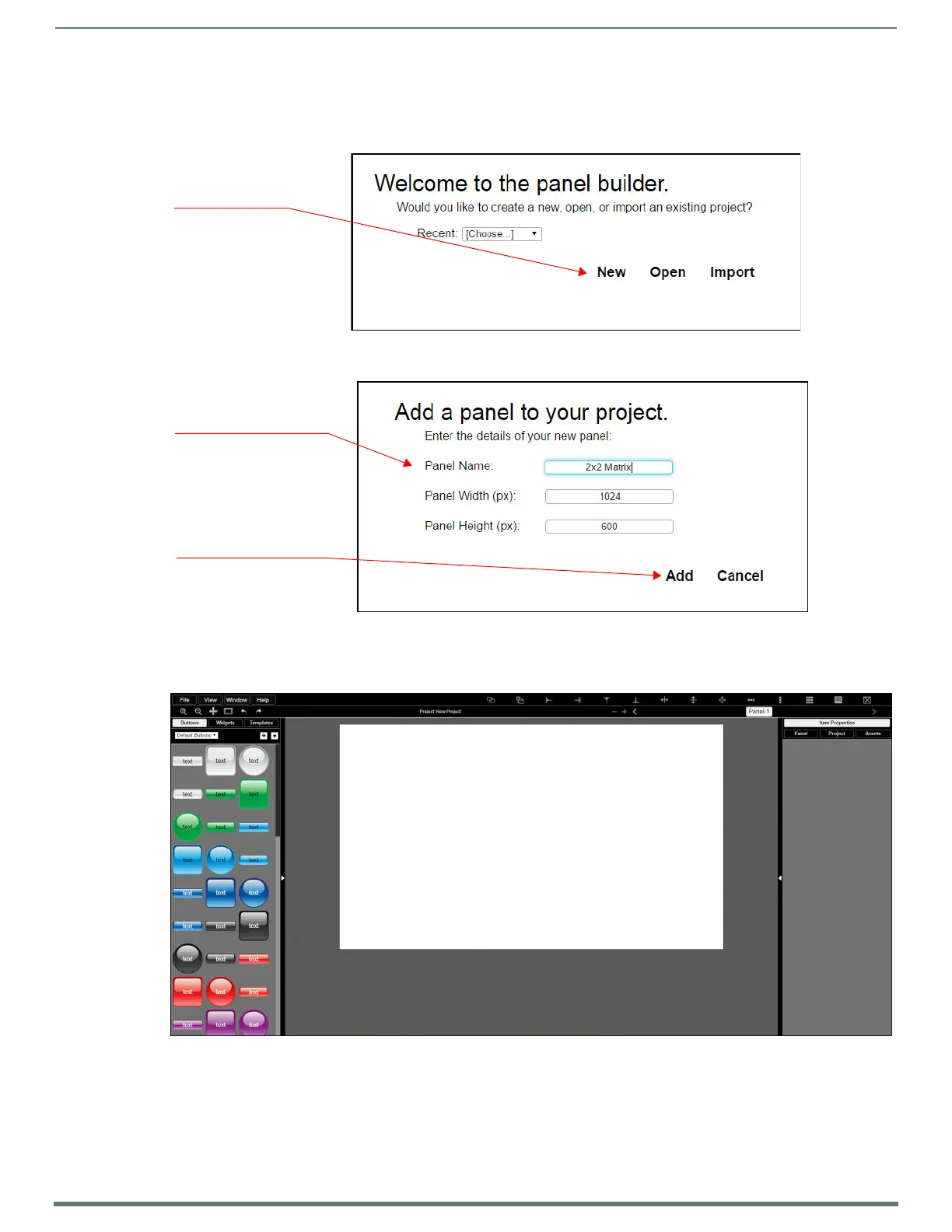

FIG. 2 Creating a Project and Adding a Panel

5. The system launches the Project editor (as shown in FIG. 3).

FIG. 3 Project Editor

2. Click the New

button.

3. Enter a Panel

Name, Width, and

Height.

4. Click Add.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	NT-SD-701
Bredde:	187.5 mm
Dybde:	58 mm
Højde:	123.9 mm
Vægt:	680 g
Produktfarve:	Sort
Skærm diagonal:	7 "
Skærmopløsning:	1024 x 600 pixel
Wi-Fi:	Ingen
Skærmens lysstyrke:	400 cd/m²
Synsvinkel, horisontal:	89 °
Synsvinkel, vertikal:	89 °
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 85 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 85 %
Ethernet LAN:	Ja
Strømforbrug (typisk):	7 W
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Certificering:	FCC Part 15 Class B\nCE EN 55022\nCE EN 55024\nCE EN 60950-1\nIEC 60950-1\nIC CISPR 22 Class B\nC-Tick CISPR 22 Class B\nUL 60950-1\nVCCI CISPR 22 Class B\nWEEE
Kabelteknologi:	10/100Base-T(X)
Monteringstype:	I væggen
Bæredygtighedscertifikater:	RoHS
Farvedybde:	24 Bit
Billedformat:	16:9
Lydtryksniveau:	-42 dB
RAM kapacitet:	512 MB
Højttalereffekt:	1.5 W
Kontrastforhold:	800:1
Antal RJ-45-porte:	1
Placering af strømforsyning:	Ekstern
Berøringsskærm teknologi:	Modstandsdygtig
