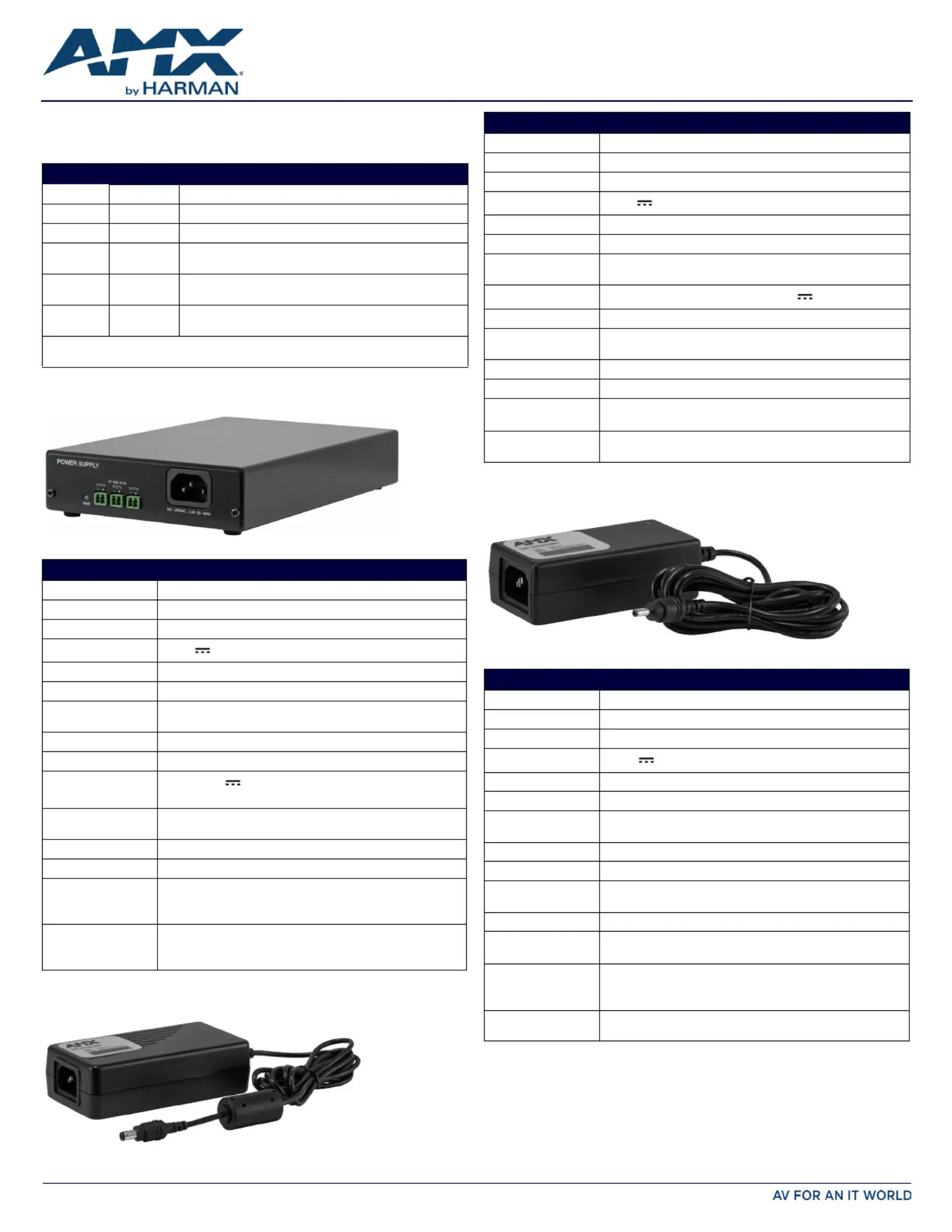

QUICK START GUIDE

PS/N/R Power Supplies

Power Supply Models

AMX offers 6 variations of our Class I, CSA/CE approved, and UL listed system

power supplies:

PSN6.5 Specifications

FIG. 1 displays the rear panel of the PSN6.5.

PS4.4 Specifications

FIG. 2 displays the PS4.4.

PS3.0 Specifications

FIG. 3 displays the PS3.0. The PS3.0 is a Class I power supply which is CE approved

and UL listed. The PS3.0 uses a barrel-plug connector.

PS/N/R POWER SUPPLIES

PSN6.5 (FG423-41) With US power cord

PS4.4 (FG423-44) Includes US power cord and barrel plug

PS3.0 (FG423-30) Includes US power cord and barrel plug

PSR2.5 (FG423-47) Includes 3-pin retained captive-wire connector and US

power cord

PSR5.4 (FG423-48) Includes 2-pin retained captive-wire connector and US

power cord

PSR7-V (FG423-49) IEC power cord provided as a separate part, dependent

on country requirements.

Note: All models use an input connector sanctioned by the IEC (International

Electrotechnical Commission).

FIG. 1 PSN6.5 POWER SUPPLY

PSN6.5 SPECIFICATIONS

Dimensions (HWD): 1 1/2" x 5 9/16" x 9 1/4" (3.81 cm x 14.10 cm x 23.50 cm)

Weight: 2.76 lbs. (1.25 kg) (without power cord)

Input: ~100-240 V, 2.6A MAX (1.3A MAX @ 230), 50/60 Hz

Output Voltage: 13.5 V

Output Current: 6.5 A (continuous power output is 90 W max)

Ripple and Noise: 350 mV peak-to-peak @ 70% load

Protection: Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator: Green LED indicates presence of DC on the output.

Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors

Rear Panel

Components: • Three 12 V power supply connectors

• Standard IEC (male) jack for the power cord

Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC

input (US only)

Enclosure: Metal with black matte finish

Temp Range: 32°F - 122°F (0°C - 50°C)

Certification: • UL: US listed - Class I Power Supply

• CSA approved

• CE approved

• PSE approved

• CCC approved

Accessories: • US power cord

• 3 removable 2-pin 3.5 mm mini-Phoenix connectors

• (Optional) AC-RK Accessory Rack Kit (FG515)

FIG. 2 PS4.4 POWER SUPPLY

PS4.4 SPECIFICATIONS

Dimensions: 4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)

Weight: 1.1 lb. (499 g)

Input: ~100-240 V, 1.5A MAX (0.6A MAX @ 230), 50/60 Hz

Output Voltage: 13.5 V

Output Current: 4.5A MAX

Ripple and Noise: 150 mV peak-to-peak @ full load

Protection: Over-voltage, over-current, short-circuit, transient and

thermal. Switching regulated, overload protected.

Power Indicator: Green LED indicates the presence of V on the output.

Connector: Barrel plug (2.1mm ID, 5.5mm OD, 9.5mm length)

Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC

input (US only)

Enclosure: Molded black matte plastic

Temp Range: 32°F - 104°F (0°C - 40°C)

Certification: • UL: US listed - Class I Power Supply

• CSA approved

• CE approved

• PSE approved

Included

Accessories:

US power cord

FIG. 3 PS3.0 POWER SUPPLY

PS3.0 SPECIFICATIONS

Dimensions (HWD): 3 7/8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.05 cm)

Weight: 5.6 oz (150 g) (without power cord)

Input: ~100-240 V, 3A MAX, 50/60 Hz

Output Voltage: 12 V

Output Current: 3.0 A

Ripple and Noise: 200 mV (60Hz Ripple + Switching ripple and noise)

Protection: Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator: Green LED indicates presence of DC on the output.

Connectors: 1.3mm barrel plug, 11mm long

Input Power Cord: 6-foot (1.83 m) IEC power cord terminated with a grounded

Edison plug for AC input (US only).

Enclosure: Molded black matte plastic

Temp Range: • Operating temperature: 32°F - 122°F (0°C - 50°C)

• Storage temperature: -4°F - 185°F (-20°C - 85°C)

Certification: • UL: US listed - Class I Power Supply

• CUL approved

• TUV approved

• FCC approved

• CE approved

• PSE approved

Included

Accessories:

US power cord

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom ? +44 1904-343-100 ? www.amx.com/eu/

93-0423-41 REV: R

Last Revised: 11/30/2017

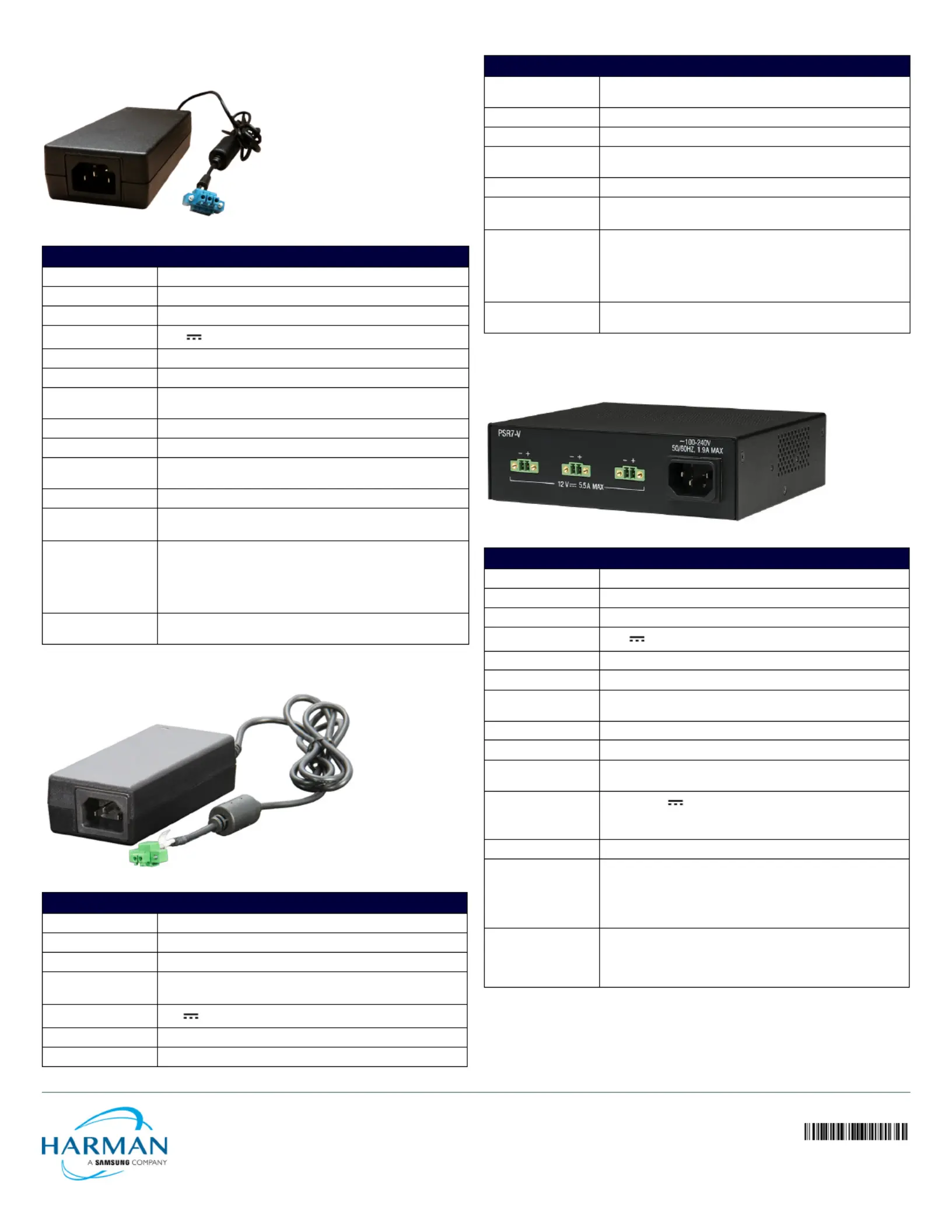

PSR2.5 Specifications

FIG. 4 displays the PSR2.5.

PSR5.4 Specifications

FIG. 5 displays the PSR5.4.

PSR7-V Specifications

FIG. 6 displays the PSR7-V. This accessory power supply should be used only with

Listed AMX products.

Note: The power light on the front panel should remain solid when power is

provided to the unit. A blinking power light indicates overcurrent. If this occurs,

unplug the main power connector from the unit for 30 seconds then reconnect

the power to reset the unit. If the main power is connected and the power light is

not on, the unit has overheated. If this occurs, unplug the main power connector

from the unit for 30 seconds then reconnect the power to the unit.

FIG. 4 PSR2.5 POWER SUPPLY

PSR2.5 SPECIFICATIONS

Dimensions (HWD): 4 3/4" x 2 3/8" x 1 1/4" (12 cm x 6 cm x 3.05 cm)

Weight: 1.1 lb. (499 g)

Input: ~100-240 V, 1.5A MAX, 47/63 Hz

Output Voltage: 24 V

Output Current: 2.5 A

Ripple and Noise: 300 mV peak-to-peak @ full load

Protection: Over-voltage, over-current, short-circuit, over temperature,

overload protected

Power Indicator: Green LED indicates presence of DC on the output.

Connectors: 3-pin retained captive wire connector (3.5mm)

Input Power Cord: 4-foot (1.2 m) IEC power cord terminated with a grounded

Edison plug for AC input (US only).

Enclosure: Molded black matte plastic

Temp Range: • Operating temperature: 32°F - 104°F (0°C - 40°C)

• Storage temperature: -4°F - 176°F (-20°C - 80°C)

Certifications: • UL: US listed - Class I Power Supply

• CUL approved

• TUV-GS approved

• FCC approved

• CE approved

• PSE approved

• CCC approved

• BSMI approved

• RCM approved

Included

Accessories:

US power cord

FIG. 5 PSR5.4 POWER SUPPLY

PSR5.4 SPECIFICATIONS

Dimensions (HWD): 4 1/2" x 2" x 1 1/4" (11.5 cm x 5.15 cm x 3.05 cm)

Weight: 0.48 lb (221 g)

Input: 100-240 +10% VAC, 47-63 Hz

Input Currency: • <2A MAX at 100 VAC + full load

• <1A MAX at 230 VAC + full load

Output Voltage: 12 V

Output Current: 5.4A MAX

Ripple and Noise: 200 mV peak-to-peak @ full load

PSR5.4 SPECIFICATIONS (CONT.)

Protection: Over-voltage, over-current, short-circuit, transient and

thermal. Switching regulated, overload protected

Power Indicator: Green LED indicates the presence of DC on the output

Connectors: Mini 2-pin captive wire connector (3.5 mm)

Input Power Cord: 50 mm IEC power cord terminated with a grounded Edison

plug for AC input

Enclosure: Molded black matte plastic

Environmental: • Operating temperature: 32°F to 104°F (0°C to 40°C)

• Storage temperature: -4°F - 176°F (-20°C - 80°C)

Certifications: • UL: US listed - Class I Power Supply,

CSA approved, CE approved

• AS/NZS 60950-1 - Australia, New

Zealand

• BSMI - Taiwan

• CCC - China

• CU - Russia

• UL Energy Verified

• KC - Korea

• TUV GS - Germany

Included

Accessories:

US power cord

FIG. 6 PSR7-V POWER SUPPLY

PSR7-V SPECIFICATIONS

Dimensions (HWD): 1 5/8” x 5 3/4” x 5 1/8” (4.13 cm x 14.6 cm x 13.02 cm)

Weight: 1.45 lb. (657 g)

Input: ~100-240 V, 1.9A MAX, 47/63 Hz

Output Voltage: 12 V +/-.6V

Output Current: 5.5 A

Ripple and Noise: 160mV peak-to-peak @ full load

Protection: Over-voltage, over-current, short-circuit, over temperature,

overload protected

Power Indicator: Green LED indicates the presence of DC on the output

Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors

Input Power Cord: Dependent on regional model number. Please see the

product catalog for available country-specific products.

Output Power

Connectors: • Three 12 V power supply connectors

• The connecting cable must be DP-2 or DP-2P and proper

AWG.

Enclosure: Metal with black matte finish

Environmental: • Operating temperature: 32°F to 122°F (0°C to 50°C)

• Storage temperature: -4°F - 176°F (-20°C - 80°C)

Note: If mounting the power supply on a rack, you must keep

1 RU clear between items to ensure a proper temperature

environment.

Certifications: • UL/cUL/CB

• UL AR

• UL, RCM -Australia, New Zealand

• UL - Morocco

• NOM - Mexico

• FCC Part 15 Subpart B

• CCC - China
