QUICK START GUIDE

VARIA-100 10.1” Touch Panel

VARIA-100N -10.1” Touch Panel (No Comm)

Overview

AMX VARIA- -100 (AMX UTP1011) & VARIA- -100N (AMX UTP1011N) are 10.1”

professional- s grade touch panel designed to adapt to the unique needs of your

environment by offering a selection of personas. Varia personas are pre-loaded

apps that define the entire panel experience.

s Microphone (except No-Comm)

S ettings Button

Function Button

Side LED LAN/POE

USB

Speakers

FIG. 1 AMX - T P VARIA 100 ouch anel

Product Specifications

VARIA SPECIFICATIONS- 100

Dimensions (HWD)

6 7/8 x 9 9/16 x 13/16” ” ”

(173.9mm x 242.88mm 5mm)x 20.

Weight

1.17 lb (532 g)

Power Consumption

PoE, 802.3af, 15.4 watt

External Power

Supply Required

Optimal performance requires use of one of the

following AMX PoE power supplies (not included):

• PS- - -POE AF TC, PoE Injector, 802.3AF

Compliant (FG423- 83)

• PS- -AT-POE TC, PoE Injector, 802.3AT

Compliant (FG423-84)

Certifications &

Compliance

• UL

• CE

• CB

•

FCC Class B (- 5dB)

Environmental

Operating Temperature

• 0°C - – 40° C (32°F 104°F)

• 5% - 85% Humidity

Storage Temperature

• -2 – 6 4 – 0 0°C 0° C ( °F 14 °F)

•

5% - 90% Humidity

Included Accessories

• Mounting Plate

• Adhesive Pad

• Set Screw

•

Installation Template

VARIA- 100 Installation

Varia - can be surface mounted onto a wall, glass or other smooth surface, or

connect to any number of popular VESA mounts with the included mounting

bracket & hardware.

The VARIA- 100 converts to a tabletop touch panel when used in conjunction with

a tabletop stand accessory (sold separately).

TABLETOP STAND ACCESSORIES

VARIA- - ACS 100F

( - - 01) AMX UMT 10

AMX Varia Fixed Tabletop S tand

for VARIA- - 100 & VARIA 100N

VARIA- - ACS 810A

( - - ) AMX UMT 8111

AMX Varia Angle- Select Tabletop Stand

for VARIA- -80, VARIA 100, & VARIA-100N

Power Over Ethernet

Power is supplied via Power Over Ethernet (PoE), utilizing an AMX certified PoE

injector such as the PS- - -POE AF TC PoE Injector (FG423-83) or compatible

network switch which is classified as ES1 and PS2 output in accordance with

IEC/EN/UL 62368-1. Connect the incoming Ethernet cable to the RJ-45 port on

the VARIA- . 100

Mounting Plate

The included mounting plate contains a 75x75 VESA hole pattern, set screw, and

dedicated area for the included adhesive pad.

Set Screw

Adhesive Pad 75x75 VESA

FIG. 2 Mounting Plate

STEP 1: Installation Prerequisites

Prior to touch panel installation, identify a proper installation surface in

accordance with local laws and building codes. Ensure that your category cable

(networking cable) has access to the location.

STEP 2: Install the Mounting Plate

If installing on wall, mark your surface using the included installation template

for the four (4) VESA holes and one (1) - desired cable pass thru location. Drill

holes as required and screw the mounting bracket o , nto the surface using

appropriate hardware for the surface (ie. drywall, concrete, brick, etc.).

If installing on glass or other smooth surface using the adhesive pad, first apply

the adhesive pad to the mounting bracket, only exposing one side of the pad.

Then adhere the mounting bracket to the surface with the set screw hole facing

UP and the two tabs on the BOTTOM. Make sure it is a secure fit, but do not

apply too much pressure as glass may break.

STEP 3: Route Category Cable

Remove the panel’s lower touch rear cover by removing two (2) screws and then

sliding the cover off. Press the rectangular holes to push the cover away from

you.

FIG. 3 Lower Cover Holes

P lug in the networking cable and route it out one (1) (3) of the three available

openings in the lower cover Once fully seated, : left, right, or bottom. reattach

the lower rear cover.

Screw Location

trademarks

of HARMAN. Oracle, Java and any other company name may or brand referenced be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves alter the right to specifications without prior notice at any time. The

AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com .

3000 RESEARCH DRIVE, RICHARDSON, | | TX 75082 AMX.com 800.222.0193 469.624.8000 +1.469.624.7400 | | fax 469.624.7153

1000374844 REV:C

Last Revised 2023-05-11

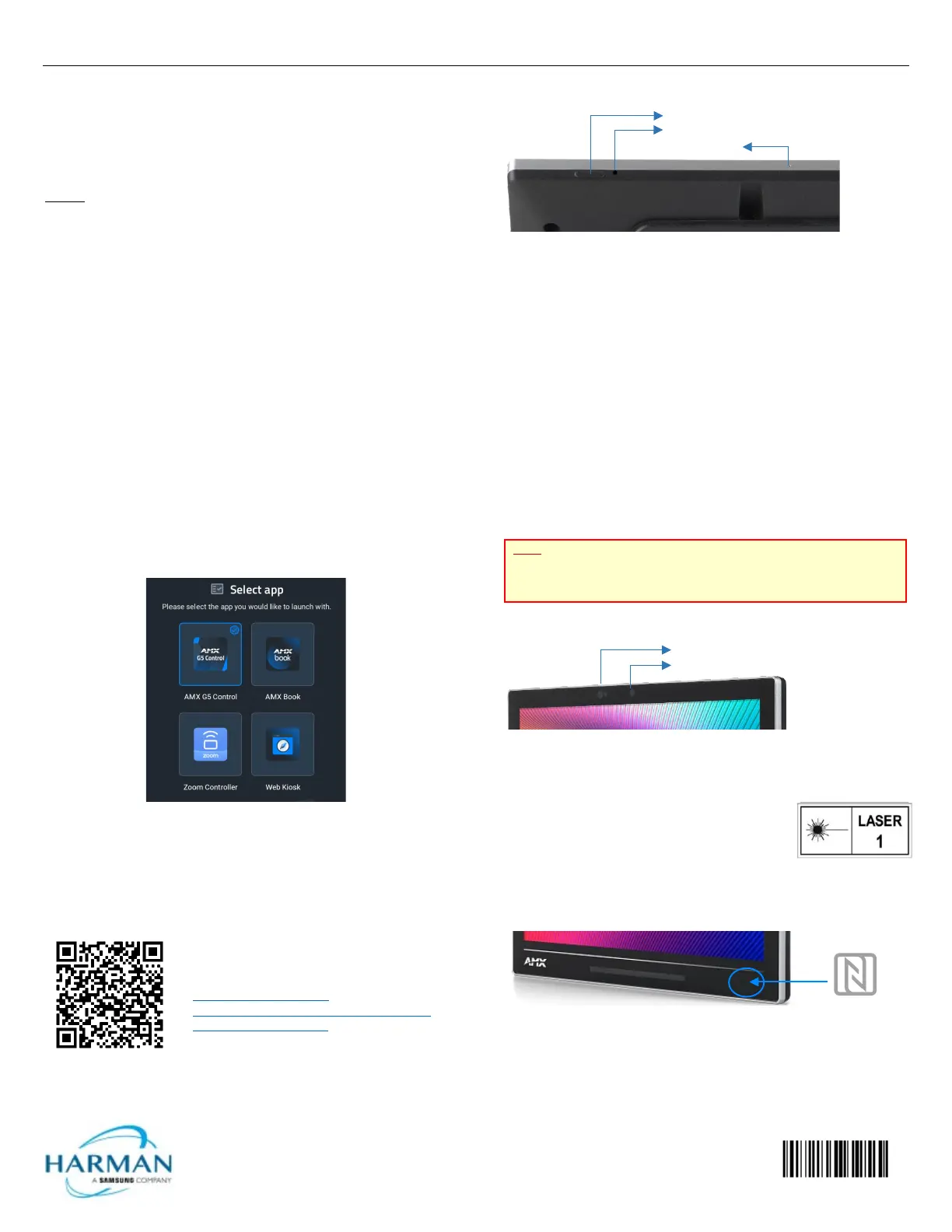

STEP 4: Mount the Panel to Plate

Using the top tab & slot, insert the panel to the mounting bracket. Make sure

the tabs are fully engaged.

STEP 5: Set Screw

Insert & tighten the set screw to secure the panel to the mounting bracket.

Caution: This product is only suitable for installations less than or equal to 2m

(6.56ft) high for CE/UL safety.

Removing

To remove the panel, follow the installation directions in reverse.

Powering On & Panel Setup Wizard

Powering on for the first time (o ) r after a factory reset will launch a setup

wizard where device settings and the panel’s persona are selected. After being

selected, the panel will boot to that persona on each subsequent power cycle

or reboot.

1. Select your language

2. Select your time zone, date, & time

3. Set up your network

4. Select your panel’s persona:

• AMX G5 Control: AMX NetL inx control panel, utilizing a TP5 file

created using TPDesign5 . software

• A MX Book: Intuitive room scheduling, connecting to Microsoft

Exchange, O365, or Google Calendar.

• Zoom Rooms Controller: Zoom’s native ZRC app UI to control a

Zoom Rooms space

• Web Kiosk: a full- screen borderless HTML5 interface to display web

content via URL.

FIG. 4 Select App page in the Setup Wizard

The persona can be changed at any time in the Advanced Settings menu.

Each selection requires its own setup. After confirming your app selection, the

panel will continue to step through setup for the selected persona. Full step-

by-step walkthroughs can be found in the AMX Varia Programming &

Configuration Guide available on AMX.com.

AMX Varia : Programming & Configuration Guide

https://www.amx.com/en-

US/site_elements/configuration- -programming

manual- - -varia touch panels

Function Button

The touch panel has a flush button on the top of the bezel, on the right side.

Function Button

S ettings Button

Microphone

FIG. 5 Panel Button s Location

The Function Button serves multiple purposes:

1. A quick press & release will turn the panel’s display on & off (ie.

sleep wake).&

2. A press & hold for 4 seconds will return to the primary persona.

This is useful if another app had been loaded on top of the panel’s

primary persona app.

3. If the panel is shut down, pressing the Function button will boot up

the panel.

4. If the Function button is pressed & held during the boot process, the

panel will launch into Safe Mode.

Settings Button

The touch panel has a pin hole button which serv- es two purposes:

1. A quick press & release will open Panel Settings

2. A press will reboot the panel & hold for 4 seconds

The default protected password to access Panel Settings is 1988.

NOTE: D S -o not confuse the ettings button (pin hole button) with any of the

microphone or sensor holes. The button is the Settings larger hole located

closest to the Function Button. Irreparable damage may occur if a foreign

object is pushed down the microphone hole o . r into one of the sensors

Light Sensor & Proximity Sensor

FIG. 6 Panel Camera & Sensor Locations

The ambient light sensor can automatically adjust panel brightness based on

the environment. See to enable automatic brightness.D Sisplay ettings

The laser proximity sensor will detect nearby motion

to wake the panel up without requiring a touch.

NFC

When using NFC, use the included decal to indicate the location of the sensor.

Note: No- . Comm panels do not have NFC

FIG. 7 NFC Sensor Location & Decal Placement

Sensors

Camera (except No-Comm)
