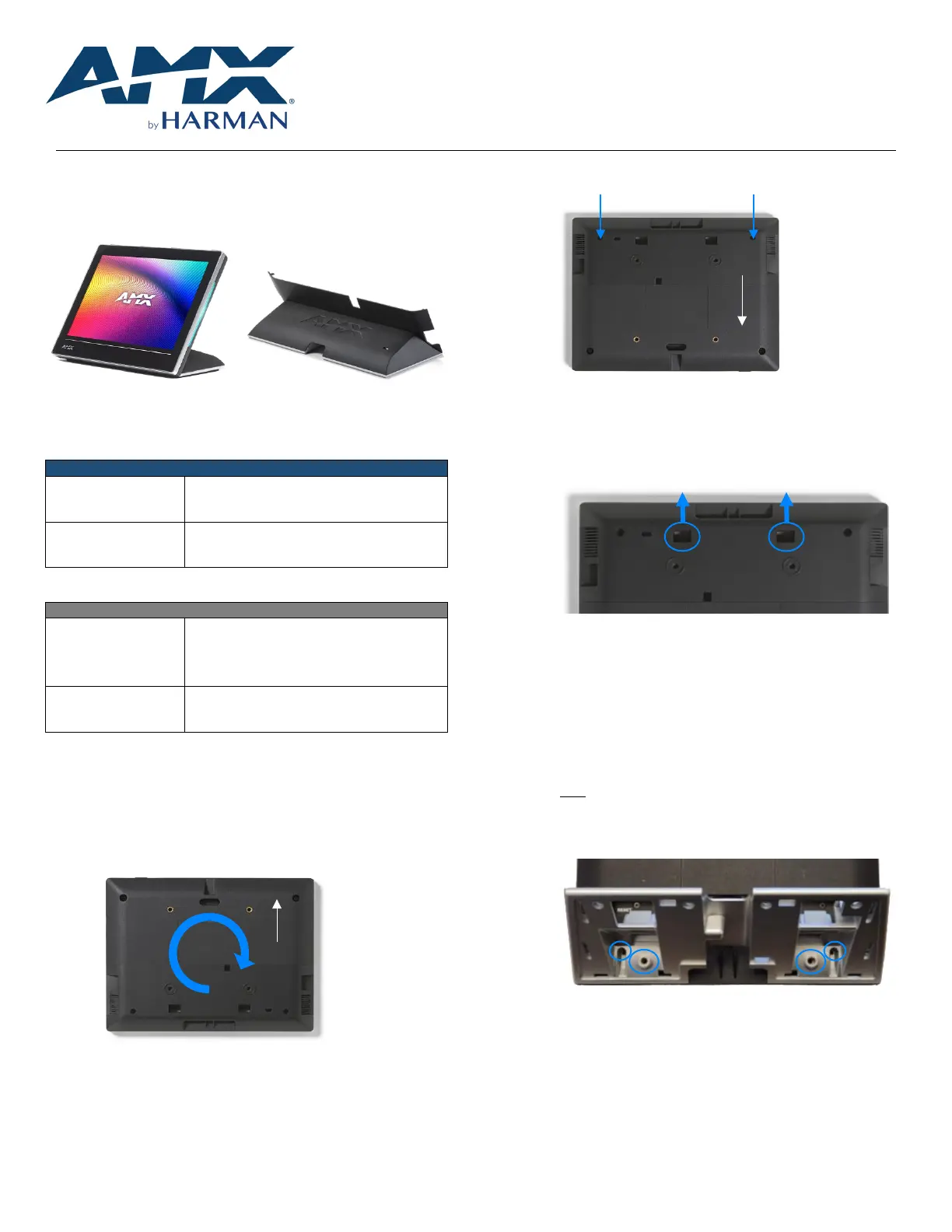

QUICK START GUIDE
VARIA- -ACS 80F 8” Fixed Tabletop Stand
VARIA- -ACS 100F 10.1” Fixed Tabletop Stand
Overview
The Varia -Fixed Tabletop stands are designed for 8” VARIA 80 & 10.1” VARIA-100
Touch Panels, -and give them a sturdy & stylish fixed angle tabletop solution
that’s reminiscent of AMX’s Modero touch panel family.
FIG. 1 Varia Touch Panel on Fixed Tabletop Stand
Model Availability & Compatibility
FIXED TABLETOP STANDS
VARIA- - ACS 80F
(AMX- UMT0801) VARIA- - 1 80 Touch Panel (AMX UTP08 1)
VARIA- - ACS 100F
(AMX- UMT1001)
VARIA- - 1 100 Touch Panel (AMX UTP10 1)
V - - 1 ARIA 100N Touch Panel (AMX UTP10 1N)
Other Models a Av ilable
ANGLE- SELECT TABLETOP STANDS
VARIA- - A ACS 810
(AMX- ) UMT8111
V - - ) ARIA 80 Touch Panel (AMX UTP0811
V - - ARIA 100 Touch Panel (AMX UTP1011)
V -1 -ARIA 00N Touch Panel (AMX UTP1011N)
VARIA- -1 A ACS 50
(AMX- UMT1511)
V -15 - ARIA 0 Touch Panel (AMX UTP1511)
V -15 - ARIA 0N Touch Panel (AMX UTP1511N)
Installation
Varia Fixed Tabletop Stands are easily installed with the supplied hardware and
a Philips- head screwdriver.
1. Place the panel face- down on a soft cloth, and orient the panel so
that the top of the touch panel is closest to you.
FIG. 2 Varia Touch Panel, rear
2. If they are installed, remove two screws from the lower back cover.
Screw L ocations
FIG. 3 Rear cover screws, if installed
3. Place your thumbs push the on the rectangular access holes, and
lower cover away from you. The lower cover can then be placed
aside; it is not used with the Fixed Tabletop Stands.
FIG. 4 R ear cover removal
4. Rotate the panel back around so the bottom is closest to you.
5. On the tabletop stand, remove the black plastic cover by sliding it
away from the aluminum base. It is held on by magnets. Then
unscrew the rubber pads from the base.
6. Install the aluminum base on the back o the touch panel.
Note: In most circumstances, the networking cable can be routed in
after base installation. However, category cable bulky s h wit strain
relief and/or hoods over the RJ-45 connector may need to be installed
before the aluminum base.
FIG.5 Fixed Tabletop Stand, aluminum base, underneath
7. Attach the base with the four (4) supplied screws.
Top
Top
QUICK START GUIDE
VARIA- -ACS 80F 8” Fixed Tabletop Stand
VARIA- -ACS 100F 10.1” Fixed Tabletop Stand
© 2023 HARMAN. All rights reserved. SmartScale, NetLink, Enova, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective
companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without any prior notice at time. The
AMX Warranty and Return Policy and related documents be viewed/downloaded can at www.amx.com .
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 800.222.0193 | AMX.com | 469.624.8000 +1.469.624.7400 | | fax 469.624.7153
1000374845 D REV:
Last Revised 2023-08-18

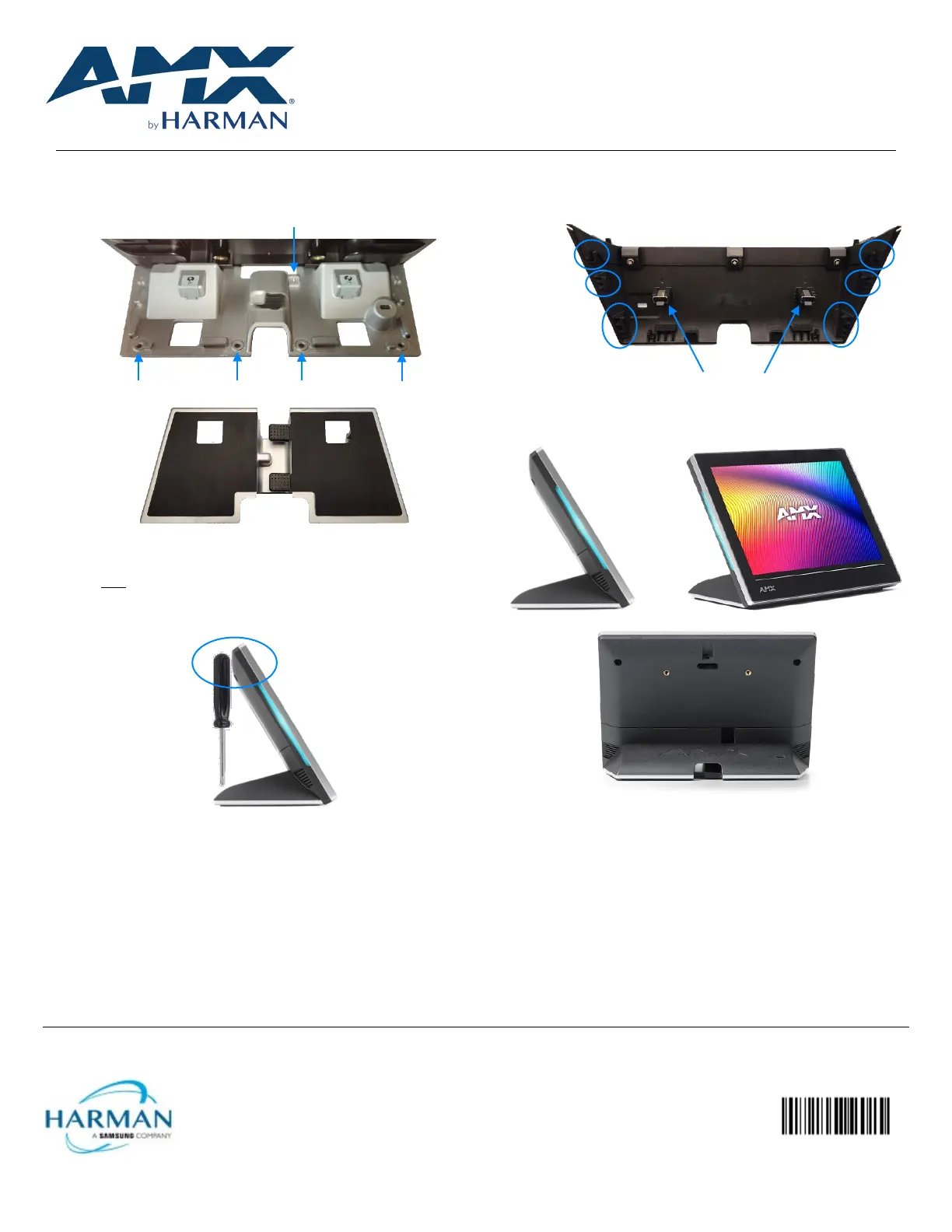

8. Attach the left & right rubber pads to the bottom of the base, and
then stand the unit upright to expose the screw holes. Attach with
the five (5) supplied screws.
Screw L ocations
FIG. 6 Fixed Tabletop Stand, aluminum base, above
FIG. 7 Fixed Tabletop Stand, base bl with assem ed rubber pads
Note: Certain screwdriver handles may interfere with the rear of
the touch panel, - especially the VARIA 80, when attaching screws
that hold the rubber pads. Take care not to make contact.
FIG. 8 Varia Touch Panel, caution
9. Route your through the opening and plug into the networking cable
back of the panel. tuck your cable into the cable management Then
tabs attached to the rubber pad.
10. Align the black plastic cover with the tabs & slots on the aluminum
base. Slide the cover on, and it will seat automatically with its built-
in magnets.
Alignment Tab Locations
Magnets
FIG. 9 Fixed Tabletop Stand, black plastic cover
FIG. 10 Varia Touch Panels on Fixed Tabletop Stand, various angles
Removing
To remove the panel, follow the installation directions in reverse.
