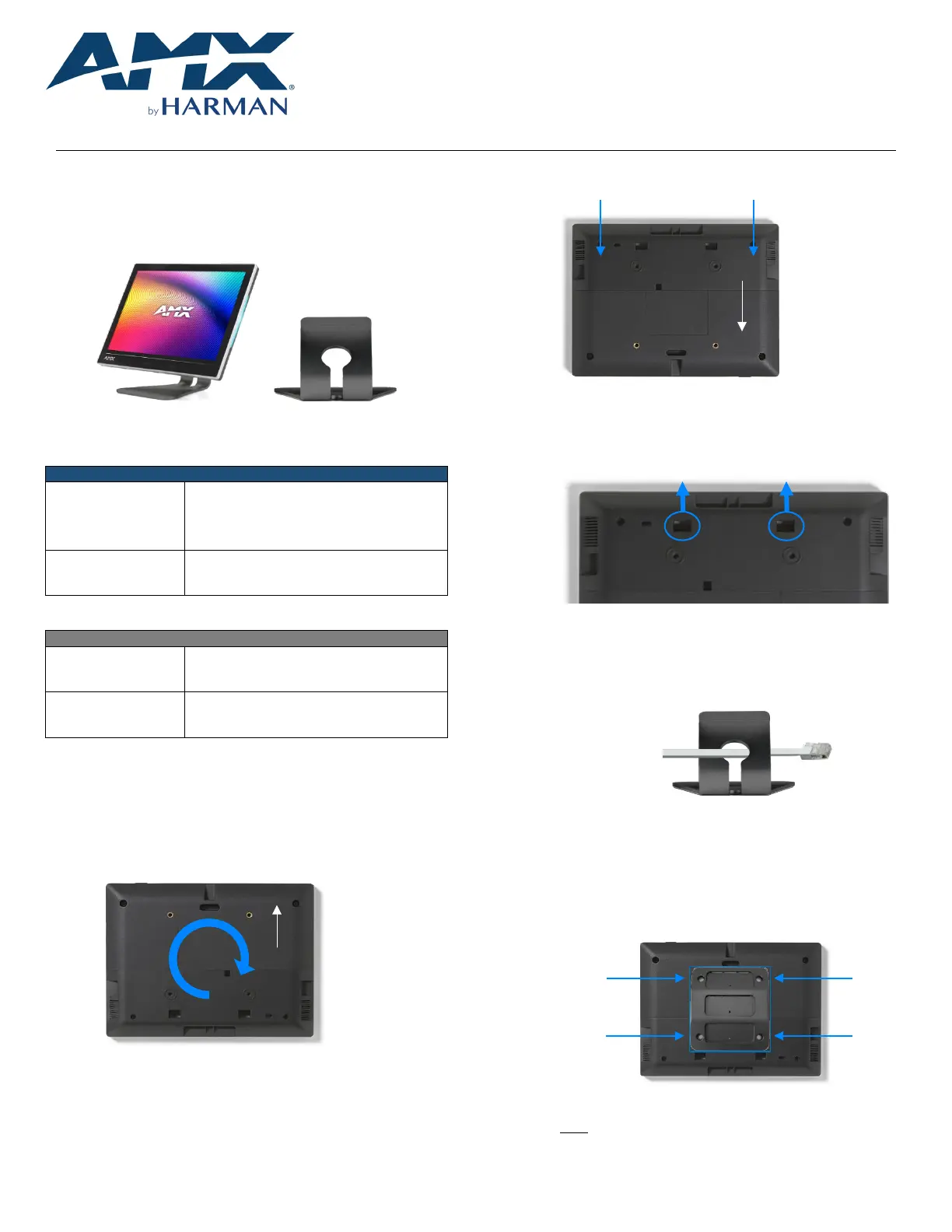

QUICK START GUIDE

VARIA-ACS-810A 8” & 10.1” Angle-Select Tabletop Stand

VARIA-ACS-150A

15.6” Angle-Select Tabletop Stand

Overview

The Varia Angle-Select Tabletop stands are designed for 8” VARIA-80, 10.1”

VARIA-100, & 15.6” VARIA-150 Touch Panels, and give them a sleek & modern

tabletop solution that can be installed at one of three angles to best suit the

users’ needs.

FIG. 1 Varia Touch Panel on Angle-Select Tabletop Stand

Model Availability & Compatibility

ANGLE-SELECT TABLETOP STANDS

VARIA-ACS-810A

(AMX-UMT8111)

VARIA-80 Touch Panel (AMX-UTP0811)

VARIA-100 Touch Panel (AMX-UTP1011)

VARIA-100N Touch Panel (AMX-UTP1011N)

VARIA-ACS-150A

(AMX-UMT1511)

VARIA-150 Touch Panel (AMX-UTP1511)

VARIA-150N Touch Panel (AMX-UTP1511N)

Other Models Available

FIXED TABLETOP STANDS

VARIA-ACS-80F

(AMX-UMT0801)

VARIA-80 Touch Panel (AMX-UTP0811)

VARIA-ACS-100F

(AMX-UMT1001)

VARIA-100 Touch Panel (AMX-UTP1011)

VARIA-100N Touch Panel (AMX-UTP1011N)

Installation

Varia Fixed Tabletop Stands are easily installed with the supplied hardware and

a Philips-head screwdriver.

1. Place the panel face-down on a soft cloth and arrange the panel so

that the top of the touch panel is closest to you.

FIG. 2 Varia Touch Panel, rear

2. If they are installed, remove two small screws from the lower cover.

Screw Locations

FIG. 3 Rear cover screws, if installed

3. Place your thumbs on the rectangular access holes, and push the

lower cover away from you. Do not discard, this will be reinstalled

later.

FIG. 4 Rear Cover Removal

4. Rotate the panel back around so the bottom is closest to you.

5. Route the networking cable through the base first, and then plug the

RJ-45 connector into the back of the touch panel.

FIG. 5 Angle-Select Tabletop Stand Base

6. Reinstall the lower cover, first snapping it into place. Optionally, two

small screws supplied in the hardware accessory bag may be

installed. Make sure the cable routes out the bottom of the lower

cover.

7. Screw the mount to the rear of the panel using the supplied screws.

FIG. 6 Mounting Plate Installation

NOTE: The three slots should be oriented UP and the set screw

holes should be oriented DOWN.

Top

QUICK START GUIDE

VARIA-ACS-810A 8” & 10.1” Angle-Select Tabletop Stand

VARIA-ACS-150A

15.6” Angle-Select Tabletop Stand

trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time. The

AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com .

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

1000374846 REV:D

Last Revised 2023-08-18

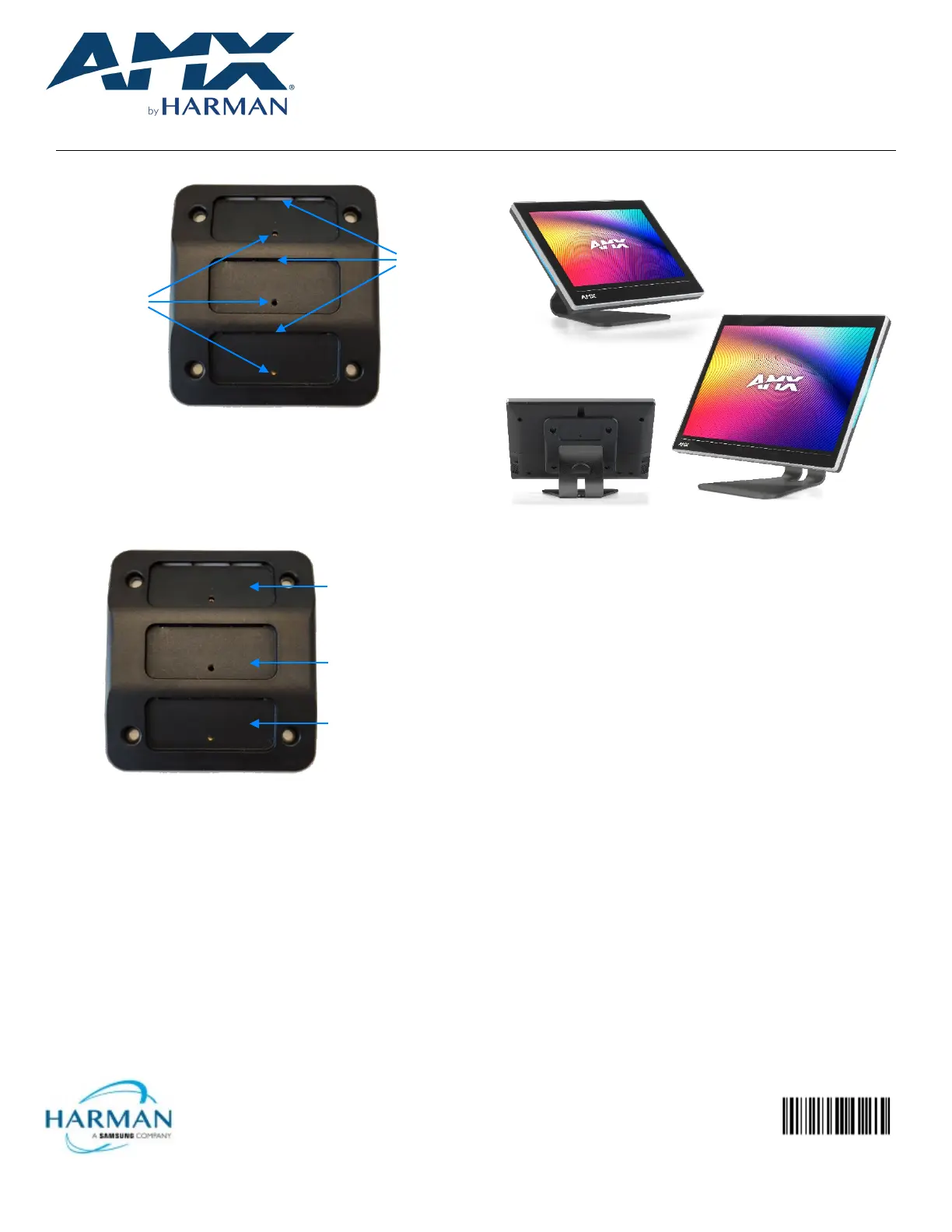

FIG. 7 Mounting Plate; Slot & Set Screw Locations

8. Select the best angle for installation. The Angle-Select Tabletop Stand

can be installed at one of three (3) angles:

a. Upright 60° angle

b. Mid 45° angle

c. Low 30° angle

30° position

[Most Horizontal]

45° position

60° position

[Most Upright]

FIG. 8 Mounting Plate; Install Angle Options

9. Insert the base into the desired position. Insert the tab first and set

flat against the mount.

10. Install the supplied set screw to lock the base in the desired position.

FIG. 9 Varia Touch Panels on Angle-Select Tabletop Stand, various angles

Removing

To remove the panel, follow the installation directions in reverse.

Slots

Set Screws
