Side 1/7

MADE IN USA

SIX YEAR WARRANTY

Explorer Pro Sound System Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

MADE IN USA

SIX YEAR WARRANTY

A Message from the President

Congratulations on purchasing an Anchor Audio sound system, the choice of thousands

of satisﬁed customers including the White House, prestigious universities, school

districts nationwide, police and ﬁre departments, and all branches of the U.S. military.

Our products are made of the ﬁnest materials and built with pride in the U.S.

We’ve incorporated the latest technology into your sound system yet kept it simple to

use. Just take a few minutes to review this manual to ensure the maximum enjoyment

of your Anchor system. Or, you can view a demonstration video complete with a trouble

shooting section at www.anchoraudio.com.

Feel free to call our friendly customer support staff at 1-800-ANCHOR1 Monday thru

Friday between 7:00am and 5:00pm Paciﬁc Standard Time with any questions. We

love to hear from our customers.

Janet Jacobs – President

on behalf of all Anchor Employees

CONTENTS

GETTING STARTED / WARRANTY INFORMATION 1 .........................................................................

BASIC SYSTEM OPERATION / SPEAKER STAND SETUP 2 ..............................................................

CONNECTING SOUND SYSTEM / CONTROLLING FEEDBACK 3 ......................................................

OPERATING THE BUILT-IN UHF WIRELESS RECEIVER / CERTIFICATION 4 ........................................

OPERATING THE WIRELESS MICROPHONE / TRANSMITTER .......................................................5

CARING FOR YOUR BATTERY 6 ...................................................................................................

HAVING TROUBLE WITH YOUR SOUND SYSTEM? / TECHNICAL SPECIFICATIONS ......................... 7

GETTING STARTED

Please check your new unit carefully for any

damage which may have occurred during shipment.

Each Anchor product is carefully inspected at the

factory and packed in specially designed boxes for

safe transport.

Notify the freight carrier immediately of any damage

to the shipping box or product. Repack the unit

in the original box and wait for inspection by the

carrier’s claim agent. Notify your dealer of the

pending freight claim.

NOTE: All damage claims must be made with freight carrier!

RETURNING SYSTEMS FOR SERVICE

OR REPAIR

For service or repair, please contact the dealer

you purchased your system from or Anchor Audio

Customer Service at 800.262.4671 to obtain a RA

(Return Authorization)

number. You may

also complete an online RA request form at

www.anchoraudio.com. All shipments to Anchor

Audio must include a RA number and must be

shipped prepaid. C.O.D. shipments will be refused

and returned at your expense.

IMPORTANT: Save the shipping box & packing materials,

they were specially designed to ship your unit!

WARRANTY REGISTRATION

Visit our website at www.anchoraudio.com and

select “Warranty Registration.” Complete the

online form to activate the six-year limited warranty

on your Explorer Pro sound system and two-year

limited warranty for the microphones.

100-0172-000/A - 11/10

MADE IN USA

SIX YEAR WARRANTY

Explorer Pro Sound System Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

MUSIC

SPEECH

VOICE

OVER

LINE IN

VOLUME

MIC 2

VOLUME

MIC 1

VOLUME

TREBLE

WIRELESS 1

WARNING: TO REDUCE THE RISK OF FIRE

OR ELE CTRIC SH OC K, DO NOT EXPO SE

THIS EQUIPMENT TO RAIN O R MOISTURE.

POWER INLET

100-240 VAC, 47-63 Hz

(250 WATT S MAX)

LINE OUT

LINE IN

MIC 1

MIC 2

VOLUME

WIRELESS 2

SPEAKER OUT

VOLUME

BASS

OFF

POWER

CHARGE STATUS

BATTERY EMPTY

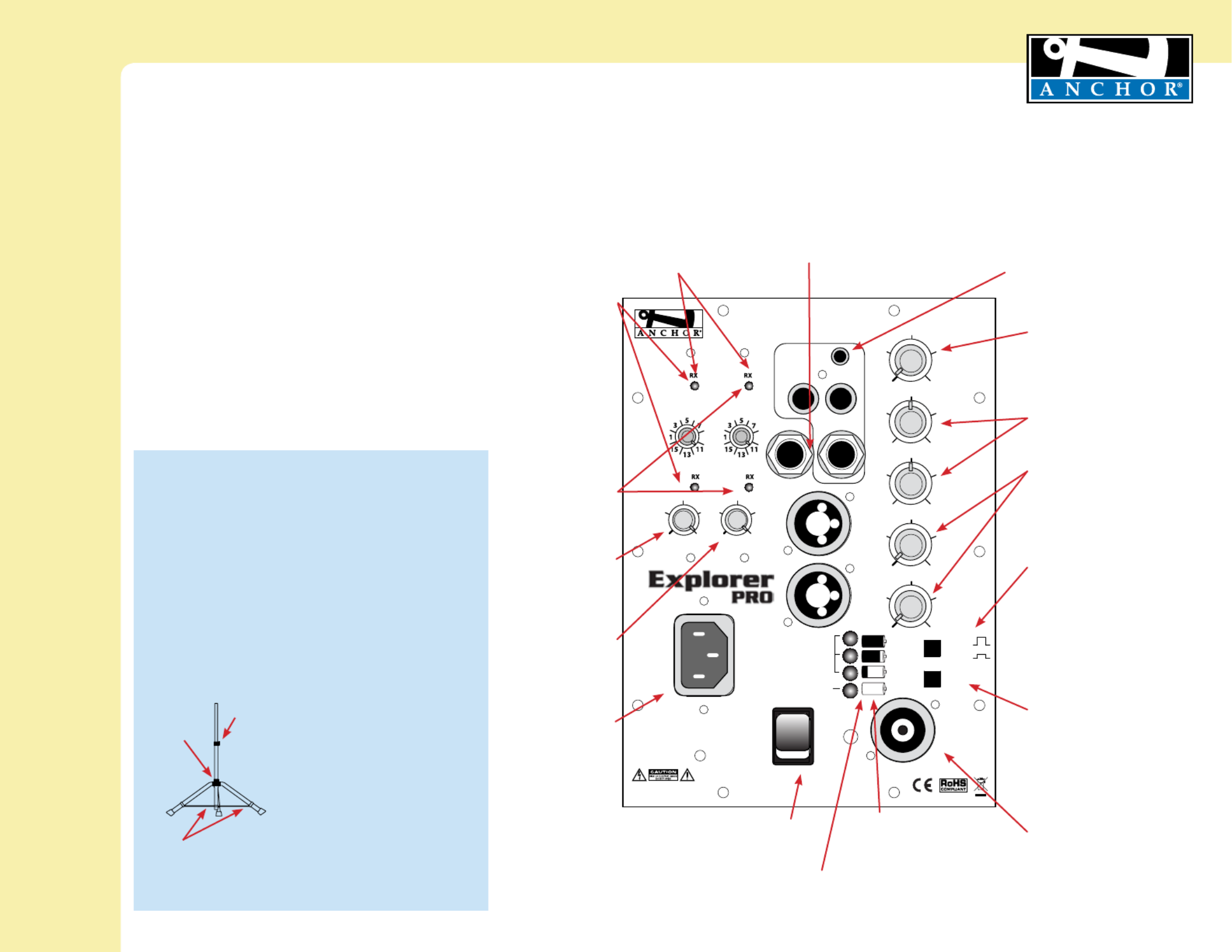

BACK PANEL OF EXP-7500U2

BASIC SYSTEM OPERATION

NOTE: Fully Charge Batteries Before First Use!

IMPORTANT: Make all connections with shielded

cables to avoid hum, buzzing or interference.

1. Set all Input Level Controls to minimum

& Tones Controls to ﬂat or the middle

setting before turning your system on

2. Plug a wired microphone into the MIC

1 or MIC 2 jacks and/or plug an audio

source into the LINE-IN jack

3. Switch POWER to ON, the BATTERY LED

will light

4. Slowly increase the Level Control for the

input jacks used to the desired volume

5. Adjust BASS & TREBLE controls to

desired sound quality

WIRELESS RECEIVERS 4

(see page 6)

POWER SWITCH

LINE IN - INPUT JACKS

The 1/8” (3.5 mm) jack input is used to hook

up an iPod, a portable CD/ MP3/ tape player,

laptop computer, or similar external

audio source

The 1/4” unbalanced input can be used for

other communication devices including a

mixer or daisy chaining together multiple

Explorer speakers

AC POWER CORD INLET

SPEAKER OUT -

OUTPUT JACK

Connect the system to a

Explorer PRO unpowered

companion speaker

CHARGE INDICATOR LIGHT (AC/DC only)

LINE IN LEVEL CONTROL

MUSIC/ SPEECH BUTTON

In situations where you’re speaking to

a larger crowd or in a noisy environ-

ment, just push the Music/Speech

button in and give your voice an added

boost

To return back to normal use, just push

the Music/Speech button again

BATTERY LEVEL

INDICATOR LIGHT

(AC/DC only)

TONE CONTROLS - BASS/TREBLE

WIRED MIC LEVEL CONTROLS

LINE OUT - OUTPUT JACK

Balanced 1/4” – provides a combined

output of all active system inputs

Record your presentation or connect to

another powered sound system

VOICE OVER BUTTON

Push the “Voice Over” button in

to have the music automatically

lowered when you speak through a

connected microphone

Music will return to original level

when mic use/speaking stops

RX INDICATOR LIGHTS FOR

WIRELESS RECEIVER 1

A solid red light on one of the

RX Indicator Lights indicates

that the sound system is getting

good reception with the wireless

microphone

A solid red light on both RX

Indicator Lights indicates that

the sound system is a optimum

reception with the wireless

microphone

RX INDICATOR LIGHTS FOR

WIRELESS RECEIVER 2

WIRELESS MICROPHONE 1

LEVEL CONTROL

Adjust knob to control

wireless microphone levels

WIRELESS MICROPHONE 2

LEVEL CONTROL

SPEAKER STAND SETUP

1. Loosen the Lower Collar Knob

2. Separate the stand legs until the leg support Cross

Braces are parallel to the ﬂoor

3. Tighten the Lower Collar Knob

4. Loosen the Upper Collar Knob and extend the

center pole

5. Adjust height and retighten the Upper Collar Knob

6. Place your Anchor sound system on the stand

SPEAKER STAND ADAPTER

The 1.5” diameter Speaker Stand

Adapter lets you mount the

Explorer on a speaker stand.

LOWER

COLLAR

KNOB

UPPER

COLLAR

KNOB

CROSS BRACES

1. Slide Speaker Stand Adapter

into slot on Explorer PRO

bottom

2. Tighten screw to secure

adapter

3. Place unit on stand carefully

4. Tighten screw on Adapter

collar securing Explore PRO

on stand

Produkt Specifikationer

Mærke:	Anchor Audio
Kategori:	Højttaler
Model:	EXP-7500U2AC
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	110 - 220 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	270 mm
Dybde:	240 mm
Højde:	430 mm
Vægt:	7500 g
Produktfarve:	Sort
Udgangseffekt (RMS):	75 W
Equalizer:	Ingen
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ingen
Volumenkontrol:	Dreje
Hurtig start guide:	Ja
Kabler inkluderet:	Vekselstrøm
Batterier inkluderet:	Ingen
Anbefalet brug:	Andet
Frekvensområde:	80 - 16000 Hz
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Gulv
LED-indikatorer:	Ingen
Strømkilde type:	Vekselstrøm
MP3-afspilning:	Ingen
Antal drivere:	2
Diskanthøjttaler:	Ingen
Peak Music-Udgangseffekt (PMPO):	100 W
Sensitivitet:	110 dB
Stik:	2 x Lo-Z 1k Ω XLR, 2 x Hi-Z 10k Ω 1/4", Lo-Z 1/4”
AC (strøm) indgang:	Ja
Bas indstillinger:	Ja
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Woofer diameter:	165 mm
Forstærker:	Ingen
Højttaler kabinet:	Lukket
Woofer diameter (britisk mål):	6.5 "
Dybde (efter britisk standard):	10.5 "
Højde (efter britisk standard):	17 "
Bredde (efter britisk standard):	9.5 "
XLR indgang:	Ja
Højttalerplacering:	Front
Antal mellemtoneenheder:	1
