Side 1/5

MADE IN USA

TWO YEAR WARRANTY

ProLink 500™ Wireless Intercom Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

A Message from the President

Congratulations on purchasing an Anchor Audio intercom

system, the choice of thousands of satisﬁed customers

including the White House, prestigious universities, school

districts nationwide, police and ﬁre departments, and all

branches of the U.S. military. Our products are made of the

ﬁnest materials and built with pride in the U.S.

We’ve incorporated the latest technology into your intercom

system yet kept it simple to use. Just take a few minutes to review

this manual to ensure the maximum enjoyment of your Anchor

system. Or, you can view a demonstration video complete with a trouble shooting

section at www.anchoraudio.com.

Feel free to call our friendly customer support staff at 1-800-ANCHOR1 Monday thru Friday between

7:00am and 5:00pm Paciﬁc Standard Time with any questions. We love to hear

from our customers.

Janet Jacobs, President

on behalf of all Anchor employees

GETTING STARTED / WARRANTY INFORMATION 1 .......................................................................

DEFINITIONS/APPLICATIONS / SYSTEM RANGE / RECHARGEABLE BATTERIES 2 ............................

BASIC SYTEM SETUP / BELT PACK CONTROLS / BLUETOOTH SETUP 3 .........................................

FAQ .......................................................................................................................................

TROUBLESHOOTING/TECHNICAL SPECS 5 ..................................................................................

CONTENTS

GETTING STARTED

Please check your new unit carefully for any

damage which may have occurred during shipment.

Each Anchor product is carefully inspected at the

factory and packed in specially designed boxes for

safe transport.

Notify the freight carrier immediately of any damage

to the shipping box or product. Repack the unit

in the original box and wait for inspection by the

carrier’s claim agent. Notify your dealer of the

pending freight claim.

NOTE: All damage claims must be made with freight carrier!

RETURNING SYSTEMS FOR SERVICE

OR REPAIR

For service or repair, please contact the dealer

you purchased your system from or Anchor Audio

Customer Service at 800.262.4671 to obtain a

(Return Authorization)

number. You may

also complete an online RA request form at

www.anchoraudio.com. All shipments to Anchor

Audio must include a RA number and must be

shipped prepaid. C.O.D. shipments will be refused

and returned at your expense.

IMPORTANT: Save the shipping box & packing materials,

they were specially designed to ship your unit!

WARRANTY REGISTRATION

Visit our website at www.anchoraudio.com and

select “Warranty Registration.” Complete the online

form to activate the two-year limited warranty on

your ProLink 500 intercom system.

100-0200-000/A - 03/11

MADE IN USA

TWO YEAR WARRANTY

ProLink 500™ Wireless Intercom Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

RECHARGEABLE BATTERIES

ProLink 500 belt packs include three “AA” rechargeable batteries and AC gang charger.

Fully charged batteries yield approximately ﬁve hours of continuous use. Alkaline batteries

can be used. Connecting the AC charger to a belt pack with alkaline batteries installed

could seriously damage the system.

INSTALL BATTERIES

1. Remove battery door

2. Install three “AA” NiMH batteries

3. Replace battery compartment door

CHARGE BATTERIES

1. Connect gang charger (included) into charg-

ing port on the bottom of the belt packs

2. Plug gang charger into AC outlet for minimun

of ﬁve hours

LED ON = battery charging

LED OFF = battery charged

WHAT IS PROLINK 500™?

ProLink is a digital wireless, full duplex intercom system that is easy to conﬁgure and

easy to operate. You can operate the MASTER belt pack with up to three REMOTE

belt packs which are identiﬁed on the side label as R1, R2 or R3. You may also have

an option of unlimited number of “Listen Only” beltpacks.The transmitter and receiver

operate in the license free 902-928 MHz range without the need for a base station.

DEFINITIONS AND APPLICATIONS

ProLink 500 - wireless duplex intercom system

ProLink 500 Network - requires a MASTER belt pack and includes up to three REMOTE belt packs

(option of unlimited number of “Listen Only” beltpacks)

Channel - A or B channel selection for different applications

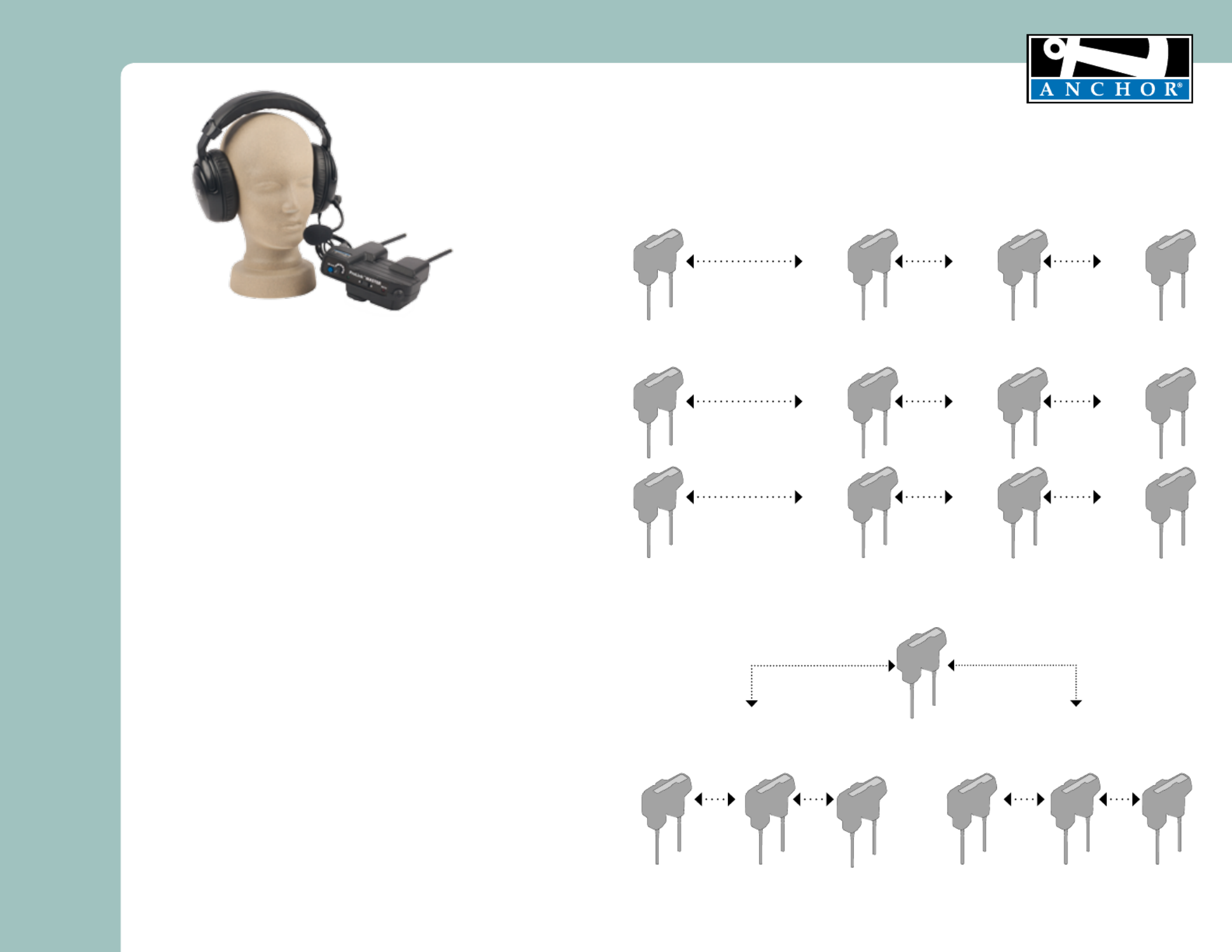

E X A M P L E 1 - O n e n e t w o r k

E X A M P L E 2 - T w o i n d e p e n d a n t n e t w o r k s i n t h e s a m e f a c i l i t y

E X A M P L E 3 - D i r e c t o r o r c o a c h t a l k i n g a n d l i s t e n i n g b e t w e e n t w o c h a n n e l s

r e q u i r e s t h e f o l l o w i n g c o n f i g u r a t i o n

MASTER

BP-500M

Channel A

MASTER

BP-500M

Channel A

MASTER

BP-500M

Channel A

MASTER

BP-500M

Channel B

MASTER

BP-500M

Channel B

REMOTE 1

BP-500R

Channel A

REMOTE 1

BP-500R

CHANNEL A CHANNEL B

REMOTE 1

BP-500R

Channel A

REMOTE 2

BP-500R

Channel A

REMOTE 2

BP-500R

Channel B

REMOTE 3

BP-500R

Channel A

REMOTE 3

BP-500R

Channel B

REMOTE 1

BP-500R

Channel B

REMOTE 2

BP-500R

Channel A

REMOTE 2

BP-500R

Channel A

REMOTE 2

BP-500R

Channel B

REMOTE 3

BP-500R

Channel A

REMOTE 3

BP-500R

Channel A

REMOTE 3

BP-500R

Channel B

Head coach or director toggles between Channel

A and Channel B for conversations between a two

ProLink networks

This is an assigned group such as the

offense coach or lighting crew

This is an assigned group such as the

defense coach or sound crew

CAUTION: Do not attempt to charge alkaline batteries.

Some users are required (for emergency preparedness, etc.) to leave their

ProLink 500 units plugged into the charger at all times.

For those applications we recommend replacing the batteries every 12

months.

SYSTEM RANGE

The RF signal will travel through many solid objects. However, the more solid

objects between the belt packs, the more the range will be reduced. When the belt

packs are transmitting, the Transmit LED will ﬂash red. If the signal drops out, the

LED will glow solid red on REMOTE belt packs only. If the belt packs are too far

apart, the REMOTE belt packs need to move closer to the MASTER belt pack.

Produkt Specifikationer

Mærke:	Anchor Audio
Kategori:	Hovedtelefon
Model:	PRO-540/4D
Produktfarve:	Sort
Produkttype:	Headset
Anbefalet brug:	Scene/studie
Impedens:	300 ohm (Ω)
Forbindelsesteknologi:	Kabel & trådløs
Bæremåde:	Headset
Headset type:	Binaural
Hovedtelefon frekvens:	20 - 20000 Hz
Hovedtelefon følsomhed:	91 dB
Driverenhed:	40 mm
Bæretaske:	Ja
Frekvensbånd:	2.4 GHz
Trådløs rækkevidde:	152.4 m
Mikrofon frekvens:	200 - 12000 Hz
Mikrofon sensitivitet:	-85 dB
klirfaktor (THD):	5 %
Ørekobling:	Supraaural
Akustisk system:	Lukket
