EC266D4-4L

Quick Installation Guide

www.asrockrack.com

EC266D4-4L

P/N: 15G065341000AK V1.0

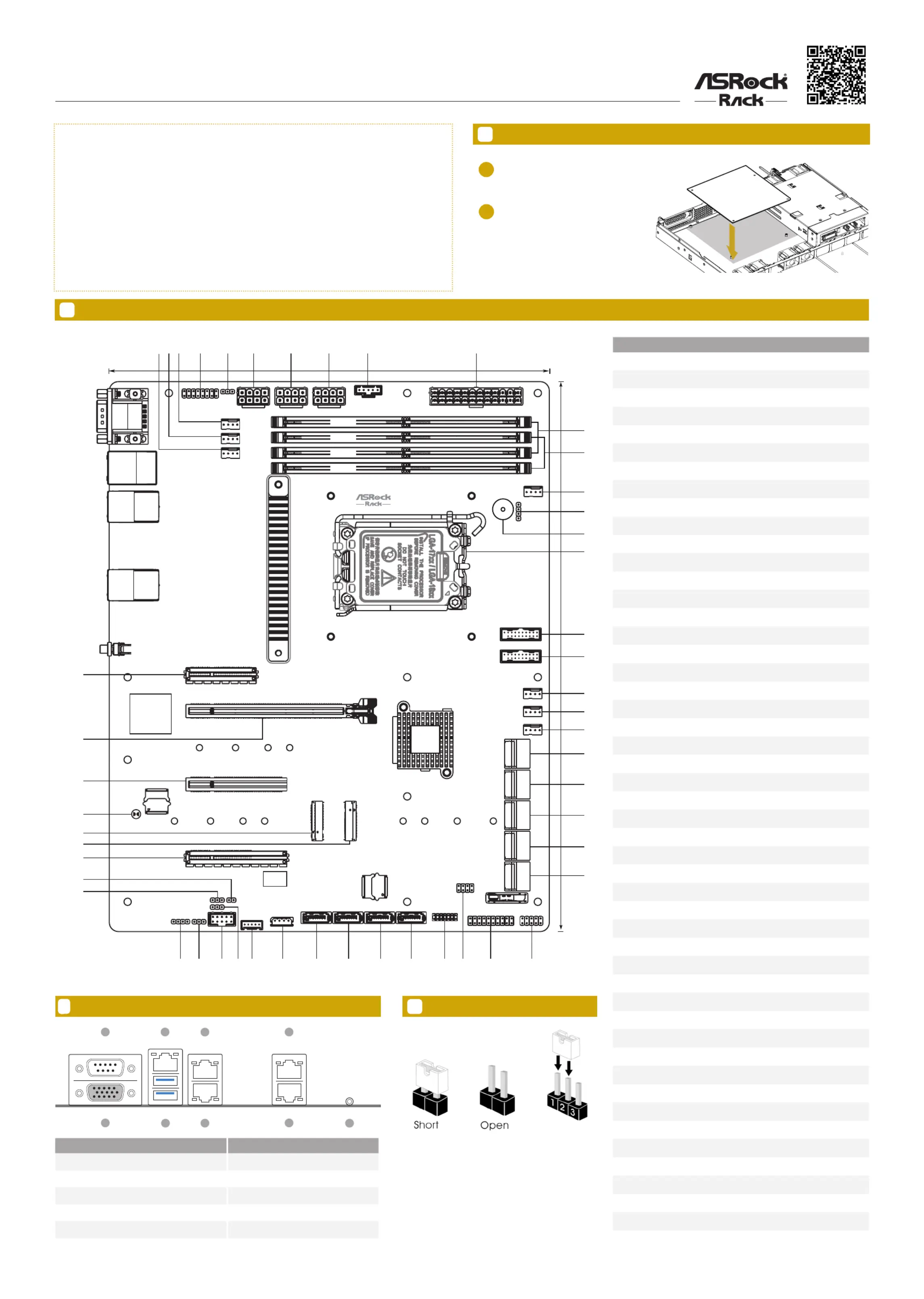

Motherboard Layout

The server board User's Manual is available for download from the ASRock Rack's o󰀩cial website

at http://www.asrockrack.com.

Take note of the following precautions before installing server board components or change any

server board settings.

1. Unplug the power cord from the wall socket before touching any components.

2. To avoid damaging the server board’s components due to static electricity, NEVER place the

server board directly on the carpet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before handling the components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever uninstall any component, place it on a grounded anti-static pad or in the bag that

comes with the component.

5. When placing screws into the screw holes to secure the server board to the chassis, please do

not over-tighten the screws! Doing so may damage the server board.

Install the Server Board1

Insert the server board into the chassis.

Ax the screws clockwise into the

mounting holes in all of the corners of

the server board.

Do not over-tighten the screws.

*15G065341000AK*

Jumper Cap On/O

When the jumper cap is placed on the pins, the

jumper is “Short”. If no jumper cap is placed on

the pins, the jumper is “Open”.

e illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when a jumper cap is placed

on these 2 pins.

SATA_4_5

SATA_SGPIO1

AUX_PANEL1

IPMB1

BMC_SMB1

BIOS

ROM

Dr.Debug

TPM_BIOS_PH1

EC266D4-4L

SATA_6_7

SATA_8_9

SATA_10_11

SATA_12_13

SATA_3

SATA_2

SATA_1

SATA_0

USB_1_2

PANEL1

BAT1

TR1 NMI_BTN1

PECI1

SEC_OR1

LED_LAN3_4

PCIE2

PCIE4

PCIE6

PCIE7

BMC

ROM

CLRCMOS1

M2_2

M2_3

NUT30_3

NUT42_3

NUT60_3

NUT80_3

NUT80_2

NUT60_2

NUT42_2

NUT30_2

Intel

C266

ASPEED

ASR2600

UID1

LAN3

LAN4

LAN1

LAN2

USB3.2 Gen1

T:USB3_2

B:USB3_1

IPMI_ LAN

VGA

COM1

FAN5

FAN6

FAN7

ATX12V1

PWM_CFG1

FRNT_VGA1

ATX12V2 ATX12V3

PSU_SMB1

ATXPWR1

BUZZER1

SPEAKER1

FAN4

USB3_5_6

USB3_1_2

FAN3

FAN2

FAN1

DDR5_B2

DDR5_B1

DDR5_A2

DDR5_A1

CPU1

24.4cm (9.6in)

30.5cm (12in)

7 83

3335

2730

2831

37383940

I/O Panel3

No. Description

1 Chassis Fan Connector (FAN5)

2 Chassis Fan Connector (FAN6)

3 Chassis Fan Connector (FAN7)

4 Front VGA Header (FRNT_VGA1)

5 PWM Conguration Header (PWM_CFG1)

6 ATX 12V Power Connector (ATX12V1)

7 ATX 12V Power Connector (ATX12V2)

8 ATX 12V Power Connector (ATX12V3)

9 PSU SMBus Header (PSU_SMB1)

10 ATX Power Connector (ATXPWR1)

11 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)

12 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)

13 Chassis Fan Connector (FAN4)

14 Chassis Speaker Header (SPEAKER1)

15 BUZZER1

16 LGA1700 CPU Socket (CPU1)

17 USB 3.2 Gen1 Header (USB3_5_6)

18 USB 3.2 Gen1 Header (USB3_1_2)

19 Chassis Fan Connector (FAN3)

20 Chassis Fan Connector (FAN2)

21 Chassis Fan Connector (FAN1)

22 SATA3 Connectors (SATA_4)(Lower), (SATA_5)(Upper)

23 SATA3 Connectors (SATA_6)(Lower), (SATA_7)(Upper)

24 SATA3 Connectors (SATA_8)(Lower), (SATA_9)(Upper)

25 SATA3 Connectors (SATA_10)(Lower), (SATA_11)(Upper)

26 SATA3 Connectors (SATA_12)(Lower), (SATA_13)(Upper)

27 System Panel Header (PANEL1)

28 Auxiliary Panel Header (AUX_PANEL1)

29 SATA SGPIO Connector (SATA_SGPIO1)

30 SPI TPM Header (TPM_BIOS_PH1)

31 SATA3 Connector (SATA_3)

32 SATA3 Connector (SATA_2)

33 SATA3 Connector (SATA_1)

34 SATA3 Connector (SATA_0)

35 Intelligent Platform Management Bus Header (IPMB1)

36 BMC SMBus Header (BMC_SMB1)

37 CPU PECI Mode Jumper (PECI1)

38 USB 2.0 Header (USB_1_2)

39 Security Override Jumper (SEC_OR1)

40 Front LAN LED Connector (LED_LAN3_4)

41 ermal Sensor Header (TR1)

42 Non Maskable Interrupt Button (NMI_BTN1)

43 PCI Express 4.0 p1-x4 Slot (PCIE2)

44 M.2 Socket (M2_3) (Type 2230/2242/2260/2280)

45 M.2 Socket (M2_2) (Type 2230/2242/2260/2280)

46 Clear CMOS Pad (CLRCMOS1)

47 PCI Express 5.0 p1-x8 Slot (PCIE4)

48 PCI Express 5.0 x16/x8 Slot (PCIE6)

49 PCI Express 4.0 p1-x4 Slot (PCIE7)

1 7

No. No.Description Description

1 6 1G LAN RJ-45 Port (LAN2)VGA Port (VGA)

2 Serial Port (COM1) 7 1G LAN RJ-45 Port (LAN3)

3 USB 3.2 Gen1 Ports (USB3_3_4) 8 1G LAN RJ-45 Port (LAN4)

4 LAN RJ-45 Port (IPMI_LAN) 9 UID Switch (UID1)

5 1G LAN RJ-45 Port (LAN1, shared NIC)

EC266D4-4L

Quick Installation Guide

www.asrockrack.com

EC266D4-4L

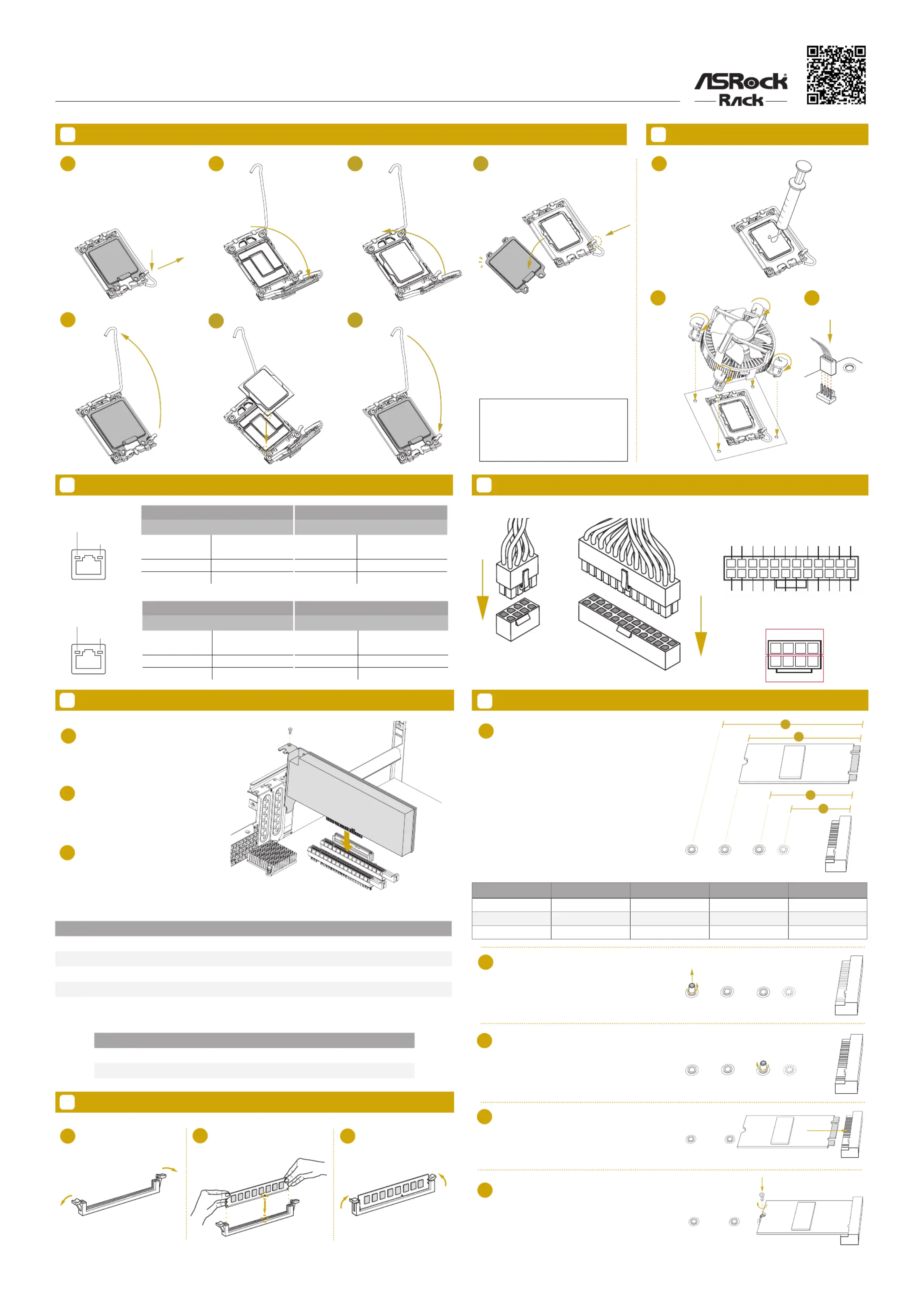

Install the CPU Fan and Heatsink

Install the Processor

We recommend using the CPU Installation tool

to avoid CPU pin-bent problem.

e illustrations in this quick installation guide

are for references only. e actual looks may dif-

fer by the actual product.

11 Install the Memory

Unlock a DIMM slot by

pressing the module clips

outward.

Insert the memory module. Lock the clips.

7LAN Port LED Indications

Activity / Link LED Speed LED

Status StatusDescription Description

O ONo Link 10Mbps connection or

no link

Blinking Yellow Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

Activity / Link LED Speed LED

Status StatusDescription Description

O ONo Link 10M bps connection or

no link

Blinking Yellow Data Activity Orange 100M bps connection

On 1Gbps connectionLink Green

IPMI LAN Port

ACT/LINK LED

SPEED LED

LAN Port

1G LAN Port

ACT/LINK LED

SPEED LED

LAN Port

CPU_F

Install the M.2 SSD Module

Find the corresponding nut location to be used.

Move the stando based on the module type and

length.

Peel o the yellow protective lm on the nut. Hand

tighten the stando into the desired location.

Align and gently insert the M.2 module into the

slot.

Tighten the screw with a screwdriver to secure

the module into place. Please do not overtighten

the screw.

BCD

ABCD

No. 1 2 3 4

Nut Location A (NUT30_2/3) B (NUT42_2/3) C (NUT60_2/3) D (NUT80_2/3)

PCB Length

3cm 4.2cm 6cm 8cm

Module Type

Type 2230 Type 2242 Type 2260 Type 2280

9Install the PCIE Card

Remove the bracket facing the slot

that intending to use. Keep the screw

for later use.

Align the card connector with the

slot and press rmly until the card is

completely seated on the slot.

Fasten the card to the chassis with the

screw.

PCIE Slots:

Slot Generation SourceMechanical Electrical

PCIE 7 4.0 x4 x4 CPU

PCIE 6 5.0 x8/x16 x16/x8 CPU

PCIE 4 5.0 x8 x8 CPU

PCIE 2 4.0 PCHx8 x4

* SLOT6 share lanes with SLOT4. SLOT6 will switch to x8 when SLOT4 is populated.

PCI Express Slot Conguration:

PCIE 4 PCIE6

Single PCIE Card x0 x16

Two PCIE Cards x8 x8

*Image shown is for illustrative purpose only and may dier depending on model.

8Install the Power Cables

12V

GND

PWROK_PS

5VSB

12V

121

-12V

GND

PSON#

GND

N/A
