Side 1/150
Installation
and Operation
FRITZ!Box 6810 LTE
n
FRITZ!Box 6810 LTE 2
Table of Contents
Symbols and Highlighting . . . . . . . . . . . . . . . . . . . . . . . . 6
1 The FRITZ!Box 6810 LTE . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Ports, Interfaces, Buttons and LEDs . . . . . . . . . . . . . . . . 8
2.1 Ports and Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 LTE: Radio Standard for Connecting to the Internet . . . 11
4 Before You Connect the FRITZ!Box . . . . . . . . . . . . . . . . . 12
4.1 Contents of the FRITZ!Box Package. . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 Requirements for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Security and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Connecting the FRITZ!Box. . . . . . . . . . . . . . . . . . . . . . . . 15
5.1 Inserting the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2 Connecting to Electrical Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Connecting the Computer to the FRITZ!Box . . . . . . . . . . 17
6.1 Connecting Computers to the LAN Port . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Connecting Computers Wirelessly over WLAN . . . . . . . . . . . . . . . . . 19
7 The FRITZ!Box User Interface . . . . . . . . . . . . . . . . . . . . . 25
7.1 Opening the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.2 Overview: Everything at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.3 Standard View and Advanced View . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.4 Protecting the User Interface with a Password. . . . . . . . . . . . . . . . . 28
7.5 Saving the FRITZ!Box Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
FRITZ!Box 6810 LTE 4
15 FRITZ!Box as a Telephone System . . . . . . . . . . . . . . . . . 67
15.1 FRITZ!Box Telephone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
15.2 The FRITZ!Box Call List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
15.3 Setting Up FRITZ!Box Fax Reception . . . . . . . . . . . . . . . . . . . . . . . . . 69
15.4 Setting Up Call Diversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
15.5 Saving Costs with Dialing Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
15.6 Blocking Telephone Numbers and Callers . . . . . . . . . . . . . . . . . . . . 71
15.7 Setting Up Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
15.8 Setting Up the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
15.9 Enabling the Baby Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
15.10 Making Telephone Calls with Convenience Functions. . . . . . . . . . . 75
16 FRITZ!Box as a DECT Base Station . . . . . . . . . . . . . . . . . 82
16.1 Paging Cordless Telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
16.2 Deregistering a Cordless Telephone from the FRITZ!Box . . . . . . . . . 82
16.3 Enabling DECT Eco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
17 The FRITZ!Box Home Network. . . . . . . . . . . . . . . . . . . . . 84
18 Network Devices in the FRITZ!Box Home Network . . . . 85
18.1 Network Settings in the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . 85
18.2 Obtaining an IP Address Automatically . . . . . . . . . . . . . . . . . . . . . . 93
19 Help in Case of Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
19.1 The User Interface Does Not Open . . . . . . . . . . . . . . . . . . . . . . . . . . 96
19.2 Cannot Establish a WLAN Connection . . . . . . . . . . . . . . . . . . . . . . 100
20 Configuring FRITZ!Box on the Telephone . . . . . . . . . . . 104
20.1 Loading Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
20.2 Switching WLAN On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
20.3 Switching the Alarm On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
20.4 Setting Up Call Diversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
20.5 Disabling Automatic Outside Dialing . . . . . . . . . . . . . . . . . . . . . . . 109
FRITZ!Box 6810 LTE 5
21 Taking FRITZ!Box out of Operation. . . . . . . . . . . . . . . . 110
21.1 Removing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
21.2 Restoring Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
21.3 Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
22 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . 112
22.1 Ports and Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
22.2 Router Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
22.3 User Interface and Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
22.4 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
22.5 Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
23 Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
23.1 Documentation on the FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . 114
23.2 Information in the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
23.3 Feedback on FRITZ!Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
23.4 Support from the Support Team . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
23.5 Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
24 AVM Products for the FRITZ!Box. . . . . . . . . . . . . . . . . . 119
Legal Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Declaration of CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
FRITZ!Box 6810 LTE 6
Symbols and Highlighting
Symbols and emphasized text are used to mark certain information in
this manual.
Symbols
Highlighting
This symbol marks useful hints and tips.
This symbol indicates important instructions that must be
observed to avoid malfunctions.
Marker Example
Quotation marks designate elements in the
user interface, path entries, and names of
folders and files
“Home Network”
“C:\Pictures”
“Info”
Pointed brackets mark wild cards <Telephone number>
Blue, underlined text designates addresses
to be entered in the browser
fritz.box
Blue text designates links and references
within this manual
see page 128
Bold type emphasizes important words Do not click ...
The FRITZ!Box 6810 LTE
FRITZ!Box 6810 LTE 7
1 The FRITZ!Box 6810 LTE
Welcome! We are pleased you decided on a FRITZ!Box. The FRITZ!Box
6810 LTE is the hub of your home network, connecting your computers
and network devices with the Internet. For fast Internet connections
the FRITZ!Box uses the mobile communications standard LTE.
The FRITZ!Box supports the radio technologies WLAN and DECT. You
can use the FRITZ!Box simultaneously as a wireless LAN base station
for wireless devices like notebooks, tablets or smartphones and as
DECT base station for your cordless telephones.
Connected telephones use the FRITZ!Box as a telephone system.
The FRITZ!Box integrates connected computers and network devices
into your private home network, where all devices can exchange data
with each other.
The FRITZ!Box offers you a full range of functions and settings so that
you can set up a home network tailored to your needs.
In the settings of your FRITZ!Box you can access a user interface that is
easy to operate in any web browser. Wizards guide you step by step
through the setup of the most important FRITZ!Box functions, and
comprehensive Online Help is available on every page of the user in-
terface.
FRITZ!Box 6810 LTE 8
Ports, Interfaces, Buttons and LEDs
2 Ports, Interfaces, Buttons and LEDs
This chapter describes the ports, interfaces, buttons and LEDs of the
FRITZ!Box.
2.1 Ports and Interfaces
Possibilities for connecting the FRITZ!Box
•LAN
1 Ethernet port (10/100 Base-T) for connecting comput-
ers and other network devices like game consoles and
network hubs
•WLAN base station
Integrated WLAN base station for connecting to WLAN
devices that use the radio standard IEEE 802.11b,
IEEE 802.11g or IEEE 802.11n in the 2.4-GHz frequency
band
•DECT base station
Integrated DECT base station for connecting up to
6 cordless telephones that use the DECT standard
Computer, game console,
network
Notebook, computer, smartphone
video/TV streaming
DECT
Co
ne
No
vid
DEDE
CT
CT
WLAN
2.4 GHz
LAN
FRITZ!Fon
or other DECT telephone
SIM
LTE radio network
LTE
LTE SIM card
Buttons
FRITZ!Box 6810 LTE 9
2.2 Buttons
The FRITZ!Box has two buttons on the back of the device.
FRITZ!Box buttons
“WLAN” Button
With the “WLAN” button you can turn the WLAN function on
and off and connect wireless devices with the FRITZ!Box by
WPS. WPS is an easy way to establish secure wireless connec-
tions (see page 19).
“DECT” Button
With the “DECT” button you can register cordless telephones
on the FRITZ!Box (see page 32) and page misplaced cordless
handsets (see page 82).
DECT
DECT
LAN
LAN
WLAN
WLAN
WLAN
FRITZ!Box 6810 LTE 10
LEDs
2.3 LEDs
“Info” LED
You can define what additional information should be dis-
played on the “Info” LED. For details, see the “System / “Info”
Display” area of the FRITZ!Box 6810 LTE.
LED Condition Meaning
Info on •Signals an event specified by the user
flashing •Updating FRITZ!OS, the firmware of your FRITZ!Box
•Specified value for online meter reached
•Signals an event specified by the user
flashing red Error: Open the FRITZ!Box user interface and follow the in-
structions on the “Overview” page
Phone on Telephone connection to the Internet is active
flashing Messages in your voicemail/e-mail inbox (this function
must be supported by your telephony provider)
WLAN on WLAN function enabled
flashing •Enabling or disabling WLAN function
•Adopting the WLAN settings
•Performing WPS
•WPS procedure aborted: More than two WLAN devices
are performing WPS at the same time. Repeat the con-
nection routine.
DECT on DECT function enabled
flashing Registration procedure for a DECT handset in progress
Power/LTE on •FRITZ!Box on standby
•Device has electrical power and the LTE connection has
been established
flashing •The device has electrical power
•The LTE connection is being established or has been in-
terrupted
LTE: Radio Standard for Connecting to the Internet
FRITZ!Box 6810 LTE 11
3 LTE: Radio Standard for Connecting to the Internet
LTE (Long Term Evolution) is a radio standard specified ac-
cording to the 3GPP standard, Release 8. Within this standard
the FRITZ!Box belongs to category 3 UE (user equipment).
Frequency Ranges
FRITZ!Box 6810 LTE supports two frequency bands:
•791 - 862 MHz: the LTE band 20 is located in this range.
This band is called the “digital dividend” spectrum.
•2500 - 2690 MHz: the LTE band 7 is located in this
range.
Channel Bandwidth
Within these two frequency bands the FRITZ!Box supports the
channel bandwidths 5, 10 and 20 MHz.
The smaller the channel bandwidth, the lower the through-
put:
All devices located in the same radio cell share the band-
width and thus the throughput.
Antenna Technology
The FRITZ!Box supports Multiple-Input Multiple-Output
(MIMO) antenna technology.
20 MHz up to 100 Mbit/s download
up to 50 Mbit/s upload
10 MHz up to 68 Mbit/s download
up to 27 Mbit/s upload
FRITZ!Box 6810 LTE 12
Before You Connect the FRITZ!Box
4 Before You Connect the FRITZ!Box
•Check the contents of your FRITZ!Box package. See the section
Contents of the FRITZ!Box Package on page 12 for more informa-
tion.
•Make sure that the requirements for connecting and operating
the FRITZ!Box have been met. See the section Requirements for
Operation on page 12 for more information.
•Please see the security and handling instructions in the section
Security and Handling on page 13.
4.1 Contents of the FRITZ!Box Package
•FRITZ!Box 6810 LTE
•one power supply unit
•one network cable
•printed product information
4.2 Requirements for Operation
In order to operate the FRITZ!Box, you must have the follow-
ing:
•a web browser that supports Java script (for instance, In-
ternet Explorer version 8.0 or higher, or Firefox version 7
or higher)
•an LTE SIM card for the Internet connection
•for connecting computers via WLAN:
computer with WLAN support (compliant with
IEEE 802.11n, IEEE 802.11g, or IEEE 802.11b). Comput-
ers that do not have integrated WLAN can be equipped
with WLAN support by installing a WLAN device like a
FRITZ!WLAN USB Stick, for instance.
•for connecting computers using network cable:
computer with a network port (network adapter standard
Ethernet 10/100/1000 Base-T)
Security and Handling
FRITZ!Box 6810 LTE 13
4.3 Security and Handling
Before installing and using the FRITZ!Box, please read the fol-
lowing security and handling instructions.
Safety Instructions
•Avoid overloading power outlets, extension cables and
socket strips. Overloaded power supply components
present a fire and electrocution risk.
–Avoid using sockets strips and extension cords if at
all possible.
–Do not connect multiple extension cords or socket
strips to each other.
•Make sure that the ventilation slits on the FRITZ!Box
housing are always unobstructed. The ventilation slits
provide for air cooling.
–The FRITZ!Box should not be placed on a carpet or on
upholstered furniture.
–Do not cover the FRITZ!Box.
•Do not place the FRITZ!Box on excessively heat-sensitive
surfaces, as the base of the device can heat up during
normal operation.
•Do not install the FRITZ!Box during an electrical storm.
•During a storm, disconnect the FRITZ!Box from the power
supply.
•Never let liquids get inside the FRITZ!Box. Otherwise,
electric shocks or short circuits may result.
•Do not open the FRITZ!Box housing. The device contains
hazardous components and should only be opened by
authorized repair technicians.
•The FRITZ!Box is intended for indoor use only.
When connecting the FRITZ!Box 6810 LTE, be sure to observe
the following security instructions in order to protect yourself
and the FRITZ!Box from harm.
FRITZ!Box 6810 LTE 14
Security and Handling
Handling the FRITZ!Box
•Place the FRITZ!Box in a dry location that is free of dust
and protected from direct sunlight.
•When connecting the FRITZ!Box to your computer using a
network cable, keep in mind that the cable can be no
longer than 100 m.
•Use the alignment aid of the FRITZ!Box to determine the
best possible position of the FRITZ!Box for LTE reception.
The alignment aid is located in the FRITZ!Box user inter-
face in the “Internet / LTE Information” menu, on the
“Reception” page.
•Make sure to keep sufficient distance from potential
sources of interference like microwave devices or elec-
tric devices with large metal housings.
Connecting the FRITZ!Box
FRITZ!Box 6810 LTE 15
5 Connecting the FRITZ!Box
•Insert the SIM card.
•Connect the FRITZ!Box to the power supply.
This chapter tells you how.
5.1 Inserting the SIM Card
You received a SIM card from your LTE provider. This card
must be inserted into the SIM card slot on the FRITZ!Box. The
SIM card slot is located on the underside of the FRITZ!Box.
1. Pick up the FRITZ!Box so that you are facing the under-
side of the device and can read the “SIM Card ” label on
the slot.
2. Insert the SIM card into the slot with the slanted edge of
the card on the left and the contacts facing downwards.
3. Push the SIM card gently into the slot until it clicks into
place.
A few millimeters of the SIM card protrude from the slot.
Before you connect the FRITZ!Box, note the additional in-
structions in the section Security and Handling on page 13.
P
o
w
er
Power
SI
M
-
C
a
r
d
SIM-Card
Info
Phone
WLAN
DECT
Power/LTE
To remove the SIM card, press it briefly.
FRITZ!Box 6810 LTE 16
Connecting to Electrical Power
5.2 Connecting to Electrical Power
Connecting to the power supply
1. Pick up the power supply unit included in the FRITZ!Box
package.
1. Connect the power supply unit to the socket on the
FRITZ!Box labeled “Power”.
2. Plug the other end into an AC power outlet.
The “Power/LTE” LED begins flashing after a few seconds.
P
o
w
er
Power
SI
M
C
a
r
d
SIM-Card
Info
Phone
WLAN
DECT
Power/LTE
Use only this power supply unit for connecting to electri-
cal power.
Connecting the Computer to the FRITZ!Box
FRITZ!Box 6810 LTE 17
6 Connecting the Computer to the FRITZ!Box
You can connect a computer with the FRITZ!Box either using a network
cable or wirelessly over WLAN.
6.1 Connecting Computers to the LAN Port
Connecting a computer to the FRITZ!Box using a network cable
1. Set aside the network cable from the FRITZ!Box package.
2. If you work with a Linux operating system: Configure the
network adapter of the computer with the setting
“DHCP”.
3. Connect one end of the network cable to the network
port (network adapter) of the computer.
A computer can be connected with the FRITZ!Box using only
one of these methods. It is not possible to connect using the
network cable and WLAN.
DE
C
T
DECT
LAN
LAN
WLAN
WLAN
WLAN
FRITZ!Box 6810 LTE 18
Connecting Computers to the LAN Port
4. Connect the other end of the network cable to one of the
sockets on the FRITZ!Box labeled “LAN”.
Now the FRITZ!Box and the computer are connected to each
other.
Connecting a Network Hub or Switch
You can also connect a network hub or switch to the LAN port
on the FRITZ!Box.
Connecting the FRITZ!Box to a network hub
1. Set aside the network cable from the FRITZ!Box package.
2. Connect one end of the LAN cable to the uplink port (see
glossary) of the network hub or network switch.
3. Connect the other end of the cable to the socket on the
FRITZ!Box labeled “LAN”.
The FRITZ!Box and the network hub are now connected with
each other.
DECT
DECT
LAN
LAN
WLAN
WLAN
Connecting Computers Wirelessly over WLAN
FRITZ!Box 6810 LTE 19
6.2 Connecting Computers Wirelessly over WLAN
Using WLAN radio technology you can connect multiple com-
puters with the FRITZ!Box wirelessly.
Please note the following before establishing a wireless con-
nection between the computer and the FRITZ!Box:
•WLAN device
A computer to be connected to the FRITZ!Box via WLAN
must be equipped with a WLAN device for it to support
WLAN. A WLAN device can be an external WLAN adap-
ter—like a USB stick, for example—or a device integrated
in the computer. Many modern computers and note-
books come with a WLAN device integrated.
•WLAN security settings
In the FRITZ!Box, WLAN security settings are enabled up-
on delivery. Before a computer can establish a wireless
connection to the FRITZ!Box, the WLAN security settings
of the FRITZ!Box must be transferred to the WLAN device.
Establishing a WLAN Connection Using WPS
The FRITZ!Box supports WPS (Wi-Fi Protected Setup). WLAN
devices that also support WPS can be connected with your
FRITZ!Box securely using this method. All of the necessary
WLAN security settings are transferred in the process. There
are two kinds of WPS: the push-button method and the PIN
method.
WPS with the Push-button Method
The push-button method (WPS PBC) can be used if your WLAN
device is equipped with a WPS button, or if WPS can be en-
abled via the control software of the WLAN device.
1. Press the “WLAN” button on the FRITZ!Box until the
“WLAN” LED begins flashing.
For more information on WLAN, see the section FRITZ!Box as
a WLAN Base Station from page 56.
FRITZ!Box 6810 LTE 22
Connecting Computers Wirelessly over WLAN
Transferring the WLAN Security Settings Manually
The WLAN security settings for WLAN devices can also be
transferred manually. Manual transfer is unavoidable if a
WLAN device does not support any methods for transferring
the security settings automatically.
For manual transfer the WLAN security settings have to be en-
tered in the WLAN software.
WLAN devices are generally delivered with their own WLAN
software, which is installed in the computer along with the
WLAN device. By now many operating systems have WLAN
software included. Integrated WLAN devices sometimes use
the operating system’s WLAN software.
Installing a WLAN Device
If you need to use a separate WLAN device because you do
not have one integrated, then install the WLAN device in the
computer along with the corresponding WLAN software.
Please take note of the instructions in the documentation of
the device.
Transferring WLAN Security Settings
The values for WLAN security preconfigured in the FRITZ!Box
have to be transferred to the WLAN device.
1. Start the WLAN software.
2.
The following table presents
the values that are possible
for the connection between the FRITZ!Box and the WLAN
device. Enter in the WLAN software the values set in the
FRITZ!Box. If you changed the preconfigured values in
the FRITZ!Box, then enter these changed values in the
WLAN software.
The values preset in the FRITZ!Box are printed on the sticker
attached to the bottom of the housing. If you would like to
establish a WLAN connection using these values, then your
WLAN device must support the preset encryption method. If
this is not the case, first change the settings in the FRITZ!Box.
To do this, connect your computer and the FRITZ!Box using a
network cable.
Connecting Computers Wirelessly over WLAN
FRITZ!Box 6810 LTE 23
3. Confirm your entries using the relevant button in the us-
er interface (for instance, “OK” or “Connect”.
Now your WLAN device and the FRITZ!Box are connected with
each other wirelessly.
If the WLAN Device Does Not Support WPA
If your WLAN device does not support WPA encryption, you
must convert the encryption set in the FRITZ!Box to WEP. For
this you must change the WLAN settings in the FRITZ!Box:
1. Connct the FRITZ!Box and the computer using the net-
work cable (white) with your computer (see the section
Connecting Computers to the LAN Port on page 17).
2. Open the FRITZ!Box user interface (see the sec-
tionOpening the User Interface on page 25).
3. Select the “WLAN / Security” menu.
4. Then select WEP encryption and enter a network key.
5. Click the “Apply” button.
A window is displayed with the WLAN security settings.
6. Make a note of the settings or print out the page.
7. Close the user interface and clear the connection be-
tween the FRITZ!Box and the computer. Remove the net-
work cable (white).
8. Configure your WLAN device with the security settings
entered in the FRITZ!Box.
SSID (Name of the
WLAN radio network)
FRITZ!Box 6810 LTE
Encryption method WPA2 (AES-CCMP)
Encryption WPA2-PSK (AES)
WLAN key The key is printed on the sticker at-
tached to the bottom of the hous-
ing.
Network mode Infrastructure
The FRITZ!Box User Interface
FRITZ!Box 6810 LTE 25
7 The FRITZ!Box User Interface
The FRITZ!Box has a user interface you can open in a web browser on
your computer.
In the user interface you can set up the FRITZ!Box, enable or disable
functions and receive information on the FRITZ!Box and on your con-
nections.
7.1 Opening the User Interface
The FRITZ!Box user interface can be opened on every comput-
er connected with the FRITZ!Box.
1. Start a web browser on your computer.
2. Enter fritz.box in the address line of the browser.
The FRITZ!Box user interface opens.
Entering the address fritz.box in the browser
The Wizard: Opening the User Interface for the First Time
When you open the user interface for the first time, a wizard
starts to assist you in configuring the FRITZ!Box.
If you cancel the wizard, you can configure your FRITZ!Box
without this wizard. You can change the settings configured
with this wizard at any time.
For comprehensive information on configuring the many di-
verse functions of your FRITZ!Box, see the following chapters
in this manual.
If the user interface does not open, see the instructions on
resolving errors in the section from page 96.
FRITZ!Box 6810 LTE 26
Overview: Everything at a Glance
7.2 Overview: Everything at a Glance
All important information about the FRITZ!Box is displayed di-
rectly on the “Overview” page of the FRITZ!Box user interface.
By clicking the linked entries or “more...” you can jump from
this page to the corresponding menus and configure settings
there.
The FRITZ!Box “Overview” page
In the upper area of the window the FRITZ!Box is displayed
with its complete product name, the currently installed ver-
sion of FRITZ!OS, and its current energy consumption.
Depending on your settings, the following additional informa-
tion is displayed here:
•If you assigned an individual name for your FRITZ!Box
(see page 84), this name will be displayed here.
•If you use the automatic search for updates (page 40)
and a new FRITZ!OS version is available on the AVM Up-
date Server for your FRITZ!Box, you will be notified.
Standard View and Advanced View
FRITZ!Box 6810 LTE 27
The middle area of the window presents information about
connections, ports and configured convenience functions like
MyFRITZ!, call diversion, guest access, remote maintenance,
port forwarding and push service.
In the lower area of the window, the information is rounded
out by the last telephone calls conducted, the list of connect-
ed devices like computers or telephones, and the telephone
book entries edited last.
7.3 Standard View and Advanced View
The FRITZ!Box user interface has two views: the standard view
and the advanced view.
In the standard view all of the settings required for everyday
operation of the FRITZ!Box are at your disposal. Some pages
and areas of the FRITZ!Box user interface are not displayed.
In the advanced view additional settings options appear un-
der various menus and commands. The expanded menu
items contain network and LTE settings for advanced users
and are not required for normal FRITZ!Box operation.
Fast Switching between the Views
The “View” link in the link list of the FRITZ!Box allows you to
switch immediately between the standard view and the ad-
vanced view.
Upon delivery, the FRITZ!Box interface is set to display the
standard view.
Enabling this option is recommended only if you have ad-
vanced network expertise. When this setting is selected, set-
tings can be configured which have the result that the
FRITZ!Box user interface can no longer be opened.
FRITZ!Box 6810 LTE 28
Protecting the User Interface with a Password
7.4 Protecting the User Interface with a Password
You can protect the user interface of the FRITZ!Box with a
password. The password will be requested every time the us-
er interface is opened. This protects the settings of your
FRITZ!Box from unauthorized access.
Setting Up Password Protection
As long as no password protection has been set up, every
time you open the user interface you will be prompted to en-
ter a password. If you disabled this message, here is how to
set password protection:
1. Open the FRITZ!Box user interface (see page 25).
2. Go to the “System / FRITZ!Box Password” menu.
3. Enter a password and save the password by clicking “Ap-
ply”.
Password protection is now enabled.
Forgot Your Password—What to Do?
If you have forgotten your password for the user interface, for
reasons of security, you have to restore the factory settings to
your FRITZ!Box:
1. Open the FRITZ!Box user interface (see page 25).
2. In the “Welcome to FRITZ!Box” window, click “reset” be-
low the password prompt and follow the instructions on
the screen.
The FRITZ!Box is reset to the factory settings and then re-
started. Afterward you can once again access the
FRITZ!Box user interface.
For reasons of security, we recommend setting up and using
password protection for the user interface.
Be sure to remember the password! If you forget the pass-
word, the factory settings will have to be restored to your
FRITZ!Box. All of the settings you configured will be discard-
ed. This is why we recommend saving the settings of your
FRITZ!Box in a backup file (see page 29).
Saving the FRITZ!Box Settings
FRITZ!Box 6810 LTE 29
3. After restarting, reconfigure the FRITZ!Box over the user
interface or load your saved settings to the FRITZ!Box
(see page 29).
This concludes the reset of the FRITZ!Box.
Logging Off the User Interface
When password protection is enabled, you can log off the us-
er interface at any time. To do so, click the
menu in the upper area of the “Overview” page and select
“Log off”.
If you do not click on the user interface for a period of longer
than ten minutes, you will be logged off automatically. The
only pages excepted from this are those which are constantly
updated, like the “Overview” page. No automatic logout will
take place on these pages.
7.5 Saving the FRITZ!Box Settings
All of the settings you configure in your FRITZ!Box can be
saved in a backup file on your computer. With this backup file
you can restore your settings to the FRITZ!Box at any time or
load your settings to another FRITZ!Box.
Saving and Restoring Settings
To save and restore your FRITZ!Box settings, use the “System
/ Save Settings” menu in the user interface. Here you can
•save your FRITZ!Box settings on the “Save” tab.
•restore all of your saved settings to the same FRITZ!Box
on the “Restore” tab.
•load all of your saved settings to another FRITZ!Box of
the same model on the “Restore” tab.
•load your saved settings to another FRITZ!Box model on
the “Apply” tab. In this case you can select which set-
tings are to be applied to the FRITZ!Box.
FRITZ!Box 6810 LTE 30
Saving the FRITZ!Box Settings
Instructions for saving, restoring and applying FRITZ!Box set-
tings are presented in the user interface’s Online Help.
To load your saved settings to another FRITZ!Box of the same
model, or to apply the settings of another FRITZ!Box model
to your FRITZ!Box, the backup file must always be password-
protected.
Configuring an Internet Connection Into the LTE Network
FRITZ!Box 6810 LTE 31
8 Configuring an Internet Connection Into the LTE
Network
The Internet connection for the mobile communications net-
work has to be set up once in the FRITZ!Box, then it is always
available.
Along with the SIM card, you received a PIN (Personal Identifi-
cation Number) and a corresponding PUK (Personal Unlock
Key) from your mobile communications network provider.
Keep both numbers handy.
The first time you open the FRITZ!Box user interface, you will
automatically be prompted to configure the Internet connec-
tion.
1. Start a web browser on your computer.
2. Enter fritz.box in the address field of the web browser.
3. The Wizard for configuring the Internet connection starts
automatically.
4. Follow the instructions displayed on the screen.
5. As soon as you are prompted to do so, enter the PIN. If
you enter the PIN incorrectly during login three times in a
row, the device is blocked for further entries. With the
PUK you can release this block.
FRITZ!Box 6810 LTE 32
Connecting Telephones and Other Terminal Devices

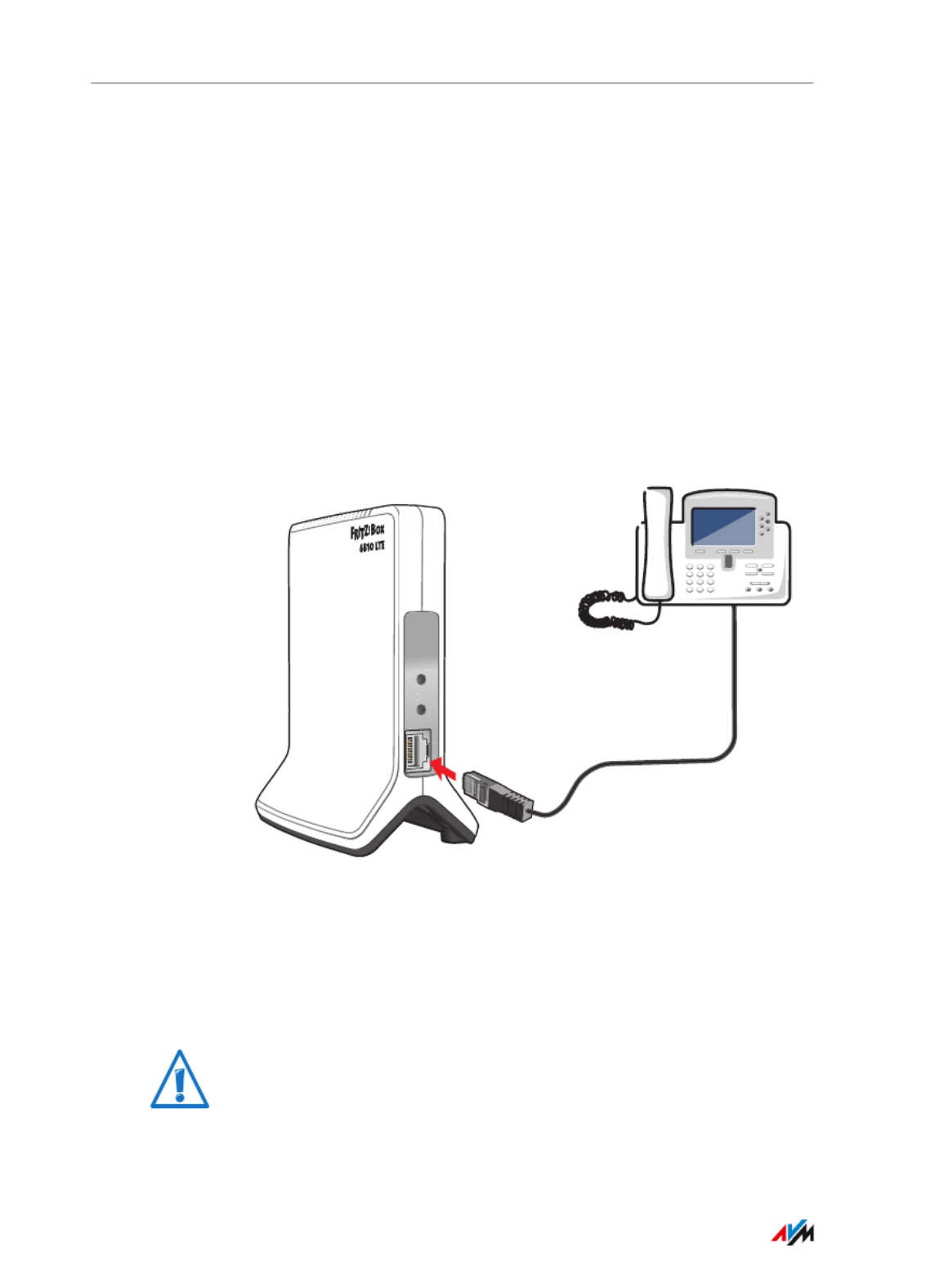

9 Connecting Telephones and Other Terminal Devices
This chapter describes how to connect telephones, fax machines, an-
swering machines and telephone systems (PBXs) to the FRITZ!Box.
9.1 Registering FRITZ!Fon and Other Cordless (DECT) Telephones
Up to six cordless telephones can be registered on the
FRITZ!Box. The cordless telephones must support the DECT
standard.
1. Start the registration of your cordless telephone with a
base station.
2. Follow the directions on the display of the cordless tele-
phone.
3. As soon as you are prompted to press the DECT, register,
or paging button on the base station, press the “DECT”
button on the FRITZ!Box.
Hold the “DECT” button down for about 10 seconds until
the “DECT” LED on the FRITZ!Box begins flashing.
The cordless telephones FRITZ!Fon by AVM are the ideal com-
plement to your FRITZ!Box 6810 LTE (see also AVM Products
for the FRITZ!Box from page 119).
DEC T
DECT
LAN
LAN
WLAN
WLAN
WLAN
10 Sekunden
Registering Smartphones with FRITZ!App Fon
FRITZ!Box 6810 LTE 33
4. If you are asked for the PIN of the DECT base station, en-
ter the DECT pin of the FRITZ!Box.
Upon delivery the PIN of the FRITZ!Box is “0000”.
If you changed the PIN and forgot it, you can enter a new
DECT PIN in “DECT / Base Station” menu of the FRITZ!Box
user interface (see page 25).
The cordless telephone is connected with the FRITZ!Box.
9.2 Registering Smartphones with FRITZ!App Fon
The FRITZ!App Fon software connects your smartphone with
the FRITZ!Box via WLAN. Calls you make from home then use
not the mobile telephone network, but the telephone num-
bers set up in the FRITZ!Box.
The free FRITZ!App Fon software can be installed on an
iPhone, iPod or iPad with iOS 4 or higher, and on Android
smartphones with Google Android 2.1 or higher.
FRITZ!App Fon for Android smartphones is available at the
Android Market. FRITZ!App Fon for iOS is offered in the
Apple App Store.
Registering a Smartphone on the FRITZ!Box
1. Install FRITZ!App Fon on your smartphone.
2. Connect your smartphone with the FRITZ!Box via WLAN.
To establish the connection you need the WLAN key of
the FRITZ!Box. The preconfigured WLAN key is printed on
the sticker on the underside of your FRITZ!Box.
3. Start the FRITZ!App Fon. If you protected the user inter-
face of the FRITZ!Box with a password, enter the pass-
word to log in.
Once FRITZ!App Fon has been started, use your smartphone
to make calls from home over the FRITZ!Box.
Defining Telephone Numbers for the Smartphone
A new telephone device for your FRITZ!Box is entered auto-
matically in the FRITZ!App Fon. The name of the telephone de-
vice is listed in the FRITZ!App Fon under “More / FRITZ!Box”.
FRITZ!Box 6810 LTE 34
Connecting an IP Telephone
You can assign telephone numbers to this telephone to deter-
mine which telephone numbers are used to make calls with
your smartphone from home. See the section Configuring
Connected Telephones and Terminal Devices on page 37 for
instructions.
9.3 Connecting an IP Telephone
Connect an IP telephone by plugging it into a network port on
the FRITZ!Box or wirelessly via WLAN.
Connecting an IP Telephone to the LAN Port of the FRITZ!Box
IP telephones with a LAN port can be connected to the
FRITZ!Box with a network cable.
Connecting an IP telephone to the LAN socket of the FRITZ!Box
1. Connect a network cable to the IP telephone.
2. Connect the free end of the network cable to the LAN
port on the FRITZ!Box.
The IP telephone is now connected with the FRITZ!Box.
DECT
DECT
LAN
LAN
WLAN
AN
WLAN
You cannot make calls with the IP telephone yet. The IP tele-
phone still has to be configured in the FRITZ!Box (see
page 37).
Connecting an IP Telephone
FRITZ!Box 6810 LTE 35
Connecting an IP Telephone with the FRITZ!Box over WLAN
IP telephones that support WLAN can be connected wirelessly
to the FRITZ!Box via WLAN.
Connecting an IP telephone with the FRITZ!Box over WLAN
1. Use your IP telephone to search for WLAN devices at your
location.
2. Select your FRITZ!Box 6810 LTE from the list of WLAN de-
vices found.
3. Enter the WLAN key of the FRITZ!Box.
The preconfigured WLAN key is printed on the sticker on
the underside of your FRITZ!Box.
Now the IP telephone will be connected with the FRITZ!Box.
WLAN
Info
Phone
WLAN
DECT
Power/LTE
You cannot make calls with the IP telephone yet. The IP tele-
phone still has to be configured in the FRITZ!Box (see
page 37).
FRITZ!Box 6810 LTE 38
Making Telephone Calls
Editing or Deleting Telephones and Terminal Devices
All telephones and other terminal devices you set up in the
FRITZ!Box are listed under “Telephony / Telephony Devices”
in the user interface.
Here you can edit the settings of terminal devices and delete
terminal devices.
10.3 Making Telephone Calls
Once you have set up your telephones, you can make outgo-
ing telephone calls to the public network and accept incom-
ing calls.
A telephone places outgoing calls using the telephone num-
ber you defined for outgoing calls while setting up the tele-
phone (see page 37).
For incoming calls a telephone reacts only to calls to those
telephone numbers you assigned to the telephone during set-
up (see page 37).
Firmware Update: Updating the FRITZ!OS
FRITZ!Box 6810 LTE 39
11 Firmware Update: Updating the FRITZ!OS
AVM provides free updates of the firmware for your FRITZ!Box. The
firmware—called FRITZ!OS—is the software stored in the FRITZ!Box
that controls all of the FRITZ!Box functions.
FRITZ!OS updates contain further developments of existing FRITZ!Box
functions and often also introduce new functions for your FRITZ!Box.
A FRITZ!OS update is necessary if you would like to take advantage of
further developments and new functions.
11.1 Searching for and Transferring FRITZ!OS Update with the Wizard
1. Open the FRITZ!Box user interface (see page 25).
2. Click “Wizards” in the menu and start the “Update Firm-
ware” Wizard.
The Wizard checks whether a FRITZ!OS update is avail-
able for your FRITZ!Box.
If the Wizard finds an update, it displays the version
number of the new FRITZ!OS. Click the link under the
FRITZ!OS version to view information about further de-
velopments and new functions contained in the
FRITZ!OS update. Read this information before starting
the update.
3. To transfer FRITZ!OS update to the FRITZ!Box, click “Start
Firmware Update Now”.
The FRITZ!OS update begins and the “Info” LED on the
FRITZ!Box starts flashing.
The FRITZ!OS update is complete when the “Info” LED stops
flashing.
Do not interrupt the power supply to the FRITZ!Box dur-
ing the FRITZ!OS update!
Automatic Search for Updates and Updating FRITZ!OS
FRITZ!Box 6810 LTE 41
3. Scroll down to the end of this page and click on the
“AVM Services” link.
The “AVM Services” page is opened.
4. Disable the setting “FRITZ!Box searches for updates peri-
odically” and save your setting with “Apply”.
The AVM service “Search for updates automatically” is now
disabled.
MyFRITZ!: Global Access to the FRITZ!Box
FRITZ!Box 6810 LTE 43
•Enter the following user data:
–For the MyFRITZ! account, enter your e-mail address
and assign a MyFRITZ password.
–For access to the FRITZ!Box over the Internet, enter a
FRITZ!Box Internet password. This password is re-
quested by the FRITZ!Box whenever you want to ac-
cess the FRITZ!Box via MyFRITZ!.
•You receive an e-mail from MyFRITZ! containing a regis-
tration link. If possible, open the e-mail on the computer
on which you began to set up the account. Click the reg-
istration link.
•You are forwarded to the MyFRITZ! website, where you
are prompted to read the terms of use and activate the
account.
•Once the account has been activated successfully, you
will be redirected to the FRITZ!Box user interface. Now
the FRITZ!Box is registered with your MyFRITZ! account.
Using MyFRITZ!
As soon as you have created a MyFRITZ! account and regis-
tered your FRITZ!Box with the account, you can begin using
the MyFRITZ! service.
1. Start the www.myfritz.net website.
2. Log in with your e-mail address and your MyFRITZ! pass-
word.
3. Click the “To My FRITZ!Box” button.
4. Enter the Internet password for your FRITZ!Box.
•You will be directed to the MyFRITZ! page of your
FRITZ!Box.
•You have access to the storage media enabled for shar-
ing, to the call list, and to the voice messages on the
answering machine.
•Click the “FRITZ!Box” button to open the user interface
of your FRITZ!Box.
FRITZ!Box 6810 LTE 44
MyFRITZ!: Global Access to the FRITZ!Box
MyFRITZ! in the Home Network
You can also use MyFRITZ! in the FRITZ!Box home network.
1. Enter “myfritz.box” in the address field of your browser.
2. Enter the Internet password for your FRITZ!Box.
You will be directed to the MyFRITZ! page of your FRITZ!Box. In
this case you do not have to log in to MyFRITZ!.
Multiple FRITZ!Boxes
You can register multiple FRITZ!Boxes at one MyFRITZ! ac-
count.
•Every FRITZ!Box is registered with the MyFRITZ! account
over your user interface. From the “Internet / MyFRITZ!”
menu, select the setting “Register the FRITZ!Box with an
existing MyFRITZ! account”.
•When you log in to MyFRITZ!, all registered devices will
be displayed.
Security with MyFRITZ!
For the following MyFRITZ! activities the https security proto-
col is used:
•setting up a MyFRITZ! account with myfritz.net
•registration of the FRITZ!Box with the MyFRITZ! account
•accessing the MyFRITZ! page of your FRITZ!Box over my-
fritz.net
•accessing the user interface of the FRITZ!Box
The FRITZ!Box generates its own https certificate. Be-
cause this certificate does not come from a certification
authority preset in common browsers, you have to con-
firm that the connection should be established never-
theless. Firefox and Internet Explorer will remember your
confirmation and refrain from showing any further warn-
ings.
http is used for the daily update of the IP address on
myfritz.net. The password is never transmitted as clear text.
FRITZ!Box as an Internet Router
FRITZ!Box 6810 LTE 45
13 FRITZ!Box as an Internet Router
The FRITZ!Box connects computers in your home network with the In-
ternet. This chapter explains the possibilities offered by using the
FRITZ!Box as an Internet router and how to take advantage of them.
13.1 Child Protection: Restricting Internet Access
The child protection feature allows you to define access rules
to the Internet for individual computers or Windows users.
These access rules may include restrictions of Internet access
time, filter lists and a list with blocked network applications.
•Restrict Internet access time: Using the time restriction
you can restrict the amount of time the user can surf the
web. You can define on which days of the week, at what
times of day, and for how long a computer or Windows
user is allowed to use the Internet connection.
•Block or permit web sites: you can use filter lists to de-
fine which Internet pages are allowed to be accessed
and to which access is blocked. For instance, you can
block all Internet pages the government has defined as
offensive or harmful to minors.
You can create both filter lists, the whitelist and the
blacklist. A whitelist contains all Internet pages to which
access is allowed. A blacklist contains all Internet pages
to which access is blocked.
•Block network applications: You can list network appli-
cations for which Internet access should be blocked. For
instance, you can block Internet access for file-sharing
software.
Child protection can be enabled for each computer individu-
ally, regardless of the computer’s operating system.
You can also enable child protection individually for all Win-
dows users in all Windows operating systems (Windows 7,
Windows Vista and Windows XP). This option is useful if a
computer is used by multiple users.
FRITZ!Box 6810 LTE 46
Port Forwarding: Making Computers Accessible from the Internet
Setting Up Child Protection in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Internet / Filters” menu.
3. Set up child protection. See the Online Help available in
the FRITZ!Box user interface for more information.
13.2 Port Forwarding: Making Computers Accessible from the
Internet
With default settings in the FRITZ!Box, programs on your com-
puter and LAN cannot be accessed from the Internet. For
applications like online games and file sharing software or
server services like HTTP, FTP, VPN, terminal and remote ac-
cess servers you have to make your computer accessible for
other Internet users.
Port Forwarding
Using port forwarding, you allow incoming connections from
the Internet. By releasing certain ports for incoming connec-
tions, you grant controlled access to your computers in your
network to other Internet users. Ports serve to assign incom-
ing data packets to the various applications when all applica-
tions can be accessed at one IP address only.
The following port forwarding methods are possible in the
FRITZ!Box:
PING IPv4:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv4 address of the
FRITZ!Box.
IPv6:
The FRITZ!Box responds to ping inquiries from
the Internet addressed to the IPv6 address of the
FRITZ!Box. Additionally, you can set up PING6
port forwarding rules for each computer in the
home network since each computer has its own
globally valid IPv6 address.
Port Forwarding: Making Computers Accessible from the Internet
FRITZ!Box 6810 LTE 47
Setting Up Port Forwarding in the FRITZ!Box
•IPv4: Port forwarding for IPv4 is set up in the “Internet /
Permit Access” menu, on the “Port Forwarding” page.
•IPv6: Enable the advanced view. Port forwarding for IPv6
is also set up in the “Internet / Permit Access” menu, on
the “IPv6” page.
TCP
UDP
IPv4:
Within IPv4 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when en-
tering the port range. One port can be opened for
exactly one computer.
IPv6:
Within IPv6 networks you can open the FRITZ!Box
firewall for the protocols TCP and UDP when en-
tering the port range. One port can be opened for
each computer in the network.
ESP
GRE
IPv4:
Within IPv4 networks you can open the firewall
for the two protocols ESP and GRE which do not
use ports.
Exposed Host
(Open firewall
completely)
IPv4:
Within IPv4 networks you can open the firewall
for one computer completely. This computer is
then no longer protected by the FRITZ!Box fire-
wall. If individual ports are already open for other
computers, then data packets for these ports are
not forwarded to the exposed host but to the oth-
er computer instead.
IPv6:
Within IPv6 networks you can open the firewall
for each computer completely. These computers
are then no longer protected by the FRITZ!Box
firewall.
FRITZ!Box 6810 LTE 48
Dynamic DNS: Name Instead of IP Address
Determining the IPv4 Address for Accessing the FRITZ!Box
If you have enabled ports for forwarding in the FRITZ!Box, oth-
er Internet users can access your computers at the IP address
assigned to your FRITZ!Box by the Internet service provider.
This is a public IPv4 address.
Here is how to determine the public IPv4 address of the
FRITZ!Box:
1. Open any Internet page in order to establish an Internet
connection.
2. Open the FRITZ!Box user interface and enable the ad-
vanced view in the user interface.
3. The FRITZ!Box’s public IPv4 address is displayed on the
“Overview” page in the “Connections” area.
13.3 Dynamic DNS: Name Instead of IP Address
Dynamic DNS is an Internet service that makes it possible for
the FRITZ!Box to remain accessible from the Internet at all
times under a fixed name, even though the public IP address
changes.
Dynamic DNS can be used as an alternative to MyFRITZ!. Both
services can be used in parallel.
You must register with a dynamic DNS provider to use this
service. When you register, you agree on the fixed name (do-
main name) at which your FRITZ!Box should be accessible
from the Internet. You also define a user name and password.
Every time the Internet connection is interrupted the Internet
service provider re-assigns the IP address. The IP address
may change in the process. Therefore it is a good idea to use
MyFRITZ! or dynamic DNS so that the IP address can always
be reached under the same name. For more information
about MyFRITZ!, see the section MyFRITZ!: Global Access to
the FRITZ!Box on page 42. For more information about dy-
namic DNS, see the section Dynamic DNS: Name Instead of
IP Address on page 48.
Remote Access over HTTPS
FRITZ!Box 6810 LTE 49
Every time the IP address changes, the FRITZ!Box transmits
the new IP address to the dynamic DNS provider in the form of
an update request. Then the domain name is assigned to the
current IP address by the dynamic DNS provider.
Setting Up Dynamic DNS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “Dynamic DNS” page and set up dynamic
DNS. Consult the Online Help available in the FRITZ!Box
user interface for more information.
13.4 Remote Access over HTTPS
With this function it is possible to access the user interface of
the FRITZ!Box from another location. This allows you to con-
figure settings in the FRITZ!Box or perform a FRITZ!OS update
using a computer that is not in your own network (LAN or
WLAN).
Setting Up Remote Access over HTTPS in the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “FRITZ!Box Services” page and enable the “In-
ternet access to the FRITZ!Box via HTTPS enabled” op-
tion. For more information, see the Online Help.
Prioritization: Right of Way for Internet Access
FRITZ!Box 6810 LTE 51
Prioritized Applications
This category is suitable for applications that require a fast
reaction time (for example, company access, terminal appli-
cations, games).
•For network applications prioritized in this category,
90% of the FRITZ!Box’s upload bandwidth is available,
as long as no application from the “real-time applica-
tions” category requires bandwidth. The remaining 10%
of the upload bandwidth is available for applications
that are prioritized in lower categories or not prioritized
at all.
•If multiple network applications are assigned to the “pri-
oritized applications” category, then they must share
the available capacity.
Background Applications
This category is suitable for applications that do not require
any high transmission speed and which are not time-critical
(for example, peer-to-peer services or automatic updates).
•Network applications assigned to this category are al-
ways treated with the lowest priority when the Internet
connection is working at full capacity. So whenever an
application from a different category or a non-prioritized
application requires the entire bandwidth, all back-
ground applications must wait until bandwidth capacity
becomes available again.
•If no other network applications are active, then the
background applications receive the entire bandwidth.
Prioritization Method in the FRITZ!Box
The following algorithm is used in the FRITZ!Box to send data
packets according to their prioritization:
•Change in the order in which packets are sent to the In-
ternet (upstream direction)
The order of the packets the FRITZ!Box receives from the
Internet (downstream direction) cannot be changed.
FRITZ!Box 6810 LTE 52
VPN: Remote Access to the Home Network
•Discard low-priority packets in order to ensure the trans-
mission of higher-priority packets. This algorithm is
used whenever more packets are supposed to be sent to
the Internet than the upstream transmission rate of the
Internet connection allows.
•As long as no packets are being sent from higher-priority
applications, the full transmission rate of the Internet
connection is available for low-priority packets.
Setting Up Prioritization in the FRITZ!Box
1. Enable the advanced view.
2. Prioritization is set up in the “Internet / Filters / Prioriti-
zation” menu.
13.6 VPN: Remote Access to the Home Network
Via VPN (see glossary) a secure remote access to the network
of the FRITZ!Box can be established. The VPN solution for the
FRITZ!Box features the following:
•The VPN solution for the FRITZ!Box is based on the IPSec
standard.
•Computer-LAN coupling and LAN-LAN coupling: VPN con-
nections can be set up for individual remote computers
or even for remote networks.
•A maximum of eight simultaneous active VPN connec-
tions is supported.
•The configuration files for the VPN connections are creat-
ed using a separate program. The program is provided
free of charge and can be downloaded from the AVM web
site.
•A free VPN client for individual computers can also be
downloaded from the AVM web site.
The AVM web site offers a Service Portal which presents com-
prehensive information on VPN in general and in connection
with the FRITZ!Box. Visit this portal to obtain more detailed in-
formation.
avm.de/en/vpn
VPN: Remote Access to the Home Network
FRITZ!Box 6810 LTE 53
Setting Up VPN in the FRITZ!Box
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. Select the “Internet / Permit Access” menu.
4. Select the “VPN” page.
See the Online Help of the FRITZ!Box to set up VPN.
Supplementary Software for VPN
All of the information required for a VPN is saved in a configu-
ration file. The terminals involved in any VPN must receive
this file.
Individual computers that are networked over a VPN require a
VPN client.
•“Configure FRITZ!Box VPN Connection” Wizard
AVM provides the “Configure FRITZ!Box VPN” software
for creating configuration files. This program is a Wizard
that takes you step by step through the VPN configura-
tion. All of the necessary VPN settings, like the encryp-
tion method and access rules, are set automatically. The
resulting configuration files must be imported to the re-
spective terminals of the VPN tunnel. At the terminal
with the FRITZ!Box the configuration file is then imported
to the FRITZ!Box. The VPN parameters in these files can
be adjusted manually to connect to products by other
manufacturers.
•The “FRITZ!VPN” VPN Client
AVM offers the “FRITZ!VPN” software as a VPN client.
Both the Wizard and the client can be downloaded free of
charge from the VPN Service Portal on the AVM web site:
avm.de/en/vpn
FRITZ!Box 6810 LTE 54
DNS Server: Freely Selectable
13.7 DNS Server: Freely Selectable
DNS servers are preset in the FRITZ!Box for IPv4 and IPv6.
These are the DNS servers assigned by the Internet provider.
For both IPv4 and IPv6, the preset DNS server can be replaced
by a free DNS server. Free DNS servers include, for instance,
OpenDNS and Google DNS.
Here is how to change the DNS server entry:
1. Open the FRITZ!Box user interface.
2. Enable the advanced view.
3. In the “Internet / Account Information” menu, select the
“DNS Server” page.
4. Change the settings for the DNS servers.
13.8 DNSSEC: Security for DNS Queries
DNSSEC is short for Domain Name System Security Exten-
sions. As the name says, this is an extension of DNS, the do-
main name system.
DNSSEC ensures that both the DNS server and the informa-
tion returned by the DNS server are authentic, or genuine.
Security with DNSSEC
When a home user surfs the web, she or he sends queries to
the Internet by entering URLs in the address field of the
browser. A URL is the name of a web site that is easy to re-
member, such as avm.de/en. Every query is sent to the DNS
server first. The DNS server resolves the URL into the corre-
sponding IP address. There is one unambiguous IP address
for every URL.
The “DNSv6” page is displayed only if you enabled IPv6
support for the FRITZ!Box on the “IPv6” page.
DNSSEC: Security for DNS Queries
FRITZ!Box 6810 LTE 55
The home user relies on the authenticity of the IP address re-
turned by the DNS server. Authentic means that the response
is the IP address of the desired web site, and not a faked IP
address that leads to a fake web site. DNSSEC can ensure that
the returned addresses are authentic.
Support with the FRITZ!Box
The FRITZ!Box supports DNSSEC queries over UDP.
The FRITZ!Box has a DNS proxy. The computers in the home
network use the FRITZ!Box as a DNS server. The FRITZ!Box for-
wards DNSSEC queries from the home network to the Inter-
net. The FRITZ!Box forwards DNSSEC responses from the In-
ternet to the home network. The DNSSEC information must be
validated on the computer in the home network. For this
DNSSEC must be supported in the operating system.
Connecting WLAN Devices Securely with the FRITZ!Box
FRITZ!Box 6810 LTE 57
Connecting WLAN Devices Automatically (WPS)
WLAN devices that support the fast connection method WPS
can be connected with the FRITZ!Box automatically.
1. Start the WPS function of your WLAN device. Consult the
documentation of the WLAN device to find out how to
start WPS.
2. Press the WLAN button on the FRITZ!Box until the
“WLAN” LED begins flashing. You have two minutes for
this task.
3. Your WLANdevice and the FRITZ!Box now establish a se-
cure WLAN connection automatically. The FRITZ!Box
“WLAN” LED stops flashing and remains on.
With this, the WLAN connection is established. Your WLAN de-
vice is integrated into your home network and can use the
Internet connection of the FRITZ!Box.
Connecting WLAN Devices Manually
You can connect WLAN devices with the FRITZ!Box manually.
WLAN devices like notebooks, tablets and smartphones use
the WLAN software of their own operating system for this con-
nection. A WLAN adapter at the USB port of your computer
can use the WLAN software of your computer or a WLAN pro-
gram of your own. No matter what program is used to estab-
lish the WLAN connection, the principle is the same: the
WLAN software searches for a WLAN radio network in the vi-
cinity and, after authorization with a WLAN key, enables the
WLAN connection between the FRITZ!Box and your WLAN de-
vice.
1. Make sure that the WLAN function of the FRITZ!Box is en-
abled and the “WLAN” LED is on. If “WLAN” is not on,
press the “WLAN” button briefly.
2. Start the WLAN software of your WLAN device. Consult
the documentation of your WLAN device for instructions.
3. Search for the WLAN radio network of your FRITZ!Box.
Upon delivery this network is called “FRITZ!Box 6810
LTE”.
FRITZ!Box 6810 LTE 58
Connecting WLAN Devices with the FRITZ!Box Guest Access
4. Enter the WLAN key of the FRITZ!Box.
With this, the WLAN connection is established. Your WLAN de-
vice is integrated into your home network and can use the
Internet connection of the FRITZ!Box.
14.2 Connecting WLAN Devices with the FRITZ!Box Guest Access
With the FRITZ!Box you can provide your guests with an Inter-
net connection of their own. At this guest access they can surf
the web with their own smartphones or tablets, but cannot
access the contents of your home network.
1. Open the FRITZ!Box user interface.
2. Make sure that the wireless radio network (WLAN) is en-
abled in the “WLAN / Radio Network” menu.
3. Select the “WLAN / Guest Access” menu and enable
guest access.
4. Assign a name for the guest wireless network (SSID) and
enter a WLAN key at least 20 characters long under “Se-
curity”.
This concludes the setup of your guest access. Now guests
can register their WLAN devices with the FRITZ!Box.
1. Your guest starts the WLAN software of her or his WLAN
device, searches for your guest wireless network and en-
ters the WLAN key you specified for authorization.
2. The WLAN connection will be established.
Your guest’s WLAN device can use the Internet connection of
the FRITZ!Box, but has no access to your home network. For
more information, see the Online Help.
Switching the WLAN Radio Network On and Off by Schedule
FRITZ!Box 6810 LTE 59
14.3 Switching the WLAN Radio Network On and Off by Schedule
You can switch the WLAN radio network of the FRITZ!Box auto-
matically according to a schedule. This function is called
“night service” and reduces the power consumption of the
FRITZ!Box by completely turning off the WLAN module. The
FRITZ!Box night service also affects any other FRITZ! products
connected in the network (FRITZ!WLAN Repeater, for instance)
by switching the WLAN transmission of these devices on and
off as well.
1. Open the FRITZ!Box user interface.
2. Open the “System / Night Service” menu.
3. Enable the schedule for the WLAN radio network.
With the options “Switch WLAN off daily” and “Switch
WLAN off according to schedule” you define the inter-
vals of the schedule. You can also select the option “The
radio network cannot be switched off until no more
WLAN devices are active”.
For more information on these settings, see the Online Help.
Switching WLAN on and off Manually
You can switch the wireless radio network of the FRITZ!Box on
and off at any time, even when the device is hibernating.
•Press the “WLAN” button on the FRITZ!Box briefly
or
•Switch on the wireless LAN radio network using a con-
nected telephone
WLAN on r96s1s
WLAN off r96s0s
FRITZ!Box 6810 LTE 64
WLAN—Getting Technical
The Standard for Security
IEEE 802.11i
The WPA2 security mechanism is defined in the IEEE 802.11i
standard. WPA2 is an extension of the familiar security mech-
anism WPA (Wi-Fi Protected Access).
The main feature of the extension of WPA to WPA2 is the AES-
CCMP encryption process.
FRITZ!Box supports the AES encryption procedure as part of
the WPA2 mechanism, and the TKIP encryption procedure as
part of the WPA mechanism. This means that the FRITZ!Box
can be used in combination with any WLAN devices that also
support WPA2 with AES or WPA with TKIP.
Frequency Ranges
WLAN uses the frequency ranges at 2.4 GHz and 5 GHz as its
transmission range.
With the FRITZ!Box you can establish WLAN connections in
the 2.4-GHz range.
2.4-GHz Frequency Band
In the 2.4-GHz frequency band WLAN works in the same range
as Bluetooth, microwave devices and various other devices
like radio-controlled toys, garage-door openers and video
bridges. This means that interference may occur within
WLANs operated in the vicinity of such devices. Generally this
has adverse effects on the transmission rate, including abort-
ed connections.
Mechanism Encryption
WPA TKIP (Temporary Key Integrity Protocol)
WPA2 TKIP
AES-CCMP
based on the extremely secure AES (Advanced
Encryption Standard) procedure. CCMP (Coun-
ter Mode with CBC-MAC Protocol) defines how
the AES procedure is applied to WLAN pack-
ets.
WLAN—Getting Technical
FRITZ!Box 6810 LTE 65
In the 2.4-GHz frequency range the European regulation au-
thorities have designated 13 channels for WLAN.
A channel can have a bandwidth of 20 MHz (throughput of up
to 130 Mbit/s) or 40 MHz (throughput of up to 300 Mbit/s).
Channels located directly next to each other in the 2.4-GHz
band may overlap and result in mutual interference. For in-
stance, if several WLANs are operated close to each other in
the 2.4-GHz frequency range with a bandwidth of 20 MHz, a
distance of at least five channels should be left empty be-
tween each two channels used. This means that if channel 1
is selected for one WLAN, the channels 6 through 13 can be
selected for a second WLAN. This maintains the minimum dis-
tance between channels.
Should interference in a WLAN persist, the first step should
be to select a different channel.
WLAN Autochannel
With the WLAN autochannel function, the FRITZ!Box automati-
cally searches for the channel subject to the least interfer-
ence. This process takes into consideration interference from
radio networks in the vicinity (WLAN base stations) and po-
tential sources of interference (for instance video bridges,
baby monitors, microwave ovens). Should problems with in-
terference persist despite this function, try to identify the
source of interference and switch it off manually.
Additional tips on interference in the WLAN radio network are
presented in the section Ruling Out Interference from Other
Wireless Networks from page 103.
Allocation of the WLAN Channels in the 2.4-GHz Range
Channel Frequency (GHz) Channel Frequency (GHz)
1 2.412 8 2.447
2 2.417 9 2.452
3 2.422 10 2.457
4 2.427 11 2.462
FRITZ!Box 6810 LTE 66
WLAN—Getting Technical
5 2.432 12 2.467
6 2.437 13 2.472
7 2.442
Channel Frequency (GHz) Channel Frequency (GHz)
FRITZ!Box as a Telephone System
FRITZ!Box 6810 LTE 67
15 FRITZ!Box as a Telephone System
The FRITZ!Box is a telephone system (or PBX: Private Branch Ex-
change) for Internet telephony. This chapter describes convenience
functions for the telephone system that can be configured in the
FRITZ!Box user interface, for instance telephone books, answering
machines and call diversion.
You will also find out which convenience functions can be used to
make calls, for instance internal calling, alternating between calls,
forwarding calls and three-party conferences.
15.1 FRITZ!Box Telephone Book
The FRITZ!Box provides a telephone book.
If you enable “click to dial”, you can make calls by simply
clicking a telephone number in the telephone book.
The telephone book and the click to dial feature are available
in the FRITZ!Box user interface (see page 25) under “Telepho-
ny / Telephone Book”.
Individual Telephone Books for Your FRITZ!Fon
If you have a FRITZ!Fon cordless telephone from AVM, you can
use the FRITZ!Box telephone book on the FRITZ!Fon.
If you have multiple FRITZ!Fon cordless telephones, you can
set up a separate telephone book of its own for each
FRITZ!Fon. Up to 6 telephone books can be saved in the
FRITZ!Box.
Setting Up a New Telephone Book
1. Open the FRITZ!Box user interface (see page 25).
2. Select “Telephony / Telephone Book”.
3. Click “New Telephone Book”.
4. Enter a name for the telephone book in the “Name”
field.
5. Select a telephone book or disable the option “Copy ex-
isting telephone book”. If you disable this option, the
new telephone book will be empty.
FRITZ!Box 6810 LTE 68
The FRITZ!Box Call List
6. Click the “OK” button.
The new telephone book is saved in the FRITZ!Box.
Selecting a Telephone Book for FRITZ!Fon
1. Open the FRITZ!Box user interface (see page 25).
2. Select “DECT”.
3. Choose a FRITZ!Fon and click the “Edit” button.
4. Select a telephone book from the drop-down list.
5. Click the “OK” button.
The telephone book is now available on the FRITZ!Fon.
15.2 The FRITZ!Box Call List
The FRITZ!Box saves your outgoing and incoming telephone
and fax calls in the call list. The call list also shows which
calls you missed (missed calls).
In the FRITZ!Box user interface the call list is found in the “Te-
lephony” menu.
Transfer to Telephone Book
Callers from the FRITZ!Box telephone book appear in the call
list along with their names.
Telephone numbers that are not saved in the telephone book
can be added to the telephone book from the call list with the
click of a mouse.
Saving the Call List as a CSV File
You can save the call list as a CSV file on your computer. The
CSV file can then be opened and edited in spreadsheet soft-
ware.
Setting Up FRITZ!Box Fax Reception
FRITZ!Box 6810 LTE 69
15.3 Setting Up FRITZ!Box Fax Reception
With the FRITZ!Box you can receive faxes without having to
connect a fax machine. The fax machine automatically for-
wards faxes received to one or multiple e-mail addresses,
which you can define in the FRITZ!Box.
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Telephony / Telephony Devices” menu.
3. Click “Configure New Device”.
4. Select the “Fax function” option and confirm by clicking
“Next”.
5. Enter a fax ID for fax reception. This could be your fax
number or name, for instance.
6. Enter the e-mail address to which received faxes should
be forwarded.
You can also enter multiple e-mail addresses. Use a
comma to separate the individual addresses.
7. Confirm with “Next”.
8. Select one or multiple telephone numbers you would
like to use exclusively for fax reception.
9. Confirm by clicking “Next” and “Apply”.
FRITZ!Box 6810 LTE 70
Setting Up Call Diversion
15.4 Setting Up Call Diversion
You can configure multiple call diversion modes with different
settings in the FRITZ!Box.
Call diversion can either divert all incoming calls or only cer-
tain calls.
You can divert the calls to an external telephone number, to a
certain telephone, or to an answering machine.
Examples for Call Diversion Settings
•All incoming calls will be diverted to another telephone
line.
•Calls that come from a certain telephone number will be
diverted to your mobile telephone number.
•Anonymous calls in which the caller does not transmit a
telephone number will be diverted to an answering ma-
chine.
Setting Up a New Call Diversion Setting
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Telephony / Call Diversion” menu.
3. Click “New Call Diversion”.
4. Define which calls should be diverted.
5. Define the destination and the type of call diversion.
6. Save the settings by clicking “OK”.
Call diversion is set up.
All configured call diversion settings can be viewed in the us-
er interface in the “Telephony / Call Diversion” menu. All call
diversion settings can be disabled or deleted here.
Saving Costs with Dialing Rules
FRITZ!Box 6810 LTE 71
15.5 Saving Costs with Dialing Rules
A dialing rule defines which telephone number the FRITZ!Box
uses for outgoing calls in a certain number range (for in-
stance, mobile telephone numbers, international telephone
numbers).
If you have multiple telephone numbers, you can use dialing
rules to have each outgoing call automatically placed using
the most economical telephone rate.
Setting Up New Dialing Rules in FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Telephony / Dialing Rules” menu.
3. Click the “New Dialing Rule” button.
4. Define the range of telephone numbers or the telephone
number to which the dialing rule should apply.
5. Select a telephone number from the “Connect via” drop-
down list.
6. Save the settings by clicking “OK”.
Now the dialing rule has been set up.
15.6 Blocking Telephone Numbers and Callers
In the FRITZ!Box you can block telephone numbers for outgo-
ing and for incoming calls.
•Blocking telephone numbers for outgoing calls.
Blocked numbers and number ranges (for instance, mo-
bile communications networks) can no longer be called
from the FRITZ!Box.
FRITZ!Box 6810 LTE 72
Setting Up Do Not Disturb
•Block telephone numbers for incoming calls:
If a number has been blocked for incoming calls, the
FRITZ!Box will no longer accept any calls from this tele-
phone number. However, the FRITZ!Box can only recog-
nize a blocked telephone number if the caller allows
transmission of her or his telephone number.
You can also block all anonymous incoming calls, for
which the caller has suppressed transmission of the
telephone number.
Setting Up a New Call Block
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Telephony / Call Blocks” menu.
3. Click the “New Blocking Rule” button.
4. Select whether the call block is to apply to incoming or
outgoing calls.
5. Enter a range of numbers or a number.
6. Save the settings by clicking “OK”.
The call block is now set up.
15.7 Setting Up Do Not Disturb
In the FRITZ!Box night service you can set up a Do Not Disturb
function so that none of the connected telephones and other
terminal devices signal calls. At a time freely defined by the
user (for instance 11:00 p.m. – 6:00 a.m.) the terminal devic-
es then will be set as follows:
•Connected telephones will not ring.
This is not the case for IP telephones. It is not possible to
set up Do Not Disturb for IP telephones in the FRITZ!Box.
•Connected fax and answering machines are disabled.
Setting Up the Alarm
FRITZ!Box 6810 LTE 73
Turning Do Not Disturb On/Off
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “System / Night Service / Do Not Disturb”
menu.
3. Enable the “Do Not Disturb enabled” option and define
the time period during which the telephones should not
be able to ring every day.
4. Save your settings by clicking “Apply”.
Do not disturb is now enabled.
To have the telephones ring again, disable the “Do Not Dis-
turb enabled” option and then click “Apply”.
Instead of setting the Do Not Disturb setting for all tele-
phones, in the FRITZ!Box you can also set the Do Not Disturb
feature for individual telephones. The Do Not Disturb function
for an individual telephone is set up in the telephone set-
tings. In the user interface of the FRITZ!Box, these settings
can be opened for editing in the “Telephony / Telephony De-
vices” menu.
15.8 Setting Up the Alarm
In the FRITZ!Box you can set an alarm. When an alarm is set
and enabled, a telephone connected to the FRITZ!Box will ring
at the specified time.
Setting the Alarm in FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Select the “Telephony / Alarm” menu.
3. Enable the alarm and enter a time.
4. Select which telephone should ring at the specified
time.
5. Define here whether the alarm should be repeated.
6. Save your settings by clicking “Apply”.
Now the alarm is set up and enabled.
FRITZ!Box 6810 LTE 74
Enabling the Baby Monitor
15.9 Enabling the Baby Monitor
When the baby monitor is enabled for a telephone, the tele-
phone automatically calls a previously specified telephone
number whenever the volume in the room reaches a defined
level. If the telephone is in the same room as your child, you
can use this function to monitor its sleep.
Enabling Baby Monitor
N Pick up the handset or activate the speaker
phone function of your telephone.
We recommend using a device with a speaker
phone function.
s4
<Level>
s
<Telephone num-
ber>
r
Enables the baby monitor.
<Level>: Sound level at which a call is triggered.
Enter a numeral between 1 (the most sensitive
setting) and 8.
<Telephone number>: The telephone number to
be called. Enter an internal telephone number
(see page 75), the number 9 for an internal
group call, or any external telephone number de-
sired.
Q Wait for the second-long acknowledgement tone.
Do not hang up the handset!
The baby monitoring function is now enabled.
As soon as the volume in the room reaches the
specified level, the telephone will dial the tele-
phone number you entered. If you accept the
call, you are connected with the telephone where
the baby monitor is enabled.
A new call is initiated no less than one minute af-
ter the previous call.
You can disable the baby monitor at any time by
hanging up the headset.
Telephones on which baby monitoring is enabled can be
called internally (see page 75) so that you can listen in on
the room directly.
Making Telephone Calls with Convenience Functions
FRITZ!Box 6810 LTE 75
15.10 Making Telephone Calls with Convenience Functions
This chapter describes convenience functions you can use
when placing and making telephone calls, for instance inter-
nal calling, forwarding calls, alternating between calls and
three-party conferences.
Making Internal Calls
All calls conducted between telephones connected to the
FRITZ!Box are internal telephone calls. Internal calls are free
of charge.
Group Call
A group call is placed to all other telephones connected to the
FRITZ!Box. You conduct the call with the party who picks up
first.
Dialing Internal Calls
N Pick up the handset.
ss<internal
telephone num-
ber>
Select ss and the internal telephone number
of a telephone.
Internal telephone numbers:
Cordless DECT telephones: 610 – 615
IP telephones: 620 – 629
Group Call
N Pick up the handset.
ss9 Dial the sequence shown at left.
Making Telephone Calls with Convenience Functions
FRITZ!Box 6810 LTE 77
Three-party Conference Call
A three-party conference call can involve one other internal
participant and one external participant, or two external par-
ticipants.
Conducting a Three-party Conference Call
N Pick up the handset.
M Establish the call with party 1: Dial ss and an
internal telephone number (see page 75) or dial
an external telephone number. Talk.
R Press the Hold button. Call 1 is on hold.
MCall party 2.
You can now conduct the second call while call 1
is on hold.
R3 Dial the sequence shown at left.
D Now all parties can confer together. If either of
the other two parties hangs up, your connection
with the remaining participant remains active.
O To end the three-party conference call, hang up
the handset.
R2 This keyboard shortcut ends the conference and
re-connects you with the party you called before
the conference began. The second call is on
hold. You can alternate between the two parties
by dialing the keypad sequence again.
FRITZ!Box 6810 LTE 78
Making Telephone Calls with Convenience Functions
Accepting or Rejecting Waiting Calls on an Analog
Extension of the FRITZ!Box
When the “call waiting” function is switched on, you hear a
signal whenever you receive an external call during an active
telephone conversation. You can then accept the call within
30 seconds. If you do not accept the call, it will be rejected.
You can enable and disable the “call waiting” function in the
FRITZ!Box user interface in the menu “Telephony / Telephony
Devices”.
Accepting Waiting Calls on Other Telephones
When making calls with a cordless DECT telephone registered
on the FRITZ!Box, you can accept waiting calls using the tele-
phone menu.
Alternating Between Calls
During a telephone call you can establish a connection to a
second party. You can alternate between the two parties as
often as you like.
Accepting or Rejecting Waiting Calls on an Analog Extension
R2 Use this keypad sequence to accept a waiting
call. The first call is on hold.
If you would like to end the first call, hang up the
receiver. As soon as you have hung up your tele-
phone will ring. When you pick up the receiver,
you will be connected with the waiting call.
R1 If the first call was on hold, you can return to the
first call using this keypad sequence.
R0 With this keypad sequence you can reject a wait-
ing call.
FRITZ!Box 6810 LTE 80
Making Telephone Calls with Convenience Functions
Consultation / Hold
You can put a telephone call on hold in order to consult with
another party. You call the second party. The party to the oth-
er call does not hear the consultation; after you are finished
you can resume the call that was on hold.
Consultation / Hold
Call 1
P
You are talking to caller 1.
R Press the Hold button. Call 1 is on hold. Party 1
can no longer hear you.
M Establish the connection to party 2: Dial an inter-
nal telephone number (see page 75) or an exter-
nal telephone number.
Call 2
P
If party 2 accepts the call, you can conduct the
conversation.
R If party 2’s line is busy or the call is not an-
swered, press the Hold button again to return to
call 1.
R1 Use this keypad sequence to return from call 2
back to call 1. Call 1 is now active again.
If you only press the Hold button, the connection
to caller 2 remains on hold until caller 2 hangs
up.
You can also end call 2 by hanging up the recei-
ver. Your telephone rings and after you pick up
the receiver again you will be connected with
party 1.
Making Telephone Calls with Convenience Functions
FRITZ!Box 6810 LTE 81
Using Keypad Shortcuts
With keypad sequences you can control the services and fea-
tures for your Internet telephone numbers.
For information about which keypad sequences you can use,
contact your carrier.
Entering Keypad Sequences on an Extension with Automatic
Outside Dialing
N Pick up the handset.
sr<Seq> Dial the sequence shown at left. <Seq> stands for
a keyboard sequence.
Entering Keypad Sequences on an Extension without Automatic
Outside Dialing
N Pick up the handset.
0sr<Seq> Dial the sequence shown at left. <Seq> stands for
a keyboard sequence.
Automatic outside dialing is the default setting in the
FRITZ!Box. If you make a lot of internal calls, you may want to
disable automatic outside dialing. For instructions, see
page 109.
FRITZ!Box 6810 LTE 82
FRITZ!Box as a DECT Base Station
16 FRITZ!Box as a DECT Base Station
A DECT base station is integrated in your FRITZ!Box, on which you can
register and configure a total of up to six cordless telephones. This
chapter describes various functions of the DECT base station.
16.1 Paging Cordless Telephones
If you have misplaced a cordless telephone, you can find it by
using a paging call:
1. Briefly press the “DECT” button of the FRITZ!Box. All
cordless telephones registered on the FRITZ!Box will
ring.
2. To end the paging call press the “DECT” button on the
FRITZ!Box again, or any button on your cordless tele-
phone.
16.2 Deregistering a Cordless Telephone from the FRITZ!Box
1. Open the FRITZ!Box user interface (see page 25).
2. Click “DECT”.
The “Cordless Telephones” page presents an overview of
the registered cordless telephones.
3. Click the “Delete” button next to the cordless tele-
phone to be deregistered.
The cordless telephone will be deregistered from the
FRITZ!Box.
If you deregister all of the cordless telephones from the
FRITZ!Box, the DECT function of the FRITZ!Box is switched off
automatically.
For instructions on how to register a cordless telephone on
the FRITZ!Box, see page 32.
Enabling DECT Eco
FRITZ!Box 6810 LTE 83
16.3 Enabling DECT Eco
The DECT Eco function allows the FRITZ!Box to switch off the
DECT network whenever all of the cordless telephones regis-
tered are on stand-by.
The connection between the FRITZ!Box and the cordless tele-
phones remains active. You can place and accept calls at any
time.
Prerequisite for Using DECT Eco
DECT Eco can be used only if all of the cordless telephones
registered on the FRITZ!Box support DECT Eco.
To find out whether your cordless telephone supports DECT
Eco, see the “DECT / DECT Monitor” menu in the FRITZ!Box us-
er interface.
Enabling DECT Eco in the FRITZ!Box
1. Open the user interface of the FRITZ!Box in a web brows-
er (fritz.box).
2. Select the “DECT / Base Station” menu.
3. Enable the “DECT Eco” option and define when DECT Eco
should be active.
4. Click the “Apply” button to save the settings.
5. Register all of the cordless telephones on the FRITZ!Box
again.
Now DECT Eco is enabled.
All of the latest FRITZ!Fon models by AVM support DECT Eco
(see also AVM Products for the FRITZ!Box from page 119).
FRITZ!Box 6810 LTE 84
The FRITZ!Box Home Network
17 The FRITZ!Box Home Network
The FRITZ!Box connects your network devices in what we call a
FRITZ!Box home network. In the home network the FRITZ!Box allows
all connected users shared use of a printer, for instance.
Network Devices
•Network devices include, for instance, computers, game
consoles and smartphones that are connected with the
FRITZ!Box via a network cable connection or via WLAN.
•All network devices can access each other’s folders re-
leased for sharing.
If you would like to learn more about the possibilities of net-
work devices in your FRITZ!Box home network, continue read-
ing in the chapter Network Devices in the FRITZ!Box Home
Network from page 85.
Network Devices in the FRITZ!Box Home Network
FRITZ!Box 6810 LTE 85
18 Network Devices in the FRITZ!Box Home Network
All network devices connected with the FRITZ!Box comprise a network.
Network devices include, for instance, computers, game consoles and
smartphones. The devices can be connected with the FRITZ!Box by
cable or wirelessly. This chapter describes the network settings in the
FRITZ!Box and how you can change them. You will also learn how you
can change the IP settings for the computer in the most common oper-
ating systems.
18.1 Network Settings in the FRITZ!Box
The FRITZ!Box is delivered with preconfigured network set-
tings. According to these settings, all network devices con-
nected with the FRITZ!Box are located in a single network.
The network settings can be changed and adapted to your
conditions and needs. But you should do so only if you are
well versed in networking technology.
Network Overview
The FRITZ!Box user interface shows an overview with all of the
devices and users connected with the FRITZ!Box.
The network overview “Devices and Users” is found in the
menu “Home Network / Network”.
•For each user and each network device, you find an entry
in the network overview.
•If you use FRITZ!Powerline devices in your network, then
the FRITZ!Powerline devices are entered in the network
overview along with the network devices connected to
the FRITZ!Powerline devices.
•The network overview is divided into the areas “Active
Connections”, “Guest Network” and “Idle Connections”.
The glossary (page 131) explains concepts and terminology
having to do with IP networks.
FRITZ!Box 6810 LTE 86
Network Settings in the FRITZ!Box
For each user and each network device, you find an entry in
the network overview. The columns have the following mean-
ings:
Accessing Network Devices by Mouse Click
Network devices that can be reached over the http protocol
can be accessed within the home network by the click of a
mouse. Clicking the device name opens the user interface of
the http application.
Icon A green LED before the device name indicates that
a device is actively connected with the FRITZ!Box,
but not using the Internet connection at this time.
A green-blue globe indicates that the device is cur-
rently using the Internet connection.
Name This column displays the name under which the
user or the network device is known to the
FRITZ!Box. The names of network devices can be
changed by clicking the button to edit the entry.
IP Address For network devices, also displayed is the IP ad-
dress with which the device is integrated into the
FRITZ!Box network.
Connection The WLAN icon is displayed for wireless connec-
tions.
Properties This column indicates whether port forwarding or
child protection is enabled for the respective user
or network device.
Button for editing the entry
The button opens the entry in editing mode. This
view displays information about the network de-
vice, for instance on child protection or port for-
warding settings. The name of the device in the
FRITZ!Box can be changed here.
Button for deleting the entry
Users or network devices that do not have an ac-
tive connection to the FRITZ!Box can be deleted
from the network overview by clicking this button.
Network Settings in the FRITZ!Box
FRITZ!Box 6810 LTE 87
Always Assigning the Same IP Address
The editing mode for network devices includes the setting
“Always assign this network device the same IP address”.
When this setting is enabled for a network device, the DHCP
server of the FRITZ!Box will always assign the same IP address
to this device each time the connection is established.
Starting the Computer—Wake on LAN
The Wake on LAN function of computers can be enabled in the
editing mode for network devices. The computers must sup-
port Wake on LAN and be connected with the FRITZ!Box with a
network cable. The Wake on LAN function is also available
when the devices are connected via FRITZ!Powerline devices.
Wake on LAN is a function that allows a computer in the local
network to be started when it is accessed from the Internet.
For instance, you can access a computer using remote main-
tenance software, without wasting electricity by keeping the
computer switched on permanently. The computer must be in
standby operation.
The FRITZ!Box supports Wake on LAN both for IPv4 and for
IPv6 connections.
•The “Start Computer” Button
You can start the computer each time it is accessed over
the Internet by clicking the “Start Computer” button.
•Starting Automatically
To do this, enable the setting “Start this computer auto-
matically as soon as it is accessed from the Internet”.
When the computer is accessed from the Internet, it is
started automatically.
Network Settings in the FRITZ!Box
FRITZ!Box 6810 LTE 89
•Fixed IPv4 addresses are registered in the network set-
tings of the computer, and you do not want to or are not
permitted to change these addresses.
•You want to connect the FRITZ!Box to the local IPv4 net-
work in order to make the FRITZ!Box features available to
all of the computers in the IPv4 network.
Reserved IP Addresses
The entire IP network 192.168.180.0 in the FRITZ!Box is re-
served for internal purposes.
IPv4 addresses from this network may not be assigned to the
FRITZ!Box.
DHCP Server for IPv4
The FRITZ!Box is equipped with its own DHCP server for the
IPv4 network. The DHCP server is enabled by default in the
factory settings. The following range of IP addresses is re-
served for the DHCP server in the factory settings:
192.168.178.20 - 192.168.178.200
This IP address can be changed as needed.
Every time the operating system on a computer connected
with FRITZ!Box is started, the DHCP server assigns it an IPv4
address from the IP address range of the DHCP server.
Assigning the IP addresses via the DHCP server ensures that
all of the computers connected with the FRITZ!Box are located
in the same IP network.
Only one DHCP server may be active within any network.
The computers can receive their IPv4 addresses from the
DHCP server only if the setting “Obtain an IPv4 address auto-
matically” is enabled in the their IP settings. For more infor-
mation, see the section Obtaining an IP Address Automati-
cally from page 93.
FRITZ!Box 6810 LTE 90
Network Settings in the FRITZ!Box
Fixed IPv4 Addresses When the DHCP Server Is Enabled
If you would like to configure fixed IPv4 addresses on individ-
ual computers connected with the FRITZ!Box despite the en-
abled DHCP server, please note the following:
•The IPv4 addresses must be from the IPv4 network of the
FRITZ!Box.
•The IPv4 addresses may not come from the address
range of the DHCP server.
•Each IPv4 address can be assigned only once.
Disabling the DHCP Server
You can disable the DHCP server.
To make sure that all computers remain in the same IP net-
work when the DHCP server is disabled, you must enter the
IPv4 addresses manually in the computers’ network settings.
First disable the option “Obtain an IP address automatically”
and then enter the IP address manually in the appropriate
field.
In the case of the preset IPv4 address of the FRITZ!Box, the
following IPv4 addresses are available for assignment to the
computers:
192.168.178.2 - 192.168.178.254
Here too: each IPv4 address can be assigned only once.
Network Settings in the FRITZ!Box
FRITZ!Box 6810 LTE 91
Changing Network Settings
1. Enable the advanced view in the user interface.
2. Select the “Home Network / Network” menu.
3. Select the “Network Settings” page.
4. Click the “IPv4 Addresses” or “IPv6 Addresses” button,
depending on the address range you would like to
change.
IPv6 Settings in the FRITZ!Box
The following settings options for IPv6 are found in the ad-
vanced view in the “Home Network / Network” menu on the
“Network Settings” page.
Additional IPv6 Routers in the Home Network
•IPv6 prefixes from other IPv6 routers
You can allow the network devices connected to the
FRITZ!Box to receive IPv6 prefixes announced by other
IPv6 routers in the local network.
•Also announce DNSv6 server via router advertisement
With this setting you specify that the FRITZ!Box announc-
es the local DNSv6 server in the local network via router
advertisement. Alternatively, the network devices can
identify the local DNSv6 server via DHCPv6.
IPv6 Settings
Click the “IPv6 Addresses” button to configure settings for
the IPv6 addresses in the local network.
Please note that changes to the network settings in the
FRITZ!Box may make it necessary to adjust the network set-
tings of your computers so that you can continue to access
the FRITZ!Box user interface.
FRITZ!Box 6810 LTE 92
Network Settings in the FRITZ!Box
Unique Local Adresses
The communication within the local network takes place via
the Unique Local Addresses (ULA). If no IPv6 Internet connec-
tion is established, the network devices do not have a ULA
and communication between them is restricted. For this case
you can set the FRITZ!Box such that the network devices re-
ceive the ULA from the FRITZ!Box.
DHCPv6 Servers in the Home Network
The FRITZ!Box is equipped with its own DHCPv6 server. The
DHCPv6 server of the FRITZ!Box is switched on by default.
The DHCPv6 server assigns the network devices their IPv6
settings. These settings are used instead of the data in the
router advertisement messages. The DNS server, IPv6 prefix-
es or IPv6 addresses can all be assigned by DHCPv6. Define
which IPv6 settings should be assigned by the DHCPv6 serv-
er.
UPnP Settings
The Universal Plug-and-Play (UPnP) service included in your
FRITZ!Box provides status information about the FRITZ!Box to
all connected computers. Programs with UPnP support on
these computers can receive this information and use them
to display the status of the FRITZ!Box (e.g., connection status,
data transmission). UPnP service thus allows you to monitor
your FRITZ!Box from a connected computer.
Here is how to change the UPnP settings:
1. Open the FRITZ!Box user interface (see page 25).
2. Enable the advanced view.
3. Configure the UPnP settings in the “Home Network / Net-
work” menu on the “Programs” page.
Obtaining an IP Address Automatically
FRITZ!Box 6810 LTE 93
18.2 Obtaining an IP Address Automatically
The FRITZ!Box has its own DHCP server, which assigns IP ad-
dresses to the connected computers. The connected comput-
ers must be configured such that they can receive their IP ad-
dresses automatically. The steps for checking and adjusting
this option differ among the operating systems. See the rele-
vant section for your operating system.
Obtaining an IP Address Automatically in Windows
1. Open the network connections:
Windows 7 and Windows Vista: Click “Start”, enter
“ncpa.cpl” in the search line of the start menu, and
press “Enter”.
Windows XP: Select “Start / Run”, enter “ncpa.cpl” and
then click “OK”.
Entering “ncpa.cpl” in Windows 7
2. Click the network connection between the computer and
the FRITZ!Box with the right mouse button and select
“Properties”.
3.
Windows 7 and
Windows Vista: Under “This connection
uses the following items”, select “Internet Protocol Ver-
sion 4 (TCP/IPv4)”.
Windows XP: Under “This connection uses the following
items”, select “Internet Protocol (TCP/IP)”.
4. Click the “Properties” button.
If FRITZ!Box is operated in a network, no other DHCP server
may be activated in this network.
FRITZ!Box 6810 LTE 94
Obtaining an IP Address Automatically
5. On the “General” tab, enable the options “Obtain an IP
address automatically” and “Obtain DNS server address
automatically”.
6. Click “OK” to save the settings.
The computer now receives an IP address from the FRITZ!Box.
Obtaining an IP Address Automatically in Mac OS X
1. Select the “System Preferences...” in the Apple menu.
2. In the “System Preferences” window, click the “Net-
work” icon.
3. In the “Network” window, select the “Built-in Ethernet”
entry from the list. Click the “Advanced...” button.
4. The “TCP/IP” settings page opens. Select the “Using
DHCP” option from the “Configure IPv4:” drop-down list.
5. Click “OK”.
The computer now receives an IP address from the FRITZ!Box.
Obtaining an IP Address Automatically
FRITZ!Box 6810 LTE 95
Obtaining an IP Address Automatically in Linux
For comprehensive information and tips on the topic of net-
work settings in Linux, see, for example:
tldp.org/HOWTO/NET3-4-HOWTO-5.html
FRITZ!Box 6810 LTE 96
Help in Case of Errors
19 Help in Case of Errors
This chapter provides assistance if you are not able to open
the user interface of your FRITZ!Box or are having problems
with the WLAN connection.
For more comprehensive help, see the AVM knowledge data-
base in the Internet, which can be accessed at the following
address:
service.avm.de/support/en/skb
19.1 The User Interface Does Not Open
If an error message is returned when you open the FRITZ!Box
user interface, this can have various causes. Check the
causes listed below and attempt to resolve the error.
Restarting the FRITZ!Box
The user interface cannot be opened or does not react.
Inconsistencies within the FRITZ!Box.
1. Restart the FRITZ!Box.
Remove the power cable from the socket.
2. Wait about five seconds before reconnecting to the pow-
er supply.
3. To make sure that the FRITZ!Box has finished restarting,
wait until the “Power/LTE” LED lights up and stops flash-
ing and, if you have switched on WLAN, the “WLAN” LED
remains lit up as well. This ensures that the FRITZ!Box re-
start has been completed.
4. Try again to open the FRITZ!Box user interface by enter-
ing fritz.box in the address field.
Cause
Help
The User Interface Does Not Open
FRITZ!Box 6810 LTE 97
Checking the Cable Connections
The FRITZ!Box user interface is not displayed in your web
browser.
The cable connections are not secure.
Make sure that all cables are plugged in securely.
Checking the Name Resolution
The user interface of the FRITZ!Box cannot be opened by
entering fritz.box.
The name resolution of the FRITZ!Box does not work.
1. In the web browser, enter the following IP address in
place of fritz.box:
192.168.178.1
2. If the user interface opens in response to this address,
set the network adapters of your computer to “Obtain
the IP address automatically” (see page 93).
Checking the IP Address
The user interface of the FRITZ!Box cannot be opened by
fritz.box nor by entering 192.168.178.1.
Incorrect IP address on the connected computer.
Set the computer’s network adapter to DHCP so that the net-
work adapter can obtain its IP address from the DHCP server
of the FRITZ!Box. See the section Obtaining an IP Address Au-
tomatically from page 93 for instructions.
If you still cannot open the user interface by entering fritz.box
or by 192.168.178.1, use the fixed IP address of the
FRITZ!Box as described on page 100.
Cause
Help
Cause
Help
Cause
Help
FRITZ!Box 6810 LTE 98
The User Interface Does Not Open
Disabling Dial-up Connections
The user interface is not opened; a window for a dial-up
connection appears instead.
The browser must use the network connection between the
computer and FRITZ!Box when the user interface is opened.
For this the automatic establishment of a Dial-Up Networking
connection must be disabled.
You can disable the automatic attempt to establish a Dial-up
Networking connection. The following example explains how
to check the settings of Internet Explorer 8:
1. Select the “Connections” settings page under “Tools /
Internet Options”.
2. In the “Dial-up and Virtual Private Network settings” sec-
tion, enable the option “Never dial a connection”.
3. As a final step, click “OK”.
Disabling Online Operation
The user interface does not appear in the window of your web
browser.
The web browser is set for offline operation.
Configure the web browser for online operation. Using the ex-
ample of Internet Explorer 8:
1. Open the “Tools” menu.
2. If a checkmark is displayed in front of “Work Offline”,
click this line.
The checkmark will be removed and Internet Explorer will
switch to online operation.
Cause
Help
Cause
Help
The User Interface Does Not Open
FRITZ!Box 6810 LTE 99
Checking the Proxy Settings
The user interface does not appear in the window of your web
browser.
The proxy settings of the web browser prevent the user inter-
face from being opened.
Enter the DNS name and the IP address of the FRITZ!Box as an
exception in the proxy settings of the web browser, as de-
scribed here for the example of the Internet Explorer 8.
1. Select the “Connections” settings page under “Tools /
Internet Options”.
2. Click the “LAN settings” button in the “Local Area Net-
work (LAN) settings” area.
3. In the “Proxy server” area of the next window, check the
“Use a proxy server for your LAN” option and then click
“Advanced”.
4. Enter as “Exceptions”:
fritz.box; 192.168.178.1; 169.254.1.1
and click “OK”.
Checking the Security Software
The user interface cannot be displayed in the web browser.
Security software is blocking access to the user interface.
Security software like firewalls can prevent access to the user
interface of the FRITZ!Box. Configure exceptions for the
FRITZ!Box in all of the enabled security software.
Cause
Help
Cause
Help
FRITZ!Box 6810 LTE 102
Cannot Establish a WLAN Connection
Checking the Security Settings for WLAN
Make sure that the WLAN security settings of the FRITZ!Box
agree with the security settings of the WLAN adapter.
The WLAN security settings of the FRITZ!Box are found in the
user interface:
1. Connect a computer to the FRITZ!Box with a network ca-
ble (see page 17).
2. Open the FRITZ!Box user interface (see page 25).
3. Select “WLAN / Security”.
4. Click the “Apply” button.
A window is displayed with the WLAN security settings.
You can print out these settings by clicking the “Print
Page” button.
Testing a Non-Encrypted WLAN Connection
Test whether a non-encrypted WLAN connection between the
FRITZ!Box and the WLAN adapter is possible.
1. Connect a computer to the FRITZ!Box with a network
cable (see page 17).
2. Open the FRITZ!Box user interface (see page 25).
3. Select “WLAN / Security”.
4. Enable the “non-encrypted” option.
5. Click the “Apply” button.
6. Remove the network cable and try again to establish a
connection.
If you cannot establish a non-encrypted WLAN connection,
make sure that the WLAN adapter in your computer is in-
stalled correctly. If the error cannot be remedied, contact the
manufacturer of the WLAN adapter.
Disable WLAN encryption only for testing. Enable WLAN
encryption right away after completing the tests.
Cannot Establish a WLAN Connection
FRITZ!Box 6810 LTE 103
Installing the Current Service Pack for Windows XP
The WLAN connection to the FRITZ!Box cannot be established
using the Microsoft WLAN Service (WZC: Windows Zero
Configuration) in Windows XP with Service Pack 2.
The required Microsoft patch for WPA2 (IEEE 802.11i) may not
be not installed.
Install Service Pack 3 (SP3) for Windows XP, available as a
free download from Microsoft. Then Microsoft WLAN Service
will support WPA2, so that a WLAN connection can be estab-
lished to the FRITZ!Box.
Ruling Out Interference from Other Wireless Networks
If there are other devices in the immediate vicinity of your
FRITZ!Box that use the same frequency band, mutual interfer-
ence and interrupted connections can occur. Devices that can
cause disruptions include other WLAN base stations, baby
monitors, game consoles, garage door openers, Bluetooth
devices, or wireless AV bridges, which also use the 2.4-GHz
frequency band.
If such devices are located in the vicinity of the FRITZ!Box,
test a different radio channel for the FRITZ!Box or switch the
radio channel setting to “Autochannel”. Then the FRITZ!Box
will automatically set the best WLAN channel for transmis-
sion.
1. Connect a computer to the FRITZ!Box with a network
cable (see page 17).
2. Open the FRITZ!Box user interface (see page 25).
3. Select “WLAN / Radio Channel”.
4. Set a different radio channel or automatic radio channel
selection.
5. Click the “Apply” button.
6. Remove the network cable and check whether interfer-
ence continues to occur.
Cause
Help
Switching the Alarm On and Off
FRITZ!Box 6810 LTE 105
20.3 Switching the Alarm On and Off
You can use the telephones connected to the FRITZ!Box as
alarms. The alarm can be set individually and enabled or dis-
abled at any time.
Configuring the Alarm for a Telephone
N Pick up the handset.
r881s s<time>
<internal telephone num-
ber>s
Defines the time at which the telephone
with the specified internal telephone
number will ring.
For instance, enter
r881s0700s1s if the
telephone on the “FON 1” socket
should ring at 07:00 a.m.
Internal telephone numbers:
Cordless DECT telephones: 610 – 615
IP telephones: 620 – 629
r91ss Save your settings.
O Hang up the handset.
Enabling the Alarm
N Pick up the handset.
r881ss Enable the alarm function.
r91ss Save your settings.
O Hang up the handset.
Disabling the Alarm
N Pick up the handset.
r881r Disable the alarm.
r91ss Save your settings.
O Hang up the handset.
FRITZ!Box 6810 LTE 106
Setting Up Call Diversion
20.4 Setting Up Call Diversion
With call diversion you can divert incoming calls. The calls are
diverted to an external telephone line or to a certain tele-
phone connected with your FRITZ!Box.
If your telephony provider supports direct diversion of incom-
ing calls, calls will be diverted by your provider. Otherwise the
FRITZ!Box establishes a second connection to divert the call.
In either case, call diversion to an external line will be
charged at your contracted telephone rates.
Configuring Call Diversion for All Calls
You can set up call diversion for all incoming calls.
For the destination number, enter a complete fixed-line or In-
ternet telephone number. Internet telephone numbers may
not contain letters or special characters.
Configuring Call Diversion for All Incoming Calls
N Pick up the handset.
Enter one of the following three keypad
sequences:
s21s<DNo>sr Configures immediate call diversion to
the destination number <DNo>.
s61s<DNo>sr Configures delayed call diversion (after
20 seconds) to the destination number
<DNo>.
s67s sr<DNo> Configures call diversion on busy to the
destination number <DNo>.
Calls will be diverted when the tele-
phone number called is busy.
Q Wait for the positive acknowledgement
tone.
O Hang up the handset.
FRITZ!Box 6810 LTE 108
Setting Up Call Diversion
Configuring Call Diversion for a Certain Telephone Number
You can set up call diversion for all calls that arrive for a cer-
tain telephone number.
Disabling Call Diversion for the Outgoing Telephone Number
N Pick up the handset.
Enter one of the following three keypad
sequences:
s21sr Disables immediate call diversion.
s61sr Disables delayed call diversion.
s67sr Disables call diversion on busy.
Q Wait for the second-long positive ac-
knowledgement tone.
O Hang up the handset.
For the destination number, enter a complete fixed-line or In-
ternet telephone number. Internet telephone numbers may
not contain letters or special characters.
Configuring Call Diversion for a Certain Telephone Number
N Pick up the handset.
Enter one of the following three keypad
sequences:
s21s<DNo>
s<telephone number>r
Configures immediate call diversion for
the telephone number entered to the
destination number <DNo>.
s61s<DNo>
s<telephone number>r
Configures delayed call diversion (after
20 seconds) for the telephone number
entered to the destination number
<DNo>.
s67s<DNo>
s<telephone number>r
Configures call diversion on busy for
the telephone number entered to the
destination number <DNo>.
Q Wait for the second-long positive ac-
knowledgement tone.
O Hang up the handset.
FRITZ!Box 6810 LTE 112
Technical Specifications
22 Technical Specifications
Facts worth knowing: Here you will find comprehensive technical data
on your FRITZ!Box 6810 LTE.
22.1 Ports and Interfaces
•LTE modem compliant with 3GPP standard, release 8 LTE
category 3 UE
•LTE frequency bands
–LTE band 20: 791 - 862 MHz (digital dividend)
–LTE band 7: 2500 - 2690 MHz
•DECT base station
•One LAN port over RJ45 socket (standard Ethernet,
10/100 Base-T)
•WLAN base station with support for wireless networks in
the 2.4-GHz frequency band
–IEEE 802.11b – 11 Mbit/s
–IEEE 802.11g – 54 Mbit/s
–IEEE 802.11n – 300 Mbit/s
22.2 Router Functions
•Router
•DHCP server
•Firewall with IP masquerading/NAT
•IPv4 and IPv6
•Child protection and filter lists
•Port forwarding
•Dynamic DNS
•VPN
User Interface and Display
FRITZ!Box 6810 LTE 113
22.3 User Interface and Display
•Configuration and status messages via a web browser on
a connected computer
•Five LEDs indicate the condition of the device
22.4 Physical Specifications
•Dimensions (W x D x H): ca. 64 x 99 x 134 mm
•Supply voltage: 230 V / 50 Hz
•Maximum power consumption: 8 W
•FRITZ!OS can be updated
•Conforms to CE standards
•Ambient conditions
–operating temperature: 0 °C to +40 °C
–storage temperature: -20 °C to +70 °C
–relative humidity (operation): 10% – 90%
–relative humidity (idle): 5% – 95%
22.5 Cable
Network Cable
The network cable (white) of the FRITZ!Box 6810 LTE is a stan-
dard category 5 (Cat 5) Ethernet cable. Please use a standard
STP-type (Shielded Twisted Pair) Ethernet cable of category 5
(Cat 5) to replace or extend the Ethernet cable. To extend the
cable you will need a shielded RJ45 double coupling (Cat 5)
with a 1:1 pin assignment. You can use both straight cables
and crosslink cables. All components are available from spe-
cialized vendors.
When components of a category smaller than Cat 5 are used,
reduced transmission rates may result.
AVM recommends using a network cable no more than
100 meters long.
Produkt Specifikationer
| Mærke: | AVM |
| Kategori: | Router |
| Model: | Fritz!Box 6810 LTE |
| Vekselstrømsindgangsspænding: | 230 V |
| Vekselstrømsindgangsfrekvens: | 50 Hz |
| Bredde: | 99 mm |
| Dybde: | 64 mm |
| Højde: | 134 mm |
| Vægt: | - g |
| Produktfarve: | Red,White |
| Generering af mobilnetværk: | 4G |
| Ethernet LAN-porte (RJ-45): | 1 |
| Ethernet LAN: | Ja |
| Wi-Fi-standarder: | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Strømforbrug (typisk): | 7 W |
| Ethernet LAN-datahastigheder: | 10,100 Mbit/s |
| Sikkerhedsalgoritmer: | 128-bit WEP,64-bit WEP,WPA,WPA2 |
| Ethernet WAN: | Ja |
| Bedste Wi-Fi standard: | Wi-Fi 4 (802.11n) |
| WLAN dataoverførselshastighed (maks): | 300 Mbit/s |
| Ethernet LAN-grænsefladetype: | Hurtigt ethernet |
| Kabelteknologi: | 10/100Base-T(X) |
| Netværksstandarder: | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| 3G: | Ingen |
| 4G: | Ja |
| DHCP-server: | Ja |
| Understøttede netværksprotokoller: | IPv6 |
| Firewall: | Ja |
| Kompatible operativsystemer: | Windows, Mac OS, Linux |
| Understøttede Windows-operativsystemer: | Ja |
| Understøttede Mac-operativsystemer: | Ja |
| Understøttede Linux-operativsystemer: | Ja |
| Understøttede WLAN-dataoverførselshastigheder: | 300 Mbit/s |
| Mobil netværksforbindelse: | Ja |
| 4G standard: | LTE |
| Filtrering af MAC-adresser: | Ingen |
| Båndbredde: | 2.4 GHz |
| Intern modem: | Ja |
| Upstream datahastighed: | 50 Mbit/s |
| Downstream datahastighed: | 100 Mbit/s |
Har du brug for hjælp?
Hvis du har brug for hjælp til AVM Fritz!Box 6810 LTE stil et spørgsmål nedenfor, og andre brugere vil svare dig
Router AVM Manualer
26 Juli 2025
16 Juli 2025
9 December 2024
6 December 2024
27 September 2024
25 August 2024
25 August 2024
24 August 2024
24 August 2024
24 August 2024
Router Manualer
- Silverline
- Dell
- Motorola
- Gembird
- Planet
- Digital Forecast
- TP-Link
- Foscam
- Sitecom
- SMC
- Bosch
- Digitalinx
- Buffalo
- MSI
Nyeste Router Manualer
4 August 2025
3 August 2025
2 August 2025
31 Juli 2025
30 Juli 2025
29 Juli 2025
29 Juli 2025
29 Juli 2025
27 Juli 2025
26 Juli 2025
