Side 1/8

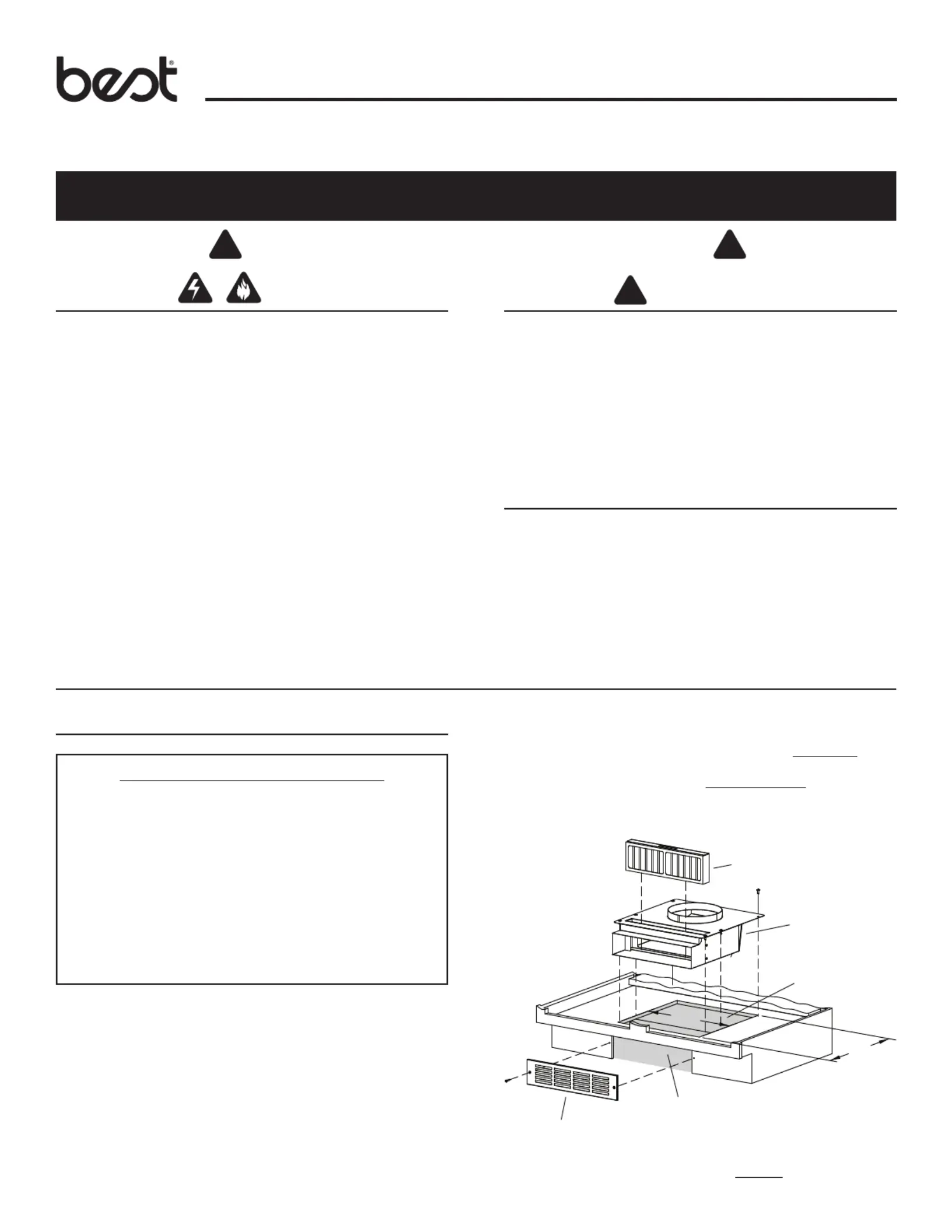

Model ANKDINSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer at the address or telephone number in the

warranty.

2. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

3. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent backdrafting. Follow the

heating equipment manufacturer’s guideline and safety

standards such as those published by the National Fire

Protection Association (NFPA), and the American Society

for Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

4. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

5. To reduce the risk of fire, use only metal ductwork.

INTENDED FOR DOMESTIC COOKING ONLY

CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. Clean filters and grease-laden surfaces frequently.

3. Do not repair or replace any part of this appliance unless

specifically recommended in this manual. All other servicing

should be done by a qualified technician.

4. Please read specification label on product for further

information and requirements.

CONTENTS

1 - Recirculation Box

1 - Recirculation Filter

1 - Decorative Grille

1 - Parts Bag (containing):

6 - #10 x .625” screws

4 - #8 x .375” screws

2 - #8 x 1” screws

PLAN THE INSTALLATION

1. Determine where recirculation box will exhaust through

cabinet.

• Front (toe space), Back, Side (Left or Right).

• 14½” x 15” opening in cabinet base is required for

recirculation box.

• 3½” x 14¼” opening is required for exhaust.

2. Determine location of recirculation box.

• Plan to align blower outlet with recirculation box inlet.

DOWNDRAFT RECIRCULATION KIT

15”

14½”

DECORATIVE

GRILLE

FILTER

RECIRCULATION

BOX

3½” x 14¼”

EXHAUST OPENING

OPENING IN

CABINET BASE

EXHAUST THROUGH CABINET FRONT (TOE SPACE)

IMPORTANT - Installation Requirements

The blower can be installed in either of two ways:

(1) attached to the downdraft and stabilized with

mounting legs.

(2) installed remotely (not attached to the downdraft),

using mounting brackets and wood framing.

Purchase blower separately. (Includes mounting legs and

mounting brackets.)

A minimum 24-inch wide cabinet is recommended.

The 8-inch round blower outlet and 8-inch round

recirculation box inlet must align vertically. (See page 2.)

3. Determine what lengths of duct are required. (Purchase

duct separately.)

• A length of flexible or rigid 8” round duct is required to

connect blower exhaust to recirculation box inlet.

• A length of 3¼” x 14” duct may be required to connect

to exhaust of recirculation box and extend to decorative

grille location.

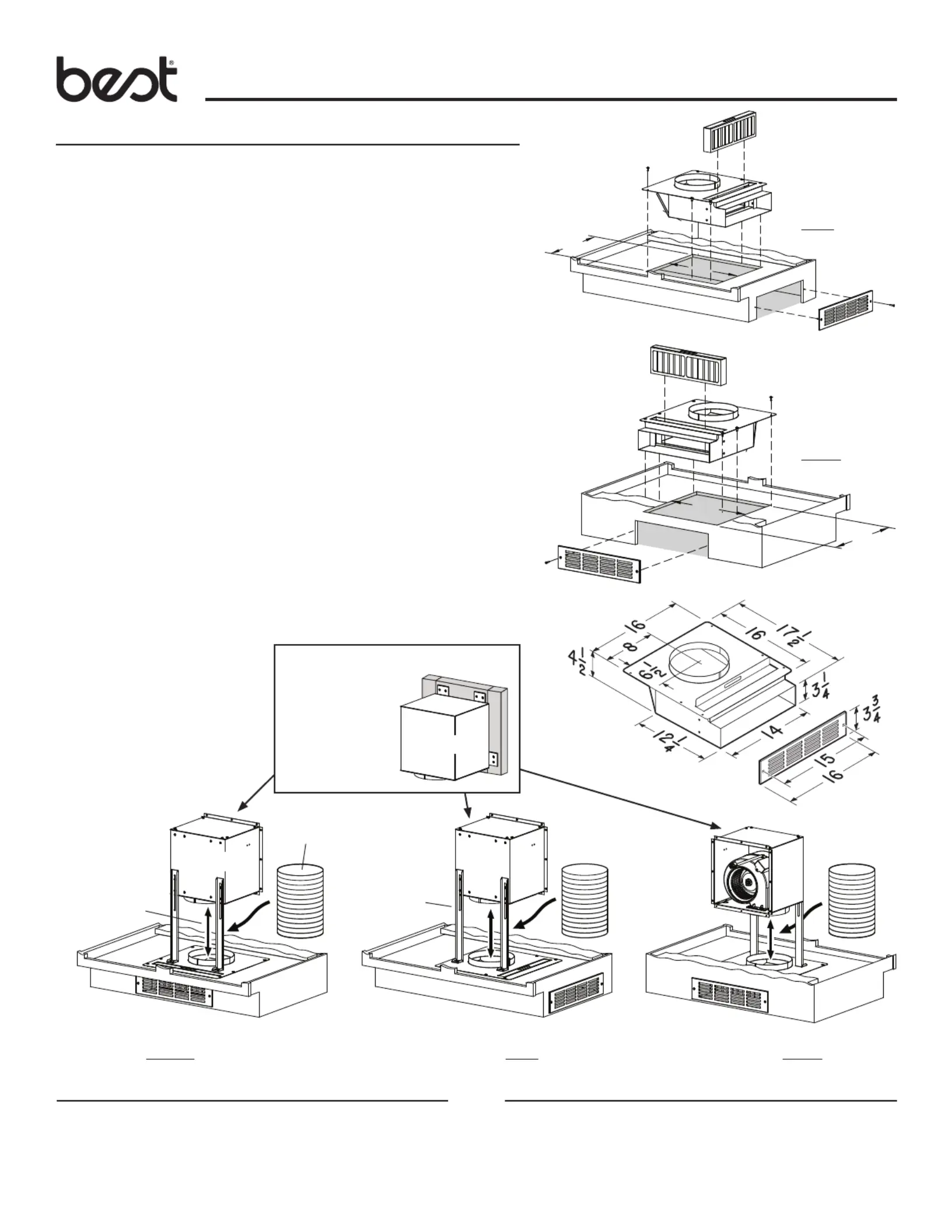

Model ANKDINSTALLATION INSTRUCTIONS

INSTALL THE RECIRCULATION BOX

1. Cut opening in cabinet base.

• Size: 14½” x 15”

• Orientation depends upon direction of exhaust.

• Double-check that blower outlet and recirculation box inlet will align.

2. Temporarily place recirculation box into opening in cabinet base.

• Rotate back of box up slightly and insert exhaust end down into

opening.

• Mark location of exhaust opening in toe space, rear, or side of

cabinet.

3. Remove recirculation box from opening.

4. Cut exhaust opening.

• Size: 3½” x 14¼”

• This opening will be covered with decorative grille.

5. Replace recirculation box into opening in cabinet base.

• If necessary, attach a length 3¼” x 14” duct extension (not included)

to extend from recirculation box outlet to decorative grille location.

• Seal the duct connection(s) with duct tape to make them secure and

air tight.

• Use 6 - #10 x .625” screws to secure recirculation box to cabinet

base.

6. Install blower.

• See blower instructions.

• Use 8” round flexible or rigid duct to connect blower exhaust to

recirculation box inlet

• Seal the duct connections with duct tape to make them secure and

air tight.

• Drill 1/8” pilot holes through top of recirculation box and attach legs

to recirculation box with 4

- #8 x .375” screws.

7. Install decorative grille.

• Use screws provided.

8. Remove polyfilm from filter.

• Lift filter from slot.

• Remove polyfilm.

• Replace filter into slot.

CUSTOM-MADE DECORATIVE GRILLE

You can make your own decorative grille. Use the decorative

grille in this kit as a template for the overall size and mounting

hole locations. The grille opening pattern is up to you.

Equivalent area of grille slots for proper air flow = 18 in.

min.

15”

14½”

EXHAUST

THROUGH

CABINET

SIDE

15”

14½”

FILTER REPLACEMENT

It is recommended that you replace the recirculation filter every

6 months. However, this may vary, depending upon the type

and amount of cooking you do. Call customer service or your

local distributor to order filter replacement Model AFCD.

ALIGN BLOWER

OUTLET WITH

RECIRCULATION

BOX INLET

METAL 8” ROUND

FLEXIBLE OR RIGID

DUCT (per local codes)

EXHAUST THROUGH

CABINET FRONT (TOE SPACE)

BLOWER

EXHAUST THROUGH

CABINET SIDE

EXHAUST THROUGH

CABINET BACK

Blower mounted

to downdraft using

mounting legs.

BLOWER

Blower mounted to

framing in remote

location - using

mounting brackets.

MOUNTING

LEGS

Blower outlet and

recirculation box

inlet must align.

(See below.)

OPTIONAL REMOTE BLOWER MOUNT

DIMENSIONS

EXHAUST

THROUGH

CABINET

BACK
