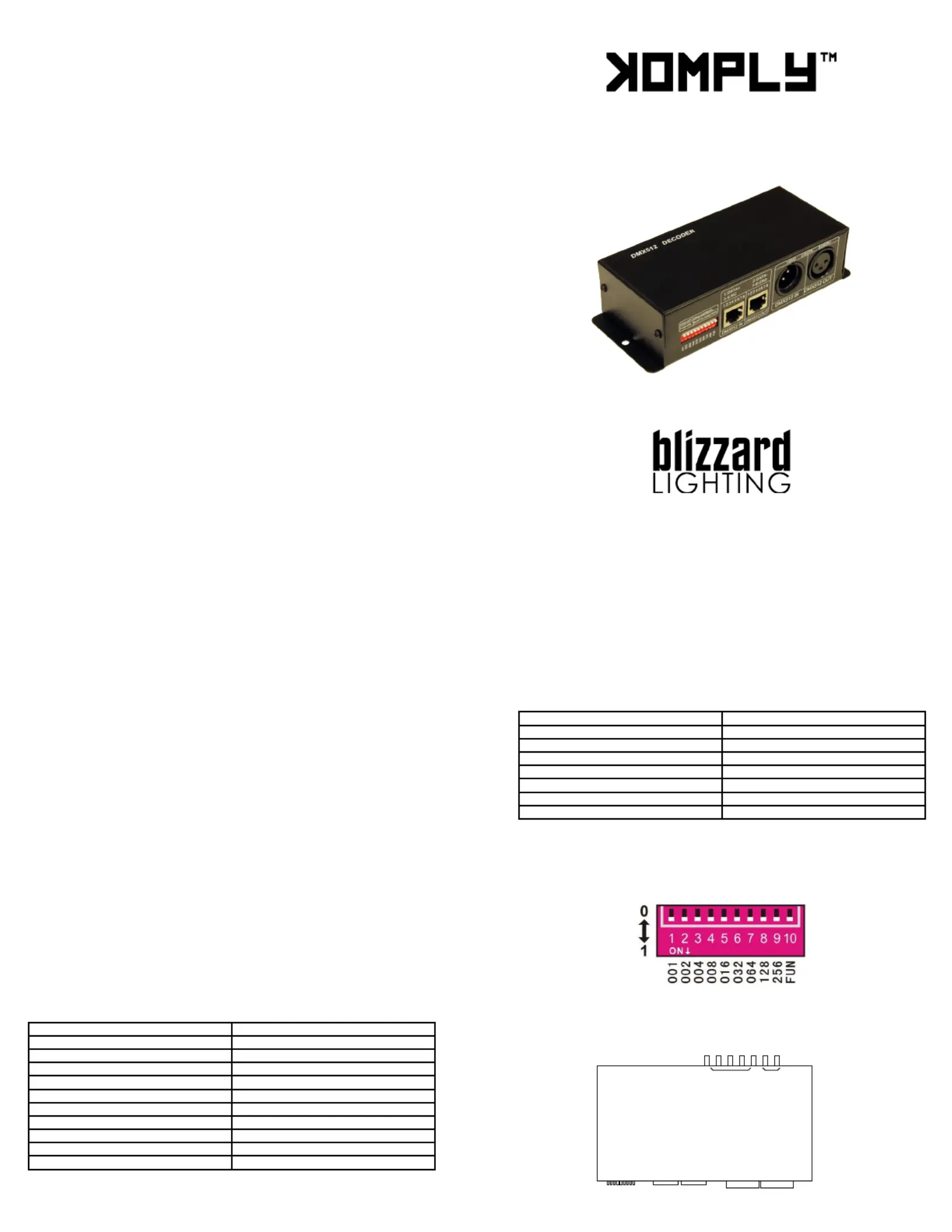

Side 1/1
Copyright © 2017 Blizzard Lighting, LLC
www.blizzardlighting.com
PRODUCT LIMITED WARRANTY
Blizzard Lighting, LLC hereby warrants that its products shall be free of manufacturing defects in
material and workmanship for a prescribed period from the date of purchase (see specic warranty
period below). This warranty shall be valid only if the product is purchased within the United States of
America, including possessions and territories. This warranty shall be valid only if the product is pur-
chased from an authorized dealer appointed by Blizzard Lighting, LLC. It is the owners responsibility to
establish the date and place of purchase by acceptable evidence.
product. Contact Blizzard Lighting, LLCs Service Department online at www.blizzardlighting.com/sup-
port. Send the product only to the Blizzard Lighting, LLC factory. All shipping charges must be prepaid.
If the requested repairs or service (including parts replacement) are within the terms of this warranty,
Blizzard Lighting, LLC will pay return shipping charges only to a designated point within the United
States. If the entire unit is sent, it must be shipped in its original package. No accessories should be
shipped with the product. If any accessories are shipped with the product, Blizzard Lighting, LLC shall
have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return
thereof.
This warranty is void if the serial number has been altered or removed; if the product is modied in
any manner which Blizzard Lighting, LLC concludes, after inspection, aects the reliability of the prod-
uct; if the product has been repaired or serviced by anyone other than the Blizzard Lighting, LLC fac-
tory unless prior written authorization was issued to purchaser by Blizzard Lighting, LLC; if the product
is damaged because not properly maintained as set forth in the instruction manual.
This is not a service contract, and this warranty does not include maintenance, cleaning or periodic
check-up. During the period specied above, Blizzard Lighting, LLC will replace defective parts at its
expense with new or refurbished parts, and will absorb all expenses for warranty service and repair
labor by reason of defects in material or workmanship. The sole responsibility of Blizzard Lighting,
LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of Blizzard Lighting.
Blizzard Lighting, LLC reserves the right to make changes in design and/or improvements upon its
products without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with products described above. Except to the extent prohibited by applicable law, all implied warranties
made by Blizzard Lighting, LLC in connection with this product, including warranties of merchantability
or tness, are limited in duration to the warranty period set forth above. And no warranties, whether
expressed or implied, including warranties of merchantability or tness, shall apply to this product
after said period has expired. The consumers and/or Dealers sole remedy shall be such repair or
replacement as is expressly provided above; and under no circumstances shall Blizzard Lighting, LLC
be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use,
this product.
This warranty is the only written warranty applicable to Blizzard Lighting Products and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
LIMITED WARRANTY:
All Controller Products: 2 years
All Fog/Atmospheric Products (Non-DMX): 90 days, (DMX): 2 years
Lasers: 2 years
Other Products not listed here: 90 days
REGISTER YOUR PRODUCT ONLINE AT: WWW.BLIZZARDLIGHTING.COM
SPECIFICATIONS
• Working temperature: -20-60˚ C
Supply voltage: DV 12-24V
Product size: L166xW67xH41 mm
Package size: L185xW85xH59 mm
Net weight: 320g
Gross weight: 355g
Output: Three CMOS drain-open output
Connecting Mode: Common anode
Output power: 12V:<108W, 24V:<192W
Max output current: 4A each color
FUNCTION
1.) Each DMX common controller will occupy 4 DMX addresses. Each coding switch
can set address code from 1 to 9, 1 is the lowest, and 9 is the highest. A combination
of 511 address codes are possible. DMX original address code is the total value of the
coding switch value from 1 to 9. Dial the coding switch upward (ON is set to 1) to set
the bit value (by default the bit value is 0). For example: if you want to set 37 as the
address code, you can only dial down the rst, the third, and the sixth code switch,
the total value of coding switch from 1 to 9 is 32+4+1. The default address code of
DMX512 is 37.
2.) DMX signal can be received when coding switch FUN (10) = OFF (ON is set to 0)
3.) When the coding switch FUN (10) is on, its function is as follows:
CODING SWITCH FUNCTION
Switch 1-9 is OFF black
Switch 1 = ON red
Switch 2 = ON green
Switch 3 = ON blue
Switch 4 = ON yellow
Switch 5 = ON purple
Switch 6 = ON cyan
Switch 7 = ON white
Switch 8 = ON 7 color jumpy change (8 steps speed)
Switch 9 = ON 7 color gradual change (8 steps speed)
Komply™ DMX
4.) If the built-in programs coding switch is ON (switch 8 or 9), the speed option is 1
to 7 (slow to fast.) There are 8 steps total:
Switch 1-7 is OFF 0 step
Switch 1 = ON 1 step
Switch 2 = ON 2 steps
Switch 3 = ON 3 steps
Switch 4 = ON 4 steps
Switch 5 = ON 5 steps
Switch 6 = ON 6 steps
Switch 7 = ON 7 steps
Note: When there are several switches are on at the same time as in the picture
below, please refer to the biggest setting. For example, if switch 10 is on so it set to
run built-in programs, the next largest setting here for the programs is 9 so it is color
fading, the speed is set to 7 (the fastest).
DMX512 DECODER
OUTPUT
CH3
SWITCH DMX512 IN DMX512 OUT DMX512 IN DMX512 OUT
CH2 CH1 COM V+ V-
POWER
CH1=R
CH2=G
CH3=B
CH4
CH4=
W
INTERFACE DIAGRAM
