P/N 750301 Page 1

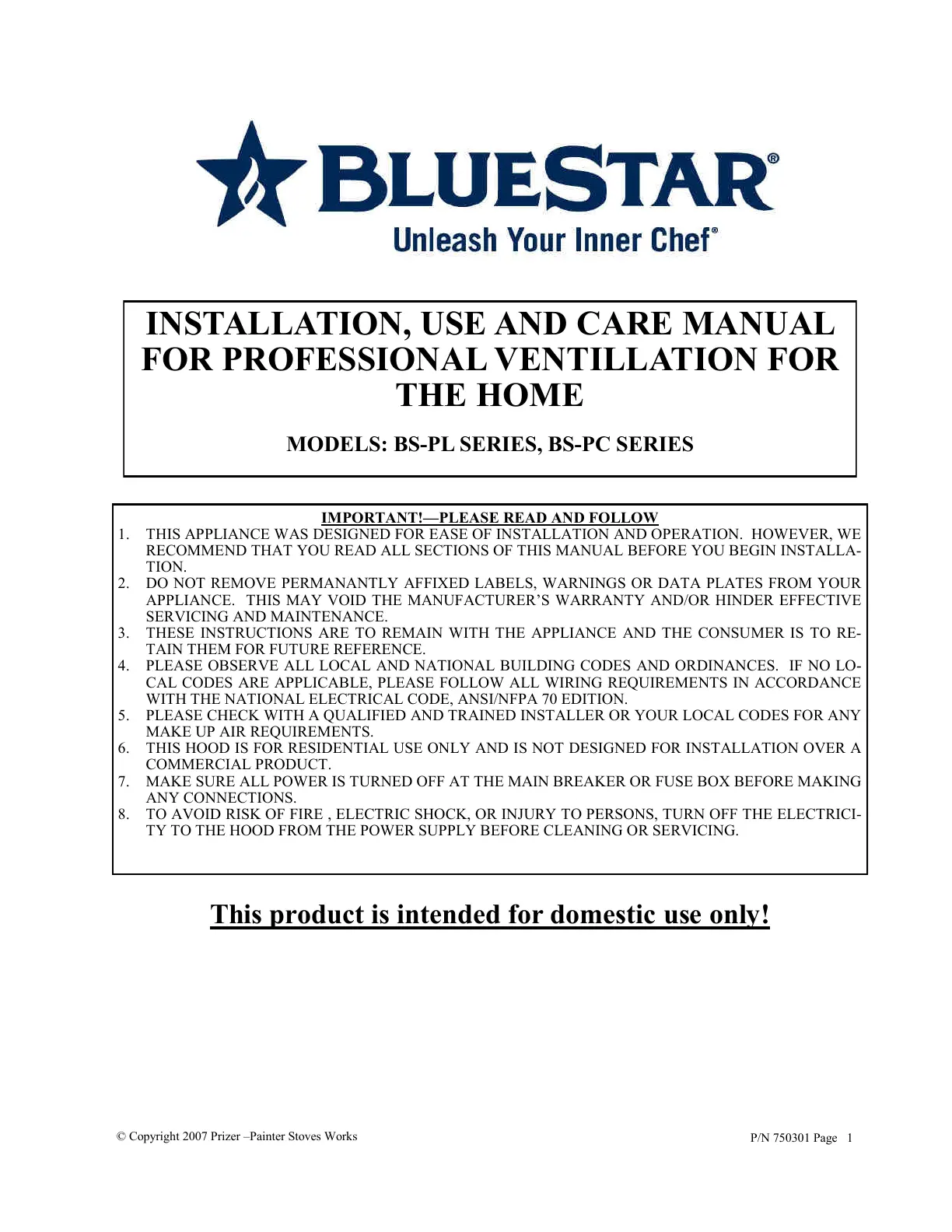

INSTALLATION, USE AND CARE MANUAL

FOR PROFESSIONAL VENTILLATION FOR

THE HOME

MODELS: BS-PL SERIES, BS-PC SERIES

IMPORTANT!—PLEASE READ AND FOLLOW

1. THIS APPLIANCE WAS DESIGNED FOR EASE OF INSTALLATION AND OPERATION. HOWEVER, WE

RECOMMEND THAT YOU READ ALL SECTIONS OF THIS MANUAL BEFORE YOU BEGIN INSTALLA-

TION.

2. DO NOT REMOVE PERMANANTLY AFFIXED LABELS, WARNINGS OR DATA PLATES FROM YOUR

APPLIANCE. THIS MAY VOID THE MANUFACTURER’S WARRANTY AND/OR HINDER EFFECTIVE

SERVICING AND MAINTENANCE.

3. THESE INSTRUCTIONS ARE TO REMAIN WITH THE APPLIANCE AND THE CONSUMER IS TO RE-

TAIN THEM FOR FUTURE REFERENCE.

4. PLEASE OBSERVE ALL LOCAL AND NATIONAL BUILDING CODES AND ORDINANCES. IF NO LO-

CAL CODES ARE APPLICABLE, PLEASE FOLLOW ALL WIRING REQUIREMENTS IN ACCORDANCE

WITH THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 EDITION.

5. PLEASE CHECK WITH A QUALIFIED AND TRAINED INSTALLER OR YOUR LOCAL CODES FOR ANY

MAKE UP AIR REQUIREMENTS.

6. THIS HOOD IS FOR RESIDENTIAL USE ONLY AND IS NOT DESIGNED FOR INSTALLATION OVER A

COMMERCIAL PRODUCT.

7. MAKE SURE ALL POWER IS TURNED OFF AT THE MAIN BREAKER OR FUSE BOX BEFORE MAKING

ANY CONNECTIONS.

8. TO AVOID RISK OF FIRE , ELECTRIC SHOCK, OR INJURY TO PERSONS, TURN OFF THE ELECTRICI-

TY TO THE HOOD FROM THE POWER SUPPLY BEFORE CLEANING OR SERVICING.

This product is intended for domestic use only!

P/N 750301 Page 2

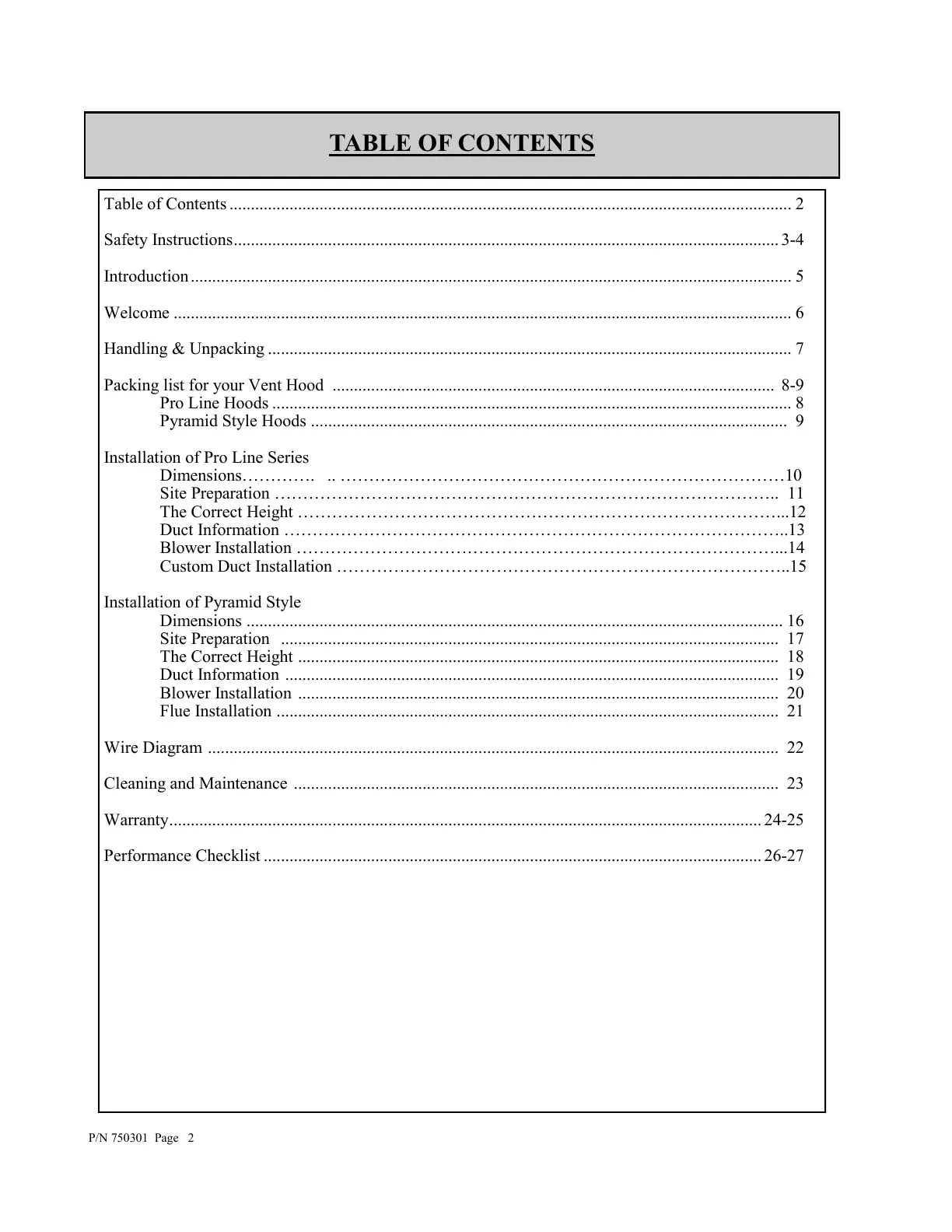

TABLE OF CONTENTS

Table of Contents ................................................................................................................................... 2

Safety Instructions ............................................................................................................................... 3-4

Introduction ............................................................................................................................................ 5

Welcome ................................................................................................................................................ 6

Handling & Unpacking .......................................................................................................................... 7

Packing list for your Vent Hood ....................................................................................................... 8-9

Pro Line Hoods ......................................................................................................................... 8

Pyramid Style Hoods ............................................................................................................... 9

Installation of Pro Line Series

Dimensions…………. .. ……………………………………………………………………10

Site Preparation …………………………………………………………………………….. 11

The Correct Height …………………………………………………………………………...12

Duct Information ……………………………………………………………………………..13

Blower Installation …………………………………………………………………………...14

Custom Duct Installation ……………………………………………………………………..15

Installation of Pyramid Style

Dimensions ............................................................................................................................. 16

Site Preparation .................................................................................................................... 17

The Correct Height ................................................................................................................ 18

Duct Information ................................................................................................................... 19

Blower Installation ................................................................................................................ 20

Flue Installation ..................................................................................................................... 21

Wire Diagram ..................................................................................................................................... 22

Cleaning and Maintenance ................................................................................................................. 23

Warranty .......................................................................................................................................... 24-25
