Communications Systems | LB2‑UCxx‑x Premium‑sound Cabinet Loudspeaker Range

The LB2‑UCxx‑x Premium‑sound cabinet loudspeakers are

intended for clear reproduction of speech, foreground and

background music to be used in general indoor and

outdoor applications. The Premium‑sound cabinet

loudspeaker range consists of a 15 W and 30 W model,

available in a light or dark color. The loudspeakers have

selectable 8 ohm, 70 V and 100 V inputs.

Typical applications are: theme bars, music restaurants,

theme parks, retail outlets, audio visual, boardrooms and

offices, exhibition areas, showrooms, fitness centre’s and

presentation environments.

Certifications and Approvals

All Bosch loudspeakers are designed to withstand

operating at their rated power for 100 hours in

accordance with IEC 268‑5 Power Handling Capacity

(PHC) standards. Bosch has also developed the Simulated

Acoustical Feedback Exposure (SAFE) test to demonstrate

that the speakers can withstand two times their rated

power for short durations. This ensures extra reliability

under extreme conditions, leading to greater customer

satisfaction, longer operating life, and much less chance

of failure or performance deterioration.

Safety acc. to EN 60065

Water protection acc. to EN 60529 IP x4

Self extinguishing acc. to UL94 V 0

Installation/Configuration Notes

The cabinets include a built‑in transformer that offers a

selection of nominal full power, half power, quarter power

or eight power radiation (i.e. in 3 dB steps) for 70 V,

100 V or 8 Ohm bypass.

Selection is done by a convenient switch on the rear

enclosure.

A two meter long twin‑core loudspeaker cable (in

matching color with the cabinet) is connected to the

loudspeaker. The core ends are stripped ready for use.

The cabinets can be mounted horizontally to allow the

loudspeaker to be directed up or down, or vertically to

allow left and right rotation by means of a steel U-shaped

wall bracket (standard supplied).

The rotatable logo can be easily adjusted to match the

mounting orientation.

LB2‑UCxx‑x Premium‑sound Cabinet

Loudspeaker Range

▶High-fidelity music and speech reproduction

▶Selectable 8 ohm, 70 V and 100 V inputs

▶Compact yet robust ABS enclosure

▶Supplied with adjustable mounting bracket

▶Complies with international installation and safety

regulations

www.boschsecurity.com

2 | LB2‑UCxx‑x Premium‑sound Cabinet Loudspeaker Range

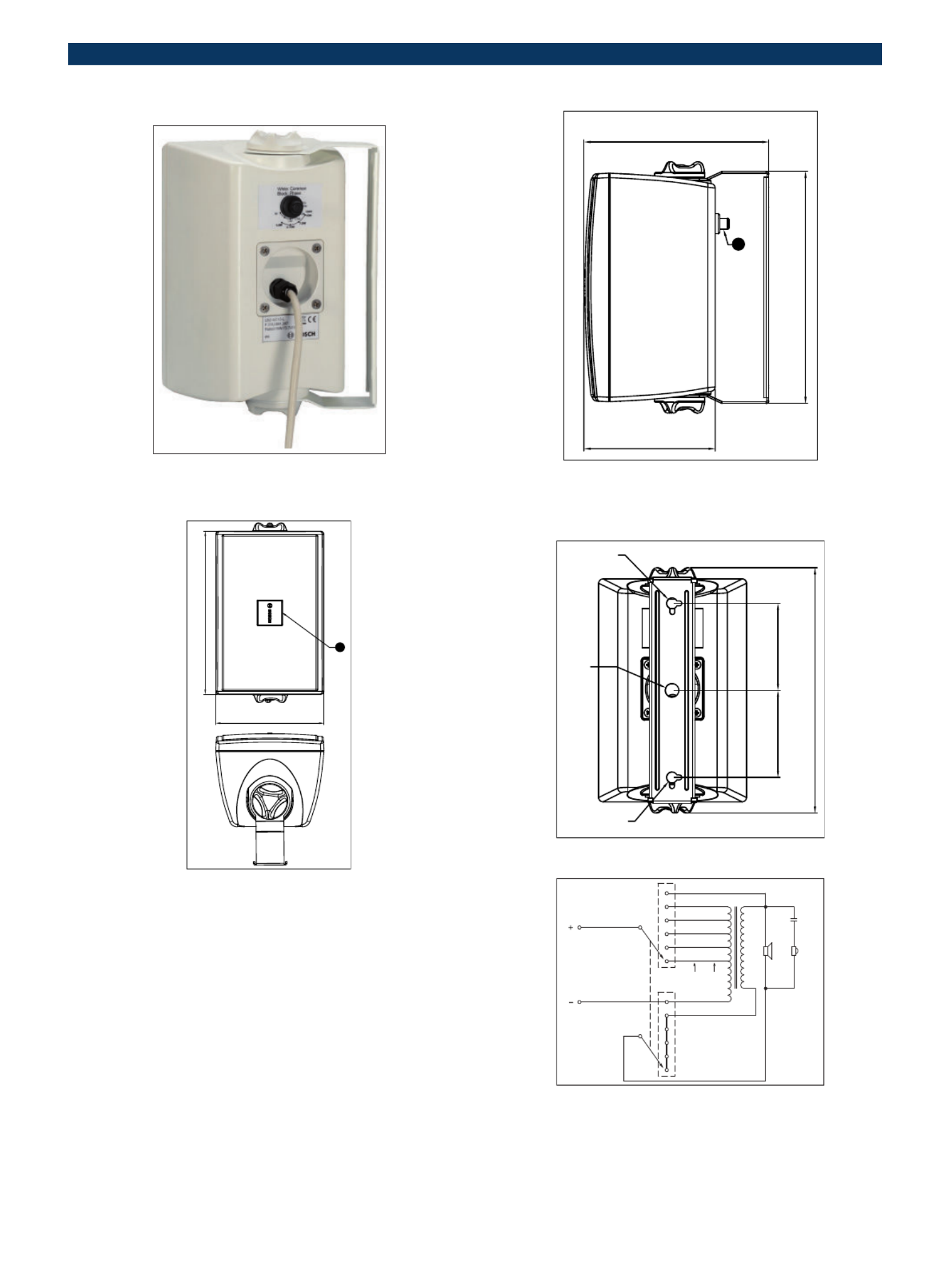

Rear view LB2-UC15-30-D/L

LB2‑UC15‑D/L

205

(8.1)

136

(5.4)

1 Rotatable logo

Mechanical diagram: front and top view in mm (in.)

117.8

(4.6)

208

(8.2)

165.9

(6.5)

1 Power tapping switch

Mechanical diagram: side view in mm (in.)

(3.1)

225.4

(8.9)

(0.4)

12.5

(0.5)

0.4)(

Mechanical diagram: rear view in mm (in.)

1.9W

2.2uf

3.75W

7.5W

15W

7.5W

3.75W

1.9W

70.7V100V

8 ohms

Circuit diagram
