ncbc_brother_cover_Eng
PANTONE 285 K
English
885-S33/S34/S36/S37
XC8835-621
8
Printed in China
Operation Manual
Computerized Sewing Machine
APPENDIX
UTILITY STITCHES
SEWING BASICS
KNOWING YOUR
SEWING MACHINE
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic safety precautions should always be taken, including the following:
Read all instructions before using.
DANGER - To reduce the risk of electric shock:
1. The machine should never be left unattended while plugged in. Always unplug the machine
from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is
used by or near children.
2. Use this machine only for its intended use as described in this manual. Use only accessories
recommended by the manufacturer as contained in this manual.
3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the machine to the nearest authorized
dealer or service center for examination, repair, electrical or mechanical adjustment.
4. Never operate the machine with any air openings blocked. Keep ventilation openings of the
machine and foot control free from the accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
8. To disconnect, turn the main switch to the symbol “{” position which represents off, then
remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around the machine needle.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
14. Switch the machine to the symbol “{” position when making any adjustments in the needle
area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and
the like.
15. Always unplug the machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
16. This sewing machine is not intended for use by young children or infirm persons without
supervision. (For Australia and New Zealand only)
17. Young children should be supervised to ensure that they do not play with this machine.
18. If the Light unit is damaged, it must be replaced by authorized dealer.
SAVE THESE INSTRUCTIONS
This machine is intended for household use.
2000_cover2-3.fm Page 1 Friday, November 12, 2004 3:43 PM
1
FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY
If this machine is fitted with a three-pin non-rewireable BS plug then please read the following.
IMPORTANT
If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut
off and an appropriate three-pin plug fitted. With alternative plugs an approved fuse must be fitted in
the plug.
NOTE
The plug served from the main lead must be destroyed as a plug with bared flexible cords is
hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse
approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.
Always replace the fuse cover, never use plugs with the fuse cover omitted.
WARNING
DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER ‘E’, BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW.
The wires in this main lead are coloured in accordance with the following code:
Blue Neutral
Brown Live
As the colours of the wiring in the main lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
‘L’ or coloured red or brown.
2
CONGRATULATIONS ON CHOOSING OUR MACHINE
Your machine is one of the most advanced computerized household sewing machines. To fully
enjoy all the features, we suggest that you study the manual before using the machine.
PLEASE READ BEFORE USING THIS MACHINE
For safe operation
1. Be sure to keep your eye on the needle while sewing. Do not touch the hand wheel, thread take-
up lever, needle, or other moving parts.
2. Remember to turn off the power switch and unplug the cord when:
• Operation is completed
• Replacing or removing the needle or any other parts
• A power failure occurs during use
• Maintaining the machine
• Leaving the machine unattended
3. Do not store anything on the foot controller.
4. Plug the machine directly into the wall. Do not use extension cords.
For a longer service life
1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or
store the machine near a space heater, iron, halogen lamp, or other hot objects.
2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders
can damage the case and machine, and should never be used.
3. Do not drop or hit the machine.
4. Always consult the operation manual when replacing or installing any assemblies, the presser
feet, needle, or other parts to assure correct installation.
For repair or adjustment
In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in
the back of the operation manual to inspect and adjust the machine yourself. If the problem persists,
please consult your local authorized Brother dealer.
For additional product information and updates, visit our web site at www.brother.com
The contents of this manual and specifications of this product are subject to change without notice.
—————————————————————————————————————————————————————————
—
4
3. UTILITY STITCHES ........................................................................................32
OVERCASTING STITCHES ................................................................................................32
BASIC STITCHING ............................................................................................................33
Basic stitching ................................................................................................................................................ 33
BLIND HEM STITCHING ..................................................................................................34

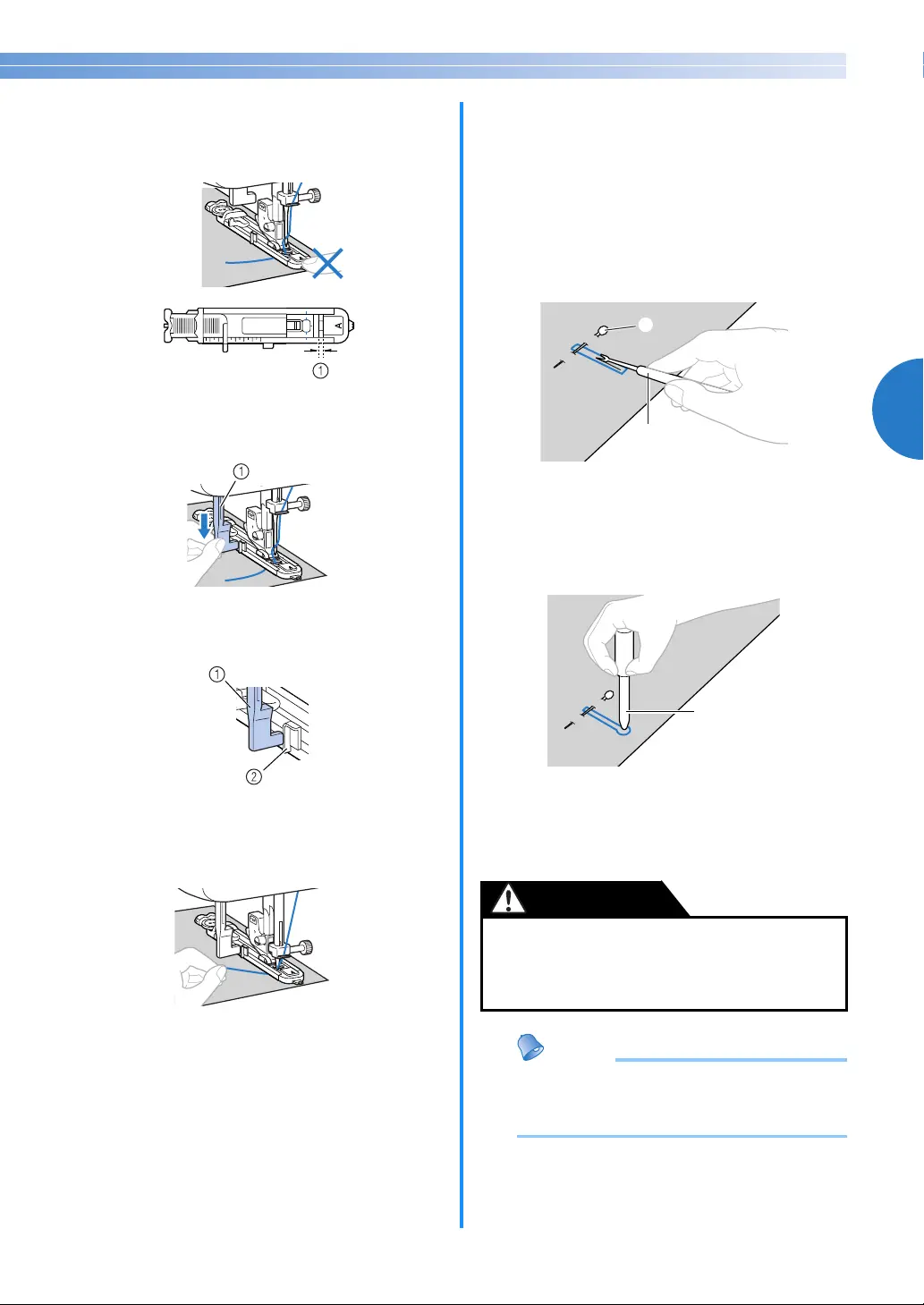

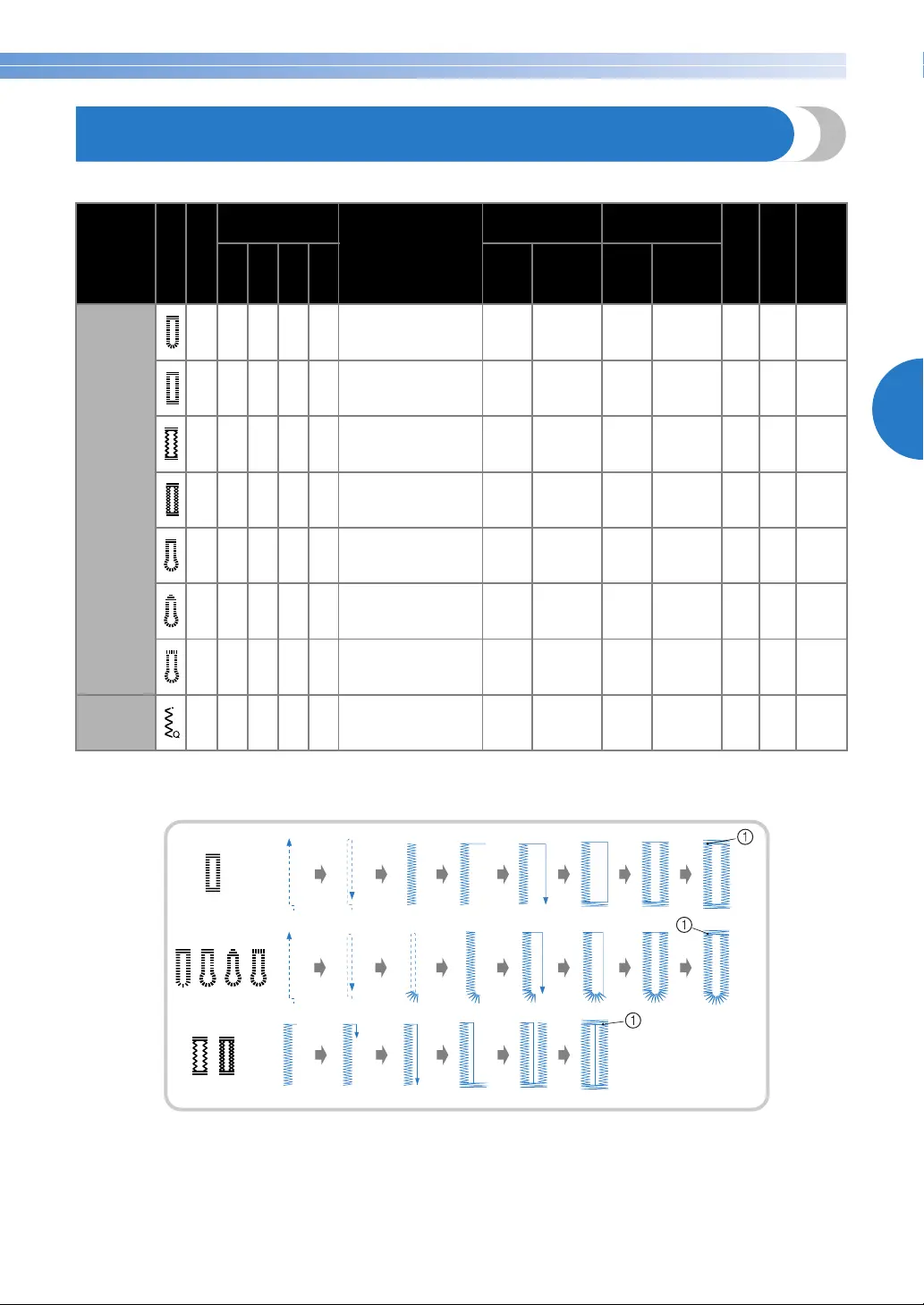

BUTTONHOLE SEWING ...................................................................................................35
Button sewing ................................................................................................................................................. 38
ZIPPER INSERTION ...........................................................................................................40
SEWING STRETCH FABRICS AND ELASTIC TAPE ............................................................41
Stretch stitching .............................................................................................................................................. 41
Elastic attaching ............................................................................................................................................. 41

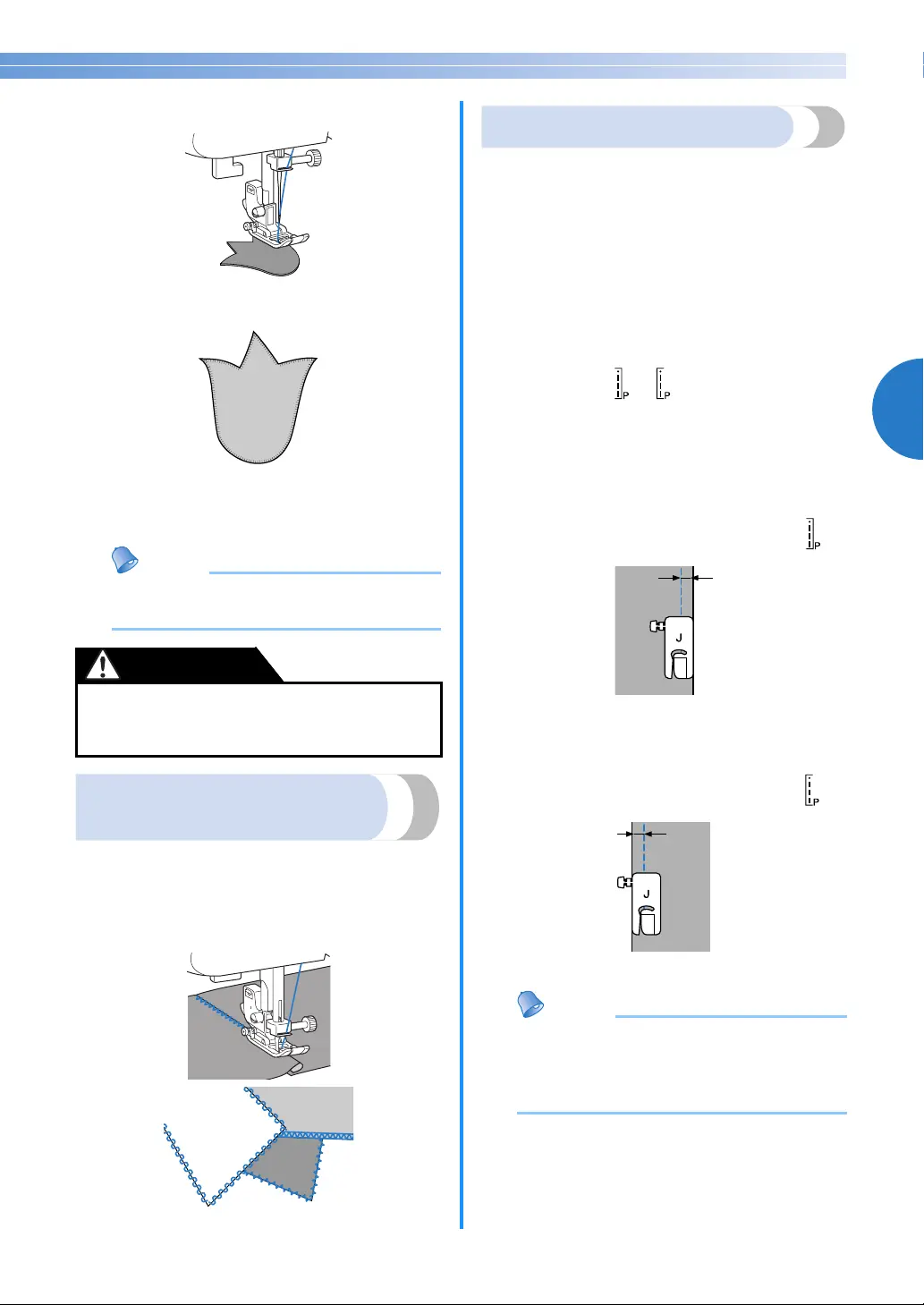

APPLIQUÉ, PATCHWORK AND QUILT STITCHING ........................................................42
Appliqués ....................................................................................................................................................... 42
Patchwork (crazy quilt) stitching ..................................................................................................................... 43
Piecing ........................................................................................................................................................... 43
Quilting ........................................................................................................................................................... 44
Free-motion quilting ....................................................................................................................................... 45
REINFORCEMENT STITCHING .........................................................................................46
Triple stretch stitching .................................................................................................................................... 46
Bar tack stitching ............................................................................................................................................ 46
DECORATIVE STITCHING ................................................................................................48
Fagoting ......................................................................................................................................................... 49
Scallop stitching ............................................................................................................................................. 49
Smocking ....................................................................................................................................................... 50
Shell tuck stitching ......................................................................................................................................... 50
Joining ............................................................................................................................................................ 51
Heirloom stitching ........................................................................................................................................... 51
4. APPENDIX .....................................................................................................52
STITCH SETTINGS .............................................................................................................52
Utility stitches ................................................................................................................................................. 52
MAINTENANCE ................................................................................................................57
Cleaning the machine surface ........................................................................................................................ 57
Cleaning the bobbin case ............................................................................................................................... 57
TROUBLESHOOTING .......................................................................................................59
ERROR MESSAGES ............................................................................................................62
Operation beep (for models equipped with the operation beep) .................................................................... 62
INDEX ...............................................................................................................................63
5
1
1 KNOWING YOUR SEWING MACHINE

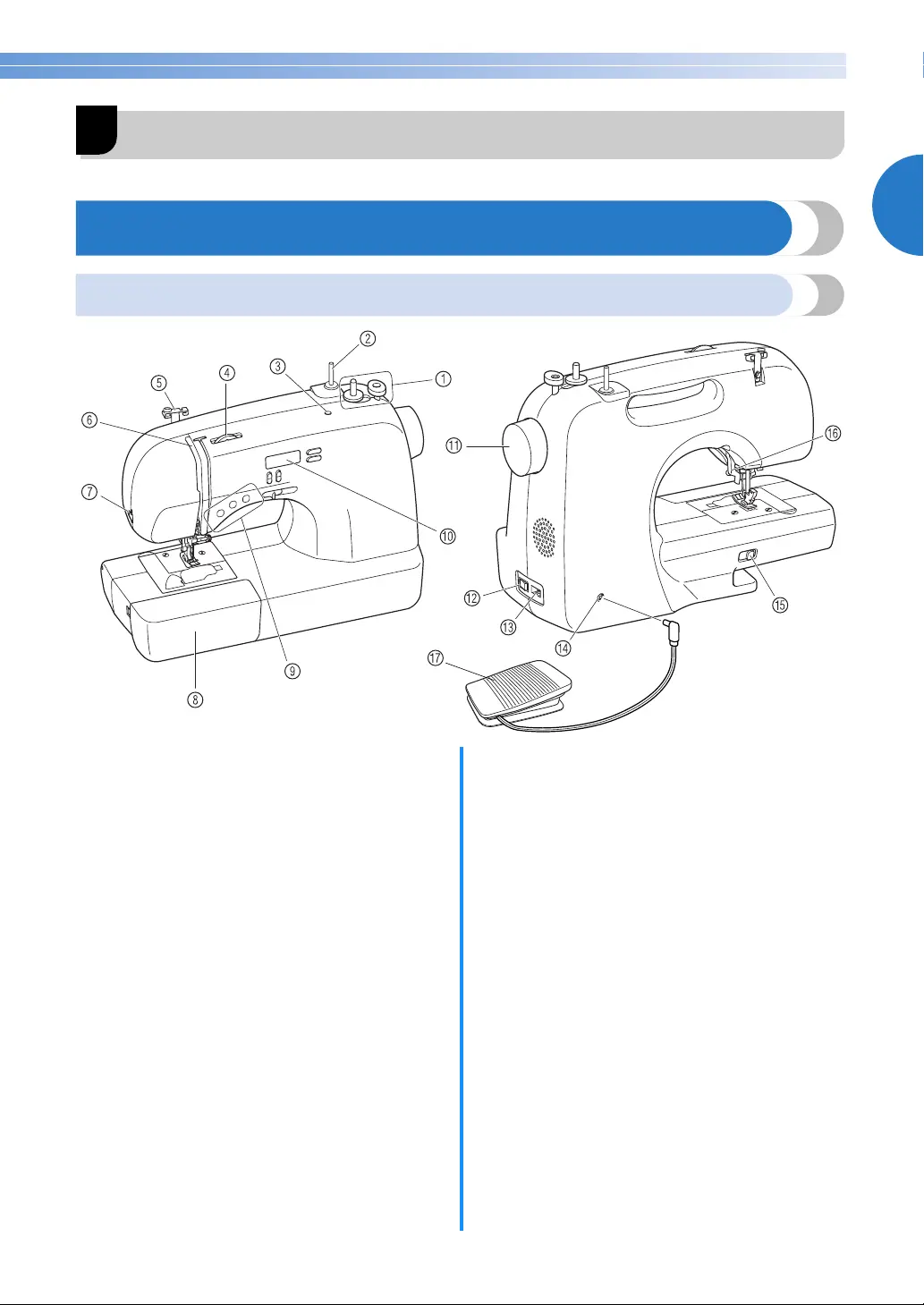

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
The main parts

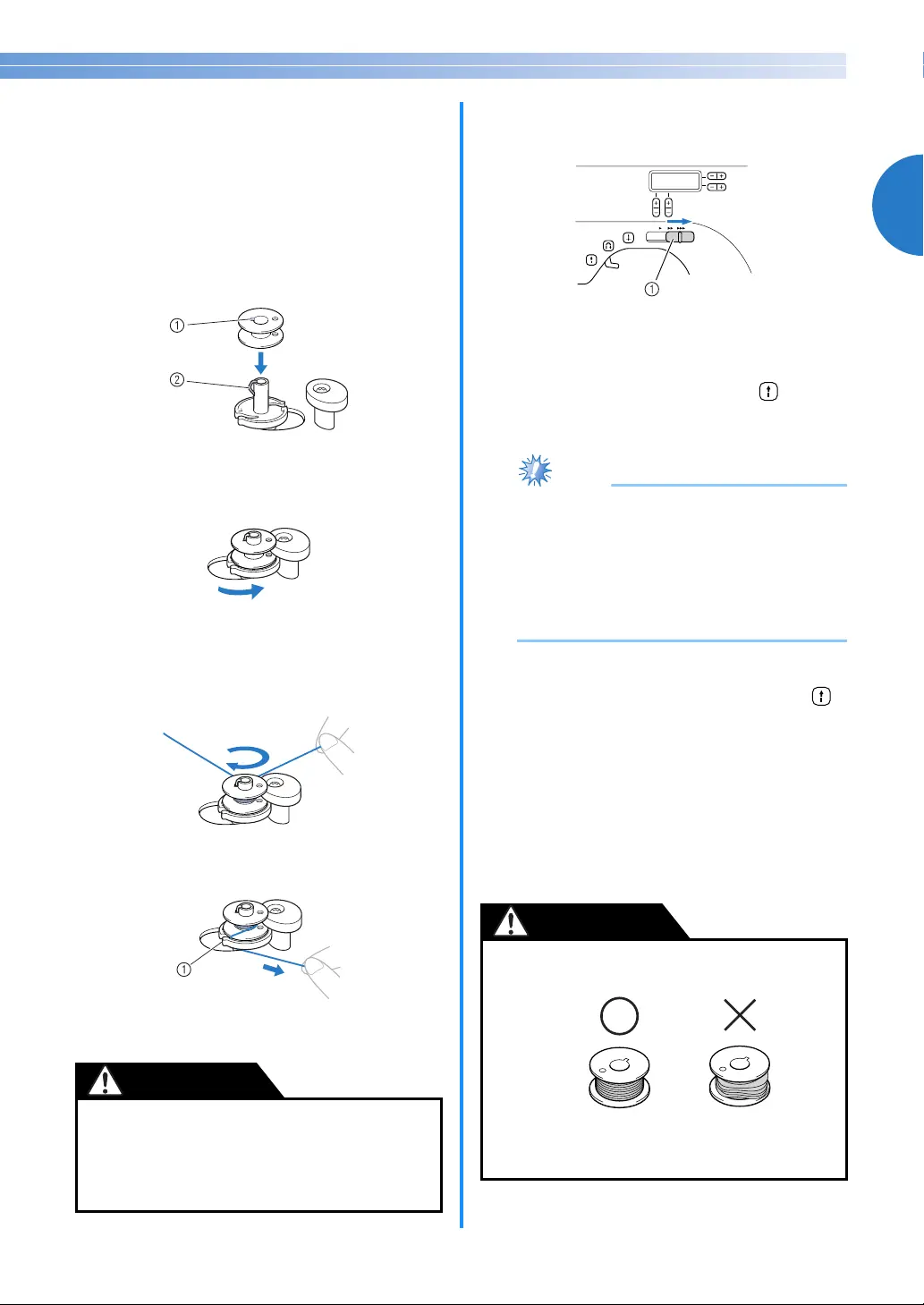

a Bobbin winder (page 11)
This winds the thread onto the bobbin for use as the
lower thread.
b Spool pin (pages 11 and 16)
This holds the spool of thread.
c Hole for extra spool pin (page 23)
This holds a second spool of thread for sewing with two
needles.
d Upper tension-control dial (page 29)
This controls the tension of the upper thread.
e Thread guide (pages 11 and 16)
This is used when winding the thread onto the bobbin
and then threading the machine.
f Thread take-up lever (page 17)
g Thread cutter (page 29)
Pass the threads through the thread cutter to cut them.

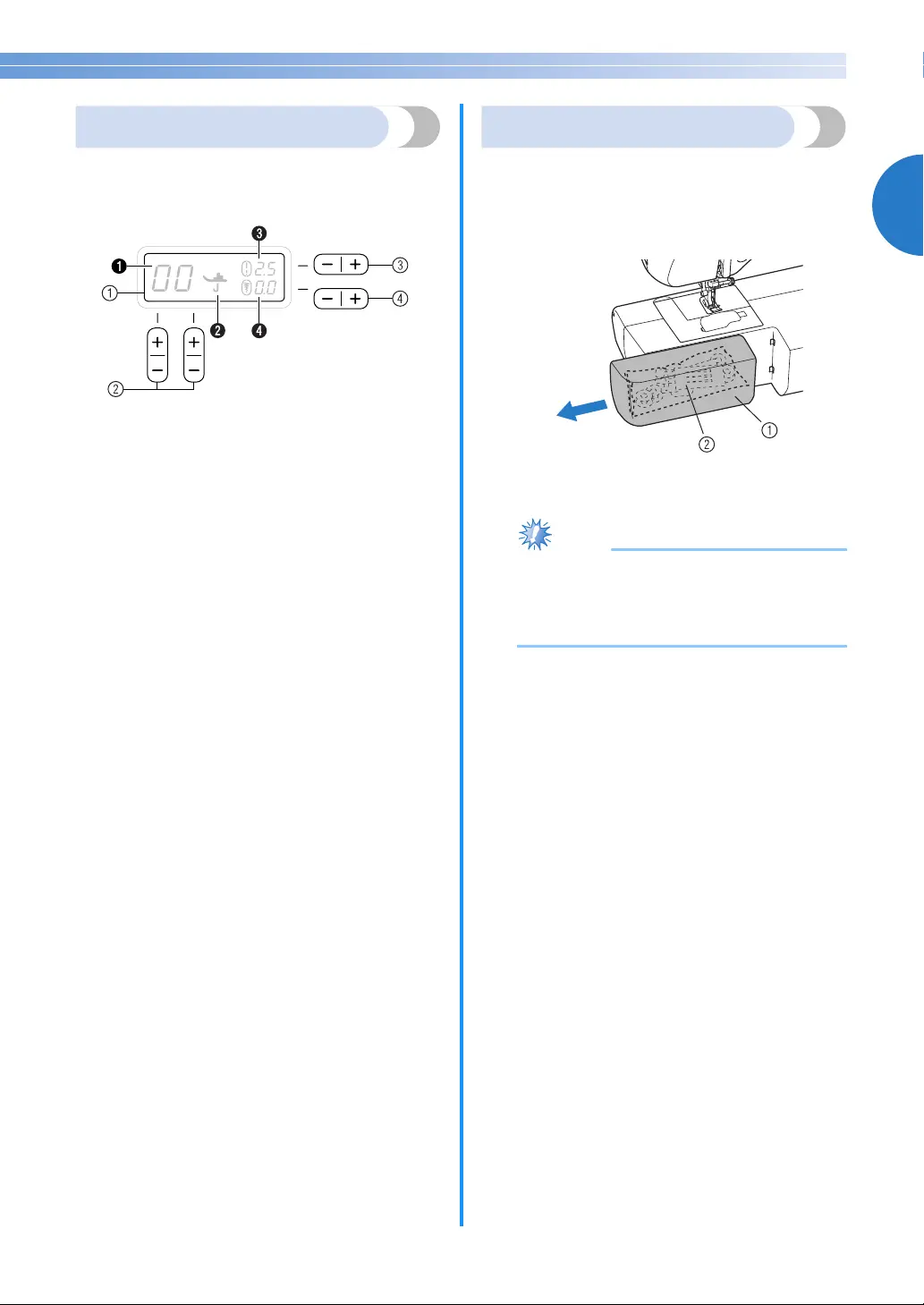

h Flat bed attachment with accessory compartment
(pages 7 and 31)
i Operation buttons (page 6)
The operation buttons differ depending on the sewing
machine model.
j Operation panel (page 7)
This is used to select the stitch and specify the various
settings.
k Handwheel
Used to manually raise and lower the needle.

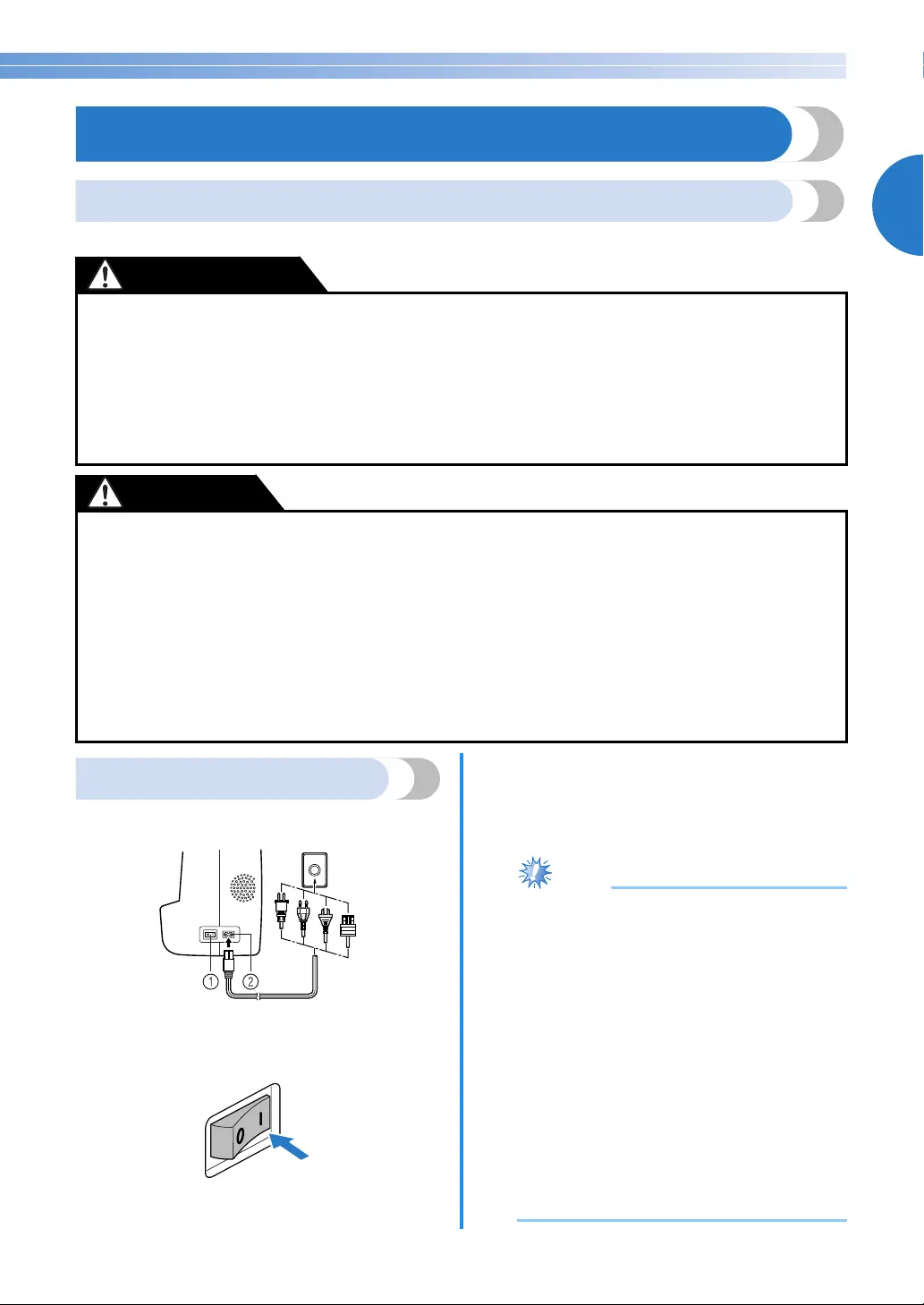

l Main power and sewing light switch (page 9)
You can turn the main power and sewing light switch
on and off.
m Jack/socket connector (page 9)
Insert the plug on the power supply cord into the jack/
socket connector.

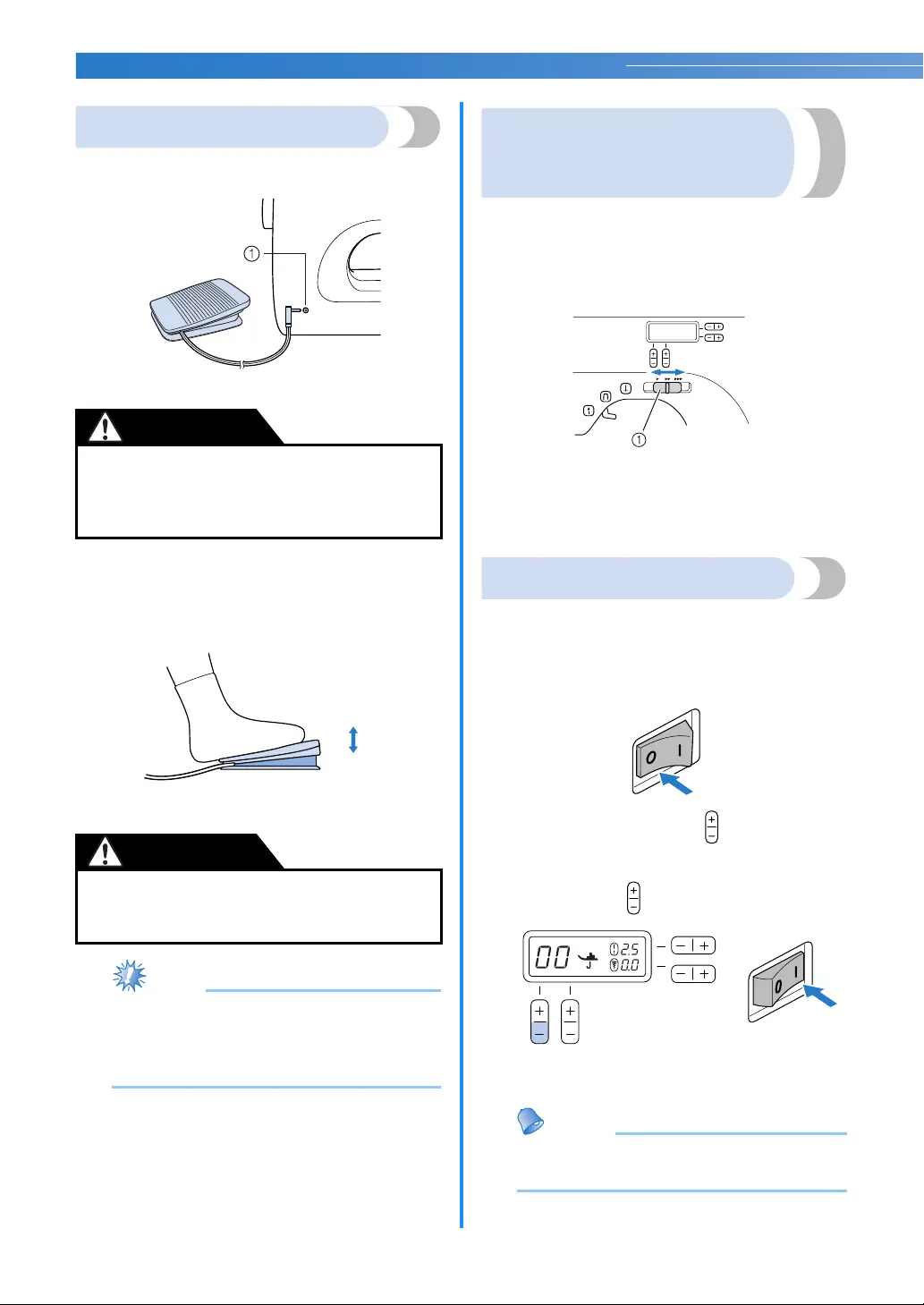

n Foot controller jack/socket (page 10)
Plug in the foot controller plug.
o Feed dog position lever (pages 38 and 45)
Use the feed dog position lever to lower the feed dogs.
p Presser foot lever (page 16)
Used to raise and lower the presser foot.
q Foot controller (page 10)
You can use this to control the sewing speed, and to
start and stop sewing.
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
6

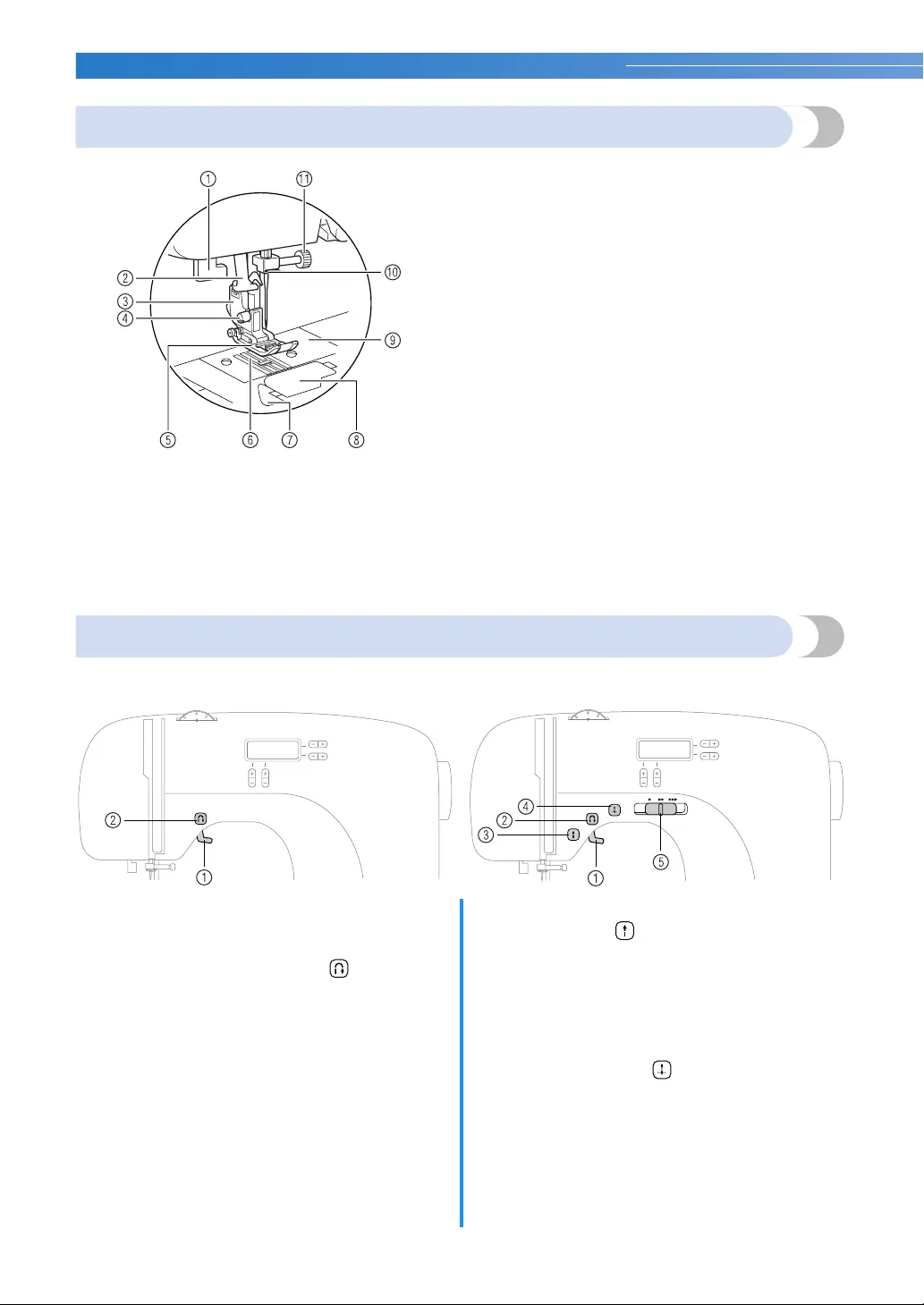

Needle and presser foot section
a Buttonhole lever
Lower the buttonhole lever when sewing buttonholes
and bar tacks.
b Needle threader (for models equipped with the needle
threader) (page 17)
c Presser foot holder
The presser foot is installed onto the presser foot holder.

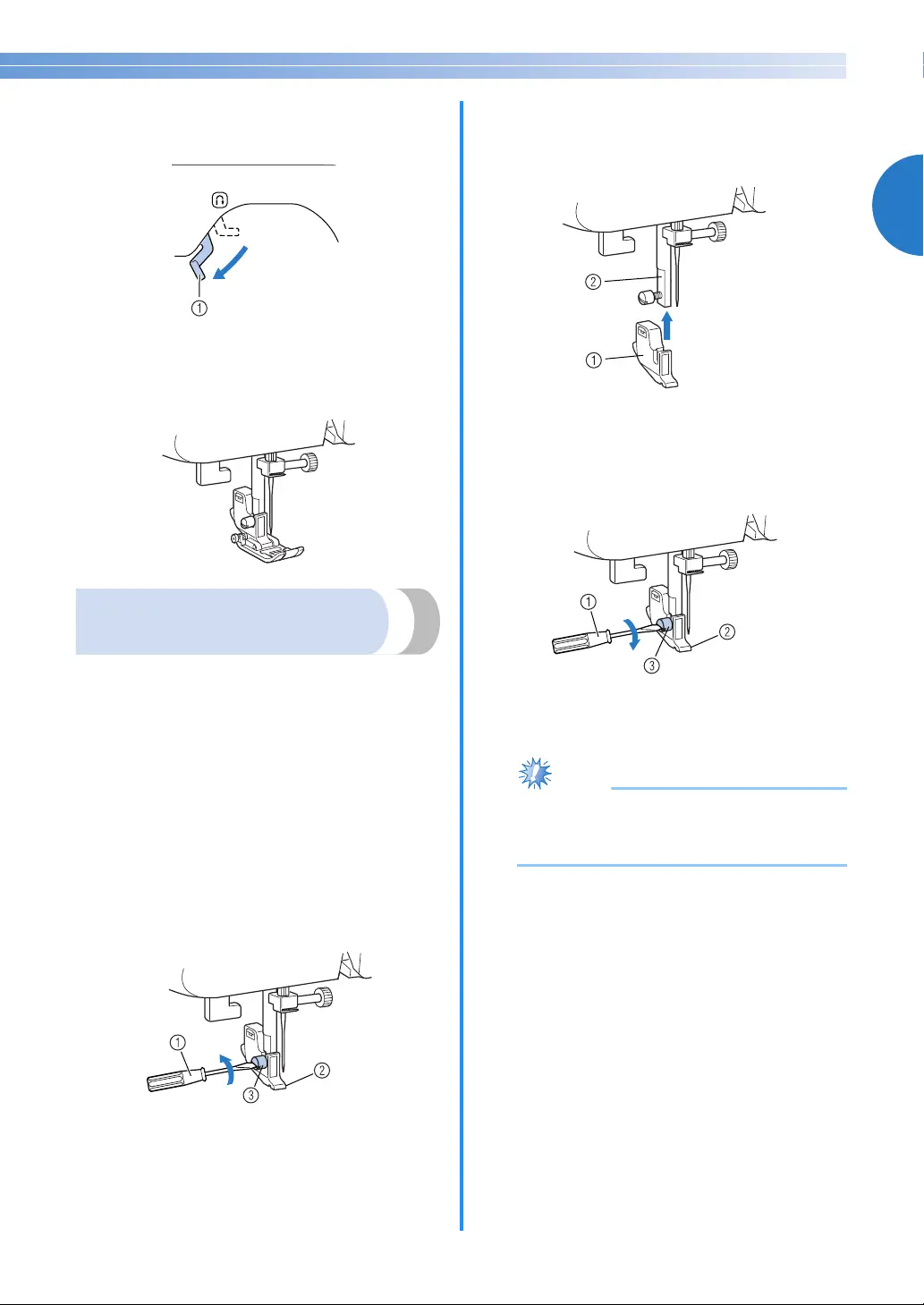

d Presser foot holder screw
Use the presser foot holder screw to hold the presser
foot holder in place.
e Presser foot
The presser foot applies pressure consistently on the
fabric as the sewing takes place. Attach the appropriate
presser foot for the selected stitching.
f Feed dogs
The feed dogs feed the fabric in the sewing direction.
g Quick-set bobbin (for models equipped with the quick-
set bobbin)
You can start sewing without pulling up the bobbin thread.
h Bobbin cover
Open the bobbin cover to set the bobbin.
i Needle plate
The needle plate is marked with guides for sewing
straight seams.
j Needle bar thread guide
Pass the upper thread through the needle bar thread guide.

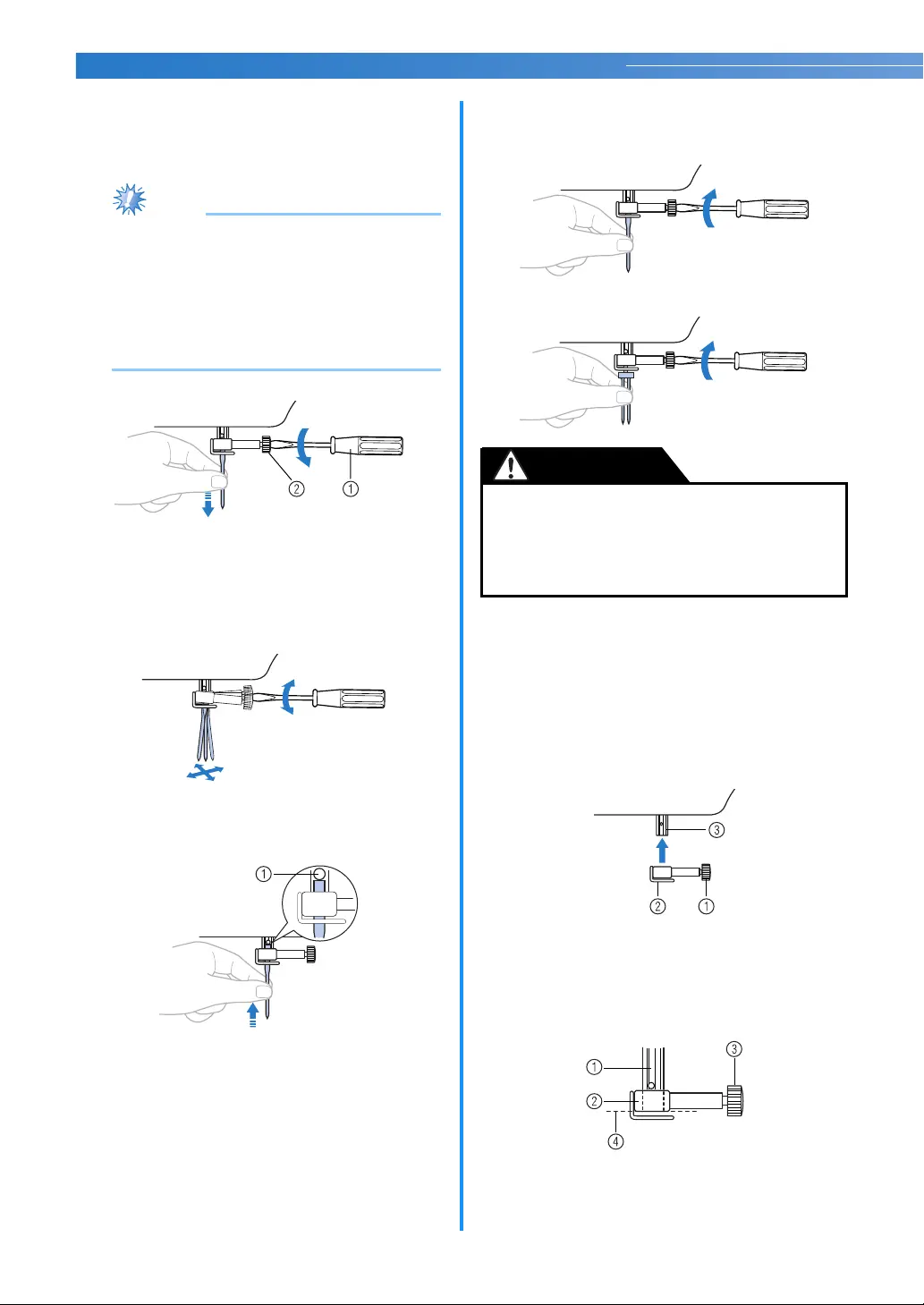

k Needle clamp screw
Use the needle clamp screw to hold the needle in place.
Operation buttons
The operation buttons help you to easily perform various basic sewing machine operations.
The operation buttons differ depending on the sewing machine model.
a Presser foot lever
Raise and lower the presser foot lever to raise and lower
the presser foot.
b Reverse/reinforcement stitch button
Press the reverse/reinforcement stitch button to sew
reverse stitches. Reverse stitches are sewn by keeping
the button pressed down to sew in the opposite
direction. For details, refer to “Sewing reinforcement
stitches” (page 29).
■ Buttons provided on some models
c Start/stop button (for models equipped with the
start/stop button)
Press the start/stop button to start or stop sewing. The
machine sews at a slow speed at the beginning of
sewing while the button is depressed. When sewing is
stopped, the needle is lowered in the fabric. For details,
refer to “Starting to sew” (page 28).
d Needle position button (for models equipped with
the needle position button)
Press the needle position button to raise or lower the
needle. Pressing the button twice sews one stitch.
e Sewing speed controller (for models equipped with the
sewing speed controller)
Slide the sewing speed controller to adjust the sewing
speed.
7
1
Operation panel
The operation panel, located on the front of the
sewing machine, allows you to select a stitch and
specify how the stitch will be sewn.
a LCD (Liquid crystal display)
The selected stitch (
1), presser foot that should be used
(
2), stitch length in millimeters (3), and stitch width in
millimeters (
4) are displayed.
b Stitch selection keys
Press the stitch selection keys, and then select the
number for the stitch that you wish to use. For details,
refer to “Selecting stitching” (page 27).
c Stitch length adjustment key
Press this key to adjust the stitch length. (Press the “–”
side to reduce the stitch length; press the “+” side to
increase the stitch length.)
d Stitch width adjustment key
Press this key to adjust the stitch width. (Press the “–”
side to reduce the stitch width; press the “+” side to
increase the stitch width.)
Flat bed attachment
The accessories are stored in a compartment inside
the flat bed attachment.
a
Slide the flat bed attachment to the left to
open it.
a Flat bed attachment
b Storage compartment
Note
● Put the accessories in the bag, and then
store the bag inside the compartment. If the
accessories are not in a bag, they may fall
out, and be lost or damaged.
KNOWING YOUR SEWING MACHINE —————————————————————————————————————————————
—
8
K
PANTONE 285

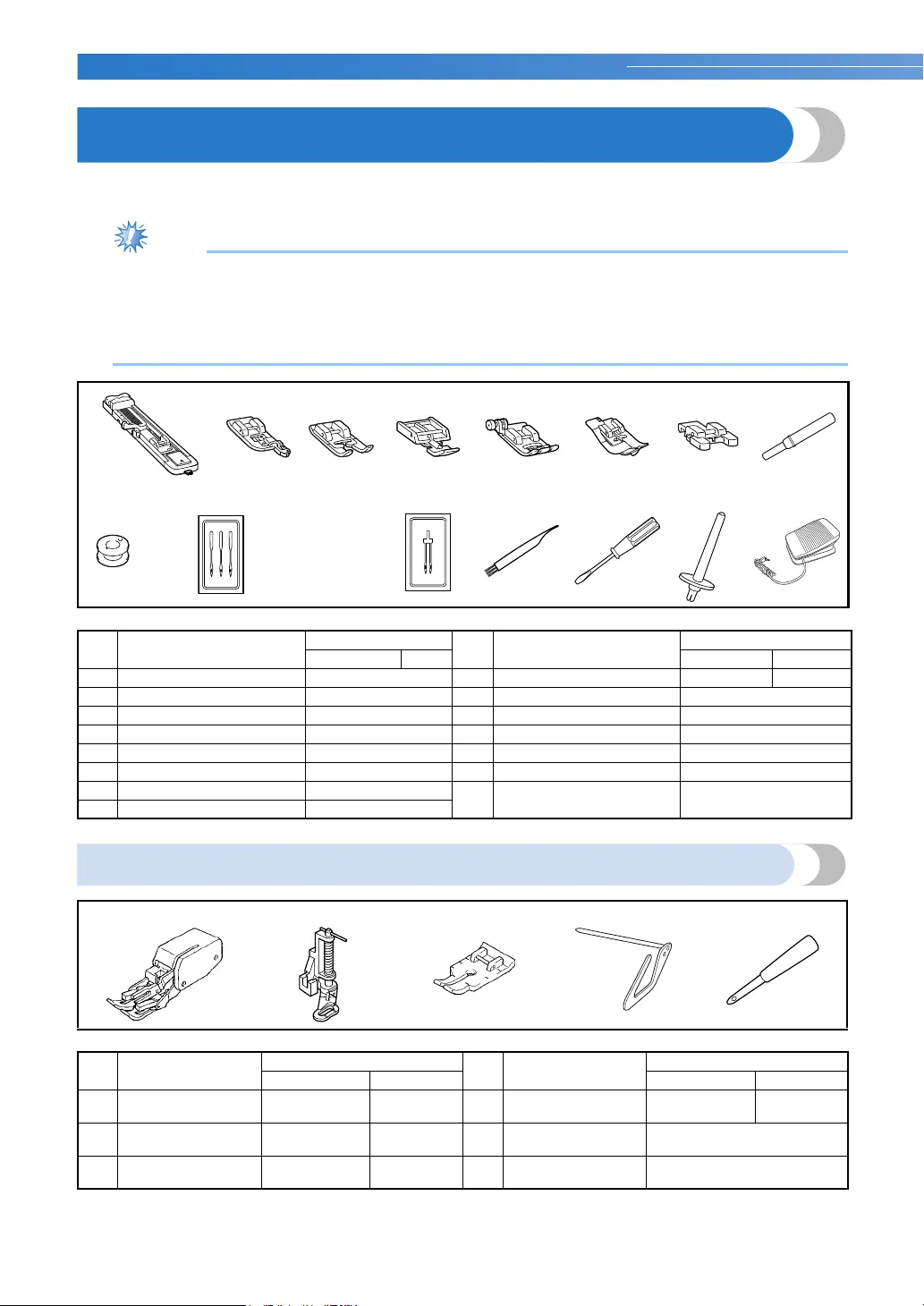

ACCESSORIES
The following accessories are stored in the flat bed attachment. We have designed these accessories to help you
be able to carry out most sewing tasks.
Note
(For U.S.A. only)
● Foot controller: Model T
This foot controller can be used on the following machine models:
CS-100, CS-6000, CS-6000i, CS-4000,
ES-2400, ES-2000, EX-660, CE-4000, BC-1000, HS-1000, XR-7700, CE-5000PRW, SM-6500PRW, CS-770
● The screw of the presser foot holder is available through your authorized dealer. (Part code: 132730-122)
Optional accessories
1. 2. 3. 4. 5. 6. 7. 8.
9. 10.
75/11 1 needle
90/14 1 needle
100/16 1 needle
11. 12. 13. 14. 15.
No. Part Name
Part Code
No. Part Name
Part Code
U.S.A. / Canada
Others
U.S.A. / Canada
Others
1 Buttonhole foot “A” XC2691-031 9 Bobbin (4) SA156
XA5539-151
2 Overcasting foot “G” XC3098-031 10 Needle set XC8834-021
3 Monogramming foot “N” X53840-331 11 Twin needle 131096-121
4 Zipper foot “I” X59370-021 12 Cleaning brush X59476-021
5 Zigzag foot “J” (on machine) XC3021-031 13 Screwdriver X55467-021
6 Blind stitch foot “R” XC4051-031 14 Extra spool pin 130920-021
7 Button fitting foot “M” X59375-121
15 Foot controller
XD0501-021 (EU area)
XC8816-021 (Other areas)
8 Seam ripper X54243-001
1. 2. 3. 4. 5.
No. Part Name
Part Code
No. Part Name
Part Code
U.S.A. / Canada
Others
U.S.A. / Canada
Others
1 Walking Foot SA140
F033N:
XC2214-002
4 Quilting guide SA132
F016N:
XC2215-002
2 Quilting Foot SA129
F005N:
XC1948-002
5 Eyelet punch 135793-001
3
1/4-Inch Quilting
Foot
SA125
F001N:
XC1944-002
2000_01.fm Page 8 Thursday, April 10, 2008 11:13 AM
9
1
USING YOUR SEWING MACHINE
Power supply precautions
Be sure to observe the following precautions concerning the power supply.
Power supply
a
Insert the plug into a wall outlet.
a Main power switch
b Jack/socket connector
b
Set the main power switch to “I”.
X The sewing lamp comes on when the
machine is turned on.
c
To turn off the machine, set the main power
switch to “
{”.
X The sewing lamp goes off when the
machine is turned off.
Note
● If a power outage occurs while the sewing
machine is being operated, turn off the
sewing machine and unplug the power
supply cord. When restarting the sewing
machine, follow the necessary procedure to
correctly operate the machine.
(For U.S.A. only)
● This appliance has a polarized plug (one
blade wider than the other). To reduce the
risk of electric shock, this plug is intended
to fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet,
reverse the plug.
If it still does not fit, contact a qualified
electrician to install the proper outlet. Do
not modify the plug in any way.
● Use only regular household electricity for the power source. Using other power sources may result in
fire, electric shock, or damage to the machine.
● Turn off the main power and remove the plug in the following circumstances:
• When you are away from the machine
• After using the machine
• When the power fails during use
• When the machine does not operate correctly due to a bad connection or a disconnection
• During electrical storms
● Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire
or electric shock may result.
● Do not touch the plug with wet hands. Electric shock may result.
●
When unplugging the machine, always turn off the main power first. Always grasp the plug to remove it from
the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.
● Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled.
Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the
cord and cause fire or electric shock. If the cord or plug is damaged, take the machine to your
authorized dealer for repairs before continuing use.
● Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a fire may
result.
WARNING
CAUTION
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
10
Foot controller
Insert the foot controller plug into its jack/socket on
the rear side of the sewing machine.
a Foot controller jack/socket
When you press the foot controller down lightly, the
machine will run at a low speed. When you press
harder, the machine’s speed will increase. When you
take your foot off the foot controller, the machine
will stop.
You should make sure that nothing is placed on the
foot controller when the machine is not in use.
Note
● When the foot controller is plugged in, the
start/stop button cannot be used to start or
stop sewing (only for models equipped with
the start/stop button).
Sewing speed controller
(for models equipped with
the start/stop button)
a
Slide the sewing speed controller to the left or
right to select the desired sewing speed.
Slide the sewing speed controller to the left to
sew at a slower speed, or slide the speed
controller to the right to sew at a faster speed.
a Sewing speed controller
• The speed set using the sewing speed
controller is the foot controller’s maximum
sewing speed.
Changing the needle stop position
Normally, the sewing machine is set to leave the needle in
the fabric when sewing is stopped. Instead, the machine can
be set to leave the needle raised when sewing is stopped.
a
Turn off the sewing machine.
b
Hold down the “–” side of (stitch selection
key) on the left and turn on the sewing machine.
After turning on the sewing machine, release
the “–” side of (stitch selection key).
X The needle stop position changes to the
raised position.
Memo
• Perform the same operation to change the
needle stop position to the lowered position.
● When connecting the foot controller, be sure
to turn off the sewing machine in order to
prevent the machine from accidentally being
started.
● Do not allow pieces of cloth and dust to build
up on the foot controller. Doing so could
cause a fire or an electric shock.
CAUTION
Slower
Faster
CAUTION
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
12
f
While holding the end of the thread, gently
press the foot controller or press (start/
stop button) (for models equipped with the
start/stop button) to wind the thread around
the bobbin a few times. Then stop the
machine.
Note
● If the sewing machine is to be operated
using the foot controller, connect the foot
controller before turning on the machine.
● When the foot controller is plugged in, the
start/stop button cannot be used to start or
stop sewing (only for models equipped with
the start/stop button).
g
Trim the excess thread above the bobbin.
h
Slide the sewing speed controller to the right
(to set the speed to fast). (For models
equipped with the sewing speed controller.)
a Sewing speed controller
i
Press the foot controller or press (start/
stop button) (for models equipped with the
start/stop button) to start.
j
When the bobbin seems full and begins
spinning slowly, take your foot off the foot
controller or press (start/stop button) (for
models equipped with the start/stop button).
k
Cut the thread, slide the bobbin winder shaft
to the left and remove the bobbin.
l
Slide the sewing speed controller back to its
original position (for models equipped with
the sewing speed controller).
Memo
● When the sewing machine is started or the
handwheel is turned after winding the
thread around the bobbin, the machine will
make a clicking sound; this is not a
malfunction.
● The needle bar does not move when you
slide the bobbin winding shaft to the right.
● Make sure you follow the instructions
carefully. If you do not cut the thread
completely, and the bobbin is wound, when
the thread runs low it may tangle around the
bobbin and cause the needle to break.
CAUTION
● Not winding the bobbin properly may cause
the thread tension to loosen, and may break
the needle.
a Wound evenly
b Wound poorly
CAUTION
1
2
13
1
■ For models equipped with the fast bobbin
winding system
a
Follow steps 1 through 2 of the procedure in
“Winding the bobbin” to pass the thread
around the pre-tension disk (page 11).
b
Place the bobbin on the bobbin winder shaft
so that the spring on the shaft fits into the
notch in the bobbin.
a Notch
b Bobbin winder shaft spring
c
Slide the bobbin winder shaft to the right.
d
While holding the thread that wraps around the
pre-tension disk with your left hand, use your
right hand to wind the free end of the thread
clockwise around the bobbin five or six times.
e
Pull the thread to the right and pass it through
the slit in the bobbin winder seat.
a Slit in bobbin winder seat (with built-in cutter)
X The thread is cut to a suitable length.
f
Slide the sewing speed controller to the right
(to set the speed to fast) (for models equipped
with the sewing speed controller).
a Sewing speed controller
g
Turn on the sewing machine.
h
Press the foot controller or press (start/
stop button) (for models equipped with the
start/stop button) to start.
Note
● If the sewing machine is to be operated
using the foot controller, connect the foot
controller before turning on the machine.
● When the foot controller is plugged in, the
start/stop button cannot be used to start or
stop sewing (only for models equipped with
the start/stop button).
i
When the bobbin begins spinning slowly, take
your foot off the foot controller or press
(start/stop button) (for models equipped with
the start/stop button).
j
Cut the thread, slide the bobbin winder shaft
to the left and remove the bobbin.
k
Slide the sewing speed controller back to its
original position (for models equipped with
the sewing speed controller).
●
Be sure to cut the thread as described. If the bobbin is
wound without cutting the thread using the cutter built
into the slit in the bobbin winder seat, the thread may
become tangled in the bobbin or the needle may bend
or break when the bobbin thread starts to run out.
CAUTION
● Not winding the bobbin properly may cause the
thread tension to loosen, and may break the needle.
a Wound evenly
b Wound poorly
CAUTION
1
2
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
16

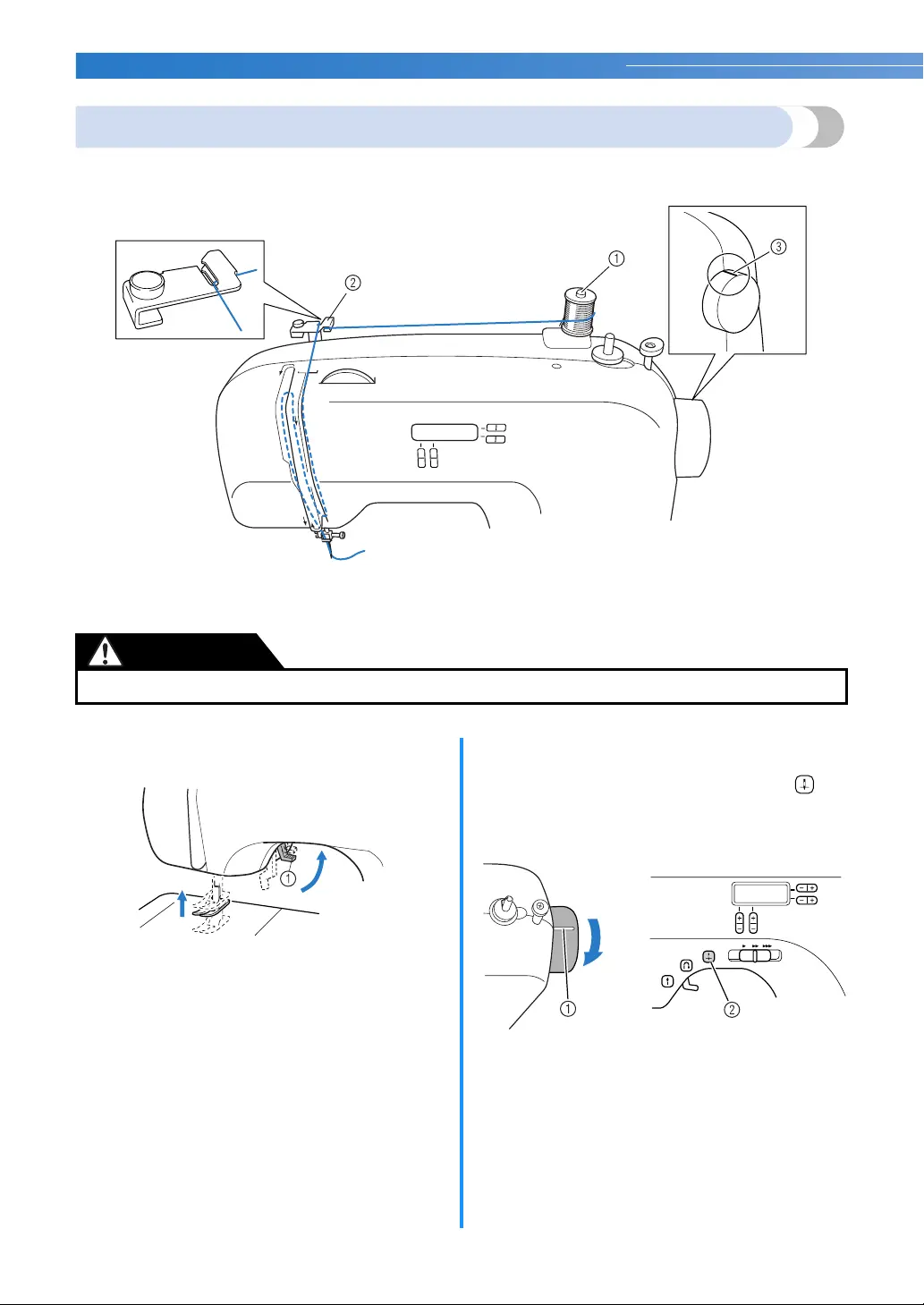

Upper threading
Set the upper thread and thread the needle.
• For details on the needle threader, see page 17.
a Spool pin
b Thread guide
c Mark on the handwheel
a
Raise the presser foot using the presser foot
lever.
a Presser foot lever
b
Raise the needle by turning the handwheel
toward you (counterclockwise) so that the
mark on the wheel points up, or press
(needle position button) (for models equipped
with the needle position button) once or twice
to raise the needle.
• If the needle is not correctly raised, the
sewing machine can not be threaded. Be
sure to turn the handwheel so that the mark
on the wheel points up before threading the
sewing machine.
● Make sure you thread the machine properly. Otherwise, the thread could tangle and break the needle.
CAUTION
a Mark b Needle position button
or
17
1

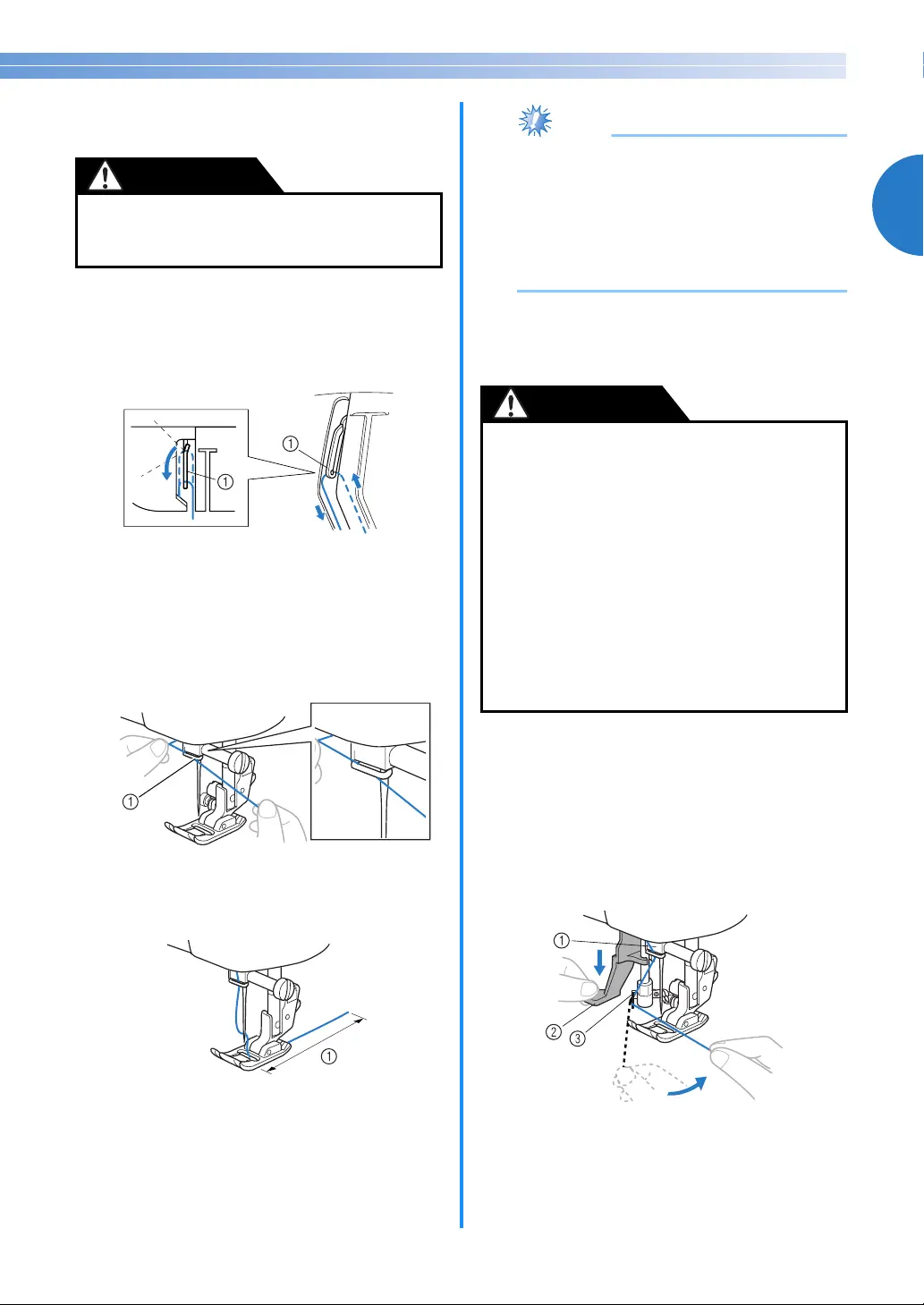

c
Pull up the spool pin as far as possible, and
then put a spool of thread on this pin.
d
Feed the upper thread as shown in the figure
on the previous page.
e
Make sure you guide the thread through the
thread take-up lever from right to left.
a Thread take-up lever
f
Put the thread behind the needle bar thread
guide above the needle.
The thread can easily be passed behind the
needle bar thread guide by holding the thread
in your left hand, then feeding the thread with
your right hand.
a Needle bar thread guide
g
Thread the needle from front to back and pull
out about 5 cm (2 inch) of thread.
a 5 cm (2 inch)
Note
● If the thread take-up lever is lowered, the
upper thread cannot be wrapped around the
thread take-up lever. Make sure you raise
the presser foot lever and the thread take-up
lever before you feed the upper thread.
● If you incorrectly feed the thread you may
cause sewing problems.
■ Using the needle threader (for models
equipped with the needle threader)
a
Follow steps 1 through 6 of the procedure in
“Upper threading” to thread the machine to
the needle bar thread guide.
b
Lower the presser foot lever.
c
While lowering the needle threader lever,
hook the thread onto the guide.
a Needle holder
b Needle threader lever
c Guide
● If the spool of thread is in the wrong place, or
is set incorrectly, the thread may tangle on
the spool pin and cause the needle to break.
CAUTION
● The needle threader can only be used with
home sewing machine needles size 75/11-
100/16. Check the table on page 20 for the
appropriate needle and thread combinations.
If you are using transparent nylon mono-
filament thread, you can only use needles in
the range of 90/14-100/16.
● You cannot use the needle threader if you are
using decorative threads or special needles,
such as the twin needle and wing needle.
If you are using those types of threads or
needles, thread the eye of the needle by hand.
Make sure the main power switch is off when
threading the needle by hand.
CAUTION
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
18

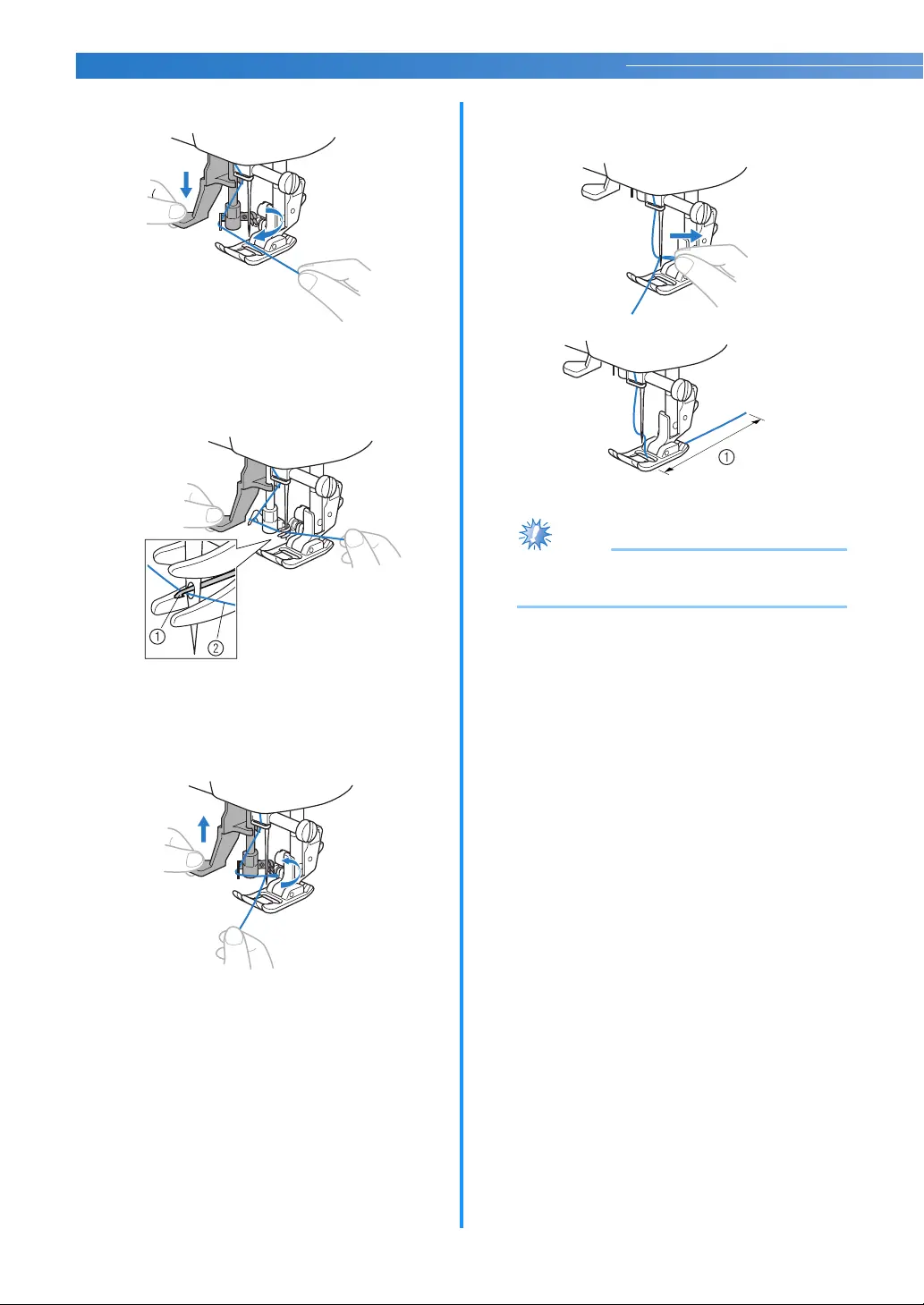

d
Fully lower the needle threader lever.
X The end of the needle threader rotates
toward you and the hook passes
through the eye of the needle.
e
Catch the thread on the hook as shown below.
a Hook
b Thread
f
While lightly holding the thread, release the
needle threader lever. The hook will pull the
thread through the needle.
g
Pull out about 5 cm (2 inch) of thread through
the needle toward the back of the sewing
machine.
a 5 cm (2 inch)
Note
● If you incorrectly feed the thread you may
cause sewing problems.
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
20
REPLACING THE NEEDLE
This section provides information on sewing machine needles.
Needle precautions
Be sure to observe the following precautions concerning the handling of the needle. Failure to observe these
precautions is extremely dangerous. Be sure to read and carefully follow the instructions below.
Needle types and their uses
The sewing machine needle that should be used depends on the fabric and thread thickness. Refer to the
following table when choosing the thread and needle appropriate for the fabric that you wish to sew.
Memo
● The smaller the thread number, the thicker the thread; and the larger the needle number, the thicker the
needle.
● Use the ball point needle when sewing on stretch fabrics or fabrics where skipped stitches easily occur.
● Use a 90/14 to 100/16 needle with transparent nylon threads, regardless of the fabric being sewn.
● A 75/11 needle is already installed when the sewing machine is purchased.
● Only use home sewing machine needles. Use of any other needle may bend the needle or damage the
machine.
● Never use bent needles. Bent needles can easily break, possibly resulting in injury.
CAUTION
Fabric Type/Application
Thread
Size of Needle
Type Size
Medium
weight
fabrics
Broadcloth Cotton thread
60
–80
75/11–90/14
Taffeta Synthetic thread
Flannel,
Gabardine
Silk thread
50–80
Thin
fabrics
Lawn Cotton thread
60
–80
65/9–75/11
Georgette Synthetic thread
Challis, Satin Silk thread
50
–80
Thick
fabrics
Denim Cotton thread
30
–50
90/14–100/16
Corduroy Synthetic thread
50
Tweed Silk thread
Stretch
fabrics
Jersey
Thread for knits
50
–60
Ball point needle
(golden colored)
75/11–90/14
Tricot
Easily frayed fabrics
Cotton thread
50
–80
65/9–90/14Synthetic thread
Silk thread
For top-stitching
Synthetic thread
30 90/14–100/16
Silk thread
KNOWING YOUR SEWING MACHINE ————————————————————————————————————————
—
22
d
Hold the needle with your left hand, and then
use a screwdriver to turn the needle clamp
screw counterclockwise to remove the
needle.
Note
● The needle can be removed by simply
loosening the needle clamp screw about
one turn. (If the needle clamp screw is
loosened too much, the needle clamp
(which holds the needle) may fall off.
Therefore, do not loosen the needle clamp
screw too much.)
a Screwdriver
b Needle clamp screw
• Do not apply strong force when loosening or
tightening the needle clamp screw,
otherwise certain parts of the sewing
machine may be damaged.
e
With the flat side of the needle toward the
rear of the machine, insert the needle until it
touches the needle stopper.
a Needle stopper
f
While holding the needle with your left hand,
use the screwdriver to tighten the needle
clamp screw by turning it clockwise.
Install the twin needle in the same way.
■ Installing the needle clamp
If the needle clamp is removed, follow the
procedure below to attach it to the needle bar.
a
As seen from the front of the machine, slide
the needle clamp onto the needle bar so that
the needle clamp screw is on the right side
and the needle bar thread guide is at the
bottom.
a Needle clamp screw
b Needle bar thread guide
c Needle bar
b
Align the bottom edge of the needle holder
with the end of the needle bar, and then
tighten the needle clamp screw.
a Needle bar
b Needle holder
c Needle clamp screw
d Align
● Be sure to insert the needle until it touches
the needle stopper and securely tighten the
needle clamp screw with the screwdriver,
otherwise the needle may break or damage
may result.
CAUTION
25
1
f
Slowly lower the presser foot lever so that the
presser foot pin snaps into the shank in the
presser foot holder.
a Presser foot lever
X The presser foot is attached.
g
Raise the presser foot lever to check that the
presser foot is securely attached.
Removing the presser foot
holder
Remove the presser foot holder when cleaning the
sewing machine or when installing a presser foot that
does not use the presser foot holder, such as the
quilting foot. Use the screwdriver to remove the
presser foot holder.
■ Removing the presser foot holder
a
Remove the presser foot.
• For details, refer to “Replacing the presser
foot” (page 24).
b
Use the screwdriver to loosen the presser foot
holder screw.
a Screwdriver
b Presser foot holder
c Presser foot holder screw
■ Attaching the presser foot holder
a
Align the presser foot holder with the lower-
left side of the presser bar.
a Presser foot holder
b Presser bar
b
Hold the presser foot holder in place with
your right hand, and then tighten the screw
using the screwdriver in your left hand.
a Screwdriver
b Presser foot holder
c Presser foot holder screw
Note
● If the presser foot holder is not correctly
installed, the thread tension will be
incorrect.
29
2

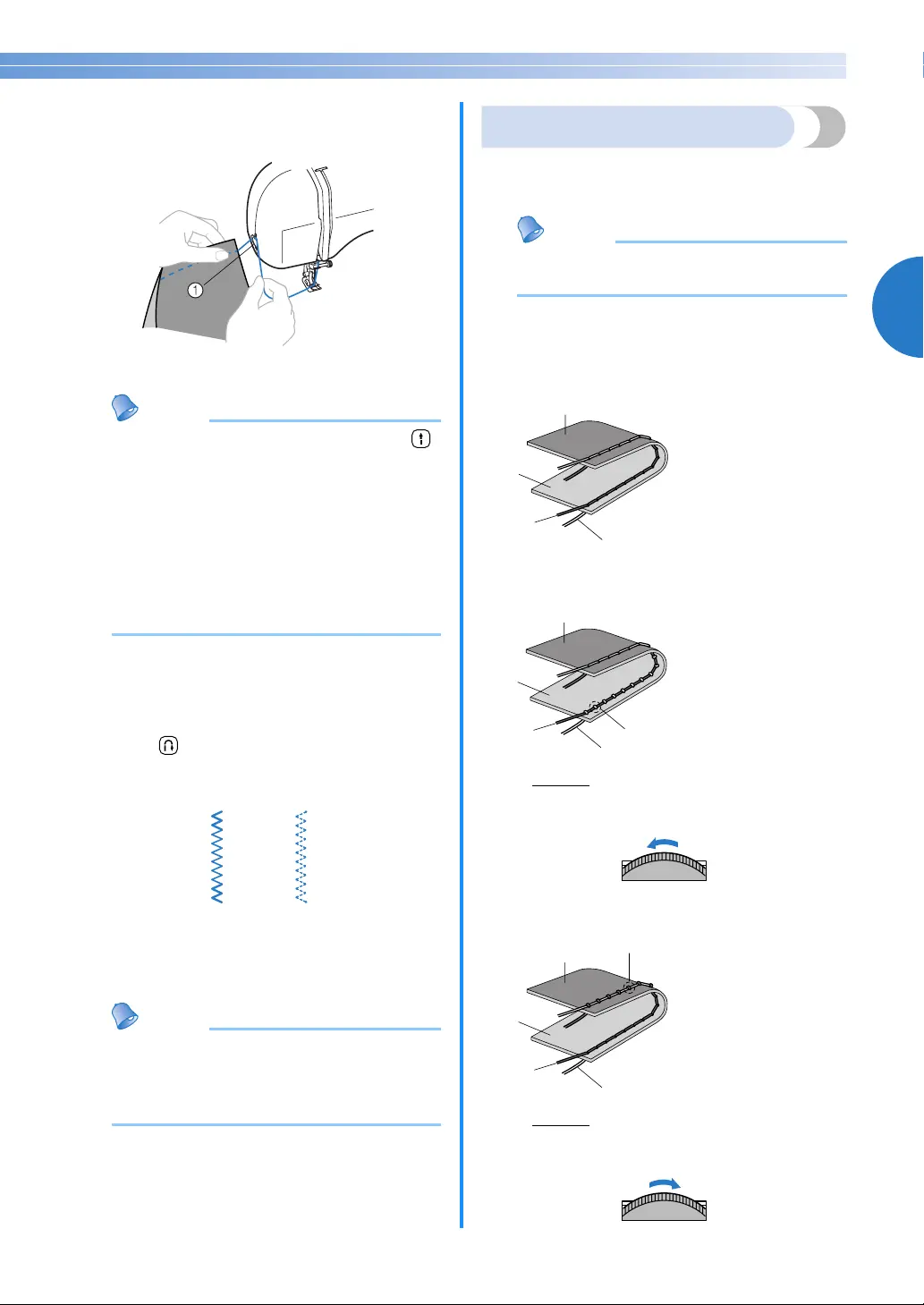

k
Pull the fabric to the left side of the machine,
and then pass the threads through the thread
cutter to cut them.
a Thread cutter
Memo
● When the foot controller is plugged in,
(start/stop button) cannot be used to start or
stop sewing.
●
When sewing is stopped, the needle remains
lowered (in the fabric). The machine can be
set so that the needle will stay up when
sewing is stopped. For details on setting the
machine so that the needles stay up when
sewing is stopped, refer to “Changing the
needle stop position” (page 10).
■ Sewing reinforcement stitches
When sewing stitches other than straight or zigzag
stitches that are secured with reverse stitching,
pressing (reverse/reinforcement stitch button)
sews reinforcement stitches, 3 to 5 stitches on top
of each other.
a Reverse stitching
b Reinforcement stitching
Memo
● Whether reverse stitches or reinforcement
stitches are sewn depends on the stitch that
is selected. For details, refer to “Stitch
settings” (page 52).
Thread tension
The thread tension will affect the quality of your
stitches. You may need to adjust it when you change
fabric or thread.
Memo
● We recommend that you do a test sample
on scrap of a fabric before you start to sew.
■ Correct tension
Correct tension is important as too much or too
little tension will weaken your seams or cause
puckers on your fabric.
■ Upper tension is too tight
Loops will appear on the surface of the fabric.
Solution
Reduce the tension by turning the upper
tension-control dial to a lower number.
■ Upper tension is too loose
Loops appear on the wrong side of the fabric.
Solution
Increase the tension by turning the upper
tension-control dial to a higher number.
1
2
1
2
3
4
a Wrong side
b Surface
c Upper thread
d Lower thread
1
2
3
4
5
a Wrong side
b Surface
c Upper thread
d Lower thread
e Loops appear on
surface of fabric
4
3
5
1
2
3
4
5
a Wrong side
b Surface
c Upper thread
d Lower thread
e Loops appear on
wrong side of
fabric
4
3
5
SEWING BASICS ——————————————————————————————————————————————————
—
30

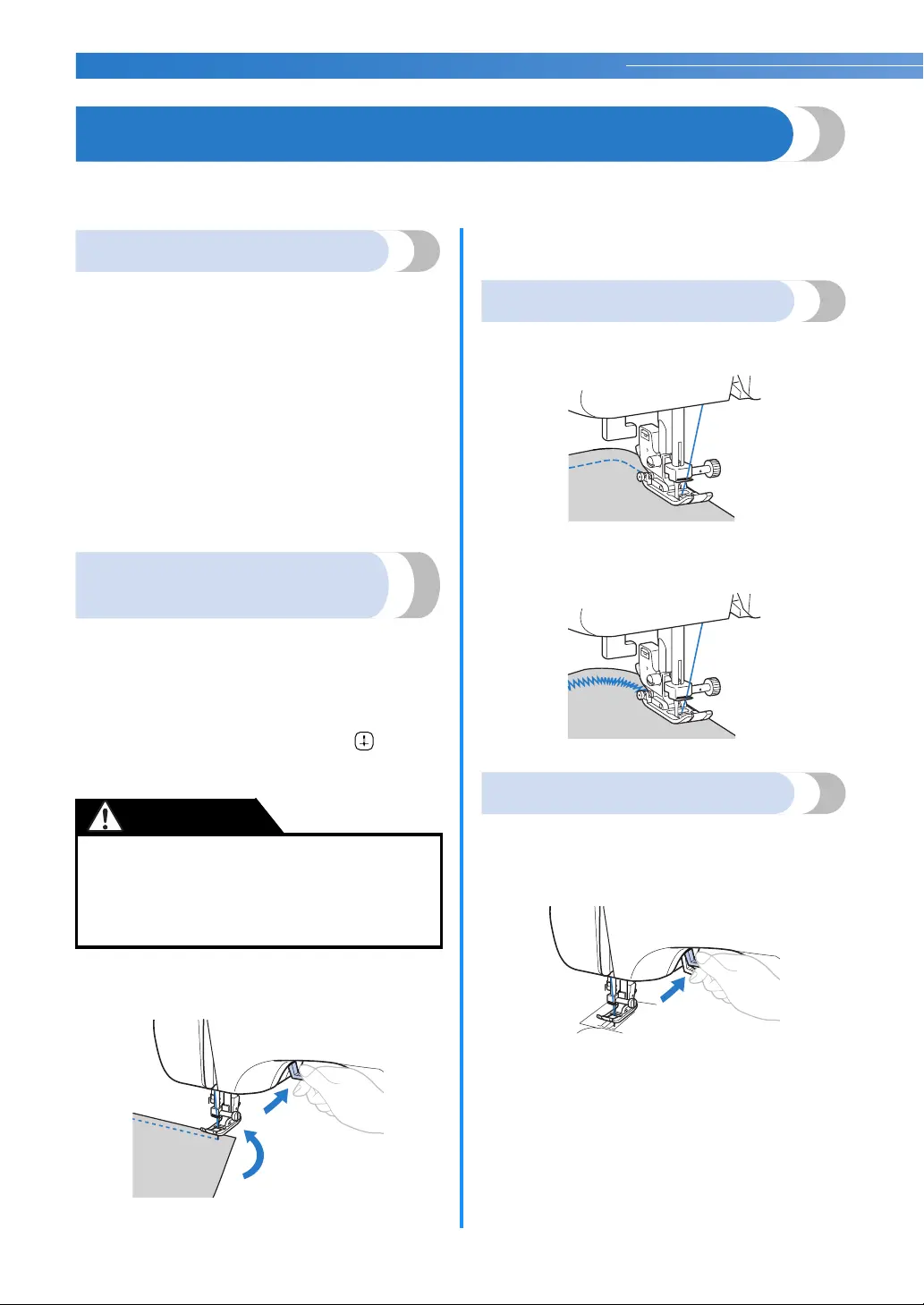

USEFUL SEWING TIPS
Various ways to achieve better results for your sewing projects are described below. Refer to these tips when
sewing your project.
Trial sewing
After you select a stitch, the machine automatically
sets the stitch width and length for the stitch that is
selected.
However, a trial piece of fabric should be sewn since,
depending on the type of fabric and stitching being
sewn, the desired results may not be achieved.
For the trial sewing, use a piece of fabric and thread
that are the same as those used for your project, and
check the thread tension and stitch length and width.
Since the results differ depending on the type of
stitching and the number of layers of fabric sewn,
perform the trial sewing under the same conditions
that will be used with your project.
Changing the sewing
direction
a
When the stitching reaches a corner, stop the
sewing machine.
Leave the needle lowered (in the fabric). If the
needle was raised, lower the needle either by
turning the handwheel toward you
(counterclockwise) or by pressing (needle
position button) once (for models equipped
with the needle position button).
b
Raise the presser foot lever, and then turn the
fabric.
Turn the fabric using the needle as a pivot.
c
Lower the presser foot lever and continue
sewing.
Sewing curves
Stop sewing, and then slightly change the sewing
direction to sew around the curve.
When sewing along a curve while using a zigzag
stitch, select a shorter stitch length in order to obtain
a finer stitch.
Sewing thick fabrics
■ If the fabric does not fit under the presser foot
If the fabric does not fit easily under the presser
foot, raise the presser foot lever even higher to
bring the presser foot to its highest position.
● When using the twin needle, be sure to raise
the needle before changing the sewing
direction. If the fabric is turned while the
needle is lowered, the needle may bend or
break.
CAUTION
33
3

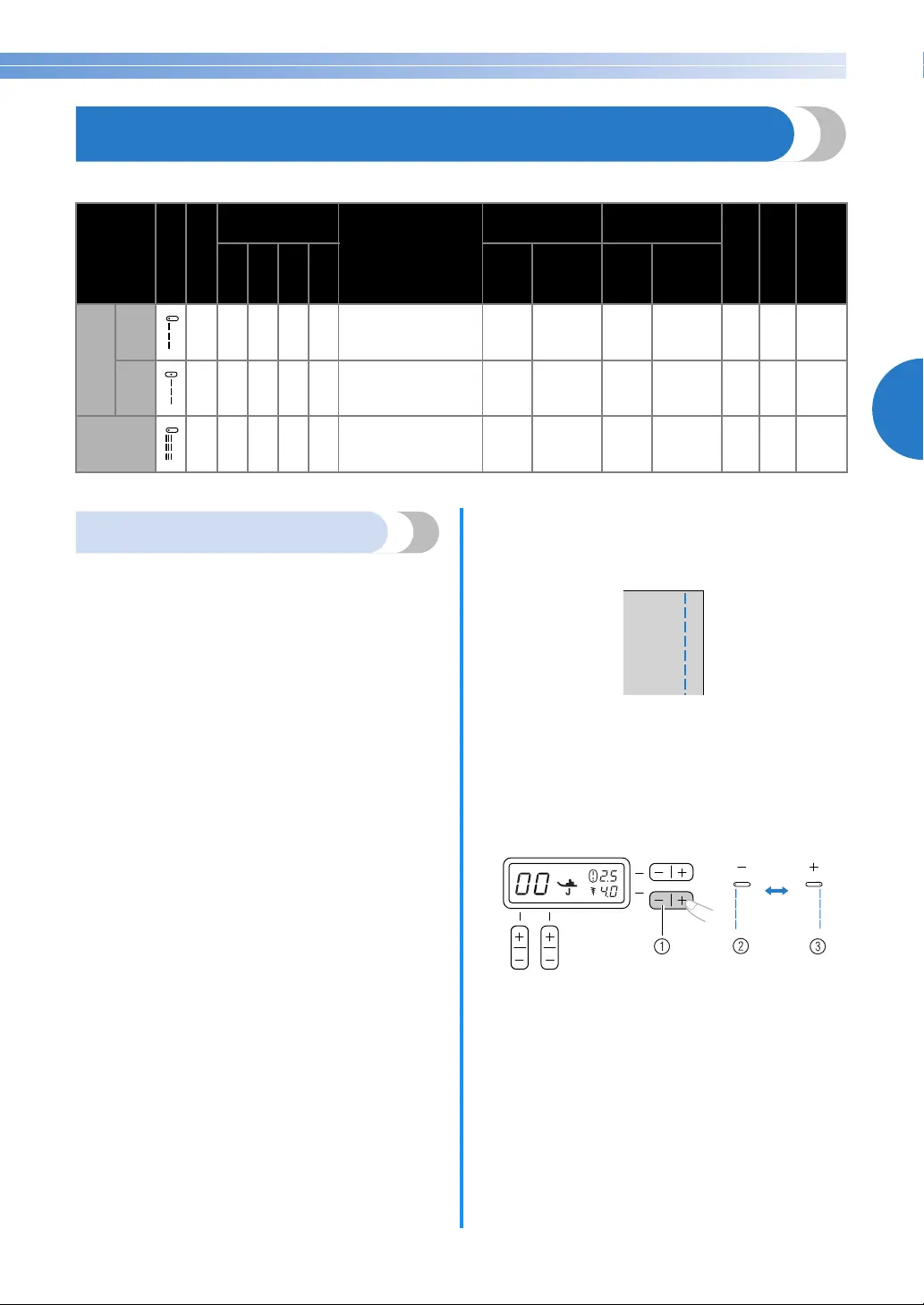

BASIC STITCHING
Straight stitches are used for sewing plain seams. Three stitches are available for basic stitching.
*Rev.: Reverse **Rfc.: Reinforcement ***Do not use reverse stitching.
Basic stitching
a
Baste or pin together the fabric pieces.
b
Attach zigzag foot “J”.
c
Select a stitch.
• For details, refer to “Selecting stitching”
(page 27).
d
Lower the needle into the fabric at the
beginning of the stitching.
e
Start sewing.
• For details, refer to “Starting to sew”
(page 28).
• For details on sewing reverse/reinforcement
stitches, refer to “Sewing reinforcement
stitches” (page 29).
f
When sewing is finished, cut the thread.
• For details, refer to “Starting to sew”
(page 28).
■ Changing the needle position
With the straight stitch (left needle position) and
the triple stretch stitch, the needle position can be
adjusted. Pressing the “+” side of the stitch width
adjustment key moves the needle to the right;
pressing the “–” side of the stitch width
adjustment key moves the needle to the left.
a Stitch width adjustment key
b Left needle position
c Right needle position
Stitch Name
Pattern
Presser Foot
Pattern No.
Application
Stitch Width
[mm (inch.)]
Stitch Length
[mm (inch.)]
Twin Needle
Walking Foot
Reverse/
Reinforcement
Stitching
70 stitches
model
60 stitches
model
50 stitches
model
40 stitches
model
Auto Manual Auto Manual
Straight
Left J 00000000
Basic stitching, sewing
gathers or pintucks, etc.
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
No Yes Rev.
Center
J 01010101
Attaching zippers, basic
stitching, and sewing
gathers or pintucks, etc.
––
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Yes
( J )
Yes Rev.
Triple
stretch stitch
J 02020202
Attaching sleeves, sew-
ing inseams, sewing
stretch fabrics and deco-
rative stitching
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
No No Rfc.
*
**
***
***
*
35
3
BUTTONHOLE SEWING
Buttonholes can be sewn and buttons can be sewn on.
*Auto Rfc.: Automatic Reinforcement **Rfc.: Reinforcement
The maximum buttonhole length is about 28 mm (1-1/8 inch) (diameter + thickness of the button).
Buttonholes are sewn from the front of the presser foot to the back, as shown below.
Stitch Name
Pattern
Presser Foot
Pattern No.
Application
Stitch Width
[mm (inch.)]
Stitch Length
[mm (inch.)]
Twin Needle
Walking Foot
Reverse/
Reinforcement
Stitching
70 stitches
model
60 stitches
model
50 stitches
model
40 stitches
model
Auto Manual Auto Manual
Buttonhole
stitch
A 29292925
Horizontal buttonholes
on thin and medium
weight fabrics
5.0
(3/16)
3.0-5.0
(1/8-3/16)
0.4
(1/64)
0.2-1.0
(1/64-1/16)
No No
Auto
Rfc.
A 30303026
Secured buttoholes for
fabrics that have back-
ings
5.0
(3/16)
3.0–5.0
(1/8-3/16)
0.4
(1/64)
0.2–1.0
(1/64-1/16)
No No
Auto
Rfc.
A 31313127
Buttonholes for stretch or
knit fabrics
6.0
(15/64)
3.0–6.0
(1/8-15/64)
1.0
(1/16)
0.5–2.0
(1/32-1/16)
No No
Auto
Rfc.
A 32323228
Buttonholes for stretch
fabrics
6.0
(15/64)
3.0–6.0
(1/8-15/64)
1.5
(1/16)
1.0–3.0
(1/16-1/8)
No No
Auto
Rfc.
A 33333329
Keyhole buttonholes for
thick or furry fabrics
7.0
(1/4)
3.0–7.0
(1/8-1/4)
0.5
(1/32)
0.3–1.0
(1/64-1/16)
No No
Auto
Rfc.
A3434– –
Keyhole buttonholes for
medium weight and thick
fabrics
7.0
(1/4)
3.0–7.0
(1/8-1/4)
0.5
(1/32)
0.3–1.0
(1/64-1/16)
No No
Auto
Rfc.
A3535– –
Keyhole buttonholes for
thick or furry fabrics
7.0
(1/4)
3.0–7.0
(1/8-1/4)
0.5
(1/32)
0.3–1.0
(1/64-1/16)
No No
Auto
Rfc.
Zigzag stitch
(for quilting)
J4040– –
Appliqué quilting, free-
motion quilting, satin
stitching, button sewing
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0-4.0
(0-3/16)
No Yes Rfc.
a Reinforcement stitching
*
**
*
*
*
*
*
*
37
3
• When lowering the presser foot, do not push
in the front of the presser foot, otherwise the
buttonhole will not be sewn with the correct
size.
a Do not reduce the gap.
f
Pull down the buttonhole lever as far as
possible.
a Buttonhole lever
The buttonhole lever is positioned behind the
bracket on the buttonhole foot.
a Buttonhole lever
b Bracket
g
Gently hold the end of the upper thread in
your left hand, and then start sewing.
X Once sewing is completed, the
machine automatically sews
reinforcement stitches, then stops.
h
Raise the presser foot lever, remove the
fabric, and cut the thread.
i
Raise the buttonhole lever to its original
position.
j
Insert a pin at the end of the buttonhole
stitching to prevent the stitching from being
cut, and then use a seam ripper to cut towards
the pin and open the buttonhole.
a Seam ripper
b Pin
For keyhole buttonholes, use a commercial
eyelet punch to make a hole in the rounded
end of the buttonhole, and then use the seam
ripper to cut open the buttonhole.
a Eyelet punch
• When using the eyelet punch, place thick
paper or some other protective sheet under
the fabric before punching the hole in the
fabric.
Memo
● Before sewing buttonholes, check the stitch
length and width by sewing a trial
buttonhole on a scrap piece of fabric.
● When opening the buttonhole with the seam
ripper, do not place your hands in the cutting
direction, otherwise injuries may result if the
seam ripper slips.
1
2
1
CAUTION
UTILITY STITCHES —————————————————————————————————————————————————
—
42
APPLIQUÉ, PATCHWORK AND QUILT STITCHING
The stitches that can be used for sewing appliqués, patchwork and quilts are described below.
*Rfc.: Reinforcement **Do not use reverse stitching.
Appliqués
You can create an appliqué by cutting a different
piece of fabric into a shape and using it as a
decoration.
a
Baste the cut design to the fabric.
b
Attach zigzag foot “J”.
c
Select stitch .
Stitch Name
Pattern
Presser Foot
Pattern No.
Application
Stitch Width
[mm (inch.)]
Stitch Length
[mm (inch.)]
Twin Needle
Walking Foot
Reverse/
Reinforcement
Stitching
70 stitches
model
60 stitches
model
50 stitches
model
40 stitches
model
Auto Manual Auto Manual
Zigzag stitch J 04040404
Overcasting and attach-
ing appliqués
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
Yes
( J )
Yes Rfc.
Zigzag stitch
(for quilting)
J4040- -
Appliqué quilting, free-
motion quilting, satin
stitching
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
No Yes Rfc.
Appliqué
stitch
J 11 11 11 11 Appliqué stitching
3.5
(1/8)
2.5–5.0
(3/32–3/16)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
Yes
( J )
No Rfc.
Appliqué
stitch
(for quilting)
J4141- -
Attaching appliqués and
binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.2
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
J4242- -
Attaching appliqués and
binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.2
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
Piecing
straight
stitch
J3737- -
Piecing straight stitching
(with a seam allowance
of 6.5mm from the right
edge of the presser foot)
5.5
(7/32)
0.0–7.0
(0–1/4)
1.6
(1/16)
0.2–5.0
(1/64–3/16)
No Yes Rfc.
J3838- -
Piecing straight stitching
(with a seam allowance
of 6.5mm from the right
edge of the presser foot)
1.5
(1/16)
0.0–7.0
(0–1/4)
1.6
(1/16)
0.2–5.0
(1/64–3/16)
No Yes Rfc.
Joining stitch
J 14141414
Patchwork stitching and
decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
( J )
No Rfc.
J 15151515
Patchwork stitching, dec-
orative stitching and sew-
ing overcasting on both
pieces of fabrics, such as
with tricot
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
( J )
No Rfc.
J 16161616
Patchwork stitching and
decorative stitching
5.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
( J )
No Rfc.
Hand-look
quilting
J 39393531
Straight stitch quilting
that looks hand-sewn
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No No Rfc.
Quilting
stippling
J4343- -
Quilting background
stitching (stippling)
7.0
(1/4)
1.0–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
*
**
*
*
*
*
*
*
*
*
*
*
*
43
3
d
Carefully sew around the edge of the design.
e
Cut away any fabric that is left outside the stitching.
f
Remove the basting, if necessary.
Memo
● Make reinforcing straight stitches at the
beginning and the end of stitching.
Patchwork (crazy quilt)
stitching
a
Fold the edge of the top piece of fabric and
place it over the lower piece.
b
Sew the two pieces of fabric together so the
pattern spans both pieces.
Piecing
Sewing together two pieces of fabric is called
“piecing”. The fabric pieces should be cut with a
6.5 mm (1/4 inch) seam allowance.
Sew a piecing straight stitch 6.5 mm (1/4 inch) from
either the right side or the left side of the presser foot.
a
Baste or pin along the seam allowance of the
fabric that you wish to piece together.
b
Attach zigzag foot “J”.
c
Select stitch or
.
d
Sew with the side of the presser foot aligned
with the edge of the fabric.
■ For a seam allowance on the right side
Align the right side of the presser foot with the
edge of the fabric, and sew using stitch .
a 6.5 mm (1/4 inch)
■ For a seam allowance on the left side
Align the left side of the presser foot with the
edge of the fabric, and sew using stitch .
a 6.5 mm (1/4 inch)
Memo
● To change the width of the seam allowance
(the needle position), adjust the stitch width.
For details, refer to “Changing the needle
position” (page 33).
● Be careful that the needle does not hit a pin
during sewing, as the needle can break. You
may also be injured.
CAUTION
1
1
Produkt Specifikationer
| Mærke: | Brother |
| Kategori: | Symaskine |
| Model: | XR-6600 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Brother XR-6600 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Symaskine Brother Manualer
18 August 2025
17 August 2025
17 August 2025
2 August 2025
2 August 2025
2 August 2025
2 August 2025
2 August 2025
1 August 2025
1 August 2025
Symaskine Manualer
- RCE
- W6
- Durabase
- Home Electric
- Yamata
- Kayser
- Hugin
- SilverCrest
- Gritzner
- Lifetec
- ER
- Kohler
- Toyota
- Jocca
- Medion
Nyeste Symaskine Manualer
18 August 2025
17 August 2025
16 August 2025
16 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
